2000 TOYOTA COROLLA light

2000 Corolla(U)
20
Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ONº position.
Sliding operationÐ
To open: Push the switch on the SLIDEº
side.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.Tilting operationÐ
To tilt up: Push the switch on the UPº
side.
To lower: Push the switch on the opposite
side of the UPº side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.

While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
ProCarManuals.com

2000 Corolla(U)
25

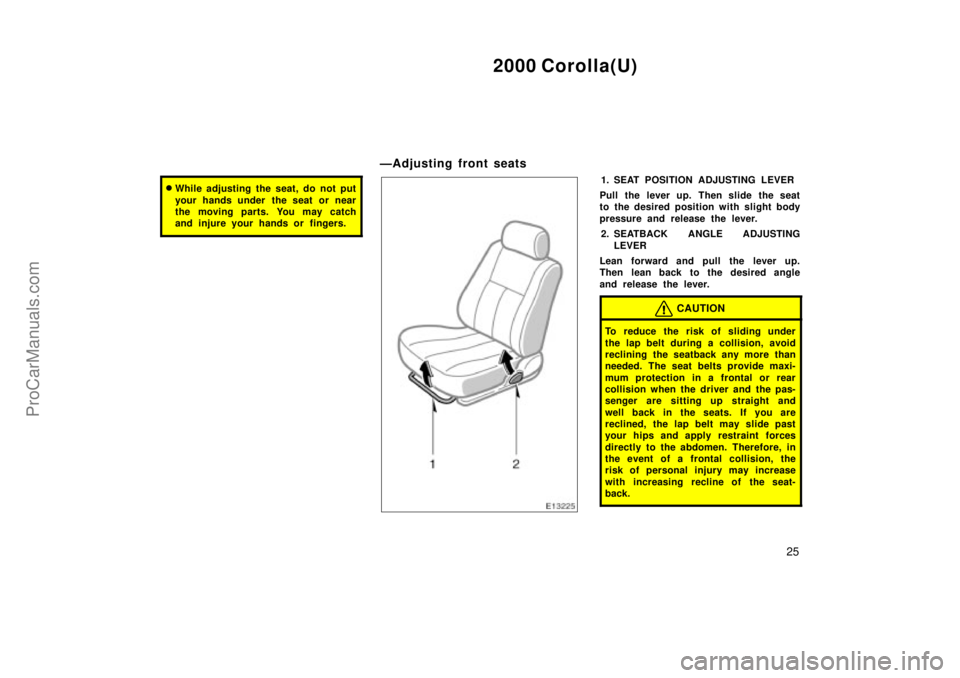

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
ÐAdjusting front seats
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
ProCarManuals.com

2000 Corolla(U)
27
(B) PREVENTING DAMAGE TO REAR
CENTER SEAT BELT WEBBING
When folding down the left seatback, if
the luggage loaded in the enlarged
trunk will damage the webbing of the
rear center seat belt, disconnect the
rear center seat belt to prevent damage.
Insert the key into the hole (light gray)
on the buckle to release tab 1 (light
gray), and allow the belt to retract.
CAUTION
Disconnect the rear center seat belt
only under the above mentioned cir-
cumstances; do not disconnect it in
other circumstances.
(C) BEFORE RETURNING REAR SEAT
Make sure the shoulder belt pass
through the guide when returning the
seatback up.
ProCarManuals.com

2000 Corolla(U)
28

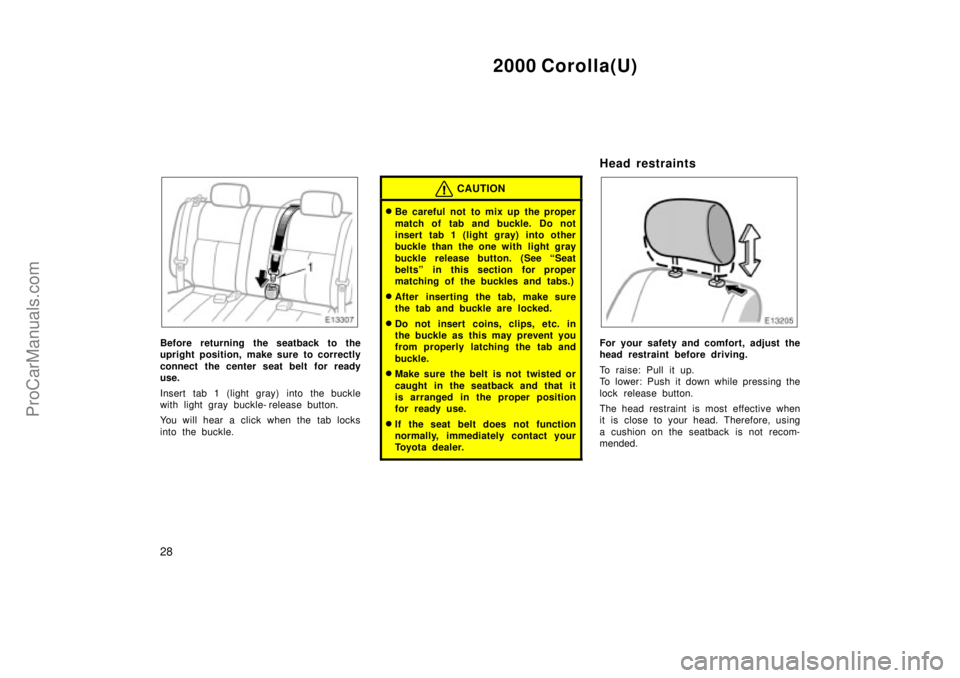

Before returning the seatback to the
upright position, make sure to correctly
connect the center seat belt for ready
use.
Insert tab 1 (light gray) into the buckle
with light gray buckle- release button.
You will hear a click when the tab locks
into the buckle.
CAUTION

Be careful not to mix up the proper
match of tab and buckle. Do not
insert tab 1 (light gray) into other
buckle than the one with light gray
buckle release button. (See Seat
beltsº in this section for proper
matching of the buckles and tabs.)

After inserting the tab, make sure
the tab and buckle are locked.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

Make sure the belt is not twisted or
caught in the seatback and that it
is arranged in the proper position
for ready use.

If the seat belt does not function
normally, immediately contact your
Toyota dealer.
Head restraints
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
ProCarManuals.com

2000 Corolla(U)
31
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see Child
restraintº in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injures in a collision.
ProCarManuals.com

2000 Corolla(U)
33
REAR CENTER SEAT BELT (WITH
FOLD- DOWN SEAT)
The rear center seat belt is a 3- point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation
Make sure the buckle 1 (with light gray
buckle- release button) is securely latched
for ready use of the center seat belt.
The buckle 1 should be separated only
when the rear left seatback is folded
down, if the luggage loaded in the en-
larged trunk will damage the webbing of
the rear center seat belt. (See Fold- down
rear seatº in this section for the instruc-
tion of how to correctly connect the seat
belt.)Two buckles and tabs for rear center
seat belt
The two buckles for the rear center seat
belt are distinguished with colors of the
buckle release button. Also the two tabs
have different shape for its end so that
the belt is not buckled in the wrong place.
Buckle 1ÐProperly matches with light
gray tab
Buckle 2ÐProperly matches with interi-
or color tab
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
ProCarManuals.com

2000 Corolla(U)
36
This indicator comes on when the igni-
tion key is turned to the ACCº or
ONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
warning light, interconnecting wiring and
power sources. (For details, see Service
reminder indicators and warning buzzersº
in Section 1- 5.)The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioner is controlled by
the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.When a seat belt pretensioner is acti-
vated, an operating noise may be heard
and a small amount of smoke- like gas
may be released. This gas is harmless
and does not indicate that a fire is occur-
ring.
Once the seat belt pretensioner has been
activated, the seat belt retractor remains
locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in serious injury.
Failure to follow these instructions
can result in serious injuries.
ProCarManuals.com

2000 Corolla(U)
37
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.

Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player

Repairs on or near the front seat
belt retractor assemblies

Modification of the suspension sys-
tem

Modification of the front end struc-
ture

Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end

Repairs made on or near the front
fenders, front end structure or con-
sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position, or remains on.

The light comes on or flashes while
driving.

If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.

The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS airbags to inflate.

The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.
