2000 TOYOTA COROLLA seat adjustment

2000 Corolla(U)
24
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded- down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.

During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.

Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.

Do not modify or replace the seats
or surface of the front seats with
the side airbags. Such changes may
disable the system or cause the
side airbags to inflate, resulting in
death or serious injury. Consult
your Toyota dealer.

Do not use accessories for the
seats which cover the parts where
the side airbags should inflate.
Such accessories may prevent the
side airbags from activating correct-
ly, causing death or serious injury.
Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats
as they may interfere with the seat-
lock mechanism or unexpectedly
push up the seat position adjusting
lever; the seat may suddenly move,
causing the driver to lose control of
the vehicle.
Front seatsÐ
ÐFront seat precautions
(with SRS side airbags)ÐSeat adjustment
precautions
ProCarManuals.com

2000 Corolla(U)
30

Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven children.

Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)

Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts. (See Cleaning the interiorº
in Section 5.)

Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
ÐFront and rear seat belts
ProCarManuals.com

2000 Corolla(U)
31
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see Child
restraintº in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injures in a collision.
ProCarManuals.com

2000 Corolla(U)
53

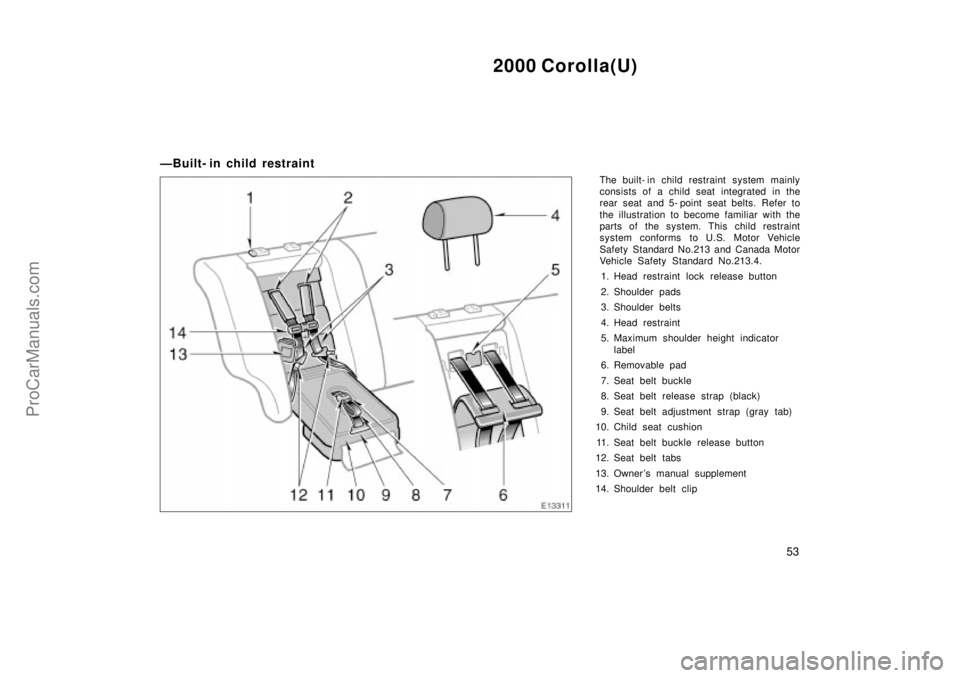

ÐBuilt- in child restraint
The built- in child restraint system mainly
consists of a child seat integrated in the
rear seat and 5- point seat belts. Refer to
the illustration to become familiar with the
parts of the system. This child restraint
system conforms to U.S. Motor Vehicle
Safety Standard No.213 and Canada Motor
Vehicle Safety Standard No.213.4.
1. Head restraint lock release button
2. Shoulder pads
3. Shoulder belts
4. Head restraint
5. Maximum shoulder height indicator
label
6. Removable pad
7. Seat belt buckle
8. Seat belt release strap (black)
9. Seat belt adjustment strap (gray tab)
10. Child seat cushion
11. Seat belt buckle release button
12. Seat belt tabs
13. Owner 's manual supplement
14. Shoulder belt clip
ProCarManuals.com

2000 Corolla(U)
58

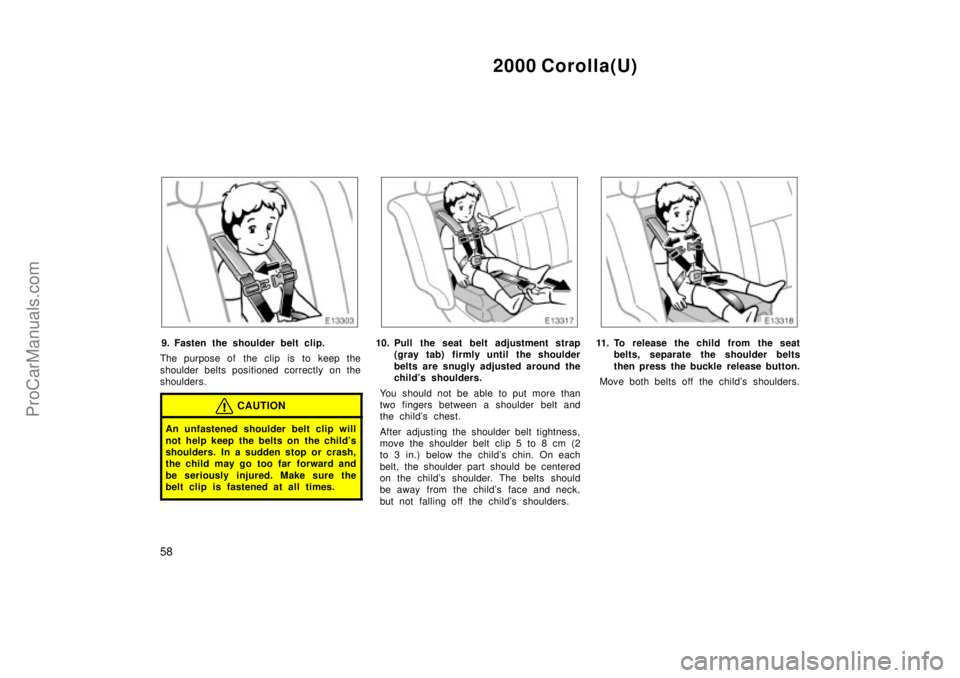

9. Fasten the shoulder belt clip.
The purpose of the clip is to keep the
shoulder belts positioned correctly on the
shoulders.
CAUTION
An unfastened shoulder belt clip will
not help keep the belts on the child's
shoulders. In a sudden stop or crash,
the child may go too far forward and
be seriously injured. Make sure the
belt clip is fastened at all times.
10. Pull the seat belt adjustment strap
(gray tab) firmly until the shoulder
belts are snugly adjusted around the
child's shoulders.
You should not be able to put more than
two fingers between a shoulder belt and
the child's chest.
After adjusting the shoulder belt tightness,
move the shoulder belt clip 5 to 8 cm (2
to 3 in.) below the child's chin. On each
belt, the shoulder part should be centered
on the child's shoulder. The belts should
be away from the child's face and neck,
but not falling off the child's shoulders.11. To release the child from the seat
belts, separate the shoulder belts
then press the buckle release button.
Move both belts off the child's shoulders.
ProCarManuals.com

2000 Corolla(U)
59

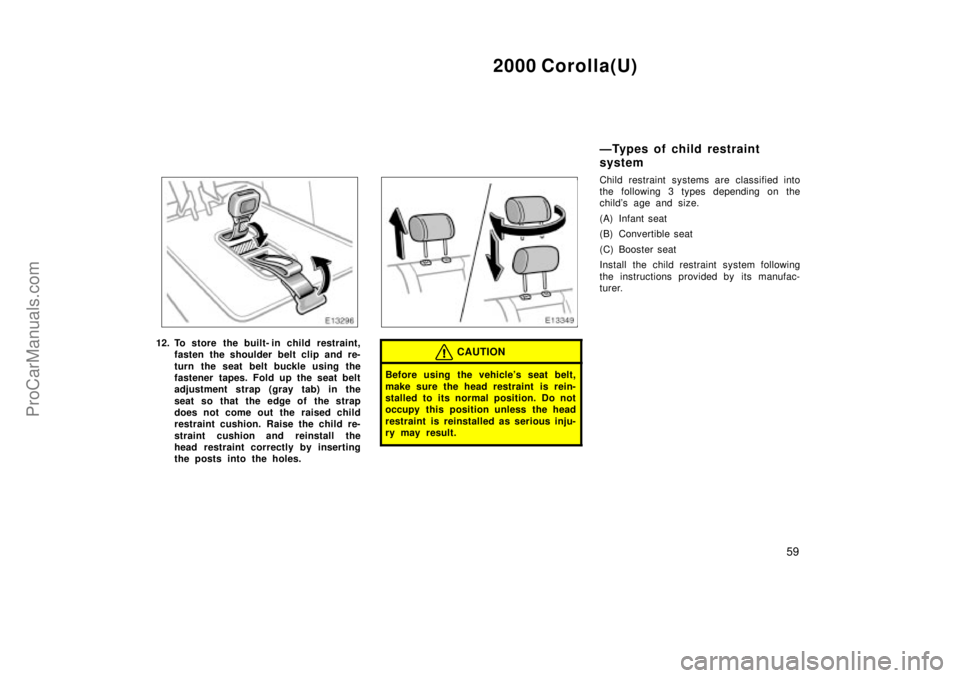

12. To store the built- in child restraint,
fasten the shoulder belt clip and re-
turn the seat belt buckle using the
fastener tapes. Fold up the seat belt
adjustment strap (gray tab) in the
seat so that the edge of the strap
does not come out the raised child
restraint cushion. Raise the child re-
straint cushion and reinstall the
head restraint correctly by inserting
the posts into the holes.CAUTION
Before using the vehicle's seat belt,
make sure the head restraint is rein-
stalled to its normal position. Do not
occupy this position unless the head
restraint is reinstalled as serious inju-
ry may result.
Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
ÐTypes of child restraint
system
ProCarManuals.com
