2000 TOYOTA COROLLA light

2000 Corolla(U)
222
5. Install the rubber cover with the
TOPº mark upward, and snuggle on
the boss. Insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips- head screwdriver.
ÐParking, front side marker
and front turn signal lights
ProCarManuals.com

2000 Corolla(U)
223
Removing:
Installing:
Removing and installing clips (type A): Use
a flat- bladed screwdriver or equivalent.
Removing clips (type B): Use a Phillips-
head screwdriver.
Installing clips (type B)
ÐRear side maker, rear turn
signal, and stop and tail
lights
ProCarManuals.com

2000 Corolla(U)
224
a: Stop and tail light
b: Rear turn signal light
c: Rear side marker light

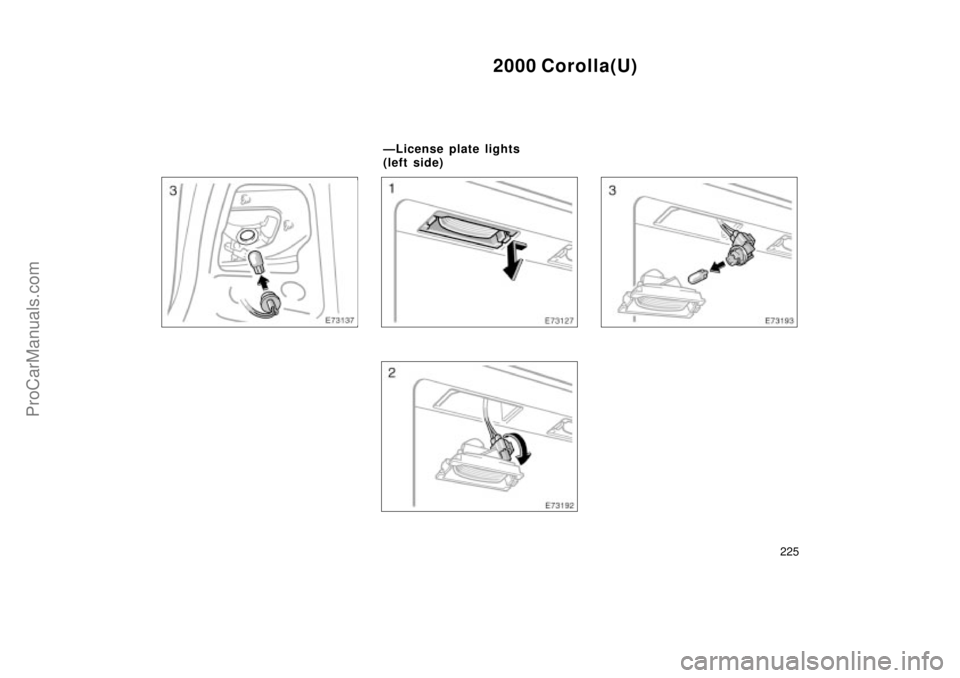

ÐBack- up lights
ProCarManuals.com

2000 Corolla(U)
225
ÐLicense plate lights
( lef t sid e)
ProCarManuals.com

2000 Corolla(U)
226

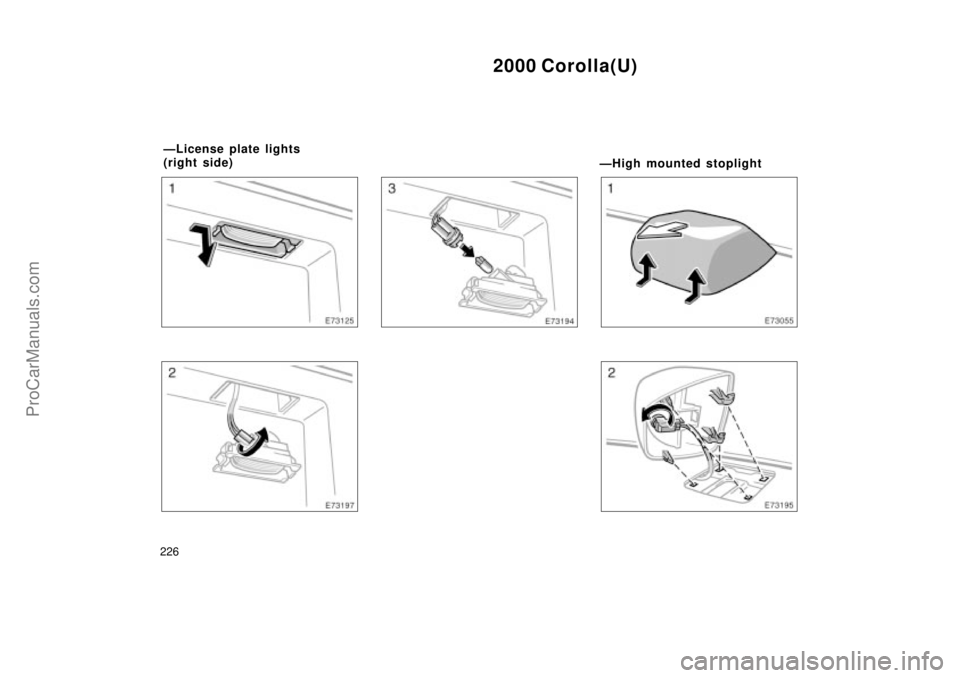

ÐHigh mounted stoplight
ÐLicense plate lights
(right side)
