Page 14 of 246

2000 Corolla(U)
152
ABSº warning light
The light comes on with the ignition key
is turned to the ONº position. If the anti-
lock brake system works properly, the
light goes out after a few seconds. There-
after, if the system malfunctions, the light
comes on.
When the ABSº warning light is on (and
the brake system warning light is off), the
anti- lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the ABSº warning light is on (and
the brake system warning light is off), the
anti- lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If the following conditions occur, this
indicates a malfunction somewhere in
the parts monitored by the warning
light system. Contact your Toyota
dealer as soon as possible to service
the vehicle.
The light does not come on with the
ignition key turned to ONº, or remains
on.
The light comes on while driving.If the light lit during driving goes out and
does not come on again, it is a normal
operation.
Brake pad wear limit indicators
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
ProCarManuals.com
Page 32 of 246

2000 Corolla(U)
Publication No. OM12718U
Part No. 01999-12718
Printed in Japan 01- 9908- 00
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 87. . . . . . . . . .
If your vehicle will not start 170. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 173. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 173. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 174. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break- in period 144. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 158. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 195. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index NO TAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 144 for detailed information.
Fuel tank capacity:
50 L (13.2 gal., 11.0 lmp.gal.)
Engine oil:
API grade SJ, Energy- Conservingº or ILSAC multigrade engine
oil is recommended.
See page 206 for detailed information.
Automatic transmission fluid:
Automatic transmission fluid D- II or DEXRONIII (DEXRONII)
See page 232 for detailed information.
Tire information: See pages 210 through 214.
Tire pressure: See page 233.
eU-4
C
ProCarManuals.com
Page 40 of 246

2000 Corolla(U)
176
The compact spare tire can be used many
times, if necessary. It has tread life of up
to 4800 km (3000 miles) depending on
road conditions and your driving habits.
When tread wear indicators appear on the
tire, replace the tire.
See also the tire section in Section 7- 2
for details on the tread wear indicators
and other service information.
CAUTION
The compact spare tire was de-
signed especially for your Toyota.
Do not use it on any other vehicle.
Do not exceed 80 km/h (50 mph)
when driving with the compact
spare tire.
Avoid sudden acceleration, sudden
deceleration and sharp turns with
the compact spare tire.
NOTICE
Your ground clearance is reduced
when the compact spare tire is
installed so avoid driving over ob-
stacles and drive slowly on rough,
unpaved roads and speed bumps.
Also, do not attempt to go through an
automatic car wash as the vehicle
may get caught, resulting in damage.
Vehicles with compact spare tire
Vehicles without compact spare tire
Ð R eq u ired to o ls an d sp are
tire
ProCarManuals.com
Page 60 of 246

2000 Corolla(U)
196
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding- down
rear seatbacks, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbings are not cut, frayed, worn or
damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission Parkº mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in Pº position and all brakes re-
leased.IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Section 7- 3 for additional in-
formation.
Engine coolant level
Make sure the coolant level is between
the FULLº and LOWº lines on the see-
through reservoir when the engine is cold.
See Section 7- 2 for additional information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower lev-
el lines on the case. Add only distilled
water when replenishing. See Section 7- 3
for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See Section 7- 2 for additional information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level spot. See Section 7- 2 for addi-
tional information.
ProCarManuals.com
Page 78 of 246
2000 Corolla(U)
4

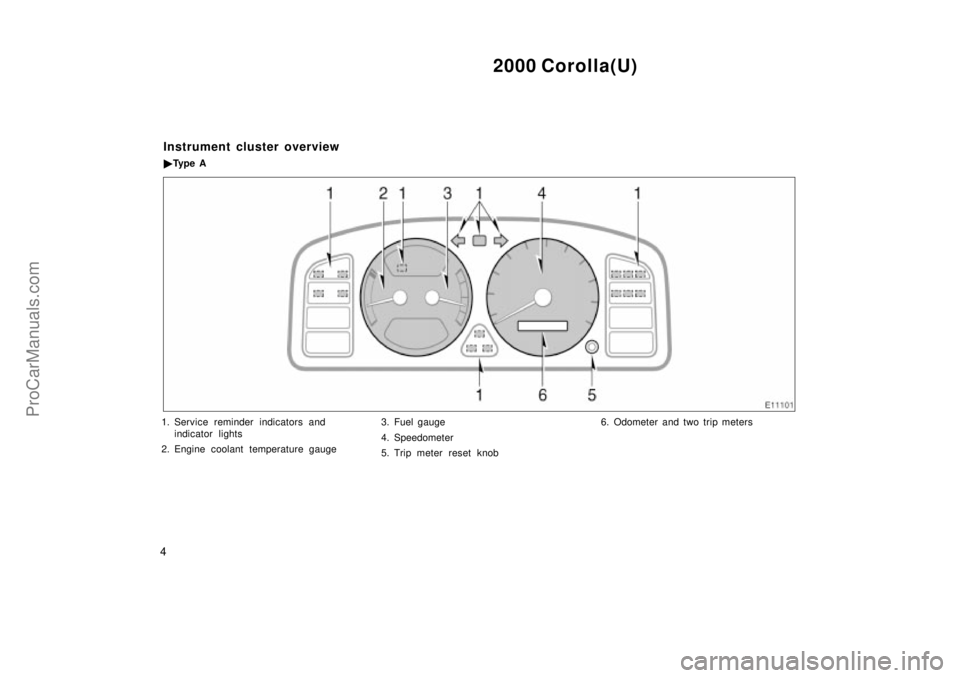

1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge3. Fuel gauge
4. Speedometer
5. Trip meter reset knob6. Odometer and two trip meters
Instrument cluster overview
Ty p e A
ProCarManuals.com
Page 79 of 246
2000 Corolla(U)
5

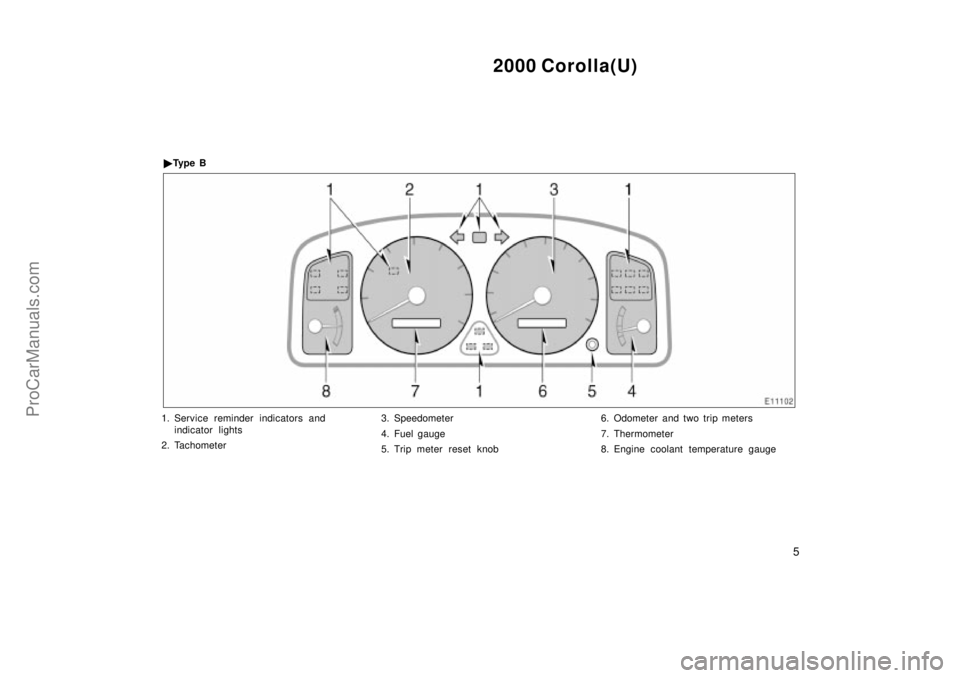

1. Service reminder indicators and
indicator lights
2. Tachometer3. Speedometer
4. Fuel gauge
5. Trip meter reset knob6. Odometer and two trip meters
7. Thermometer
8. Engine coolant temperature gauge Ty p e B
ProCarManuals.com
Page 80 of 246
2000 Corolla(U)
6

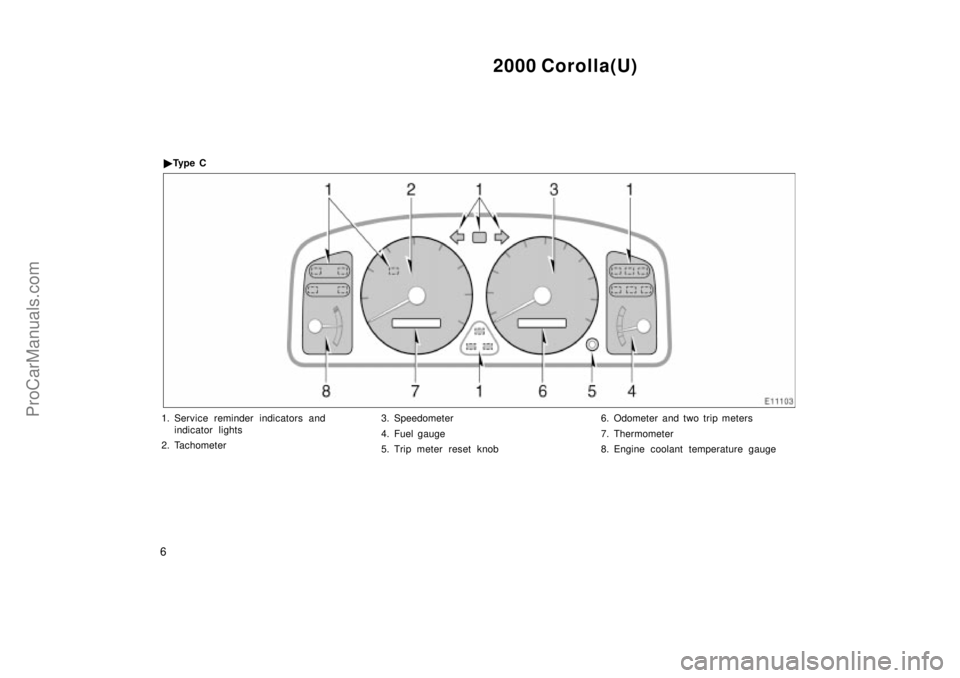

1. Service reminder indicators and
indicator lights
2. Tachometer3. Speedometer
4. Fuel gauge
5. Trip meter reset knob6. Odometer and two trip meters
7. Thermometer
8. Engine coolant temperature gauge Ty p e C
ProCarManuals.com
Page 81 of 246
2000 Corolla(U)
7
Indicator symbols on the instrument panel
(type A)
(type B)
(type A)
(type B)Brake system warning light*
1
Seat belt reminder light*
1
Discharge warning light*
1
Malfunction indicator lamp*
1
Low oil pressure warning light*
1
Anti- lock brake system warning light*
1
Open door warning light*
1
SRS warning light*
1
Low windshield washer fluid level warning
light*
1
Low fuel level warning light*
1
Turn signal indicator lights Headlight high beam indicator light
Overdrive- off indicator light
Cruise control indicator light
*
2
Rear window defogger indicator light
*
1: For details, see Service reminder indicators and warning
buzzersº in Section 1- 5.
*
2: If this light flashes, see Cruise controlº in Section 1- 6.
