2000 TOYOTA COROLLA Owners Manual

2000 Corolla(U)
31
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see Child
restraintº in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injures in a collision.
ProCarManuals.com

2000 Corolla(U)
32

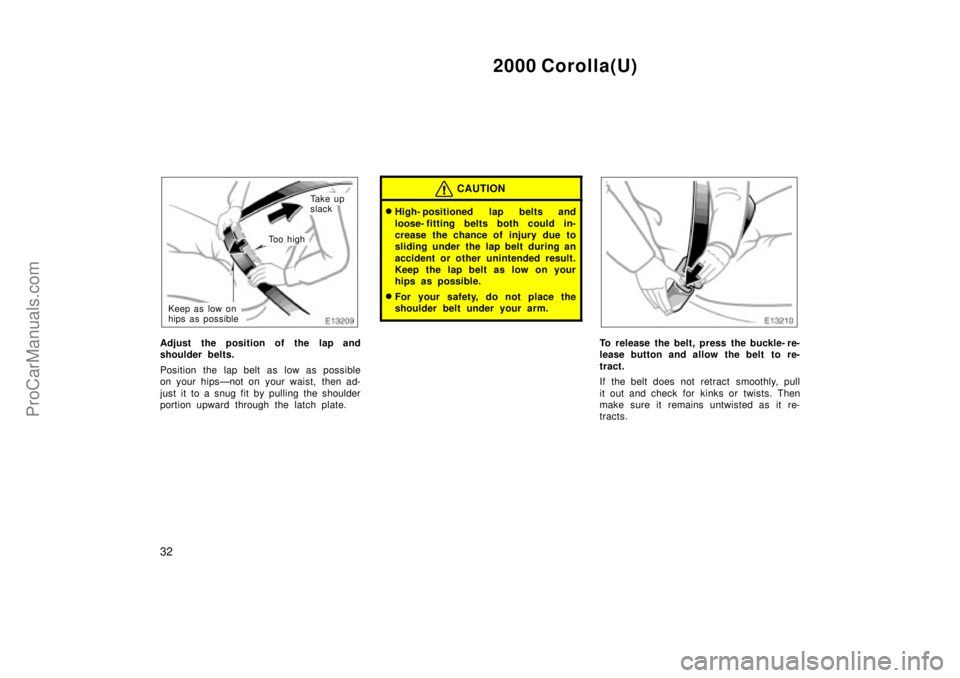

Keep as low on
hips as possibleTo o h i g hTa k e u p
slack
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hipsÐnot on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION

High- positioned lap belts and
loose- fitting belts both could in-
crease the chance of injury due to
sliding under the lap belt during an
accident or other unintended result.
Keep the lap belt as low on your
hips as possible.

For your safety, do not place the
shoulder belt under your arm.
To release the belt, press the buckle- re-
lease button and allow the belt to re-
tract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.
ProCarManuals.com

2000 Corolla(U)
33
REAR CENTER SEAT BELT (WITH
FOLD- DOWN SEAT)
The rear center seat belt is a 3- point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation
Make sure the buckle 1 (with light gray
buckle- release button) is securely latched
for ready use of the center seat belt.
The buckle 1 should be separated only
when the rear left seatback is folded
down, if the luggage loaded in the en-
larged trunk will damage the webbing of
the rear center seat belt. (See Fold- down
rear seatº in this section for the instruc-
tion of how to correctly connect the seat
belt.)Two buckles and tabs for rear center
seat belt
The two buckles for the rear center seat
belt are distinguished with colors of the
buckle release button. Also the two tabs
have different shape for its end so that
the belt is not buckled in the wrong place.
Buckle 1ÐProperly matches with light
gray tab
Buckle 2ÐProperly matches with interi-
or color tab
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
ProCarManuals.com

2000 Corolla(U)
34

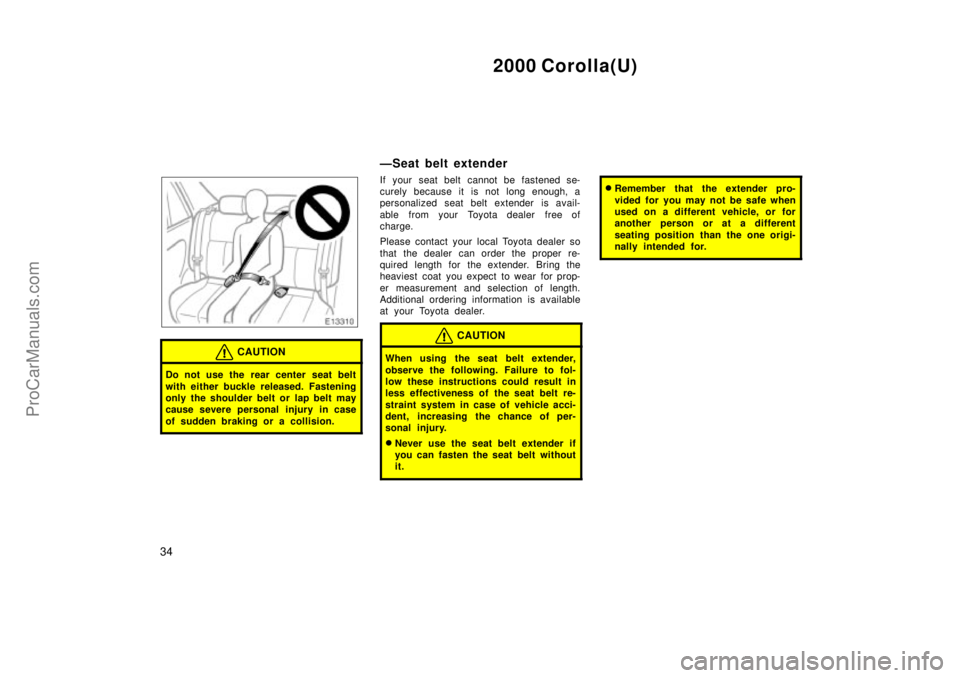

CAUTION
Do not use the rear center seat belt
with either buckle released. Fastening
only the shoulder belt or lap belt may
cause severe personal injury in case
of sudden braking or a collision.
ÐSeat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
CAUTION
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result in
less effectiveness of the seat belt re-
straint system in case of vehicle acci-
dent, increasing the chance of per-
sonal injury.

Never use the seat belt extender if
you can fasten the seat belt without
it.

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
ProCarManuals.com

2000 Corolla(U)
35
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESSº signs on
the buckle- release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle- release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer.
ÐFront seat belt pretensioners
The driver and front passenger 's seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belt is quickly drawn back in by the re-
tractor so that the belt snugly restrains
the front seat occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.
ProCarManuals.com

2000 Corolla(U)
36
This indicator comes on when the igni-
tion key is turned to the ACCº or
ONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
warning light, interconnecting wiring and
power sources. (For details, see Service
reminder indicators and warning buzzersº
in Section 1- 5.)The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioner is controlled by
the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.When a seat belt pretensioner is acti-
vated, an operating noise may be heard
and a small amount of smoke- like gas
may be released. This gas is harmless
and does not indicate that a fire is occur-
ring.
Once the seat belt pretensioner has been
activated, the seat belt retractor remains
locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in serious injury.
Failure to follow these instructions
can result in serious injuries.
ProCarManuals.com

2000 Corolla(U)
37
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.

Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player

Repairs on or near the front seat
belt retractor assemblies

Modification of the suspension sys-
tem

Modification of the front end struc-
ture

Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end

Repairs made on or near the front
fenders, front end structure or con-
sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position, or remains on.

The light comes on or flashes while
driving.

If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.

The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS airbags to inflate.

The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.
ProCarManuals.com

2000 Corolla(U)
38
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
front passenger in addition to the pri-
mary safety protection provided by the
seat belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflat-
ing. The SRS airbags help to reduce inju-
ries mainly to the driver's or front passen-
ger 's head or chest directly hitting the
steering wheel or dashboard. The passen-
ger airbag is activated even with no pas-
senger in the front seat.
Be sure to wear your seat belt.
CAUTION
A driver or front passenger too close
to the steering wheel or dashboard
during airbag deployment can be
killed or seriously injured. Toyota
strongly recommends that:

The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.

The front passenger sit as far back
as possible from the dashboard.

All vehicle occupants be properly
restrained using the available seat
belts.This indicator comes on when the igni-
tion key is turned to the ACCº or
ONº position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see Service reminder indicators and
warning buzzersº in Section 1- 5.)
SRS driver and front
passenger airbags
