2000 TOYOTA COROLLA Owners Manual

2000 Corolla(U)
15
ÐLock release lever
To open the trunk lid from the driver's
seat, pull up on the lock release lever.After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
ÐLock release lever
cancelling system
ProCarManuals.com

2000 Corolla(U)
16
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clipÐthis prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm and keep
the engine from being started if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights. The
engine cannot be started because the
starter circuit will be cut.
ProCarManuals.com

2000 Corolla(U)
17
SETTING THE SYSTEM
1. Turn the ignition key to the LOCKº
position and remove it.
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the doors,
trunk and hood may be opened.
Be careful not to unlock any door with the
key during setting. This will cancel the
system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the doors, trunk or hood is open
at that time, the setting is interrupted until
it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut
the starter circuit under the following
conditions:

If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key

If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept
on.
Reactivating the alarm
Once set, the system automatically resets
the alarm each time all the doors, trunk
and hood are closed after the alarm
stops.
The alarm will be activated again under
the following conditions:

If any of the doors, trunk or hood is
opened

If the battery terminal is disconnected
and then reconnected
ProCarManuals.com

2000 Corolla(U)
18
Stopping the alarm
Turn the ignition key from the LOCKº to
ONº position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the doors, trunk or hood is opened.
Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery termi-
nal is disconnected and then reconnected,
the system is activated.
To resume the setting, close and lock all
the doors, trunk and hood. The trunk must
be closed with the key removed.
CANCELLING THE SYSTEM
Unlock either front door with the key. This
cancels the system completely and the
starter circuit cut will be cancelled at
once.INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You need
the key to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key.
OFFÐThe system is inactive. You may
open any door, trunk and hood.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking any of
the doors with the key.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
ProCarManuals.com

2000 Corolla(U)
19
Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION

Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION

Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.
ProCarManuals.com

2000 Corolla(U)
20
Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ONº position.
Sliding operationÐ
To open: Push the switch on the SLIDEº
side.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.Tilting operationÐ
To tilt up: Push the switch on the UPº
side.
To lower: Push the switch on the opposite
side of the UPº side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.

While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
ProCarManuals.com

2000 Corolla(U)
21

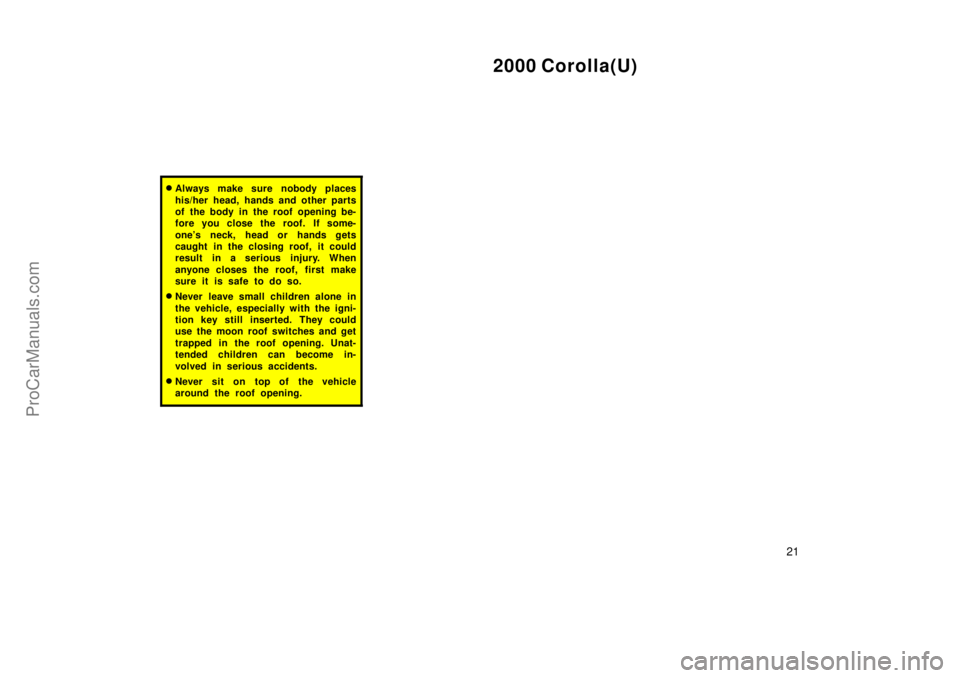

Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.

Never sit on top of the vehicle
around the roof opening.
ProCarManuals.com
