2000 Lexus GS300 Comfort Adjustment

COMFORT ADJUSTMENT
137
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.
16G017

COMFORT ADJUSTMENT
138Adjust the position of the lap and shoulder belts.
1
Position the lap belt as low as possible on your hips
± not on your waist.
2
Adjust it to a snug fit by pulling the shoulder portion
upward through the latch plate.
CAUTION
Both high±positioned lap belts and loose±fitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended result. Keep the lap belt positioned as
low on hips as possible.
For your safety, do not place the shoulder belt under
your arm.
16G018

COMFORT ADJUSTMENT
139 Adjust the shoulder anchor position to your size.
To raise the anchor position, push the anchor up. To
lower the anchor position, support the anchor while you
push the lock release button then slide the anchor down.
After adjustment, make sure the anchor is locked in
position.
CAUTION
Always make sure the shoulder belt is positioned
across the center of your shoulder. The belt should be
kept away from your neck, but not falling off your
shoulder. Failure to do so could reduce the amount of
protection in an accident and cause severe injuries in a
collision.
16G019

COMFORT ADJUSTMENT

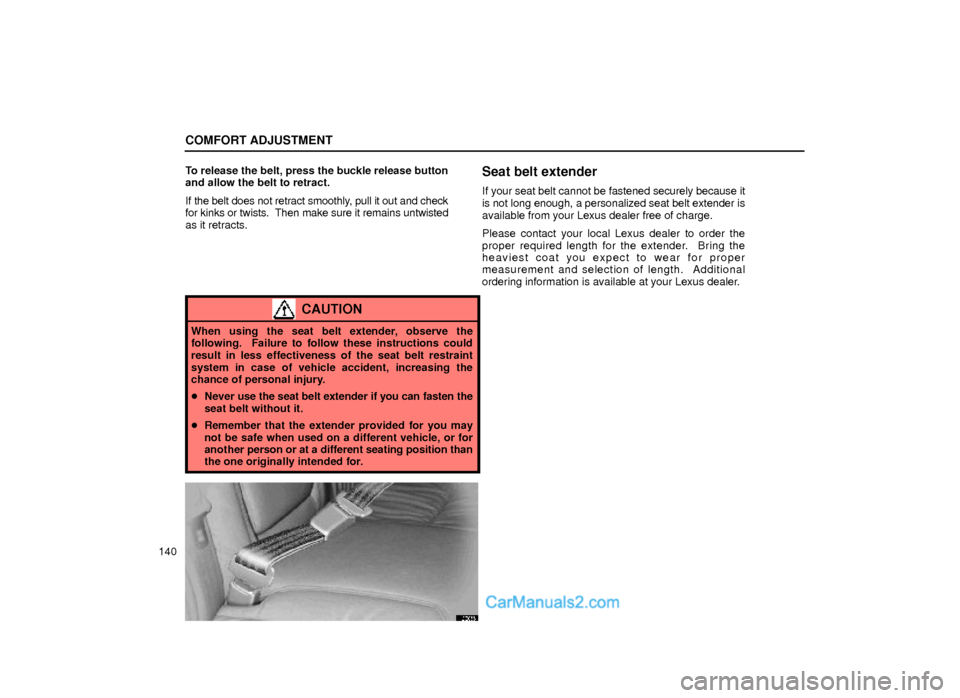

140To release the belt, press the buckle release button
and allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists. Then make sure it remains untwisted
as it retracts.
Seat belt extender
If your seat belt cannot be fastened securely because it
is not long enough, a personalized seat belt extender is
available from your Lexus dealer free of charge.
Please contact your local Lexus dealer to order the
proper required length for the extender. Bring the
heaviest coat you expect to wear for proper
measurement and selection of length. Additional
ordering information is available at your Lexus dealer.
CAUTION
When using the seat belt extender, observe the
following. Failure to follow these instructions could
result in less effectiveness of the seat belt restraint
system in case of vehicle accident, increasing the
chance of personal injury.
Never use the seat belt extender if you can fasten the
seat belt without it.
Remember that the extender provided for you may
not be safe when used on a different vehicle, or for
another person or at a different seating position than
the one originally intended for.
16G055

COMFORT ADJUSTMENT
141 To connect the extender to the seat belt, insert the
tab into the seat belt buckle so that the ºPRESSº
signs on the buckle release buttons of the extender
and the seat belt are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle
release button on the extender, not on the seat belt. This
helps prevent damage to the vehicle interior and
extender itself.
When not in use, remove the extender and store in the
vehicle for future use.

COMFORT ADJUSTMENT
142
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.

COMFORT ADJUSTMENT
143

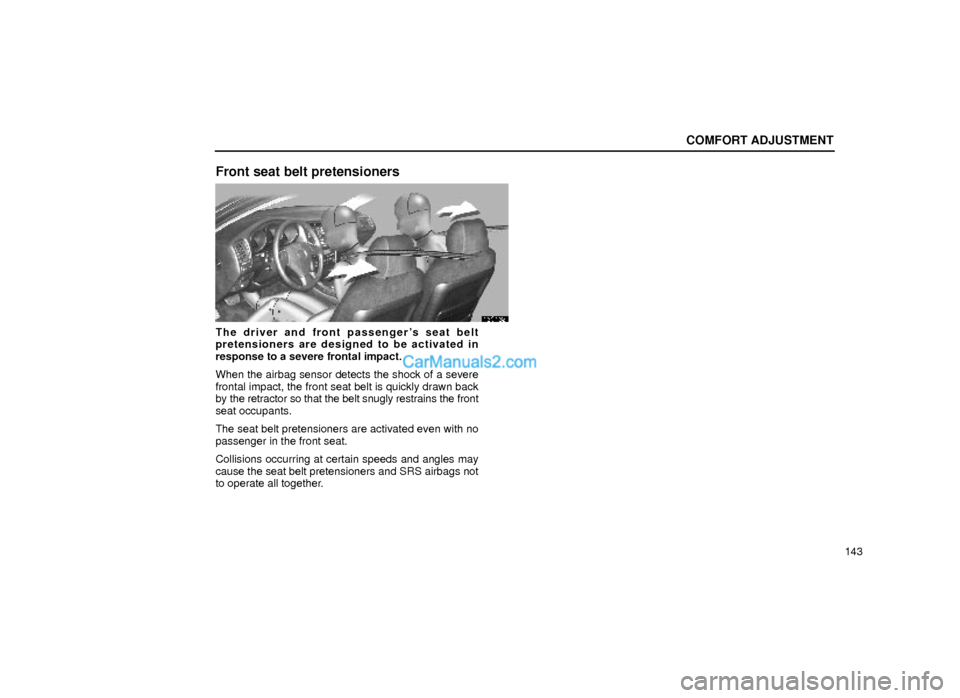

Front seat belt pretensioners
16G132
The driver and front passenger's seat belt
pretensioners are designed to be activated in
response to a severe frontal impact.
When the airbag sensor detects the shock of a severe
frontal impact, the front seat belt is quickly drawn back
by the retractor so that the belt snugly restrains the front
seat occupants.
The seat belt pretensioners are activated even with no
passenger in the front seat.
Collisions occurring at certain speeds and angles may
cause the seat belt pretensioners and SRS airbags not
to operate all together.

COMFORT ADJUSTMENT
144
16G022
This indicator comes on when the ignition key is
turned to the ªACCº or ªONº position. It goes off
after about 6 seconds. This means the front seat
belt pretensioners are operating properly.
This warning light system monitors the airbag sensor
assembly, side airbag sensor assemblies, front airbag
sensors, inflators, seat belt pretensioner assembly,
warning light, interconnecting wiring and power sources.
(For details, see ªService reminder indicators and
warning buzzersº on page 63.)
