Marea-Marea Weekend Technical Data
2000 range (j§) Engine: fuel system - special tools
OO.io
INTEGRATED ELECTRONIC INJECTION/IGNITION SYSTEM
COMPONENTS
Electronic control unit
Manual gearbox I.A.W. 4EF. B3
Electronic control unit
Automatic transmission I.A.W. 4EF. L1
Air pressure sensor M. Marelli TPRT 05
Fuel vapour solenoid valve M. Marelli EC2
Throttle case M. Marelli 46 SX F2
Idle adjustment actuator M. Marelli IB 02
Injector M. Marelli IWP 109
Fuel pressure regulator MARWALL RPM 84
Coolant temperature sender unit SYLEA 402.386.01
Top Dead Centre and rpm sensor M. Marelli CVM 02
Throttle position sensor (potentiometer) M. Marelli IPF 2C
Detonation sensor NGK KNE 11
Electric fuel pump (*) MARWALL ESS 291
Lambda sensor upstream of catalyzer NTK OZA 534 A1
Lambda sensor downstream of catalyzer NTK OZA 532 A1
Fuel filter MARWALL FA 5325 IN
Timing sensor SYLEA SFA 200
Ignition coil Champion BAE 920A/
BERU 0.040.100.029
SPECIAL TOOLS
(*) Use tool 1870736000 for removing-refitting the fuel pump retaining ring nut
Copyright by Fiat Auto 27

Technical Data Marea- Marea Weekend
Engine: fuel system - special tools 2000 arnge ©)
OO.io
INTEGRATED ELECTRONIC INJECTION/IGNITION SYSTEM COMPO­
NENTS
Injection/ignition system electronic control unit Bosch ME31F001
Motorized throttle body Bosch 0.250.003.052
Injector Bosch 0.280.155.770
Electric fuel pump (*) Bosch 0.580.313.011
Air flow meter Bosch 0.281.002.199
Engine coolant temperature sensor ELTH 2690350 - SYLEA
402.183.01
Lambda sensor (one upstream and one downstream of the catalyzer) Bosch LS F4
0.258.006.193
Fuel vapour solenoid valve Bosch 0.280.142.340
Detonation sensor Bosch 0.261.231.131
Hall effect injection timing sensor Bosch 0.232.101.036
Top Dead Centre and rpm sensor Bosch 0.261.210.160
Ignition coil Bosch 0.221.504.014
SPECIAL TOOLS
(*) Use tool 1870736000 for removing-refitting the fuel pump retaining ring nut
28 Print n° 506.763/23

Technical Data Marea-Marea Weekend
Electrical equipment: electronic injection- ignition 2000 range ©)
00.55
INTEGRATED ELECTRONIC
INJECTION/IGNITION SYSTEM r^p) lev
Make I.A.W. M.P.I. WEBER - MARELLI
Firing order 1-3-4-2
INJECTION/IGNITION CONTROL UNIT
Make and versions with manual gearbox I.A.W. 4EF. B3
type versions with automatic transmission I.A.W. 4EF. L1
IGNITION COIL WITH 4 HIGH TENSION INTAKES
Make Champion
Type BAE 920 A
Ohmic resistance of primary winding at 20°C Q 0.580
Ohmic resistance of secondary winding at 20°C Q 9100
SPARK PLUGS
Make and type NGK BKR5EZ
CHAMPION RC10YCC
Thread on engine M14x1.25
Spark gap mm 0.8
TOP DEAD CENTRE AND RPM SENSOR
Make M. Marelli
Type CVM 02
Sensor winding resistance at 20°C Q 575-750
Distance (gap) between sensor and
crankshaft pulley tooth 0.5 + 1.5
ADVANCE ON ENGINE
With engine idling 700±50/min 4°
50 Print n° 506.763/23

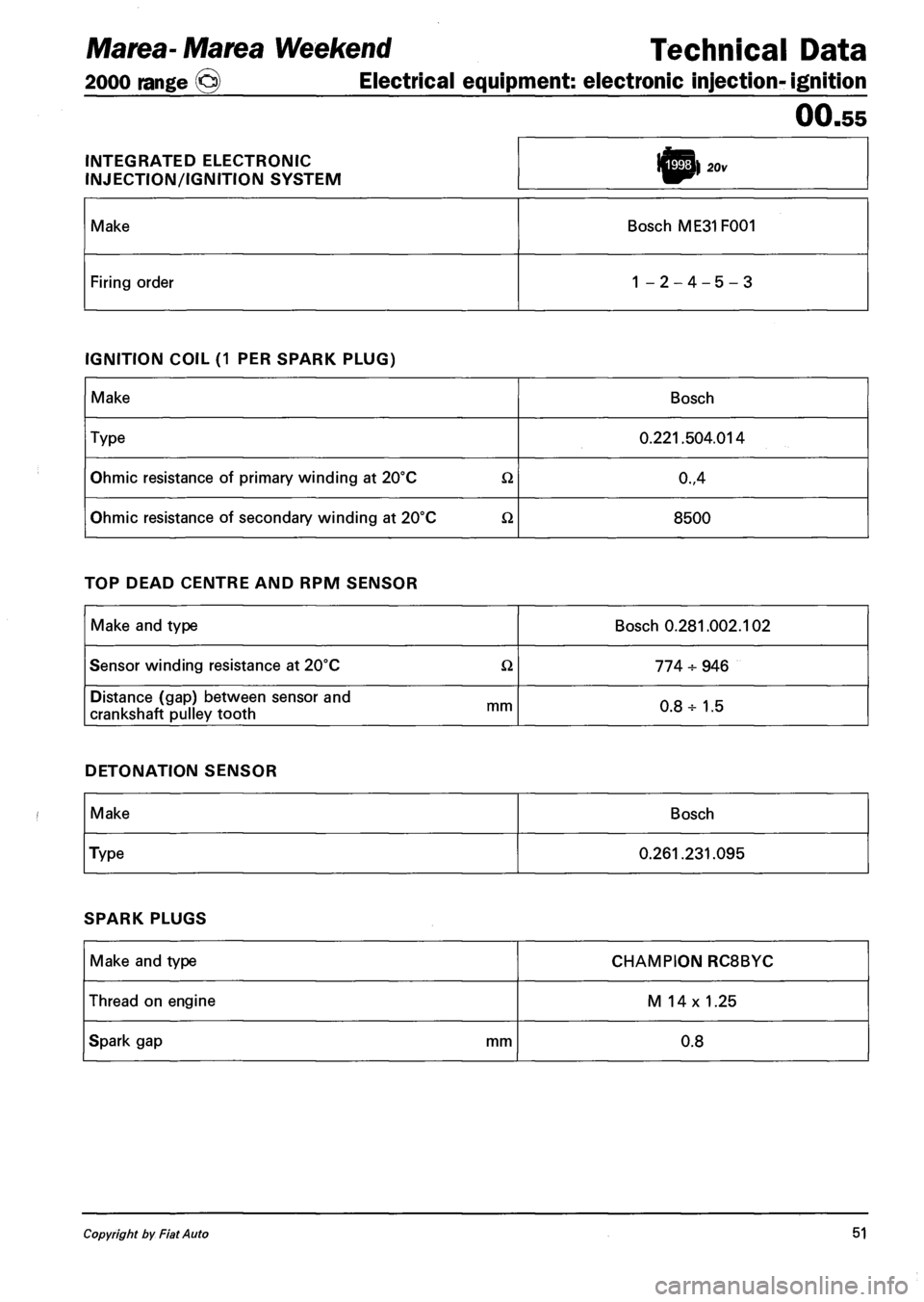

Marea- Marea Weekend Technical Data
2000 range © Electrical equipment: electronic injection- ignition
00.55
INTEGRATED ELECTRONIC
INJECTION/IGNITION SYSTEM I^P) 20v
Make Bosch ME31F001
Firing order 1-2-4-5-3
IGNITION COIL (1 PER SPARK PLUG)
Make Bosch
Type 0.221.504.014
Ohmic resistance of primary winding at 20°C Q 0.,4
Ohmic resistance of secondary winding at 20°C Q 8500
TOP DEAD CENTRE AND RPM SENSOR
Make and type Bosch 0.281.002.102
Sensor winding resistance at 20°C Q 774 + 946
Distance (gap) between sensor and
crankshaft pulley tooth 0.8 H- 1.5
DETONATION SENSOR
Make Bosch
Type 0.261.231.095
SPARK PLUGS
Make and type CHAMPION RC8BYC
Thread on engine M 14x 1.25
Spark gap mm 0.8
Copyright by Fiat Auto 51

Marea- Marea Weekend • *» Engine
2000 range (§) Fuel feed system
10.
Pages
FUEL FEED SYSTEM
- Engine management system 1
- Diagram showing engine exhaust assem­
bly 1
- Fuel anti-evaporation system ~2
- Location of diagnostic socket 2
- Location of injection/ignition system
components in the engine compartment 3
- Front Lambda sensor . 4
- Rear Lambda sensor 4
- Catalytic converter heat shield 5
- Catalytic converter 5
- Exhaust manifold 6
- Electric fuel pump with level sender unit 7
Copyright by Fiat Auto

Marea- Marea Weekend • ^ Engine
2000 range (Q) Fuel feed system
10.
ENGINE MANAGEMENT SYSTEM
The Marea-Marea Weekend 1596 16v has a 4 cylinder in line engine, with 16 valves, 1596 cc, twin over­
head camshaft and a Marelli IAW 4EF integrated electronic injection/ignition system.
The fuel system differs from the one described for the 1581 16v "99 range" version through the addition
of several variants to make it compatible with the EEC Stage 3 EOBD regulations.
The main modifications to the system can be summarized as follows:
- Engine management control unit with IAW 4EF
- Catalytic converter near the exhaust manifold to take maximum advantage of the heat of the gases.
- Two Lambda senors, one upstream (front) and one downstream (rear) which check the quality of the
exhaust gases and the operation of the catalyzer.
- Adoption of a timing sensor on the inlet side timing pulley.
DIAGRAM SHOWING ENGINE EXHAUST ASSEMBLY
1. Exhaust manifold
2. Catalytic converter
3. Front Lambda sensor
4. Rear Lambda sensor
5. Silencers
Copyright by Fiat Auto 1

Marea- Marea Weekend 9* Engine
2000 range (Q) Fuel feed system
10.
LOCATION OF INJECTION/IGNITION SYSTEM COMPONENTS IN THE ENGINE COMPART­
MENT
1 2345678 9
Key
1. Active charcoal filter
2. Anti-evaporation solenoid valve
3. Intake air pressure and temperature sensor
4. Engine idle adjustment stepping motor on
throttle casing
5. Throttle valve position sensor on throttle cas­
ing
6. System relay feed
7. Protective fuse
8. Throttle case
9. Maxi-fuse protecting I.E. system (EFI)
10. Speedometer sensor
11. Engine management control unit
12. Coolant temperature sensor
13. Ignition coil
14. Injectors
15. Rpm and TDC sensor
16. Timing sensor
17. Spark plugs
Copyright by Fiat Auto 3

Engine
Fuel feed system
Marea- Marea Weekend •
2000 range @
FRONT LAMBDA SENSOR
Removing
- Disconnect the negative battery terminal.
1. Disconect the electrical conection (1a), re­
lease the wiring from the retaining band
(2) and disconnect the Lambda sensor (3).
Refitting
- Position the sensor and tighten it to torque
avoiding forcing the component which
would damage it irreparably.
Apply special grease (e.g. Bosch 5
964080112) to the threaded part of the
sensor.
REAR LAMBDA SENSOR
Removing
- Position the vehicle on a lift.
- Disconnect the negative battery terminal.
2. Disconnect the electrical connection (1)
and release the wiring from the retaining
bands.
3. Raise the vehicle and disconnect the
Lambda sensor.
Refitting
- Position the sensor and tighten it to torque
avoiding force on the component which
would damage it irreparably.
Apply special grease (e.g. Bosch 5
964080112) to the threaded part of the
sensor.
- Connect the connector and renew the
Lambda senor cable fastenings.
