2000 FIAT MAREA technical data

Marea- Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
At present, June 2001, the Marea-Marea Weekend 4th volume manual is composed of the following
sections
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Marea bipower technical data (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2 Marea bipower wiring diagram (99 range)
506.763/21
(IX/2000) 10
1 - 38 Marea bipower (99 range) fault diagnosis
506.763/21
(IX/2000) 10
60 - 61
Marea bipower (99 range) fuel system
Replacing solenoid valve on methane canister
506.763/23
(IX/2000)
00 1 - 51 2000 range technical data
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^pl i6v 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^pt 20v 2000 range 506.763/23
(IX/2000)
50 1 - 4 2000 range climate control
506.763/23
(IX/2000)
55
1 - 18 2000 range electrical equipment
506.763/23
(IX/2000)
55
1 - 141 2000 range wiring diagrams
506.763/24
(XII/2000)
00
15 - 16 2000 range technical data update
506.763/24
(XII/2000)
00
1 - 3 Marengo 2000 range technical data
506.763/24
(XII/2000)
10 1 - 29 Fuel system l^p) JTD 2000 range
506.763/24
(XII/2000)
55 5 - 8
19-52 2000 range electrical equipment update
Copyright by Fiat Auto

Summary Marea- Marea Weekend
Print N° Sections Page
Nos. Notes
506.763/24
(XI1/2000) 55
Index
11-14
27 - 28
47 - 48
83 - 88
99 - 100
103 - 104
2000 range wiring diagrams update
506.763/25
VI/2001)
00 1 - 2
Marea Weekend 1910 JTD - 100 CV Introduction -
Technical data 506.763/25
VI/2001)
10
5 - 6
25 - 26
29 - 37
1910 JTD 2000 range fuel system update
Print n° 506.763/25

Marea - Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
As of December 2000, the Marea-Marea Weekend 4th volume manual is composed of the sections
listed below
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Marea bipower technical data (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2 Marea bipower wiring diagram (99 range)
506.763/20
(IV/2000)
00 1 - 15 Marea GPL technical data
506.763/20
(IV/2000) 10 1 - 26 Marea GPL fuel system 506.763/20
(IV/2000)
55 1 - 9 Marea GPL wiring diagram
506.763/21
(IX/2000) 10
1 - 38 Marea bipower fault diagnosis (99 range)
506.763/21
(IX/2000) 10
60 - 61 Marea bipower fuel system (99 range)
Replacing solenoid on methane canister
506.763/23
(IX/2000)
00 1 - 50 2000 range technical data
506.763/23
(IX/2000)
10
1 - 7 2000 range lev fuel system
506.763/23
(IX/2000)
10
1 - 7 2000 range ^||) 20v fuel system 506.763/23
(IX/2000)
50 1-4 2000 range climate control system
506.763/23
(IX/2000)
55
1 - 18 2000 range electrical equipment
506.763/23
(IX/2000)
55
1 - 141 2000 range wiring diagrams
Copyright by Fiat Auto

Summary Marea-Marea Weekend
15 - 16 2000 range technical data update
00 00
1 - 3 2000 range Marengo technical data
506.763/24
10 1 - 29 Fuel system l|pl m> 2000 range
(XII/2000) 5 -8
19 -52 Updated 2000 range electrical equipment
55
Contents
11 - 14
27 - 28
47 - 48
83 - 88
99 - 100
103 - 104
Update to wiring diagrams - 2000 range
Publication no. 506.763/24

Marea- Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
At present, September 2000, the Marea-Marea Weekend 4th volume manual is composed of the fol­
lowing booklets
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Technical data on Marea bipower (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2
Marea bipower electrical equipment wiring diagrams (99
range)
506.763/20
(IV/2000)
00 1 - 15 Marea GPL technical data
506.763/20
(IV/2000) 10 1 - 26 Marea GPL fuel system 506.763/20
(IV/2000)
55 1 - 9 Marea GPL electrical equipment wiring diagram
506.763/21
(IX/2000) 10
1 - 38 Marea bipower fault diagnosis (99 range)
506.763/21
(IX/2000) 10
60 - 61
Marea bipower fuel system (99 range)
Replacing solenoid valve on methane canister
506.763/23
(IX/2000)
00 1 - 50 Technical data 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system @> 16v 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^l 20v 2000 range
506.763/23
(IX/2000)
50 1 - 4 Climate control system 2000 range
506.763/23
(IX/2000)
55
1 - 18 Electrical equipment 2000 range
506.763/23
(IX/2000)
55
1 - 141 Electrical equipment wiring diagrams 2000 range
Copyright by Fiat Auto

marea-marea vvvttnviiu miruuuCuuu ciilu iwnniCai data
2000 range © Index
00.
page
INTRODUCTION
- Identification data 1
- Weights 3
- Performance - Fuel consumption 4
- Dimensions 5
- Capacities 7
- Product specifications
FL Group 9
TECHNICAL DATA
Engine l^^) lev |^^) 20v
- Specifications 10
- Typical curves 11
- Cylinder block/crankcase and associ­
ated components 12
- Auxiliary shaft 17
- Cylinder head and valve gear compo­
nents 18
- Timing diagrams 22
- Counter-balance shaft 23
- Lubrication 24
- Cooling system 26
- Fuel feed system 26
- Special tools 27
Engine I^^JJTD
- Specifications 29
- Timing diagrams 30
- Supercharging 31
CLUTCH 32
GEARBOX AND DIFFERENTIAL 33
AUTOMATIC TRANSMISSION DIF­
FERENTIAL 35
BRAKING SYSTEM 36
STEERING 39
WHEELS 40
FRONT SUSPENSION 42
REAR SUSPENSION 44
ELECTRICAL EQUIPMENT 46
- Ignition 47
1 - Recharging 48
- Electronic injection/ignition 50
Copyright by Fiat Auto

Technical Data
Engine
Marea-Marea Weekend
2000 range @
OO.io
SPECIFICATIONS
Cycle OTTO 4 stroke
^Q\^ Timing gear TOHC
1 Fuel system type Integrated electronic injection - ignition
L—,1 Number of cylinders
Ml • • •
4 5
Vt—•F-jZf Cylinder liner
Is—A \ mm
W (bore)
80.5 82
j^J |q| Stroke mm 78.4 75.65
fifi-9 0> °-ace" cm3
1596 1998
^|*^^ Compression
= 9 ratio
ft
10.50 ±0.15 10.5 ±0.15
kW
r _ (bhp) X Maximum
76
(103)
110
(150)
/ power CEE
/ .. ... • rpm 5750 6500
daNm
(kgm)
Maximum
14.5
(14.8)
18.1
(18.5)
, torque CEE
... \ > rpm 4000 3750
10 Print n° 506.763/23

Marea- Marea Weekend
2000 range ©
Technical Data

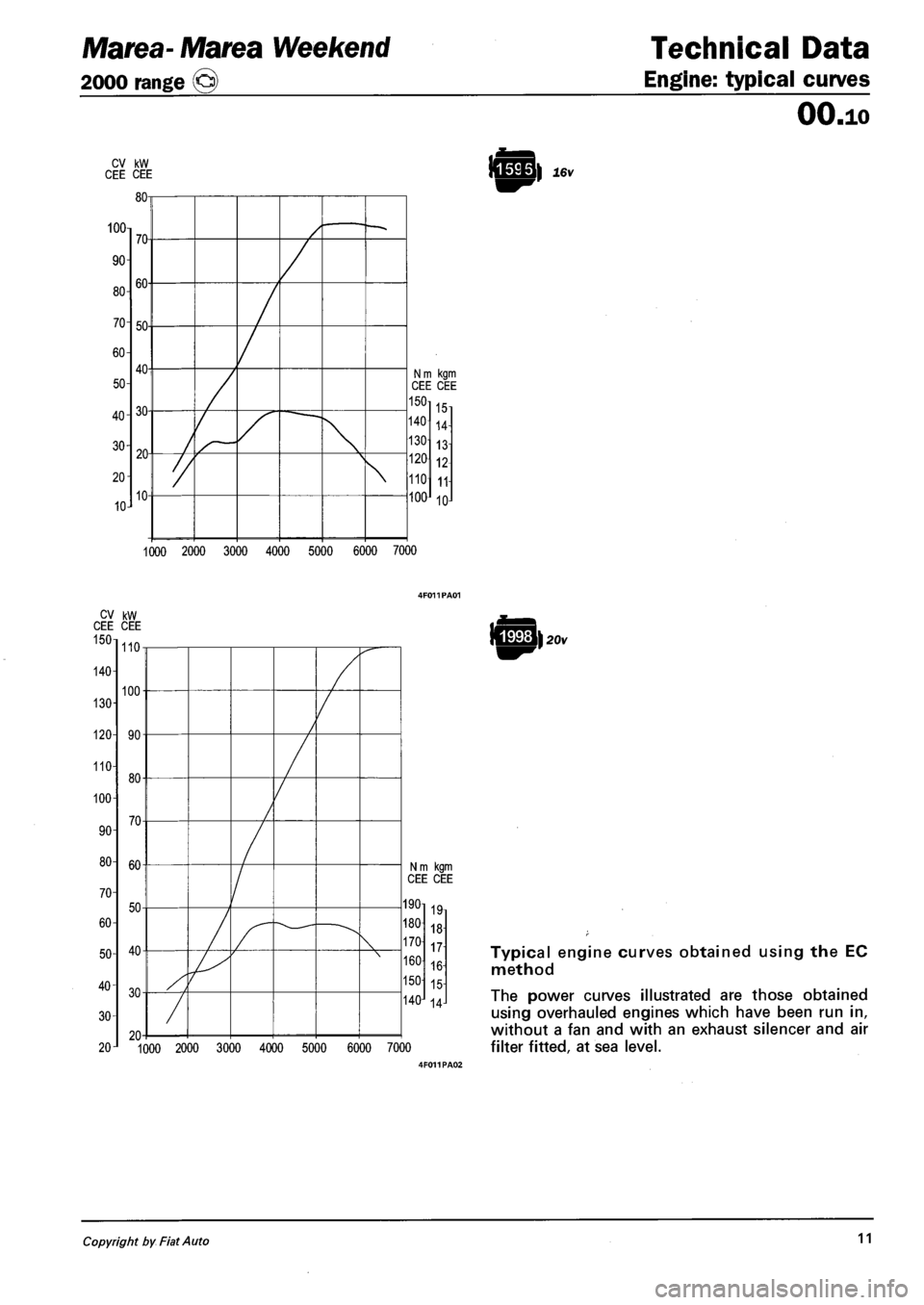

Engine: typical curves
CV kW CEE CEE
OO.10
ICEEEI \ 16v
1000 2000 3000 4000 5000 6000 7000
CV kW CEE CEE 150
140
130H
120
110
100
90
80
70
60
50
40
30
20
l| 20v
N m kgm CEE CEE
1000 2000 3000 4000 5000 6000 7000
Typical engine curves obtained using the EC
method
The power curves illustrated are those obtained
using overhauled engines which have been run in,
without a fan and with an exhaust silencer and air
filter fitted, at sea level.
Copyright by Fiat Auto 11
