2000 CHRYSLER CARAVAN relay

TEST TC-30ACONTINUED - REPAIRING - DIESEL POWER RELAY SHUTS OFF TO EARLY
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-30A KEY OFF.
CONTINUED FROM SUBSTITUTE THE
THE PREVIOUS DIESEL POWER RELAY
PAGE. WITH A KNOWN GOOD
RELAY.
PERFORM SEVERAL TURN IGNITION ON.
KEY CYCLES PAUSING DOES THIS CODE NO REPLACE THE
FOR AT LEAST 10 USING THE DRB, APPEAR? INITIAL DIESEL
SECONDS BETWEEN READ CODES. POWER RELAY.*
EACH CYCLE.
YES
KEY OFF.
DISCONNECT THE ECM
REMOVE THE DIESEL HARNESS
POWER RELAY.** CONNECTORS.**
FIG.1
USING AN OHMMETER, WIGGLING THE WAS THE RESISTANCE REPAIR THE
MEASURE RESISTANCE WIRING AND ABOVE 5.0 OHMS AT YES INTERMITTENT OPEN
OF THE DIESEL POWER CONNECTORS BETWEEN ANY TIME WHILE IN THE DIESEL
RELAY CONTROL CKT THE ECM AND PDC. WIGGLING? POWER RELAY
WHILE... FIG.1 CONTROL CIRCUIT.*
NO
REINSTALL THE DIESEL
POWER RELAY.
RECONNECT THE ECM
HARNESS CONNECTORS.
PERFORM SEVERAL TURN IGNITION ON.
KEY CYCLES PAUSING DOES THIS CODE YES REPLACE THE ENGINE
FOR AT LEAST 10 USING THE DRB, APPEAR? CONTROL MODULE.*
SECONDS BETWEEN READ CODES.
EACH CYCLE.
NO
TEST COMPLETE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
121
ProCarManuals.com

TEST TC-31AREPAIRING - DIESEL POWER RELAY SHUTS OFF TOO LATE
Perform TEST DTC Before Proceeding
FIG.1
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
122
ProCarManuals.com

TEST TC-31AREPAIRING - DIESEL POWER RELAY SHUTS OFF TOO LATE
Perform TEST DTC Before Proceeding
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TURN IGNITION ON.
START TEST ARE THERE OTHER YES DIAGNOSE OTHER
TC-31A. USING THE DRB, TROUBLE CODES SET. CODES BEFORE
CHECK FOR CONTINUING.
ADDITIONAL CODES.
NO
USING THE DRB,
ERASE CODES.
PERFORM SEVERAL TURN IGNITION ON.
IGNITION KEY CYCLES DOES THIS CODE YES CONTINUE TEST
PAUSING AT LEAST 10 USING THE DRB, APPEAR? TC-31A ON THE
SECONDS BETWEEN EACH READ CODES. NEXT PAGE.
CYCLE.
NO
AT THIS TIME THE USING THE
CONDITION TO SET SCHEMATIC AS A WERE ANY PROBLEMS YES REPAIR AS
THE TROUBLE CODE GUIDE, INSPECT THE FOUND? NECESSARY.*
IS NOT PRESENT. WIRING AND
FIG.1 CONNECTORS.
NO
REFER TO GENERAL
INFORMATION 3.3.2
FOR ADDITIONAL TEST COMPLETE.*
INFORMATION ON
INTERMITTENT CODES.
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
123
ProCarManuals.com

TEST TC-31ACONTINUED - REPAIRING - DIESEL POWER RELAY SHUTS OFF TOO LATE

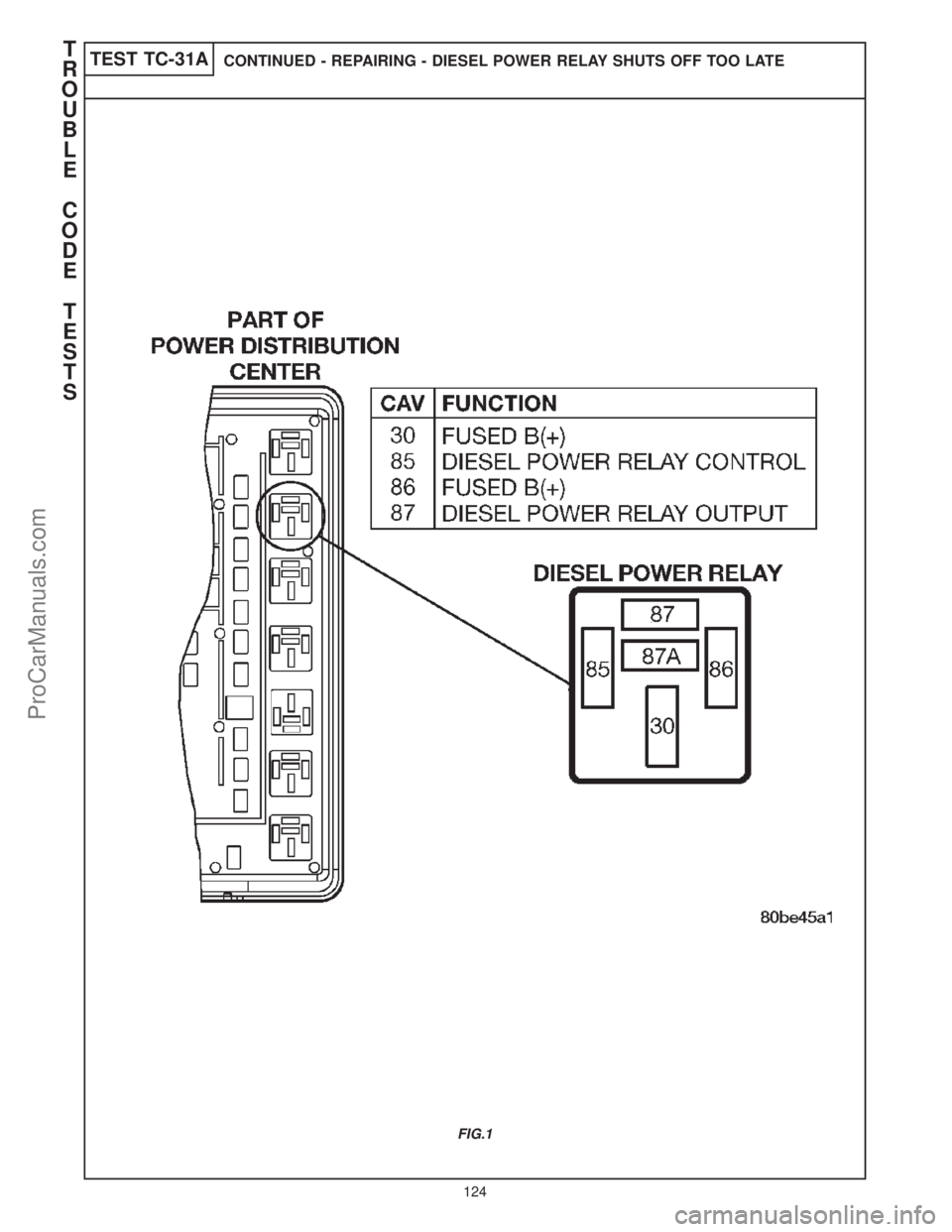

FIG.1
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
124
ProCarManuals.com

TEST TC-31ACONTINUED - REPAIRING - DIESEL POWER RELAY SHUTS OFF TOO LATE
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-31A KEY OFF.
CONTINUED FROM SUBSTITUTE THE
THE PREVIOUS DIESEL POWER RELAY
PAGE. WITH A KNOWN GOOD
RELAY. FIG.1
PERFORM SEVERAL TURN IGNITION ON.
KEY CYCLES PAUSING DOES THIS CODE NO REPLACE THE
FOR AT LEAST 10 USING THE DRB, APPEAR? INITIAL DIESEL
SECONDS BETWEEN READ CODES. POWER RELAY.*
EACH CYCLE.
YES
KEY OFF.
DISCONNECT THE ECM
REMOVE THE DIESEL HARNESS
POWER RELAY.** CONNECTORS.**
FIG.1
USING AN OHMMETER, WIGGLING THE WAS THE RESISTANCE REPAIR THE
MEASURE RESISTANCE WIRING AND BELOW 5.0 OHMS AT YES INTERMITTENT SHORT
BETWEEN GROUND AND CONNECTORS BETWEEN ANY TIME WHILE TO GROUND IN THE
DIESEL POWER RELAY THE ECM AND PDC. WIGGLING? DIESEL POWER RELAY
CONTROL CKT WHILE... FIG.1 CONTROL CIRCUIT.*
NO
REINSTALL THE DIESEL
POWER RELAY.
RECONNECT THE ECM
HARNESS CONNECTORS.
PERFORM SEVERAL TURN IGNITION ON.
KEY CYCLES PAUSING DOES THIS CODE YES REPLACE THE ENGINE
FOR AT LEAST 10 USING THE DRB, APPEAR? CONTROL MODULE.*
SECONDS BETWEEN READ CODES.
EACH CYCLE.
NO
TEST COMPLETE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
125
ProCarManuals.com

TEST TC-33ACONTINUED - REPAIRING - EGR OPEN CIRCUIT
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-33A TURN IGNITION OFF.
CONTINUED FROM DISCONNECT THE EGR
THE PREVIOUS SOLENOID HARNESS
PAGE. CONNECTOR.**
KEY ON. USING A
VOLTMETER, MEASURE IS THE VOLTAGE YES REPAIR THE OPEN
THE DIESEL POWER BELOW 10.0 VOLTS? DIESEL POWER RELAY
RELAY OUTPUT CKT. OUTPUT CKT.*
FIG.1
NO
TURN IGNITION OFF. USING AN OHMMETER, REPAIR THE SHORT
DISCONNECT THE ECM MEASURE THE EGR IS THE RESISTANCE YES TO GROUND OF THE
HARNESS SOLENOID CONTROL BELOW 5.0 OHMS? EGR SOLENOID
CONNECTORS.** CIRCUIT TO GROUND. CONTROL CKT.*
FIG.1
NO
USING AN OHMMETER,
MEASURE THE EGR IS THE RESISTANCE YES REPAIR THE OPEN
SOLENOID CONTROL ABOVE 5.0 OHMS? EGR SOLENOID
CIRCUIT. CONTROL CKT.*
FIG.2
NO
RECONNECT THE ECM
REPLACE THE EGR AND EGR SOLENOID DOES THE EGR CODE YES REPLACE THE ENGINE
SOLENOID. CONNECTORS. KEY RESET? CONTROL MODULE.*
ON. USING THE DRB,
CHECK FOR CODES.
NO
TEST COMPLETE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
129
ProCarManuals.com

TEST TC-39AREPAIRING - FAN CONTROL OPEN CIRCUIT FAN 1
Perform TEST DTC Before Proceeding
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
KEY ON. IS THE RADIATOR
START TEST WITH THE DRB, FAN #2 RELAY NO CONTINUE TEST
TC-39A. ACTUATE THE LOW CLICKING ON AND TC-39A ON THE
SPEED RADIATOR OFF? NEXT PAGE.
FAN.
YES
THE CONDITION TO SET USING THE SCHEMATIC
THE TROUBLE CODE IS AS A GUIDE, INSPECT WERE ANY PROBLEMS YES REPAIR AS
NOT PRESENT. THE WIRING AND FOUND? NECESSARY.*
CONNECTORS.
FIG.1 FIG.2
NO
WIGGLE THE WIRING REPAIR AS NECESSARY
HARNESS FROM THE NOTE: THE DRB MUST DID THE WIGGLING YES WHERE WIGGLING
RELAY TO THE STILL BE ACTUATING INTERRUPT FAN CAUSED FAN RELAY
ENGINE CONTROL THE FAN RELAY. RELAY CLICKING? CLICKING TO BE
MODULE.INTERRUPTED.*
NO
REFER TO GENERAL
INFORMATION 3.3.2
FOR ADDITIONAL TEST COMPLETED.*
INFORMATION ON
INTERMITTENT CODES.
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
145
ProCarManuals.com

TEST TC-39ACONTINUED - REPAIRING - FAN CONTROL OPEN CIRCUIT FAN 1
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-39A TURN IGNITION OFF.
CONTINUED FROM
THE PREVIOUS REMOVE RADIATOR
PAGE. FAN RELAY #2.**
TURN IGNITION ON. MEASURE THE DIESEL
POWER RELAY OUTPUT IS THE VOLTAGE NO REPAIR THE OPEN
USE A VOLTMETER IN CIRCUIT. ABOVE 10.0 VOLTS? DIESEL POWER RELAY
THE FOLLOWINGOUTPUT CIRCUIT.*
STEP. FIG.1
YES
TURN IGNITION OFF. MEASURE THE
RESISTANCE BETWEEN IS THE RESISTANCE NO REPLACE RADIATOR
USE AN OHMMETER IN TERMINALS 85 AND 86 BELOW 100.0 OHMS? FAN RELAY #2.*
THE FOLLOWING OF THE #2 RELAY.
STEPS. FIG.2
YES
KEY OFF. MEASURE THE REPAIR THE LOW
DISCONNECT THE ECM RESISTANCE BETWEEN IS THE RESISTANCE YES SPEED FAN CONTROL
HARNESS GROUND AND ECM BELOW 5.0 OHMS? CKT FOR A SHORT TO
CONNECTORS.** HARNESS CONNECTOR GROUND.*
CAVITY 17. FIG.3
NO
MEASURE THE FROM THE RELAY TO
RESISTANCE OF THE ECM HARNESS IS THE RESISTANCE NO REPAIR OPEN LOW
LOW SPEED FAN CONNECTOR CAVITY 17. BELOW 5.0 OHMS? SPEED FAN CONTROL
CONTROL CIRCUIT... CIRCUIT.*
FIG.1 AND 3
YES
REPLACE THE ENGINE
CONTROL MODULE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
147
