2000 CHEVROLET SUBURBAN Owners Manual

6-62

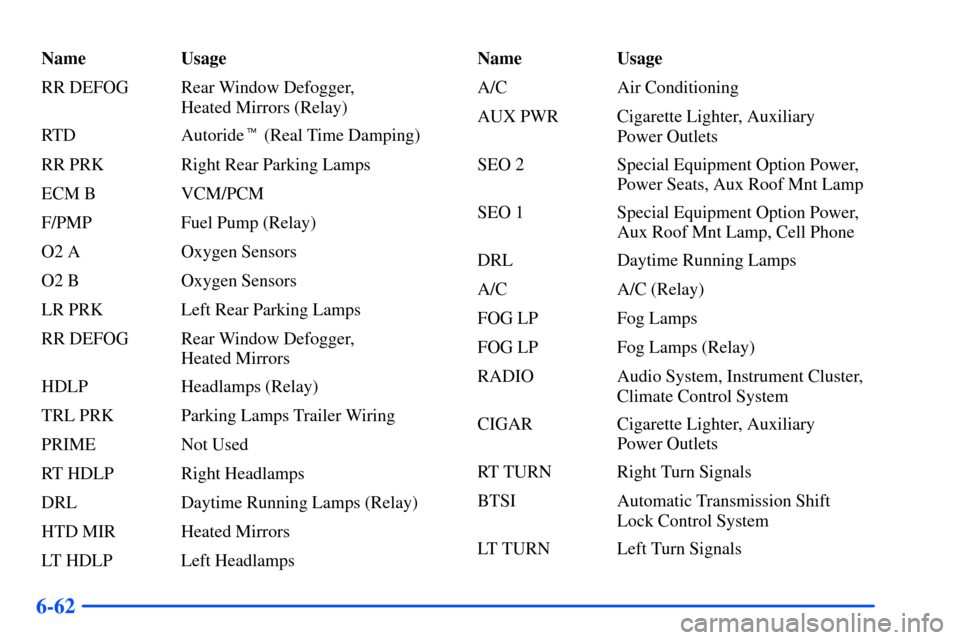

Name Usage
RR DEFOG Rear Window Defogger,
Heated Mirrors (Relay)
RTD Autoride
(Real Time Damping)
RR PRK Right Rear Parking Lamps
ECM B VCM/PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Left Rear Parking Lamps
RR DEFOG Rear Window Defogger,
Heated Mirrors
HDLP Headlamps (Relay)
TRL PRK Parking Lamps Trailer Wiring
PRIME Not Used
RT HDLP Right Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated Mirrors
LT HDLP Left HeadlampsName Usage
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary
Power Outlets
SEO 2 Special Equipment Option Power,
Power Seats, Aux Roof Mnt Lamp
SEO 1 Special Equipment Option Power,
Aux Roof Mnt Lamp, Cell Phone
DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Cluster,
Climate Control System
CIGAR Cigarette Lighter, Auxiliary
Power Outlets
RT TURN Right Turn Signals
BTSI Automatic Transmission Shift
Lock Control System
LT TURN Left Turn Signals

6-63

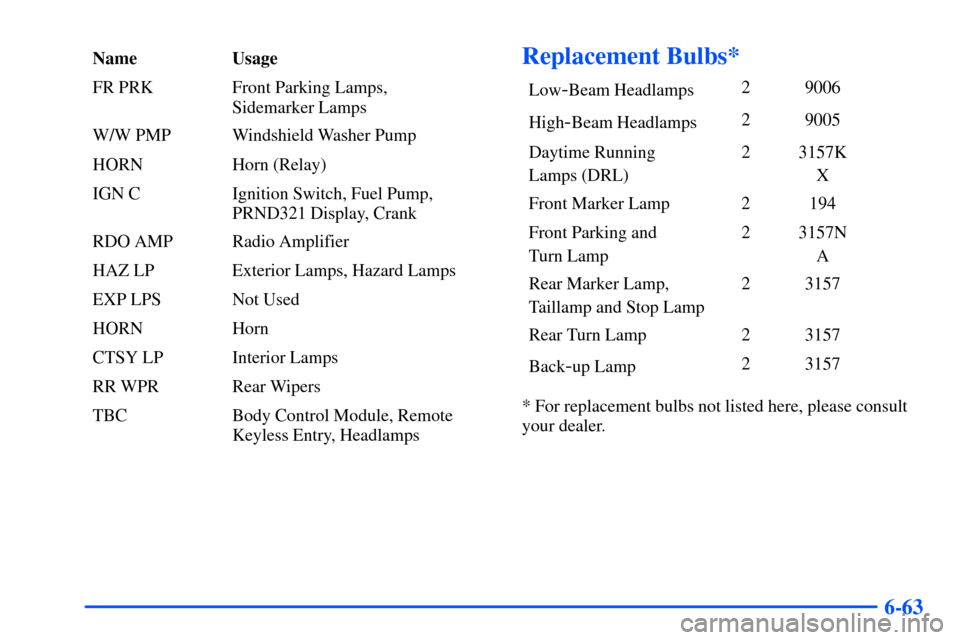

Name Usage
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Rear Wipers
TBC Body Control Module, Remote
Keyless Entry, HeadlampsReplacement Bulbs*
Low-Beam Headlamps2 9006
High
-Beam Headlamps2 9005
Daytime Running
Lamps (DRL)2 3157K
X
Front Marker Lamp 2 194
Front Parking and
Turn Lamp2 3157N
A
Rear Marker Lamp,
Taillamp and Stop Lamp2 3157
Rear Turn Lamp 2 3157
Back
-up Lamp2 3157
* For replacement bulbs not listed here, please consult
your dealer.

6-64
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the Index for more information. See refrigerant charge label
under the hood for charge capacity information and requirements.
Engine Type VIN Code Spark Plug Gap
VORTEC 4800 V8 V 0.060 inches (1.52 mm)
VORTEC 5300 V8 T 0.060 inches (1.52 mm)
VORTEC 6000 V8 U 0.060 inches (1.52 mm)
Wheels and Tires
Model Description Torque
C/K 1500 6 bolts (14 mm)
140 lb
-ft (190 N´m)
C/K 2500 8 bolts (14 mm)
140 lb
-ft (190 N´m)
Tire Pressure See the Certification/Tire label on the rear edge of the driver's door,
or the incomplete vehicle document in the cab.

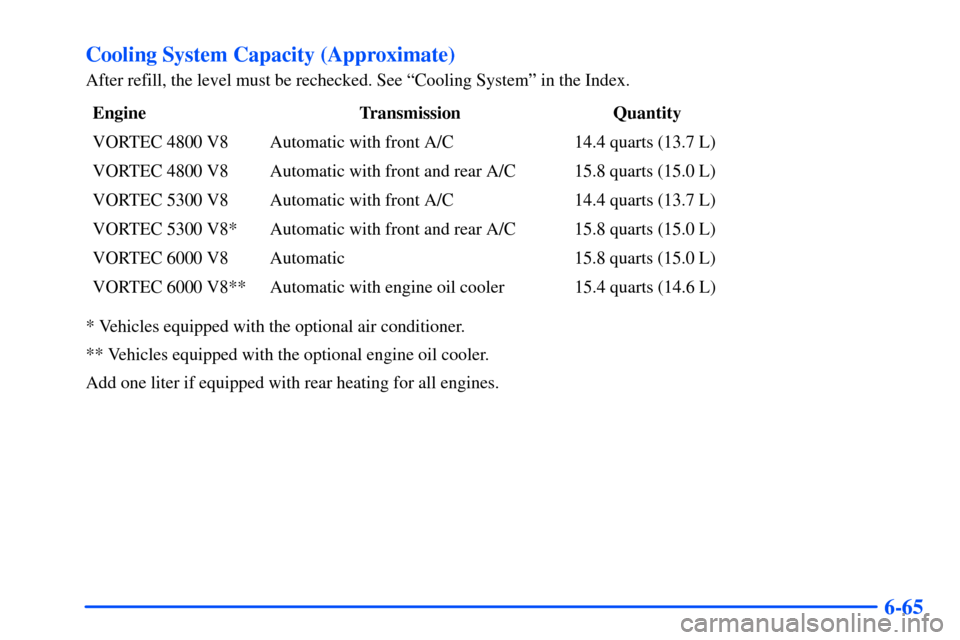

6-65 Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See ªCooling Systemº in the Index.
Engine Transmission Quantity
VORTEC 4800 V8 Automatic with front A/C 14.4 quarts (13.7 L)
VORTEC 4800 V8 Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 5300 V8 Automatic with front A/C 14.4 quarts (13.7 L)
VORTEC 5300 V8* Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 6000 V8 Automatic 15.8 quarts (15.0 L)
VORTEC 6000 V8** Automatic with engine oil cooler 15.4 quarts (14.6 L)
* Vehicles equipped with the optional air conditioner.
** Vehicles equipped with the optional engine oil cooler.
Add one liter if equipped with rear heating for all engines.

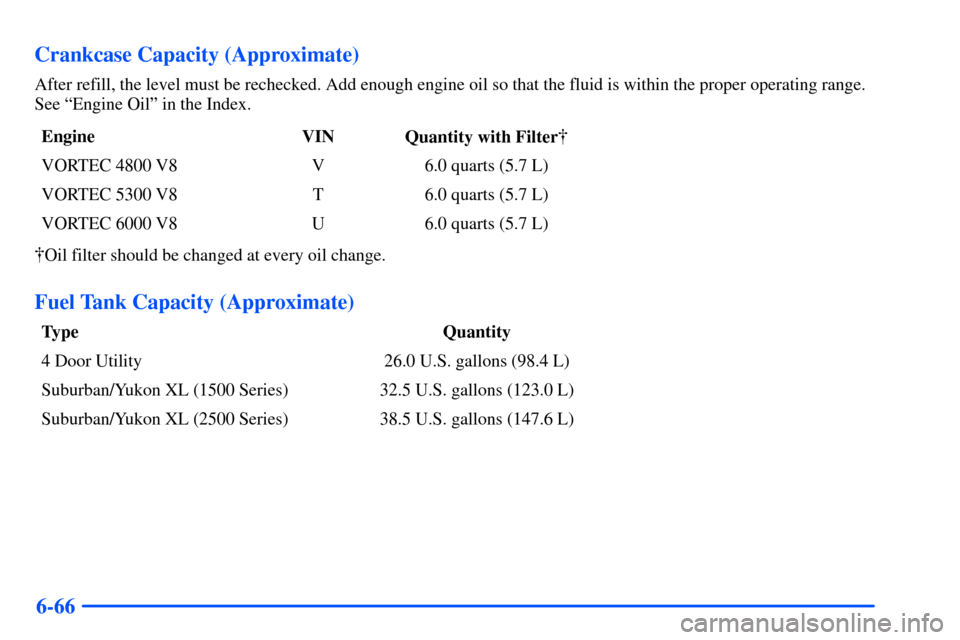

6-66 Crankcase Capacity (Approximate)
After refill, the level must be rechecked. Add enough engine oil so that the fluid is within the proper operating range.
See ªEngine Oilº in the Index.
Engine VIN
Quantity with Filter

VORTEC 4800 V8 V 6.0 quarts (5.7 L)
VORTEC 5300 V8 T 6.0 quarts (5.7 L)
VORTEC 6000 V8 U 6.0 quarts (5.7 L)

Oil filter should be changed at every oil change.
Fuel Tank Capacity (Approximate)
Type Quantity
4 Door Utility 26.0 U.S. gallons (98.4 L)
Suburban/Yukon XL (1500 Series) 32.5 U.S. gallons (123.0 L)
Suburban/Yukon XL (2500 Series) 38.5 U.S. gallons (147.6 L)

6-67

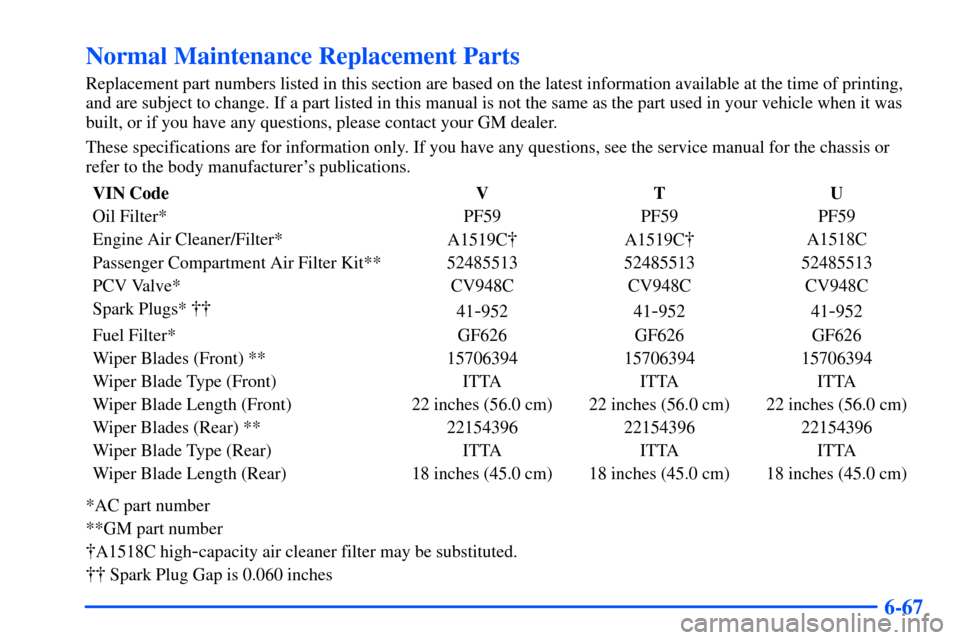

Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when it was
built, or if you have any questions, please contact your GM dealer.
These specifications are for information only. If you have any questions, see the service manual for the chassis or
refer to the body manufacturer's publications.
VIN Code V T U
Oil Filter* PF59 PF59 PF59
Engine Air Cleaner/Filter*
A1519C
A1519C
A1518C
Passenger Compartment Air Filter Kit** 52485513 52485513 52485513
PCV Valve* CV948C CV948C CV948C
Spark Plugs*


41
-952 41-952 41-952
Fuel Filter* GF626 GF626 GF626
Wiper Blades (Front) ** 15706394 15706394 15706394
Wiper Blade Type (Front) ITTA ITTA ITTA
Wiper Blade Length (Front) 22 inches (56.0 cm) 22 inches (56.0 cm) 22 inches (56.0 cm)
Wiper Blades (Rear) ** 22154396 22154396 22154396
Wiper Blade Type (Rear) ITTA ITTA ITTA
Wiper Blade Length (Rear) 18 inches (45.0 cm) 18 inches (45.0 cm) 18 inches (45.0 cm)
*AC part number
**GM part number

A1518C high
-capacity air cleaner filter may be substituted.


Spark Plug Gap is 0.060 inches

7-
7-1

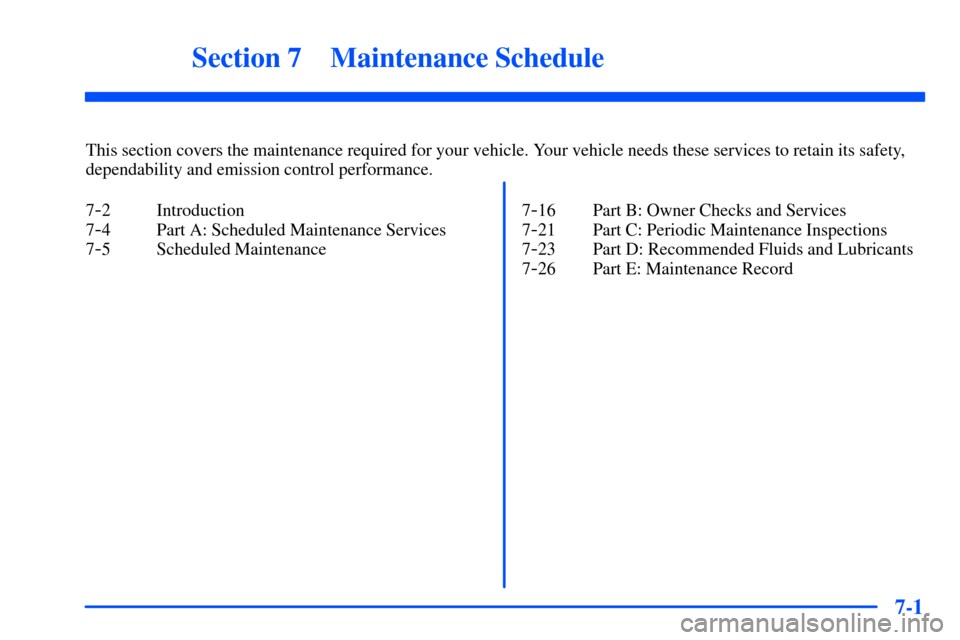

Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-5 Scheduled Maintenance7
-16 Part B: Owner Checks and Services
7
-21 Part C: Periodic Maintenance Inspections
7
-23 Part D: Recommended Fluids and Lubricants
7
-26 Part E: Maintenance Record

7-2

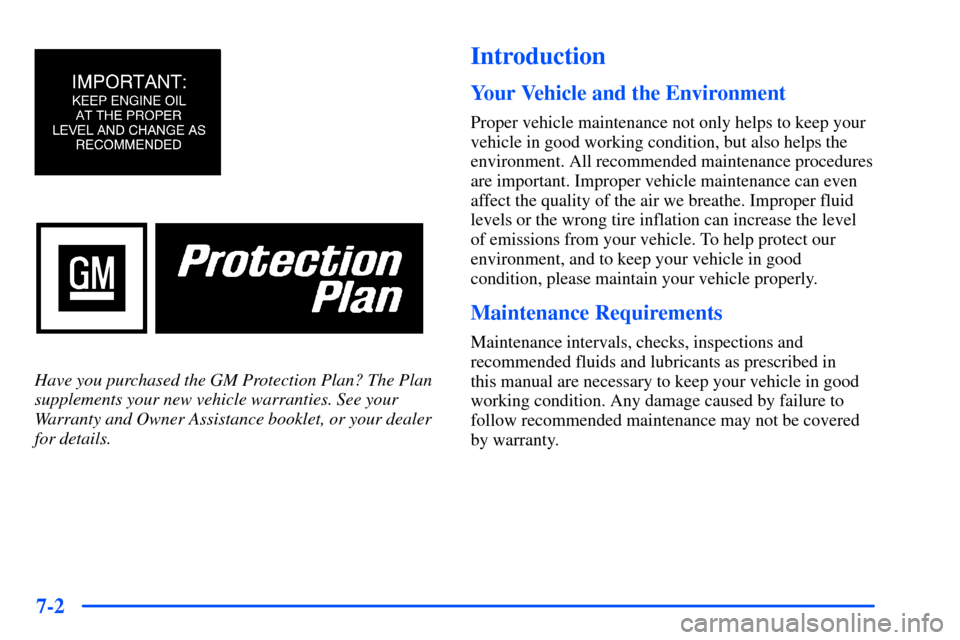

Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in
this manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure to
follow recommended maintenance may not be covered
by warranty.
