2000 CHEVROLET SUBURBAN Owners Manual

2-5
If the rear lock switch is pressed with the rear doors
open, all of the doors will lock five seconds after the
cargo doors are closed.
The power door locks will operate at any time without
the ignition being on.
Operating the power locks may interact with the
theft
-deterrent system (if equipped). See ªContent
Theft
-Deterrentº in the Index.
Programmable Automatic Door Locks
Your vehicle is equipped with an auto lock/unlock
feature which enables you to program your power
door locks.
Your vehicle left the factory programmed to have the
automatic lock feature lock all the doors when the
vehicle speed is greater than 15 mph (24 km/h) for
two seconds, and then unlock all the doors once the key
is removed from the ignition. The following instructions
detail how to program your door locks.To enter the program mode you need to:
1. Beginning with the ignition in OFF, pull back on the
turn signal/multifunction lever all the way toward
you and hold it while you perform the next step.
2. Turn your key to ON and OFF twice. Then, with the
key in OFF, release the turn signal/multifunction
lever. Once you do this, you will hear the lock switch
lock and unlock.
3. You are now ready to program the automatic door
locks. Select one of the following four programming
options and follow the instructions. You will have ten
seconds to begin programming. If you exceed the ten
second limit, the locks will automatically lock and
unlock to indicate you have left the program mode.
If this occurs, repeat the procedure beginning with
step 1. You can exit the program mode any time by
turning the ignition to ON (the locks will automatically
lock and unlock to indicate you are leaving the
program mode). If the lock/unlock switches are not
pressed while in the programming mode, the auto
lock/unlock setting will not be modified.

2-6

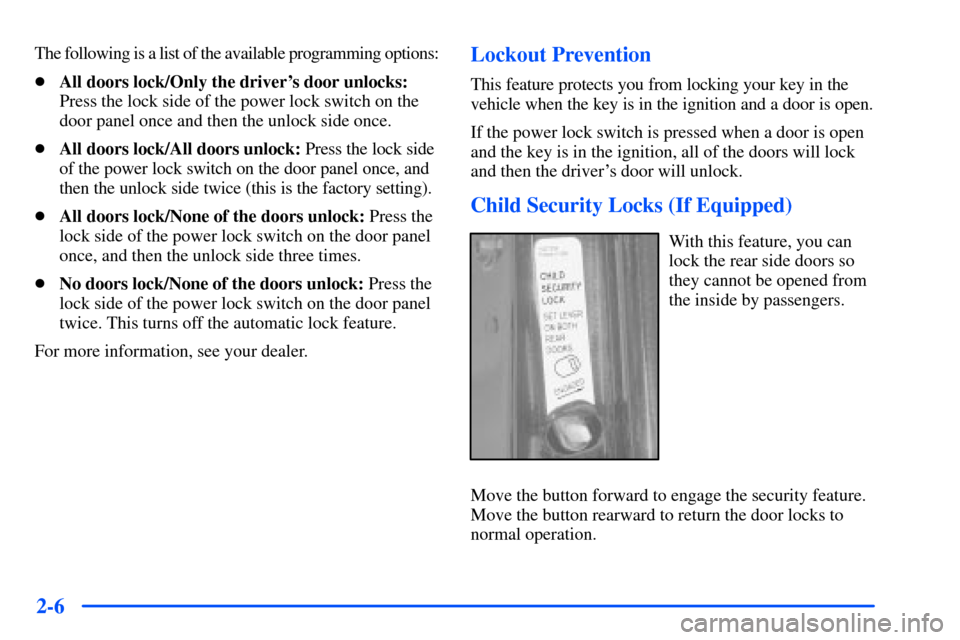

The following is a list of the available programming options:

All doors lock/Only the driver's door unlocks:
Press the lock side of the power lock switch on the
door panel once and then the unlock side once.

All doors lock/All doors unlock: Press the lock side
of the power lock switch on the door panel once, and
then the unlock side twice (this is the factory setting).

All doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
once, and then the unlock side three times.

No doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
twice. This turns off the automatic lock feature.
For more information, see your dealer.Lockout Prevention
This feature protects you from locking your key in the
vehicle when the key is in the ignition and a door is open.
If the power lock switch is pressed when a door is open
and the key is in the ignition, all of the doors will lock
and then the driver's door will unlock.
Child Security Locks (If Equipped)
With this feature, you can
lock the rear side doors so
they cannot be opened from
the inside by passengers.
Move the button forward to engage the security feature.
Move the button rearward to return the door locks to
normal operation.

2-7

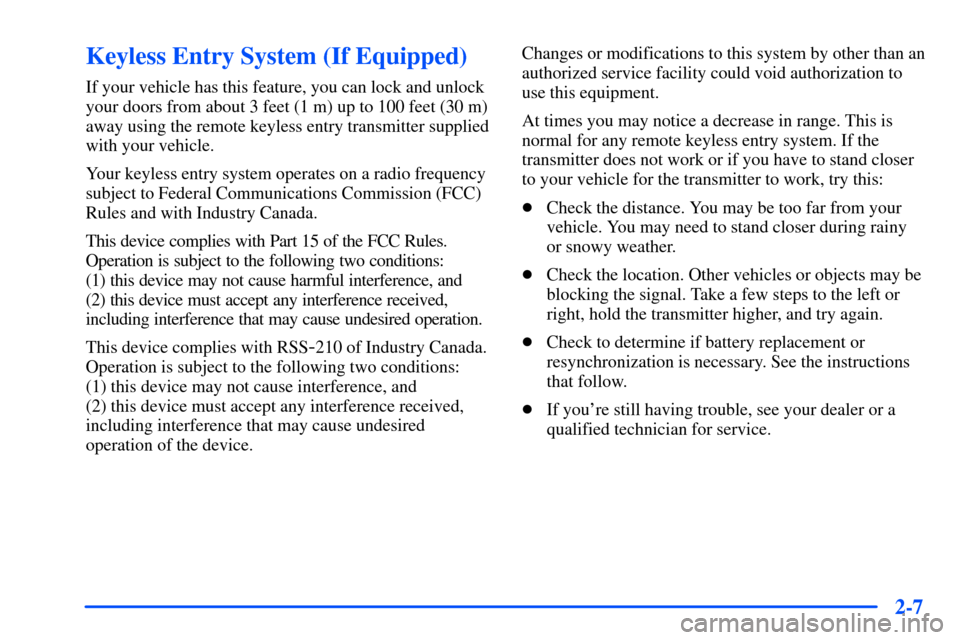

Keyless Entry System (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 100 feet (30 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-8 Operation

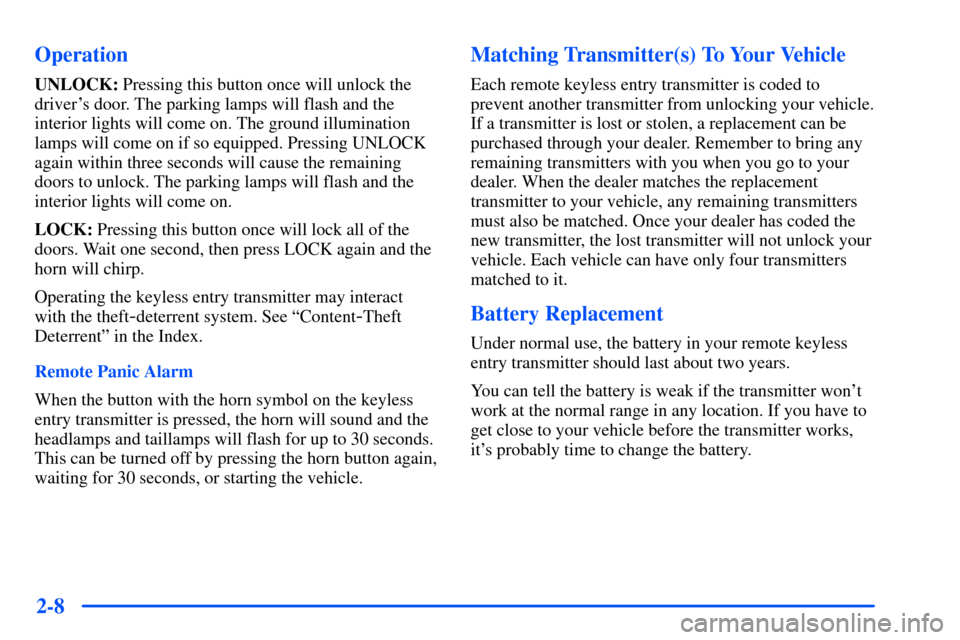

UNLOCK: Pressing this button once will unlock the
driver's door. The parking lamps will flash and the
interior lights will come on. The ground illumination
lamps will come on if so equipped. Pressing UNLOCK
again within three seconds will cause the remaining
doors to unlock. The parking lamps will flash and the
interior lights will come on.
LOCK: Pressing this button once will lock all of the
doors. Wait one second, then press LOCK again and the
horn will chirp.
Operating the keyless entry transmitter may interact
with the theft
-deterrent system. See ªContent-Theft
Deterrentº in the Index.
Remote Panic Alarm
When the button with the horn symbol on the keyless
entry transmitter is pressed, the horn will sound and the
headlamps and taillamps will flash for up to 30 seconds.
This can be turned off by pressing the horn button again,
waiting for 30 seconds, or starting the vehicle.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-9

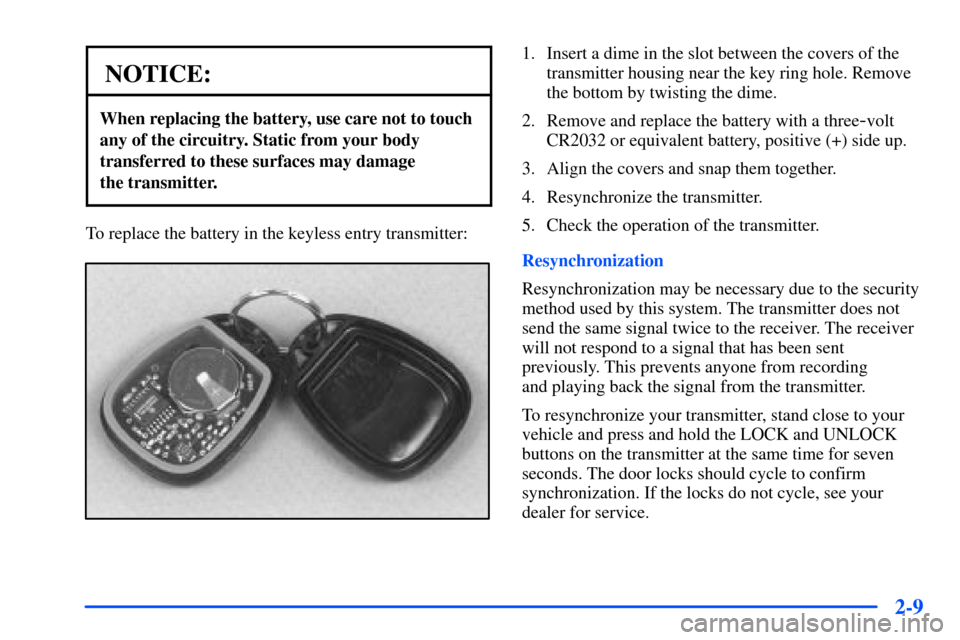

NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery in the keyless entry transmitter:
1. Insert a dime in the slot between the covers of the
transmitter housing near the key ring hole. Remove
the bottom by twisting the dime.
2. Remove and replace the battery with a three
-volt
CR2032 or equivalent battery, positive (+) side up.
3. Align the covers and snap them together.
4. Resynchronize the transmitter.
5. Check the operation of the transmitter.
Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal that has been sent
previously. This prevents anyone from recording
and playing back the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and press and hold the LOCK and UNLOCK
buttons on the transmitter at the same time for seven
seconds. The door locks should cycle to confirm
synchronization. If the locks do not cycle, see your
dealer for service.

2-10
Liftgate Caution
CAUTION:
It can be dangerous to drive with the liftgate
glass, liftgate or rear doors open because carbon
monoxide (CO) gas can come into your vehicle.
You can't see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the liftgate glass, liftgate
or rear doors open or if electrical wiring or other
cable connections must pass through the seal
between the body and the liftgate glass, liftgate
or rear doors:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on MAX A/C. That will force outside air
into your vehicle. See ªComfort Controlsº
in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Liftgate Glass and Liftgate
To open a mechanical lock system from the outside,
insert the key into the lock and turn it counterclockwise
to unlock the glass and liftgate.
The liftgate glass can be opened using the pushbutton on
the liftgate after the doors have been unlocked. This can
be done by using either the power door locks or the
remote keyless entry system.
To open the entire liftgate, lift the handle located in the
center of the door.
To lock a power lock system from the outside, insert the
key into the lock button and turn clockwise. All doors will
lock. You may also use the keyless entry system or the
power door locks to lock the liftgate and liftgate glass.
Panel Doors
To open the rear panel doors, you must open the
passenger's side panel door first. If the door is locked,
insert your door key in the lock and turn it
counterclockwise to unlock it.
To open the passenger's side panel door, pull on the
handle and pull the door open.

2-11

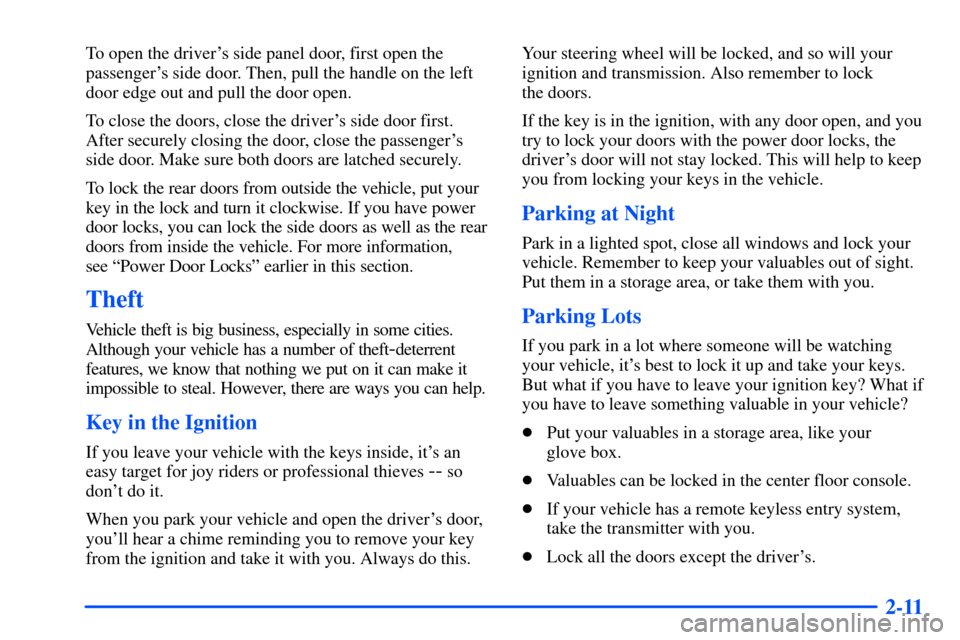

To open the driver's side panel door, first open the
passenger's side door. Then, pull the handle on the left
door edge out and pull the door open.
To close the doors, close the driver's side door first.
After securely closing the door, close the passenger's
side door. Make sure both doors are latched securely.
To lock the rear doors from outside the vehicle, put your
key in the lock and turn it clockwise. If you have power
door locks, you can lock the side doors as well as the rear
doors from inside the vehicle. For more information,
see ªPower Door Locksº earlier in this section.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make it
impossible to steal. However, there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.Your steering wheel will be locked, and so will your
ignition and transmission. Also remember to lock
the doors.
If the key is in the ignition, with any door open, and you
try to lock your doors with the power door locks, the
driver's door will not stay locked. This will help to keep
you from locking your keys in the vehicle.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?

Put your valuables in a storage area, like your
glove box.

Valuables can be locked in the center floor console.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

Lock all the doors except the driver's.

2-12

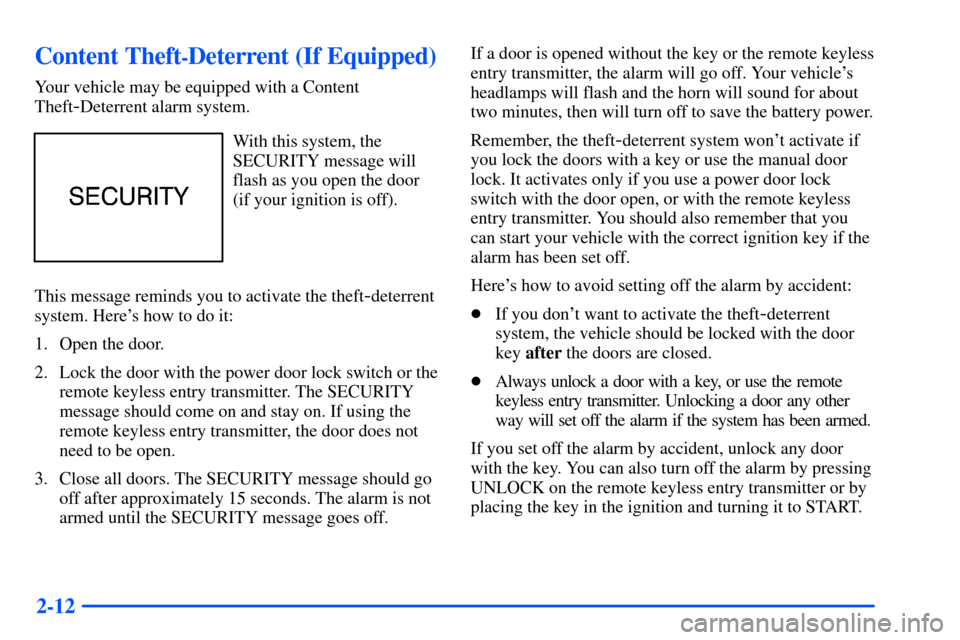

Content Theft-Deterrent (If Equipped)
Your vehicle may be equipped with a Content
Theft
-Deterrent alarm system.
With this system, the
SECURITY message will
flash as you open the door
(if your ignition is off).
This message reminds you to activate the theft
-deterrent
system. Here's how to do it:
1. Open the door.
2. Lock the door with the power door lock switch or the
remote keyless entry transmitter. The SECURITY
message should come on and stay on. If using the
remote keyless entry transmitter, the door does not
need to be open.
3. Close all doors. The SECURITY message should go
off after approximately 15 seconds. The alarm is not
armed until the SECURITY message goes off.If a door is opened without the key or the remote keyless
entry transmitter, the alarm will go off. Your vehicle's
headlamps will flash and the horn will sound for about
two minutes, then will turn off to save the battery power.
Remember, the theft
-deterrent system won't activate if
you lock the doors with a key or use the manual door
lock. It activates only if you use a power door lock
switch with the door open, or with the remote keyless
entry transmitter. You should also remember that you
can start your vehicle with the correct ignition key if the
alarm has been set off.
Here's how to avoid setting off the alarm by accident:

If you don't want to activate the theft
-deterrent
system, the vehicle should be locked with the door
key after the doors are closed.

Always unlock a door with a key, or use the remote
keyless entry transmitter. Unlocking a door any other
way will set off the alarm if the system has been armed.
If you set off the alarm by accident, unlock any door
with the key. You can also turn off the alarm by pressing
UNLOCK on the remote keyless entry transmitter or by
placing the key in the ignition and turning it to START.
