Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them and also about reclining seatbacks, lumbar
adjustments, heated seats and head restraints.
Manual Lumbar Support
The knob that controls this feature is located on the outer
edge of the seat. Turn the knob towards the front of the
vehicle to increase lumbar support. Turn the knob towards
the rear of the vehicle to decrease lumbar support.
Power Seat
The power seat controls are located on the outboard side
of each front seat cushion.
Raise or lower the front of the seat cushion by holding
the front part of the horizontal control up or down.
Raise or lower the rear of the seat cushion by holding
the rear part of the horizontal control up or down.
Page 10 of 381
yellowblue
1-3
Raise or lower the entire seat cushion by holding the
whole horizontal control up or down.
Move the seat forward or back by pushing the
horizontal control to the front or back.
Push the vertical control forward to bring the seat to
a more upright position. Push it rearward to recline
the seatback. See ªReclining Front Seatbacksº
later in this section.Power Lumbar Control (If Equipped)
The lumbar control is
located on the outboard side
of each front seat. Use the
power seat control first to
get the proper position.
Then continue with the
lumbar adjustment.
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward to decrease
support. Press the control up or down to raise or lower
the support mechanism.
Keep in mind that as your seating position changes, as it
may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
Page 11 of 381

yellowblue
1-4 Memory Seat and Mirrors (Option)
The controls for the memory seat and mirrors are located
on the driver's door panel, and are used to program and
recall previous settings that have been stored.
Adjust the driver's seat (including the lumbar
adjustments) and both outside mirrors to the position
you would like for driving. Then press and hold memory
button 1 for five seconds. A double beep will sound
when the memory is set.
To set the seat and mirror positions for a second driver,
follow the previous steps, but press button 2 instead.When your vehicle is in PARK (P) and a memory button
is pressed, a single beep will sound through the audio
system and the memory position will be recalled.
You can also store an exit position for each driver. The
exit position is programmed by moving the seat to the
desired exit position and then holding the exit button for
five seconds. The exit position set will be for the most
recently selected driving position (1 or 2).
The exit position will be recalled when the exit button is
pressed and will correspond to the driving position that
was recalled last.
Note that selecting a new position with the memory button
will change all other personal choice settings that you have
previously programmed also. See ªPersonal Choice
Programmingº in the Index for further information.
Memory recall will only work when the automatic
transaxle is in PARK (P).
Page 12 of 381
yellowblue
1-5 Heated Seats (Option)
The heated seat controls
are located on the driver's
and front passenger's
door panel.
Push the button once for a high setting, twice for a low
setting, and a third time to turn off the heated seat. The
LO setting warms the seatback and cushion until the seat
approximates body temperature. The HI setting heats the
seat to a slightly higher temperature.
The heated seats can only be used when the ignition is
turned on. The heating elements in the seats
automatically turn off when the vehicle's ignition is
turned off.
Reclining Front Seatbacks
The vertical control
described previously
in this section reclines
the front seatbacks.
Page 13 of 381
yellowblue
1-6
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
Page 14 of 381

yellowblue
1-7
Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light that
comes on as a reminder
to buckle up. (See ªSafety
Belt Reminder Lightº in
the Index.)
Page 15 of 381
yellowblue
1-8
In most states and Canadian provinces, the law says to
wear safety belts. Here's why: They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter ... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.

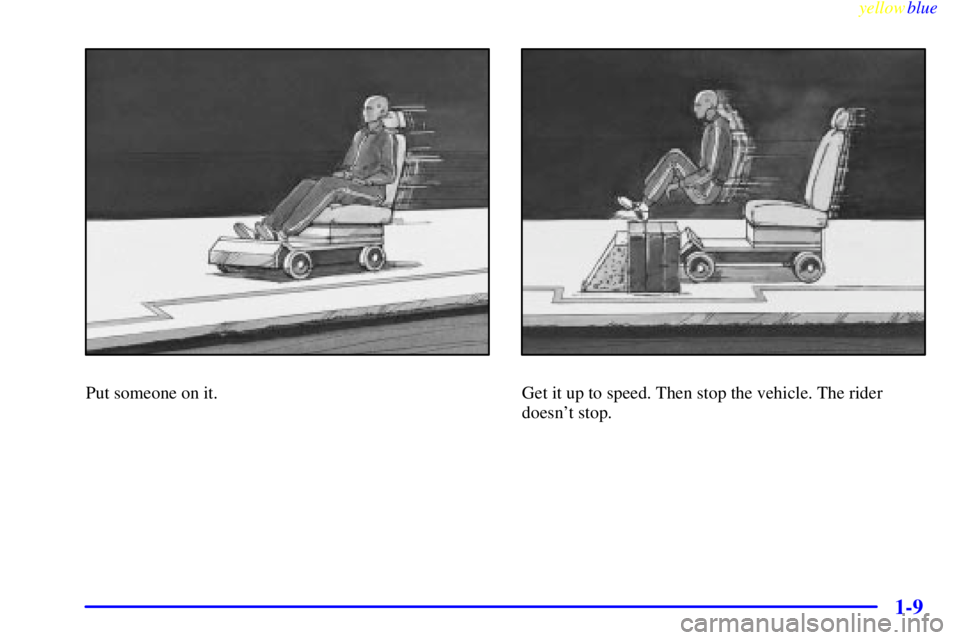

Take the simplest vehicle. Suppose it's just a seat
on wheels.
Page 16 of 381
yellowblue
1-9
Put someone on it.Get it up to speed. Then stop the vehicle. The rider
doesn't stop.
