2000 AUDI A6 diagram

24-21
Evaluation of display group 1 Display
Group: 1


Display
field: 1
Possible malfunction cause
Corrective action
less than
620
(all-wheel
drive)
or
less than
740
(front-wheel
drive)
Driving mode engaged
Adaptation of throttle valve control module -J338- to
engine control module cannot be conducted
Throttle valve control module malfunction- Move selector lever into "P" or "N" position
- Carry out adaptation of throttle valve control
module -J338- to ECM page 24
-150

- Check -J338- page 24
-128
less than
740
(front-wheel
drive)
B+ (15) to terminal 10 of ECM missing- Check voltage supply to terminal 10 on ECM
per wiring diagram
greater than
740
(all-wheel
drive) Adaptation of throttle valve control module -J338- to
engine control module cannot be conducted
Closed Throttle Position (CTP) switch open
Throttle valve control module malfunction- Carry out adaptation of throttle valve control
module -J338- to ECM page 24
-150

- Check -J338- page 24
-128
Pa
ge 26 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

Wiring diagram

Test conditions
Engine Coolant Temperature (ECT) at least
80 C (176 F)
Pa
ge 29 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-34

Oxygen Sensor (O2S) heater before
TWC, checking


Notes:

Connector for Oxygen Sensor (O2S) heater -
Z19- (bank 1, sensor 1): 4-pin, black.
Connector for Oxygen Sensor (O2S) 2 heater -
Z28- (Bank 2, sensor 1): 4-pin, black.
Component locations page 24
-1 .

Required special tools and test equipment

VAG1551 or VAG1552 Scan Tool (ST) with
VAG1551/3 adapter cable
VAG1598/22 test box
Multimeter US1119 (Fluke 83 or equivalent)
VW1594 connector test kit
Wiring diagram

Test requirements
Pa
ge 44 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-39
If there is no voltage:

If there is still no voltage: - Connect multimeter between harness connector terminal 1 (to ECM)
and vehicle Ground, using VW1594 connector test kit.
Specified value: 11.0-14.5 volts
- Check wiring between terminal 1 and relay panel using appropriate
wiring diagram.
Pa
ge 51 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

Wiring diagram

Test requirements
Engine Coolant Temperature (ECT) at least
80 C (176 F)
Pa
ge 55 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

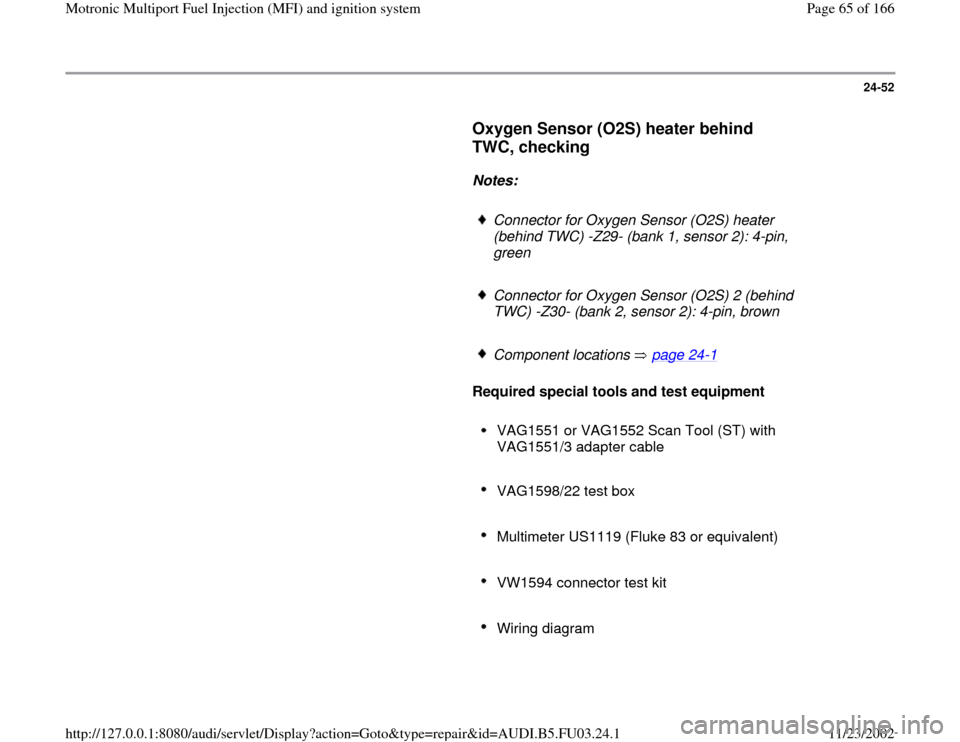

24-52

Oxygen Sensor (O2S) heater behind
TWC, checking


Notes:

Connector for Oxygen Sensor (O2S) heater
(behind TWC) -Z29- (bank 1, sensor 2): 4-pin,
green
Connector for Oxygen Sensor (O2S) 2 (behind
TWC) -Z30- (bank 2, sensor 2): 4-pin, brown
Component locations page 24
-1

Required special tools and test equipment

VAG1551 or VAG1552 Scan Tool (ST) with
VAG1551/3 adapter cable
VAG1598/22 test box
Multimeter US1119 (Fluke 83 or equivalent)
VW1594 connector test kit
Wiring diagram
Pa
ge 65 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

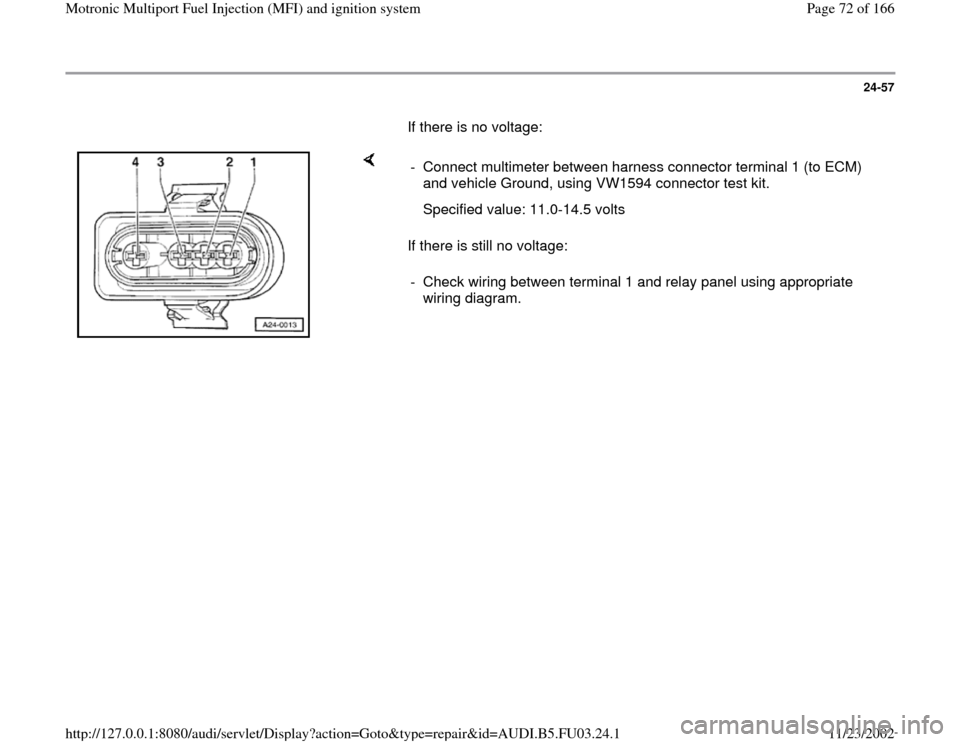

24-57
If there is no voltage:

If there is still no voltage: - Connect multimeter between harness connector terminal 1 (to ECM)
and vehicle Ground, using VW1594 connector test kit.
Specified value: 11.0-14.5 volts
- Check wiring between terminal 1 and relay panel using appropriate
wiring diagram.
Pa
ge 72 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-68

Mass Air Flow (MAF) sensor, checking


Required special tools and test equipment

VAG1551 or VAG1552 Scan Tool (ST) with
VAG1551/3 adapter cable
VAG1598/22 test box
Multimeter US1119 (Fluke 83 or equivalent)
VW1594 connector test kit
Wiring diagram

Test requirements
All electrical consumers switched off (coolant
fan must not run during test).
A/C must be switched off
Fuse for MAF sensor OK
