2000 AUDI A6 01E Transmission Drive Pinion And Hollow Shaft Assembly Workshop Manual

35-28


Note: Fig. 10 Pressing on inner race for small tapered roller bearing for
drive pinion together with 1st speed sliding gear
- Install circlip, shim for 1st speed sliding gear, synchro-ring for 1st
speed, and 1st speed sliding gear with spring and needle bearing.
-
Heat inner race to approx. 100 C and fit.- Press home ensuring there is no axial play.
With shoulder of thrust piece 3118 facing downwards, press only onto
bearing inner race. Position stepped shoulder of tube VW 415 A facing up towards press
tool VW 412. After pressing on, check axial clearance of 1st speed sliding gear.
Pa
ge 17 of 21 Drive
pinion and hollow shaft, disassemblin
g and assemblin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.35.2

35-29


Fig. 11 Removing and installing circlip for synchro-hub and shim
for 1st speed sliding gear
- Removing: take off shim -A- then circlip -B-.
- Installing: fit circlip -B- then shim -A-.

Note:
Do not press off together with 1st speed sliding gear and inner race for
small tapered roller bearing. Fig. 12 Pressing off 2nd speed sliding gear with synchro-hub for
1st and 2nd gear
- Take off locking collar for 1st and 2nd gear and synchro-ring for 1st
gear.
- Remove shim and circlip for synchro-hub.
- Press off 2nd speed sliding gear together with synchro-hub for 1st and
2nd gear.
Pa
ge 18 of 21 Drive
pinion and hollow shaft, disassemblin
g and assemblin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.35.2

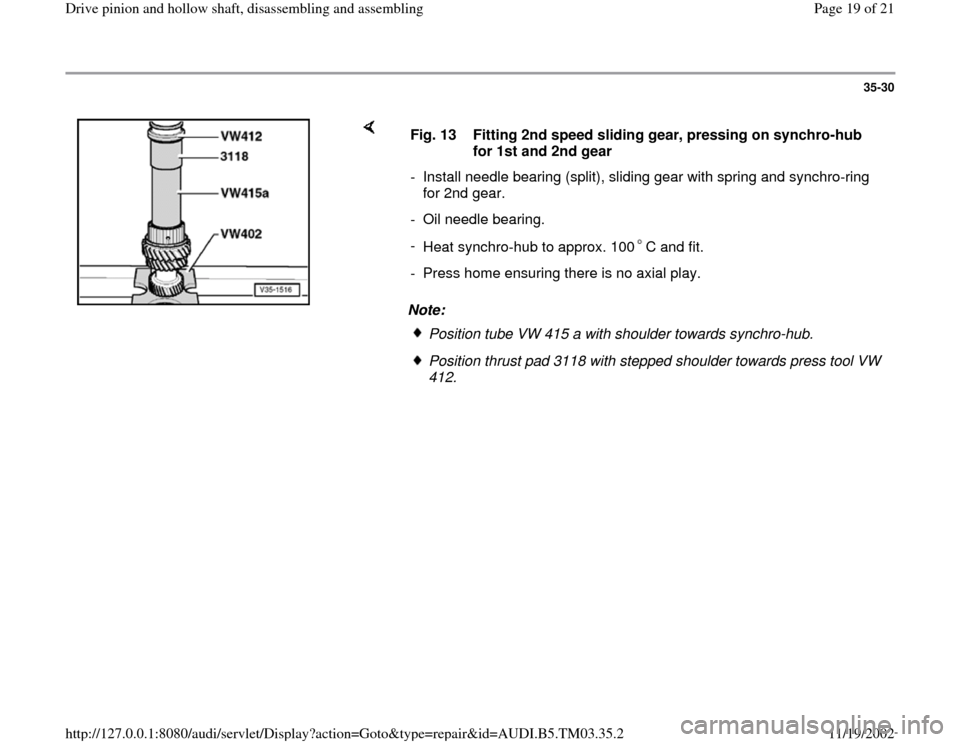

35-30


Note: Fig. 13 Fitting 2nd speed sliding gear, pressing on synchro-hub
for 1st and 2nd gear
- Install needle bearing (split), sliding gear with spring and synchro-ring
for 2nd gear.
- Oil needle bearing.
-
Heat synchro-hub to approx. 100 C and fit.- Press home ensuring there is no axial play.
Position tube VW 415 a with shoulder towards synchro-hub.Position thrust pad 3118 with stepped shoulder towards press tool VW
412.
Pa
ge 19 of 21 Drive
pinion and hollow shaft, disassemblin
g and assemblin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.35.2

35-31


Parts catalog
The following circlips are available: Fig. 14 Determining thickness of circlip for synchro-hub for 1st
and 2nd gear
- Determine thickest circlip that can still just be fitted.
- Determine circlip from table.Circlip thickness (mm)
1.90 1.96 2.02
1.93 1.99 - Fit circlip in direction of arrow onto synchro-hub.
Pa
ge 20 of 21 Drive
pinion and hollow shaft, disassemblin
g and assemblin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.35.2

35-32


Fig. 15 Driving out outer race for small tapered roller bearing

Fig. 16 Pressing in outer race for small tapered roller bearing
- Insert shim "S4" into bearing flange behind bearing seat.
- Position stepped shoulder of thrust pad 3062 towards press tool VW
407.
- Press outer race for small tapered roller bearing onto stop.
Pa
ge 21 of 21 Drive
pinion and hollow shaft, disassemblin
g and assemblin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.35.2
