01-40

Note:
Correction of the fuel consumption display is only
carried out with the direct input method. Channel 3 Adaptation 100Input adaptation value XXXXX

Indicated on display
Example:
Desired input value: 90%
Keyboard entry: 00090 - Input desired correction value using keypad on VAG1551, fill in leading
digits with zeroes "0".
Channel 3 Adaptation 100
Q
Input adaptation value 00090

Indicated on display
- Press -Q- button to confirm input
Channel 3 Adaptation 90
Q
Store chan
ged value?

Indicated on display
- Press -Q- button to confirm input
Channel 3 Adaptation 90 Chan
ged value is stored

Indicated on display
-
Press button to end adaptation.
Pa
ge 50 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-42

Adapting multi-function display language
versions

Note:
Adaptation is only carried out on vehicles
equipped with on board computer. Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -4-.
- Press -Q- button to confirm input
Channel 4 Adaptation 1
-1 3-

Indicated on display
Notes:
The display shows only the last digit of the five-digit language code,
e.g. 1 for German. Input of incorrect values will end the adaptation function. "Adaptation"
function 10 must be selected again. When using the VAG1551 keypad, only the direct input method can be
used.
Pa
ge 52 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

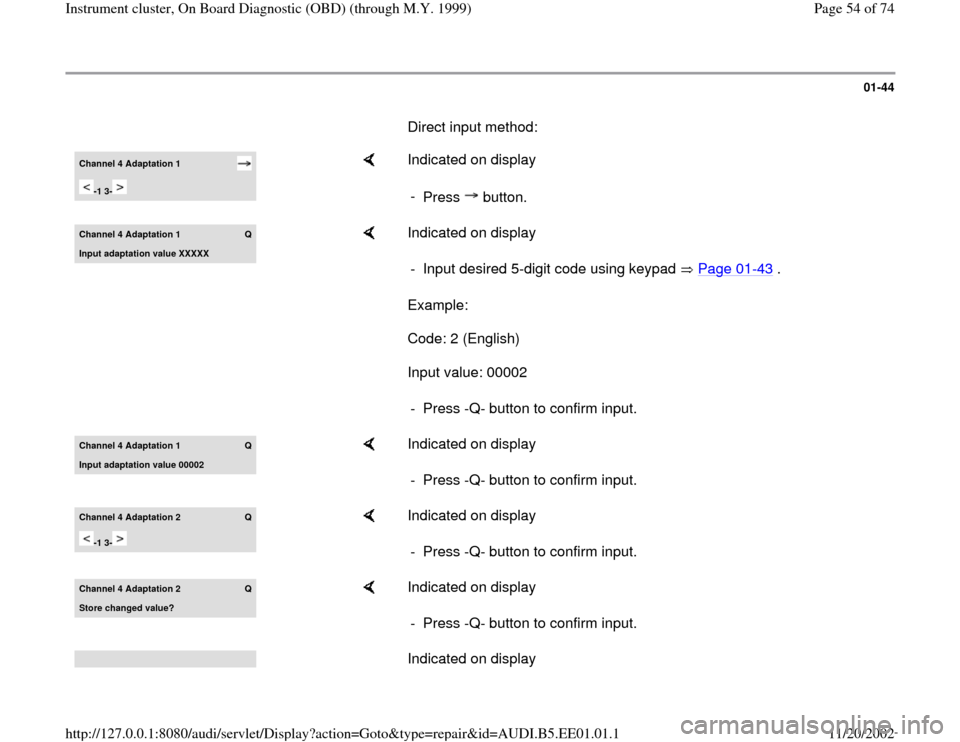

01-44
Direct input method: Channel 4 Adaptation 1
-1 3-

Indicated on display
-
Press button.
Channel 4 Adaptation 1
Q
Input adaptation value XXXXX

Indicated on display
Example:
Code: 2 (English)
Input value: 00002 - Input desired 5-digit code using keypad Page 01
-43
.
- Press -Q- button to confirm input.
Channel 4 Adaptation 1
Q
Input adaptation value 00002

Indicated on display
- Press -Q- button to confirm input.
Channel 4 Adaptation 2
Q
-1 3-

Indicated on display
- Press -Q- button to confirm input.
Channel 4 Adaptation 2
Q
Store chan
ged value?

Indicated on display
- Press -Q- button to confirm input.Indicated on display
Pa
ge 54 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-46

Channel 2 Adaptation 1
-1 3-

Indicated on display. (service interval will be displayed, e.g. 1)
Note:
Reset the SRI using only the direct input method. 1 - indicates that the oil service is due.
10 - indicates that the inspection service is due.
11 - indicates that oil and inspection services are due.
-
Press button.
Channel 2 Adaptation 1 Input adaptation value XXXXX

Indicated on display
Delete the following service events by using the adaptation values listed
below: Adaptation value
Service Event
00000 Delete OIL and INSP
00010 Delete OIL
00001 Delete INSP - Using keypad, enter appropriate adaptation value to delete service
event, e.g. 00000.
- Press -0- button five times.
Pa
ge 57 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-49

Channel 5 Adaptation 1
- 1 3-

Indicated on display
The display shows the number of kilometers remaining until the next oil
change service is due (the "1" indicates 1000 km remaining).
Notes:
Values can only be entered in increments of 1000 km. Therefore, the
distance indicated is in units of 1000. In countries where speedometers are calibrated in miles, adjustments
must still be made in kilometers. Therefore convert miles to kilometers
(miles x 1.609 = kilometers) to get the required adaptation value. If the instrument cluster must be replaced, observe notes Page 01
-
75
.
When using the scan tool keypad, only the direct input method can be
used. If an incorrect value is input, the "adaptation" function 10 will be
cancelled and must be initiated again.
-
Press button.
Pa
ge 60 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

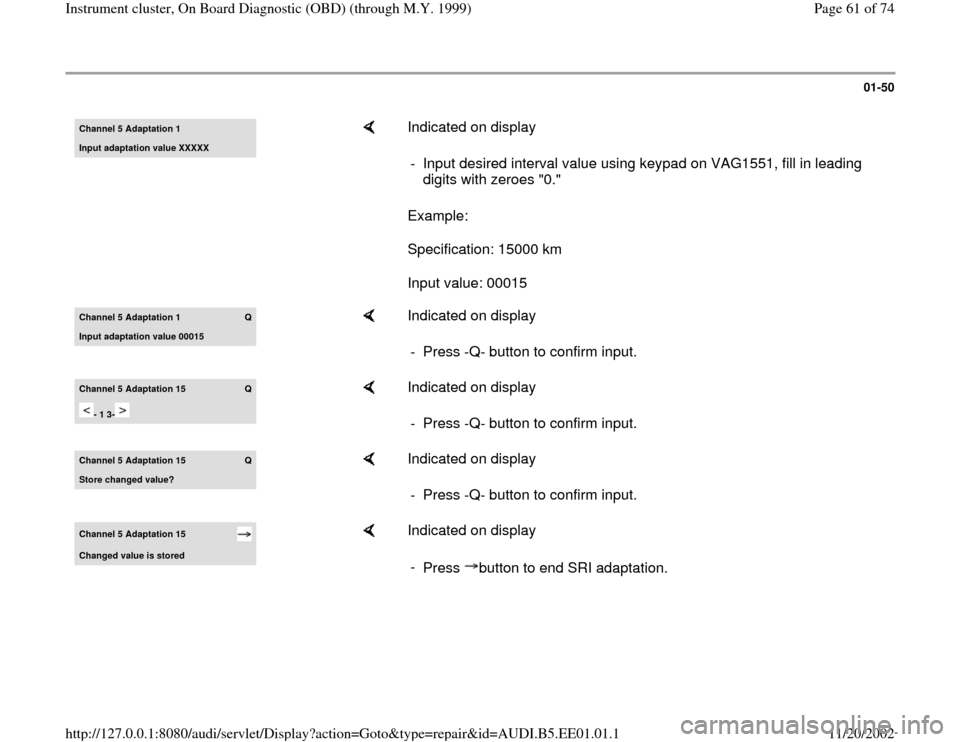

01-50

Channel 5 Adaptation 1Input adaptation value XXXXX

Indicated on display
Example:
Specification: 15000 km
Input value: 00015 - Input desired interval value using keypad on VAG1551, fill in leading
digits with zeroes "0."
Channel 5 Adaptation 1
Q
Input adaptation value 00015

Indicated on display
- Press -Q- button to confirm input.
Channel 5 Adaptation 15
Q
- 1 3-

Indicated on display
- Press -Q- button to confirm input.
Channel 5 Adaptation 15
Q
Store chan
ged value?

Indicated on display
- Press -Q- button to confirm input.
Channel 5 Adaptation 15 Chan
ged value is stored

Indicated on display
-
Press button to end SRI adaptation.
Pa
ge 61 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-52

Channel 6 Adaptation 5
-1 3-

Indicated on display
The display shows the number of kilometers remaining until the next
maintenance service is due (the "5" indicates 5000 km remaining).
Notes:
Values can only be entered in increments of 1000 km. Therefore, the
distance indicated is in units of 1000. In countries where speedometers are calibrated in miles, adjustments
must still be made in kilometers. Therefore convert miles to kilometers
(miles x 1.609 = kilometers) to get the required adaptation value. If the instrument cluster must be replaced, observe notes Page 01
-
75
.
When using the scan tool keypad, only the direct input method can be
used. If an incorrect value is input, the "adaptation" function 10 will be
cancelled and must be initiated again.
-
Press button.
Pa
ge 63 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

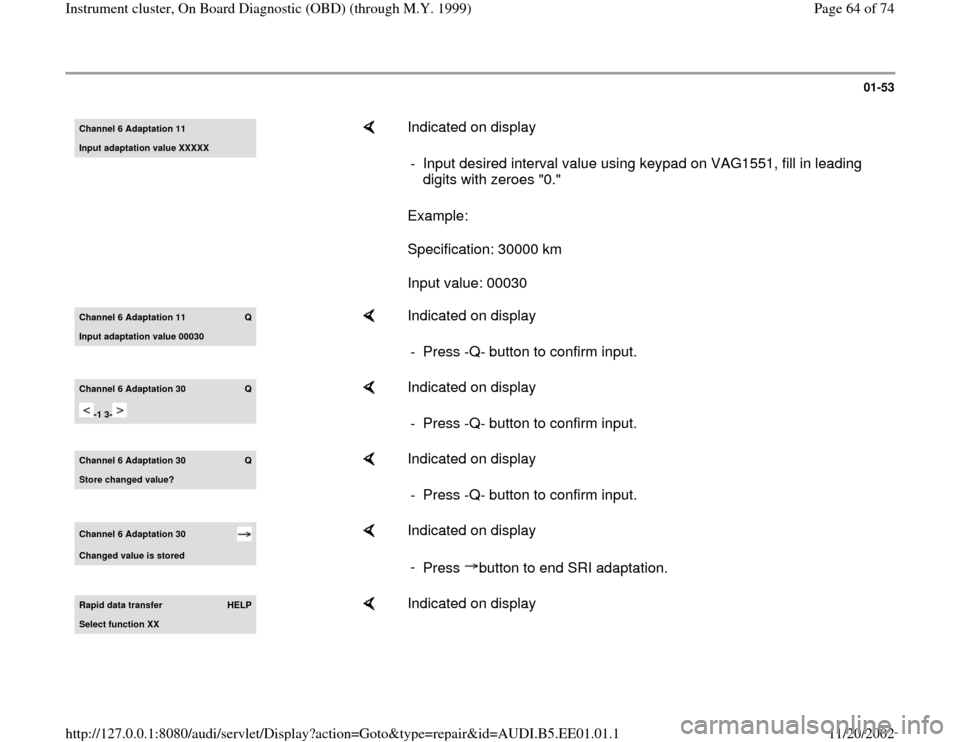

01-53

Channel 6 Adaptation 11Input adaptation value XXXXX

Indicated on display
Example:
Specification: 30000 km
Input value: 00030 - Input desired interval value using keypad on VAG1551, fill in leading
digits with zeroes "0."
Channel 6 Adaptation 11
Q
Input adaptation value 00030

Indicated on display
- Press -Q- button to confirm input.
Channel 6 Adaptation 30
Q
-1 3-

Indicated on display
- Press -Q- button to confirm input.
Channel 6 Adaptation 30
Q
Store chan
ged value?

Indicated on display
- Press -Q- button to confirm input.
Channel 6 Adaptation 30 Chan
ged value is stored

Indicated on display
-
Press button to end SRI adaptation.
