01-4

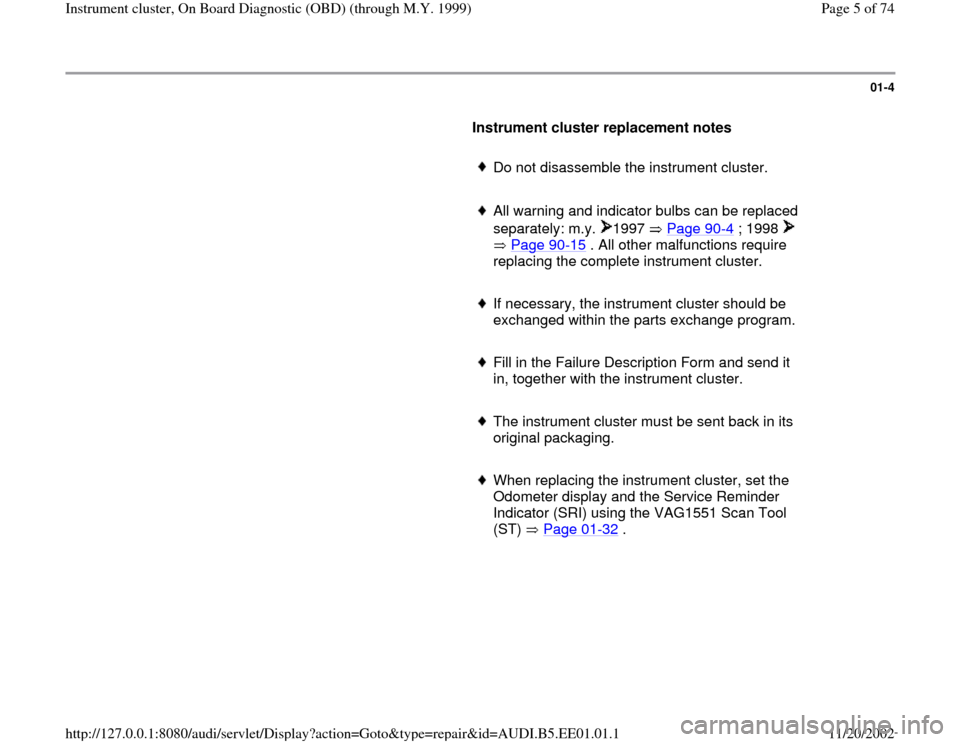

Instrument cluster replacement notes
Do not disassemble the instrument cluster.
All warning and indicator bulbs can be replaced
separately: m.y. 1997 Page 90
-4 ; 1998
Page 90
-15
. All other malfunctions require
replacing the complete instrument cluster.
If necessary, the instrument cluster should be
exchanged within the parts exchange program.
Fill in the Failure Description Form and send it
in, together with the instrument cluster.
The instrument cluster must be sent back in its
original packaging.
When replacing the instrument cluster, set the
Odometer display and the Service Reminder
Indicator (SRI) using the VAG1551 Scan Tool
(ST) Page 01
-32
.
