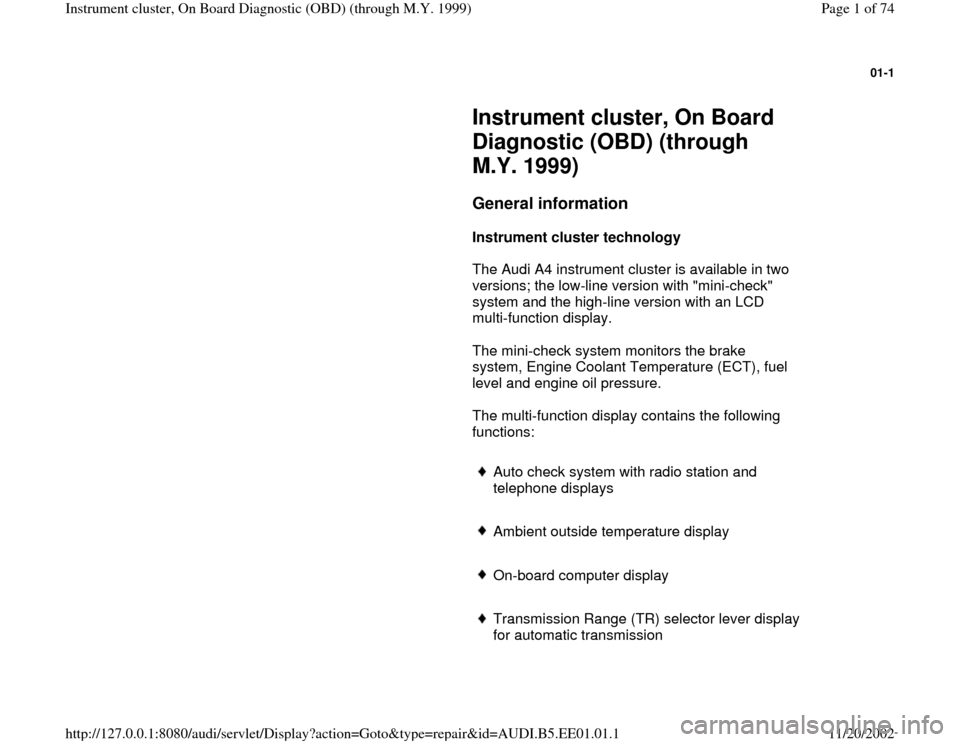

01-15

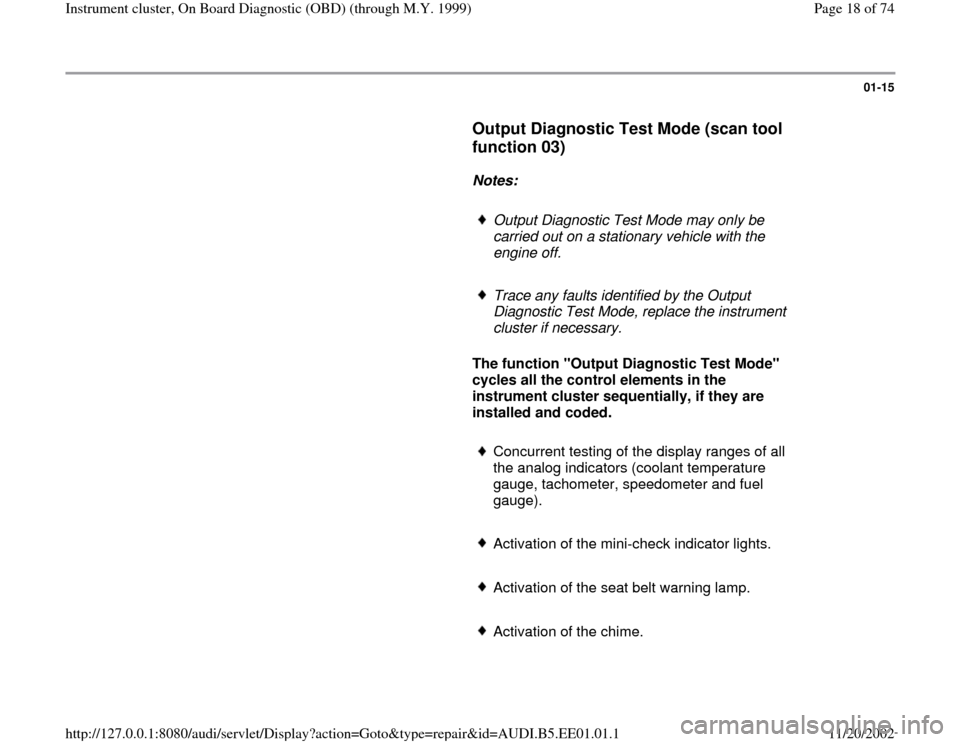

Output Diagnostic Test Mode (scan tool
function 03)
Notes:
Output Diagnostic Test Mode may only be
carried out on a stationary vehicle with the
engine off.
Trace any faults identified by the Output
Diagnostic Test Mode, replace the instrument
cluster if necessary.
The function "Output Diagnostic Test Mode"
cycles all the control elements in the
instrument cluster sequentially, if they are
installed and coded.
Concurrent testing of the display ranges of all
the analog indicators (coolant temperature
gauge, tachometer, speedometer and fuel
gauge).
Activation of the mini-check indicator lights.
Activation of the seat belt warning lamp.
Activation of the chime.
