2000 AUDI A4 Brakes ESP DTC Table Workshop Manual

01-356
Electronic Stabilization Program (ESP) DTC table Notes:

Fulfill test requirements page 01
-22
.
Connect the VAG1551 Scan Tool (ST) and select "Brake Electronics" via address word 03 page 01
-4
Check the control module version page 01
-231
and press the button.
Press buttons -0- and -2- to select "Check DTC Memory" function 02. Press -Q- button to confirm input.
Each malfunction is assigned a 5-digit Diagnostic Trouble Code (DTC). The DTC is located in the left column of the DTC
table. If you have switched the printer on by pressing the "PRINT" button, the VAG1551 scan tool (ST) prints the message
identifying the malfunction and the DTC. Otherwise, DTCs are not displayed by the VAG1551 scan tool.
The contents of DTC memory remain stored until memory is erased, page 01
-15
.
Sporadically occurring malfunctions are identified via indication of "/SP" on the right-hand side of the display.
Static malfunctions that cannot be detected when the vehicle is stationary are also identified with "/SP" if the ignition has
been switched off and then on again.
The following DTC table includes all the DTCs that can be stored by the ABS control module -J104- and displayed and
printed out by the VAS5051 tester or VAG1551 scan tool. Malfunctions are listed by DTC number.
Pa
ge 1 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-357
DTC table; DTCs from 00000 to 00526

Printed output from VAG1551
Scan Tool (ST) Possible cause
Corrective action
DTC
00000
No malfunction recognized!
If this display appears, process is
concluded. No DTCs are stored in
DTC memory.
If there are still problems or
malfunctions anyway, check the
following points:
If one or more indicator lamps light up anyway,
one of the wires that activates the indicator
lamps may be malfunctioning. Missing signal from parking brake warning light
switch -F9-. (parking brake set or released). - See section "Overview of
indicator lamp functions"
page 01
-222
.
Check the parking brake
warning light switch -F9-.
- "Read measuring value block"
function 08 page 01
-256
,
display group 2.

See continuation on next page

Missing signal from brake light switch -F.
Check the brake light switch
-F.
- "Read measuring value block"
function 08 page 01
-256
,
display group 2.
Pa
ge 2 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

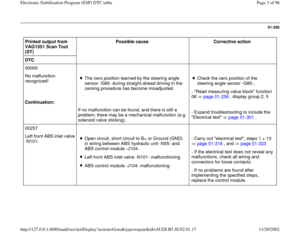

01-358

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00000
No malfunction
recognized!

Continuation:
The zero position learned by the steering angle
sensor -G85- during straight-ahead driving in the
zeroing procedure has become misadjusted.
Check the zero position of the
steering angle sensor -G85-.
- "Read measuring value block" function
08 page 01
-256
, display group 2, 5
If no malfunction can be found, and there is still a
problem, there may be a mechanical malfunction (e.g.
solenoid valve sticking). - Expand troubleshooting to include the
"Electrical test" page 01
-301
.
00257
Left front ABS inlet valve
-N101-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit -N55- and
ABS control module -J104-.
Left front ABS inlet valve -N101- malfunctioning
ABS control module -J104- malfunctioning- Carry out "electrical test", steps 1 + 13
page 01
-318
, and page 01
-323

- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps,
replace the control module.
Pa
ge 3 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-359

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00259
Right front ABS inlet
valve -N99-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Right front ABS inlet valve -N99- malfunctioning.
ABS control module -J104- malfunctioning- Carry out "electrical test", steps 2 +14
page 01
-318
and page 01
-323

- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
00265
Left front ABS outlet
valve -N102-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Left front ABS outlet valve -N102- malfunctioning.
ABS control module -J104- malfunctioning- Carry out "Electrical test", step 1 page
01
-318
.
- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
Pa
ge 4 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-360

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00267
Right front ABS outlet
valve -N100-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Right front ABS outlet valve -N100-
malfunctioning
ABS control module -J104- malfunctioning- Carry out "Electrical test", step 2 page
01
-318
.
- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
00273
Right rear ABS inlet
valve -N133-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Right rear ABS inlet valve -N133- malfunctioning
ABS control module -J104- malfunctioning- Carry out "electrical test", steps 4 +16
page 01
-318
and page 01
-323

- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
Pa
ge 5 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-361

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00274
Left rear ABS inlet
valve -N134-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Left rear ABS inlet valve -N134- malfunctioning
ABS control module -J104- malfunctioning- Carry out "electrical test", steps 3 +15
page 01
-318
and page 01
-323

- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
00275
Right rear ABS outlet
valve -N135-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Right rear ABS outlet valve -N135-
malfunctioning.
ABS control module -J104- malfunctioning- Carry out "Electrical test", step 4 page
01
-318
.
- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
Pa
ge 6 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-362

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
00276
Left rear ABS outlet
valve -N136-
Open circuit, short circuit to B+ or Ground (GND)
in wiring between ABS hydraulic unit and ABS
control module -J104-.
Left rear ABS outlet valve -N136- malfunctioning
ABS control module -J104- malfunctioning- Carry out "Electrical test", step 3 page
01
-318
.
- If the electrical test does not reveal any
malfunctions, check all wiring and
connectors for loose contacts.
- If no problems are found after
implementing the specified steps, replace
the control module.
Pa
ge 7 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-363

Printed output
from VAG1551
Scan Tool (ST) Possible cause
Corrective action
DTC
00283
Left front ABS wheel
speed sensor -G47-
Implausible signal








Left rear ABS wheel speed sensor -
G47- installed incorrectly.
ABS wheel speed sensor rotor dirty or
damaged.
Excessive wheel bearing play.
ABS wheel speed sensor -G47-
malfunctioning.
Short circuit to Ground (GND). Repair Manual, Brake System, Repair Group 45

Repair Manual, Brake System, Repair Group 45
Repair Manual, Suspension, Wheels, Steering,
Repair Group 40
- Check installation of ABS wheel speed sensor.
- Check rotor, clean or replace- Replace wheel bearing- "Read measuring value block" display group 1 page 01
-256
.
- Carry out "Electrical test", step 7 page 01
-318
.
00283
Left front ABS wheel
speed sensor -G47-
Incorrect control module
Open circuit or short circuit to B+ in - Check control module identification page 01
-231
.
- If nothing is displayed during "Read measuring value
