2000 RL Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through\
this reference.
For a printed owner's manual, click on authorized manuals or go to www.h\
elminc.com.
Contents

Owner's Identification Form
Introduction ........................................................................\
................................................................. i
A Few Words About Safety........................................................................\
........................................ .ii
Your Vehicle at a Glance........................................................................\
............................................ .2
Driver and Passenger Safety ........................................................................\
..................................... .5
Proper use and care of your vehicle's seat belts, and Supplemental Restr\
aint System.
Instruments and Controls........................................................................\
........................................ .51
Instrument panel indicator and gauge, and how to use dashboard and steering colu\
mn controls.
Comfort and Convenience Features ........................................................................\
..................... .119
How to operate the climate control system, the audio system, and other c\
onvenience features.
Before Driving........................................................................\
..........................................................165
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ........................................................................\
..................................................................... .177
The proper way to start the engine, shift the transmission, and park, pl\
us towing a trailer.
Maintenance........................................................................\
.............................................................201
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Appearance Care........................................................................\
..................................................... .261
Tips on cleaning and protecting your vehicle. Things to look for if your\
vehicle ever needs body repairs.
Taking Care of the Unexpected........................................................................\
..............................269
This section covers several problems motorists sometimes experience, a nd how to handle them.
Technical Information........................................................................\
............................................ .295
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................309
A summary of the warranties covering your new Acura, and how to contact \
us.
Authorized Manuals (U.S. only)........................................................................\
..............................315
How to order manuals and other technical literature.
Index........................................................................\
........................................................................\
...... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.

Driver
and Passenge r Safet y

This section gives you important information about how to protect
yourself and your passengers. It shows you how to use seat belts
properly. It explains your Supple-
mental Restraint System. And it tells
you how to properly restrain infants and children in your car.
Important Safety Precautions .......... 6
Your Car's Safety Features .............. 7
Seat Belts........................................ 8

Airbags............................................ 9

Seats & Seat-Backs...................... 10
Head Restraints........................... 10Door Locks................................... 10
Pre-Drive Safety Checklist......... 11

Protecting Adults............................. 12

1. Close and Lock the Doors...... 12
2. Adjust the Front Seats............ 12
3. Adjust the Seat-Backs............. 13
4. Adjust the Head Restraints.... 14
5. Fasten and Position the Seat
Belts...................................... 15

6. Adjust the Steering Wheel..... 17
7. Maintain a Proper Sitting

Position................................. 17

Advice for Pregnant Women...... 18
Additional Safety Precautions.... 19

Protecting Children......................... 20

All Children Must Be
Restrained................................ 20

Children Should Sit in the Back Seat............................................ 21
The Passenger's Front Airbag Poses Serious Risksto Children............................ 21
If You Must Drive with Several
Children.................................... 23

If a Child Requires Close
Attention................................... 23

Additional Safety Precautions.... 23 General Guidelines for Using
Child Seats................................ 24

Protecting Infants........................ 28

Protecting Small Children.......... 32

Protecting Larger Children........ 35
Using Child Seats with
Tethers...................................... 39
Additional Information About Your

Seat Belts.................................. 40

Seat Belt System Components... 40

Lap/Shoulder Belt....................... 40

Automatic Seat Belt
Tensioners................................
41

Seat Bel
t Maintenance................ 42

Additional Information About Your
Front Airbags........................... 43

SRS Components.........................

43

How You
r Front Airbags

Work.......................................... 43

How the SRS Indicator Light
Works........................................ 45

Additional Information About Your
Side Airbags.............................

46

How You
r Side Airbags Work.... 46

How The Side Airbag Indicator
Light Works............................. 47

Additional Information About Your
Airbags...................................... 48

Airbag Service.............................. 48

Additional Safety Precautions.... 48

Carbon Monoxide Hazard.............. 49
Safety Labels.................................... 50

Driver an d Passenge r Safet y

You
r Car' s Safet y Feature s

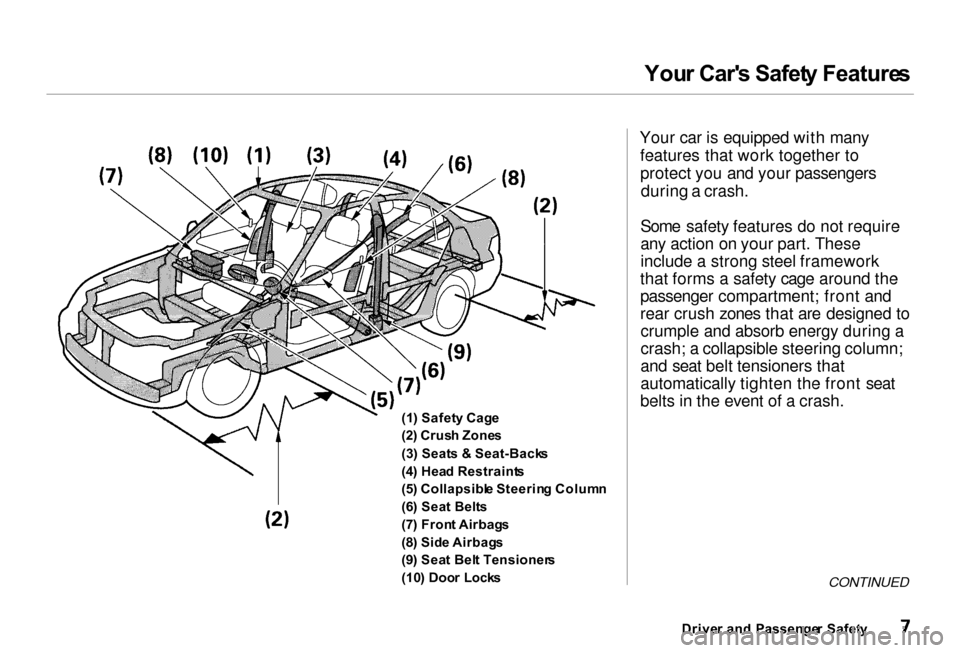

(1 ) Safet y Cag e
(2 ) Crus h Zone s
(3 ) Seat s & Seat-Back s
(4 ) Hea d Restraint s
(5 ) Collapsibl e Steerin g Colum n
(6 ) Sea t Belt s
(7 ) Fron t Airbag s
(8 ) Sid e Airbag s
(9 ) Sea t Bel t Tensioner s
(10 ) Doo r Lock s Your car is equipped with many
features that work together to
protect you and your passengers during a crash.
Some safety features do not require
any action on your part. These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones that are designed to crumple and absorb energy during a
crash; a collapsible steering column;
and seat belt tensioners that
automatically tighten the front seat
belts in the event of a crash.

CONTINUED

Drive r an d Passenge r Safet y

You
r Car' s Safet y Feature s
Airbags offer no protection in rear

impacts, rollovers, or minor

frontal or side collisions.
Airbags can pose serious hazards.

To do their job, airbags must
inflate with tremendous force andspeed. So while airbags help save
lives, they can cause minor injuries, or more serious or even fatal
injuries if occupants are not
properly restrained or sitting
properly.

What you should do: Always wear

your seat belt properly, and sit upright and as far back as possible
from the steering wheel or
dashboard.
Seat
s & Seat-Back s
Your car's seats are designed to keep you in a comfortable, upright
position so you can take full
advantage of the protection offered
by seat belts and the energy absorbing materials in the seats.
How you adjust your seats and seat-
backs can also affect your safety. For
example, sitting too close to thesteering wheel or dashboard
increases the risk of you or your
passenger being injured by striking the inside of the car, or by an
inflating airbag.
Reclining a seat-back too far reduces
the seat belt's effectiveness and
increases the chance that the seat's occupant will slide under the seat
belt in a crash and be seriously

injured.
What you should do: Move the front

seats as far back as possible, and
keep adjustable seat-backs in an
upright position whenever the car is

moving.

Hea d Restraint s
Head restraints can help protect you
from whiplash and other injuries. For maximum protection, the back of
your head should rest against the center of the head restraint.
Doo r Lock s
Keeping your doors locked reduces
the chance of being thrown out of
the car during a crash. It also helps
prevent occupants from accidentally opening a door and falling out, and
outsiders from unexpectedly opening
your doors.
Drive r an d Passenge r Safet y

You
r Car' s Safet y Feature s
Pre-Driv e Safet y Checklis t
To make sure you and your passengers get the maximum
protection from your car's safely
features, check the following each
time before you drive away: All adults, and children who have
outgrown child safety seats, are
wearing their seat belts and
wearing them properly (see page
15).
Any infant or small child is
properly restrained in a child seatin the back seat (see page 20). Front seat occupants are sitting
upright and as far back as possible
from the steering wheel and dashboard (see page 12).
Seat-backs are upright (see page
13).
Head restraints are properly

adjusted (see page 14).
All doors are closed and locked (see page 12). All cargo is properly stored or
secured (see page 174). The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.

Driver an d Passenge r Safet y

Protectin
g Adult s

Introductio n
The following pages provide instructions on how to properly
protect the driver and other adult
occupants.

These instructions also apply to children who have outgrown childseats and are large enough to wear
lap/shoulder belts. (See page 35 for
important additional guidelines on
how to properly protect larger children.)
1 . Clos e an d Loc k th e Door s
After everyone has entered the car, be sure the doors are closed and

locked.
Your car has a door monitor light on
the instrument panel to indicate
when a specific door is not tightly
closed.

For safety, locking the doors reduces
the chance that a passenger,
especially a child, will open a door
while the car is moving and accidentally fall out. It also reduces
the chance of someone being thrown out of the car during a crash.
For security, locked doors can
prevent an outsider from unexpectedly opening a door when
you come to a stop.
See page 81 for how to lock the

doors.
2.Adjus
t th e Fron t Seat s
Any driver who sits too close to the steering wheel is at risk of being
seriously injured or killed by striking
the steering wheel or from being struck by an inflating front airbag
during a crash.
Drive r an d Passenge r Safet y

Protectin
g Adult s
To reduce the chance of injury, wear your seat belt properly, sit upright
with your back against the seat, andmove the seat as far back as possible
from the steering wheel while still maintaining full control of the car.
Also make sure your front seat passenger moves the seat as far to
the rear as possible. Most shorter drivers can get far
enough away from the steering
wheel and still reach the pedals. However, if you are concerned about
sitting too close, we recommend that
you investigate whether some type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked in position.
See page 93 for how to adjust the
front seats. 3.Adjus
t th e Seat-Back s
Adjust the driver's seat-back to a comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel. If yousit too close to the steering wheel,
you could be injured if the front airbag inflates.

CONTINUED

Drive r an d Passenge r Safet y

Sitting too close to a front
airbag can result in serious injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.

Protectin
g Adult s

6 . Adjus t th e Steerin g Whee l
Adjust the steering wheel, if needed, so that the wheel points toward your
chest, not toward your face.
Pointing the steering wheel toward
your chest provides optimal protection from the airbag.
See page 71 for how to adjust the
steering wheel. 7.Maintai
n a Prope r Sittin g
Positio n
After all occupants have adjusted their seats and put on seat belts, it is
very important that they continue to sit upright, well back in their seats,
with their feet on the floor, until the
car is parked and the engine is off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the chance of injury during a crash is
greatly increased. In addition, an occupant who is out of
position in the front seat can be seriously or fatally injured by
striking interior parts of the car, or
by being struck by an inflating front
airbag. Being struck by an inflating side airbag can result in possibly
serious injuries.

CONTINUED

Drive r an d Passenge r Safet y

Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the

floor.
