1999 TOYOTA TACOMA light

'99 Tacoma (U)
16 2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.CAUTION
To avoid serious personal injury, you
must do the following. While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
Never sit on top of the vehicle
around the roof opening.
Never attempt to remove the moon
roof panel while driving. Otherwise,
the panel may become a hazard by
falling into or flying off the vehicle.
After installing the moon roof pan-
el, make sure they are firmly se-
cured by pushing up on the under-
side of the panel.
Never put your hands between the
moon roof panel and the surround-
ing roof.
Detachable moon roofÐ
ÐMoon roof precautions

'99 Tacoma (U)
23
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight
body pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER (except bench seat)
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat- back.
3. DRIVER'S SEAT CUSHION ANGLEADJUSTING KNOB (on some models)
Turn the knob either way.
4. DRIVER'S SEAT LUMBAR SUPPORT ADJUSTING LEVER (on some models)
Pull the lever forward or backward.
For easy access to the rear seat, do this.
1. Lift the seatback angle adjusting lever or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the front- most posi- tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
ÐMoving passenger 's seat for
rear seat entry
(Xtra- cab models)

'99 Tacoma (U)
24
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
ÐFolding seatback (bench seat)
Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.
CAUTION
When returning the seatback to the
upright position: Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready use.
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Rear seats (jump seats)
To raise the bottom cushion, pull it up.
To lower the bottom cushion, push it down.
See ºLuggage stowage precautionsº in
Part 2 for precautions to observe for load-
ing luggage.
CAUTION
When returning the bottom cushion to
its original position, make sure the
seat belts are not twisted or caught
under the bottom cushion and are ar-
ranged in their proper position and
are ready use.

'99 Tacoma (U)
26
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child.
Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See ºChild restraintº
for details.
NORMAL- CAB MODELSÐ
If a child is too large for a child restraint
system, the child s hould sit in the seat
and must be restrained using the vehicle's
seat belt.
XTRA- CAB MODELSÐ
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Small- framed person or youth in a
3- point type seat belt.
On models with
a bench seat, have a small- framed person
or youth sit slightly closer to the center
of the vehicle (so the shoulder belt does
not cross over the neck). On models with
separate seats, move the seat fully back-
ward .
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following: Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Seat beltsÐ
ÐSeat belt precautions

'99 Tacoma (U)
27

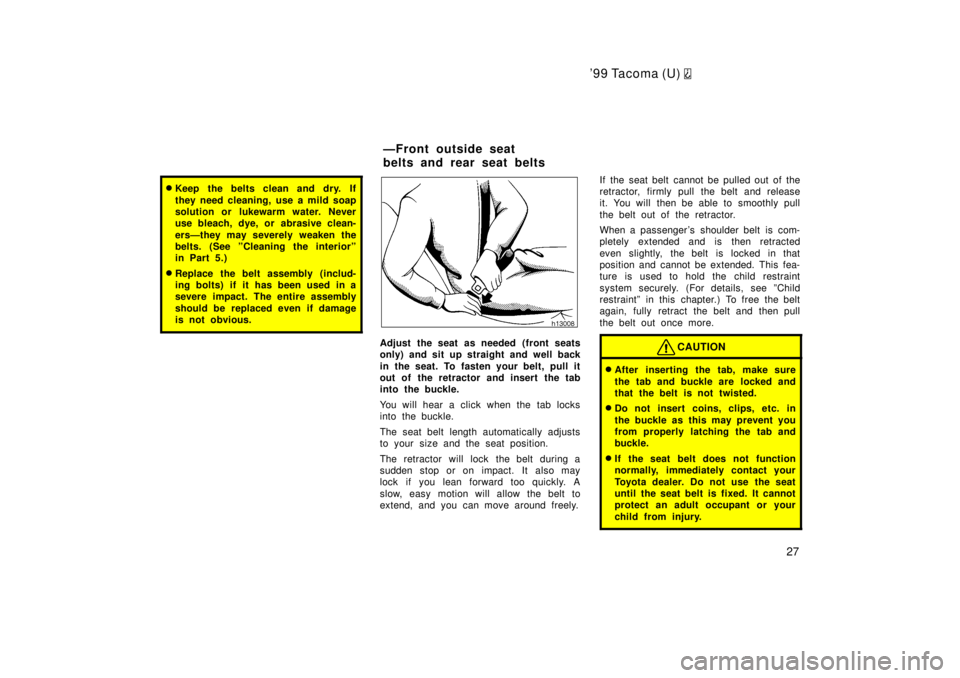

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts. (See ºCleaning the interiorº
in Part 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see ºChild
restraintº in this chapter.) To free the belt
again, fully retract the belt and then pull
the belt out once more.CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
ÐFront outside seat
belts and rear seat belts

'99 Tacoma (U)
33
This indicator comes on when the igni-
tion key is turned to the ºACCº or
ºONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors airbag
sensor assembly, seat belt pretensioner
assembly, warning light, interconnecting
wiring and power sources. (For details,
see ºService remainder indicators and
warning buzzersº in Chapter 1- 5.)The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.1. Front airbag sensor
2. SRS airbag warning light
3. Seat belt pretensioner assembly
4. Airbag sensor assembly
The seat belt pretensioner is controlled by
the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor. When a seat belt pretensioner is acti-
vated, an operating noise may be heard
and a small amount of smoke- like gas
may be released. This gas is harmless
and does not indicate that a fire is occur-
ring.
Once the seat belt pretensioner has been
activated, the seat belt retractor remains
locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in death or serious personal inju-
ry.
Failure to follow these instructions
can result in death or serious inju-
ries.

'99 Tacoma (U)
34
NOTICE
Do not perform any of the following changes without consulting yourToyota dealer. Such changes caninterfere with proper operation of theseat belt pretensioners in somecases.
Installation of electronic items suchas a mobile two- way radio, cassette tape player or compact disc player
Repairs on or near the front seatbelt pretensioner assemblies
Modification of the suspension sys-tem
Modification of the front end struc-
ture
Attachment of a grille guard (bullbar, kangaroo bar, etc.), snowplow, winches or any other equipment tothe front end
Repairs made on or near the front
fenders, front end structure or con- sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the ºACCº or
ºONº position, or remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.
The front seat belt pretensioner assem-
bly or surrounding area has been dam-aged.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident not of the extent to cause the
seat belt pretensioners to operate.
The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.

'99 Tacoma (U)
35
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
front passenger when added to the pri-
mary protection provided by the seat
belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help prevent or reduce injury
by inflating, in order to decrease the likeli-
hood of the driver 's or front passenger 's
head or chest directly hitting the steering
wheel or dashboard. When the passenger
airbag manual on- off switch is in the ºONº
position, the passenger airbag is activated
even with no passenger in the front seat.
Be sure to wear your seat belt.
CAUTION
A driver or front passenger too close
to the steering wheel or dashboard
during airbag deployment can be
killed or seriously injured. Toyota
strongly recommends that: The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
The passenger airbag system is
equipped with a manual on- off switch
and indicator light. Turning the passen-
ger airbag manual on- off switch to the
ºONº position makes the passenger air-
bag system operational. Turning the
passenger airbag manual on- off switch
to the ºOFFº position disables the pas-
senger airbag system. The indicator
light on the passenger airbag manual
on- off switch will come on when the
passenger airbag system has been dis-
abled.
See ºPassenger airbag manual on- off
switchº in this chapter for detail.
SRS driver and
front passenger airbags
