1999 TOYOTA SIENNA Owners Manual

name. SIENNA (45403U)
257
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with bare
hands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking, front turn
signal and side
marker lights
115727/8B
Rear turn signal
lights115627B
Stop and tail lights115727/8B
Back−up lights92118C
License plate lights1685C
High mounted
stoplight92118C
Front personal lights—8D
Front interior light—8D
Rear personal lights—8D
Rear interior light—8D
Vanity mirror lights—3D
Door courtesy lights1943.8C
Luggage
compartment light—5D
A: HB2 halogen bulbs
B: Single end bulbs
C: Wedge base bulbs
D: Double end bulbs
ProCarManuals.com

name. SIENNA (45403U)
258
—Headlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover with the
”TOP” mark upward, and snuggle on
the boss. Then insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
ProCarManuals.com

name. SIENNA (45403U)
259

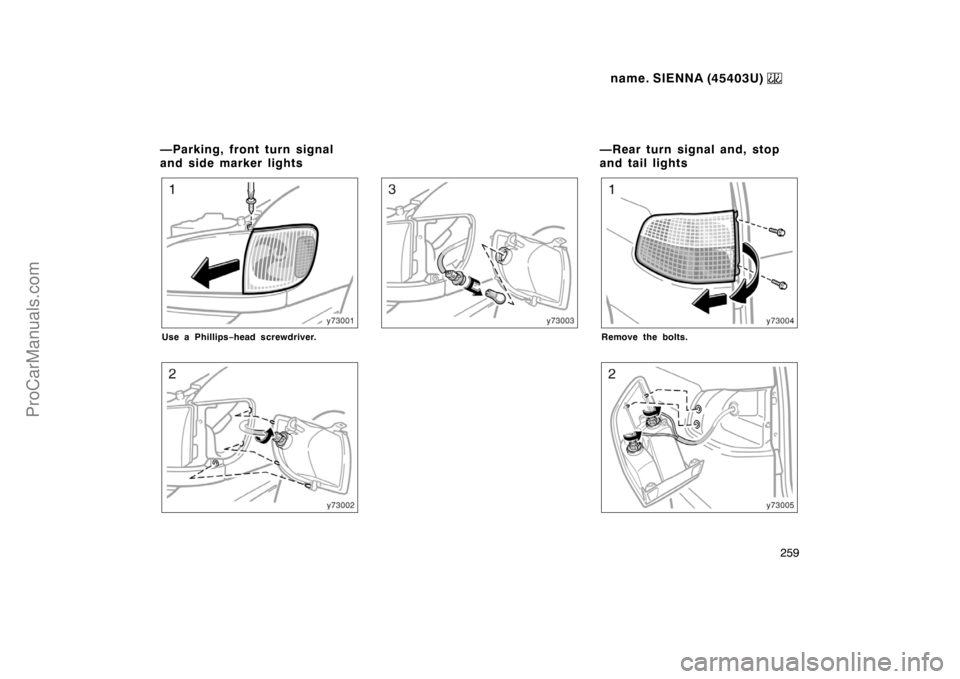

Use a Phillips−head screwdriver.Remove the bolts.
—Parking, front turn signal
and side marker lights—Rear turn signal and, stop
and tail lights
ProCarManuals.com

name. SIENNA (45403U)
260

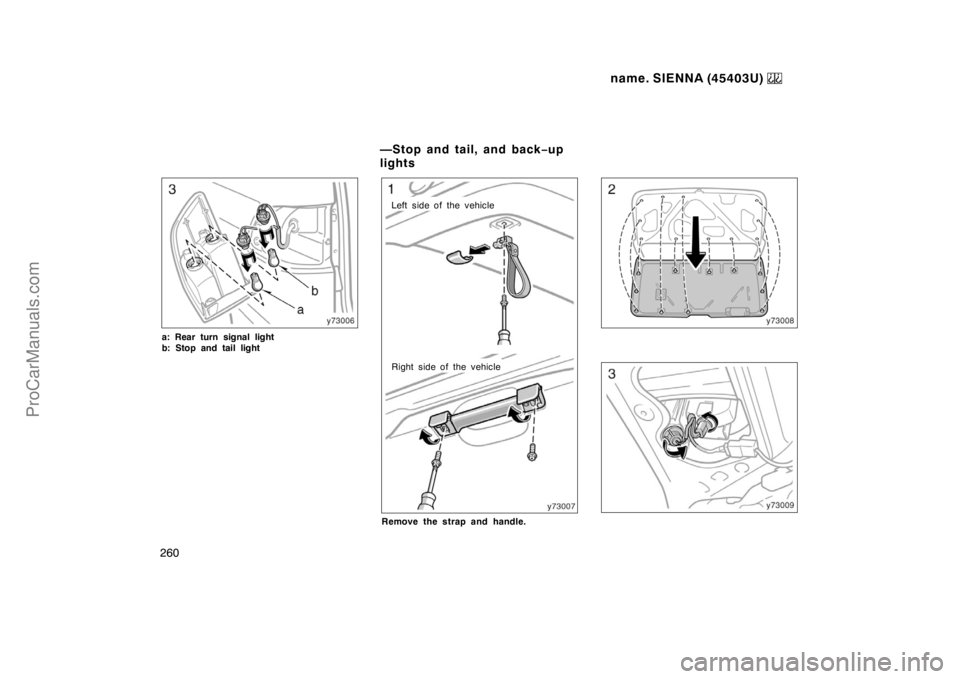

a: Rear turn signal light
b: Stop and tail light
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.
—Stop and tail, and back−up
lights
ProCarManuals.com

name. SIENNA (45403U)
261

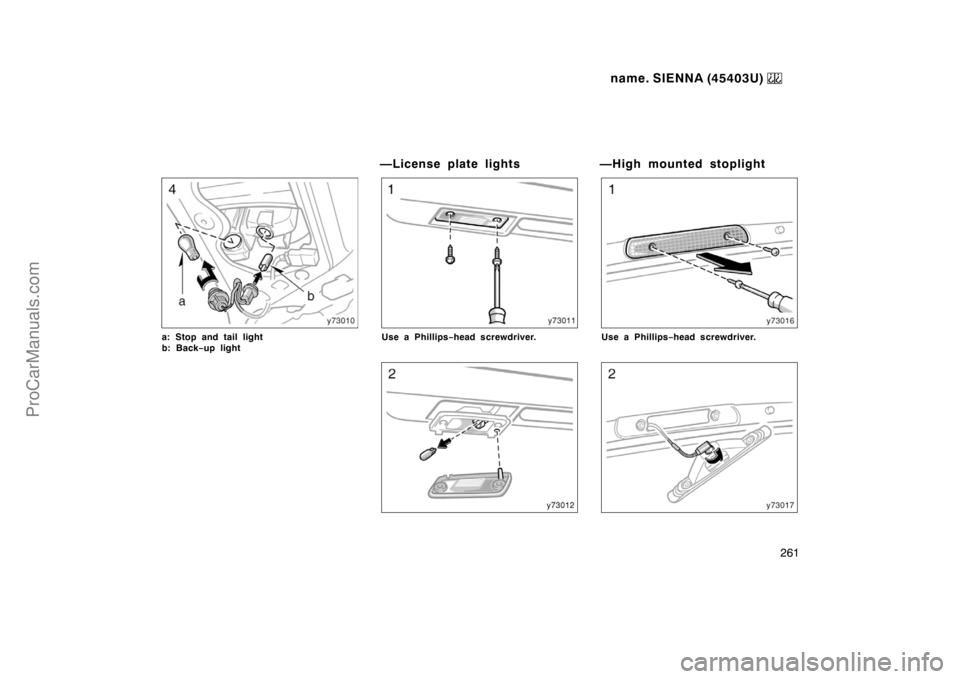

a: Stop and tail light
b: Back−up light
—License plate lights
Use a Phillips−head screwdriver.
—High mounted stoplight
Use a Phillips−head screwdriver.
ProCarManuals.com

name. SIENNA (45403U)
262
ProCarManuals.com

name. SIENNA (45403U)
263
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
Overall width
2900 (114.2) Overall height
1610 (63.4) Wheelbase
Front tread 1565 (61.6)
Rear tread
526 (1160)
∗
2
∗
1: Unladen vehicle∗
2: Wagon∗
3: Van with rear seat∗
4: Van without rear seatOverall length
Vehicle capacity weight
(occupants + luggage)mm (in.)
kg (lb.)4915 (193.5)
1865 (73.4)
1710 (67.3)
∗
1
574 (1265)∗
3
612 (1350)∗
4
mm (in.)
mm (in.)
mm (in.)
mm (in.)
mm (in.)
ProCarManuals.com

name. SIENNA (45403U)
264
Engine
Model:
1MZ−FE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
87.5  83.0 (3.44  3.27)
Displacement, cm
3 (cu. in.):
2995 (182.8)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.):
79 (21, 17.5)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO PK20TR11
NGK BKR6EKPB11
Spark plug gap, mm(in.):
1.1 (0.043)
Drive belt tension measured with Borroughs
drive belt tension gauge No. BT−33−73F
(used belt), Ibf:
Generator belt 12510
Power steering pump belt 11520
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade:
API grade SJ, ”Energy−Conserving” or
ILSAC multigrade engine oil is
recommended.
