1999 TOYOTA SIENNA Owners Manual

name. SIENNA (45403U)
9
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−2
Keys and Doors
Keys
Engine immobiliser system
Front doors
Sliding door
Power sliding door

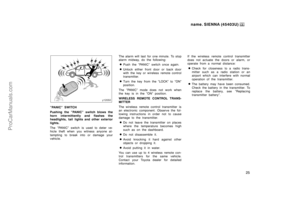

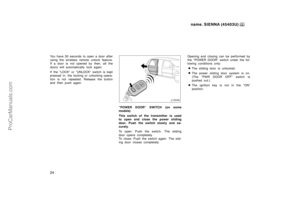

Wireless remote control
Power windows
Power rear quarter windows
Center side windows and
manual rear quarter windows
Back door
Hood
Theft deterrent system
Fuel tank capElectric moon roof

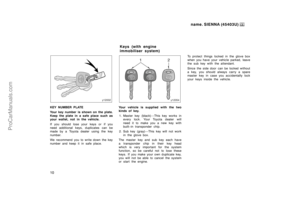

Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
Keys (without engine
immobiliser system)
ProCarManuals.com

name. SIENNA (45403U)
10

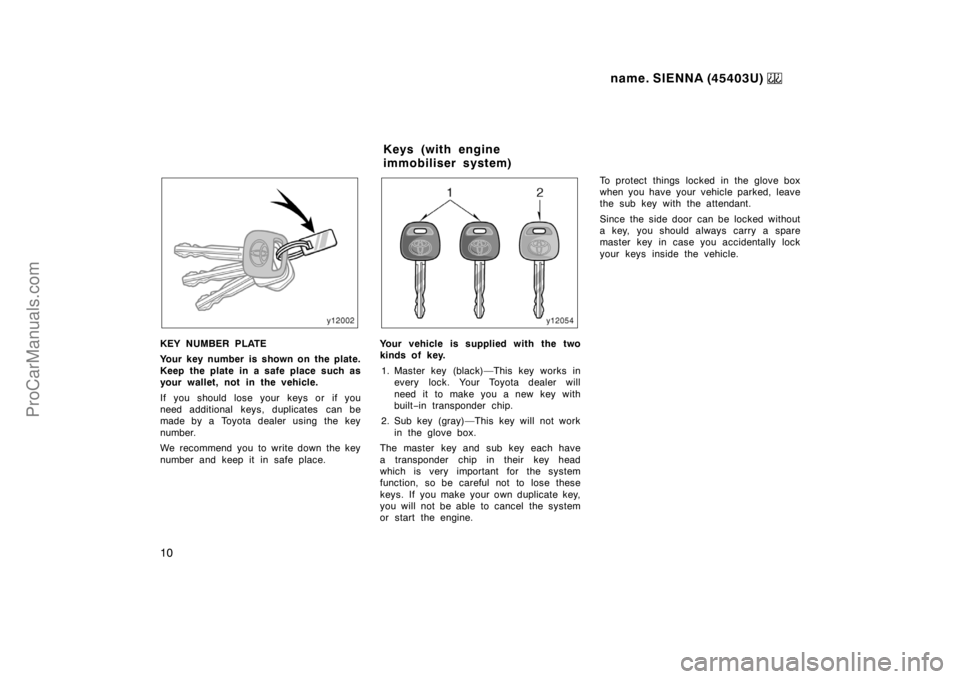

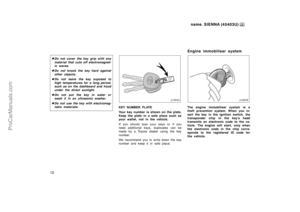

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of key.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
The master key and sub key each have
a transponder chip in their key head
which is very important for the system
function, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side door can be locked without
a key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
Keys (with engine
immobiliser system)
ProCarManuals.com

name. SIENNA (45403U)
11
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.Do not bend the key grip.
ProCarManuals.com

name. SIENNA (45403U)
12
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
ProCarManuals.com

name. SIENNA (45403U)
13

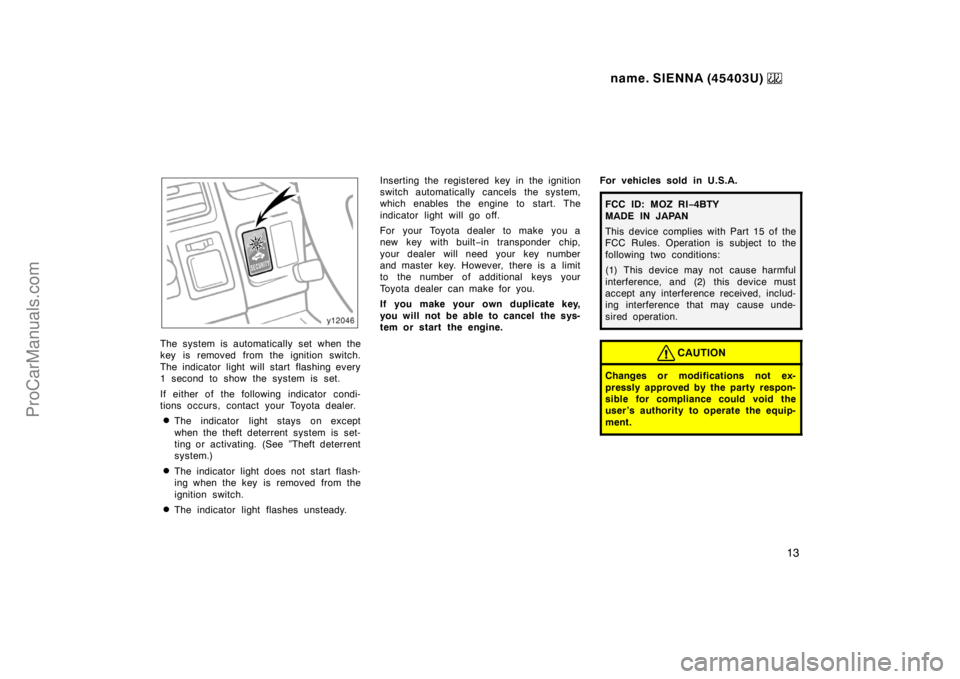

The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
1 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See ”Theft deterrent
system.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.For vehicles sold in U.S.A.
FCC ID: MOZ RI−4BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
ProCarManuals.com

name. SIENNA (45403U)
14

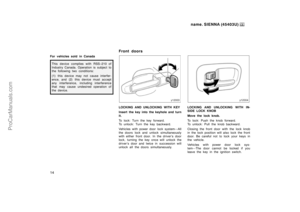

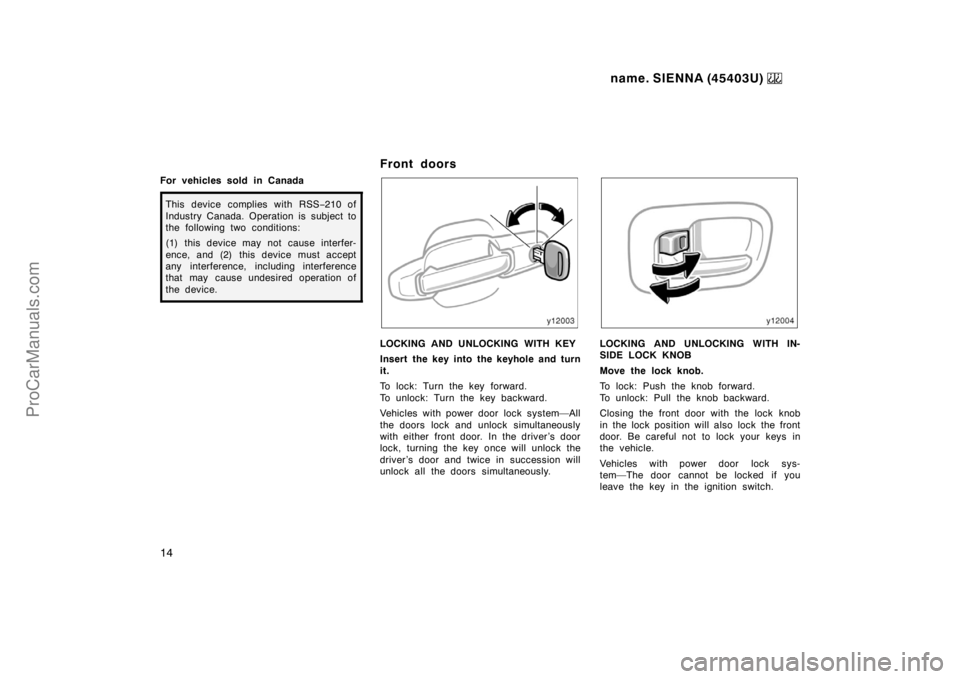

For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Front doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver ’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the front door with the lock knob
in the lock position will also lock the front
door. Be careful not to lock your keys in
the vehicle.
Vehicles with power door lock sys-
tem—The door cannot be locked if you
leave the key in the ignition switch.
ProCarManuals.com

name. SIENNA (45403U)
15

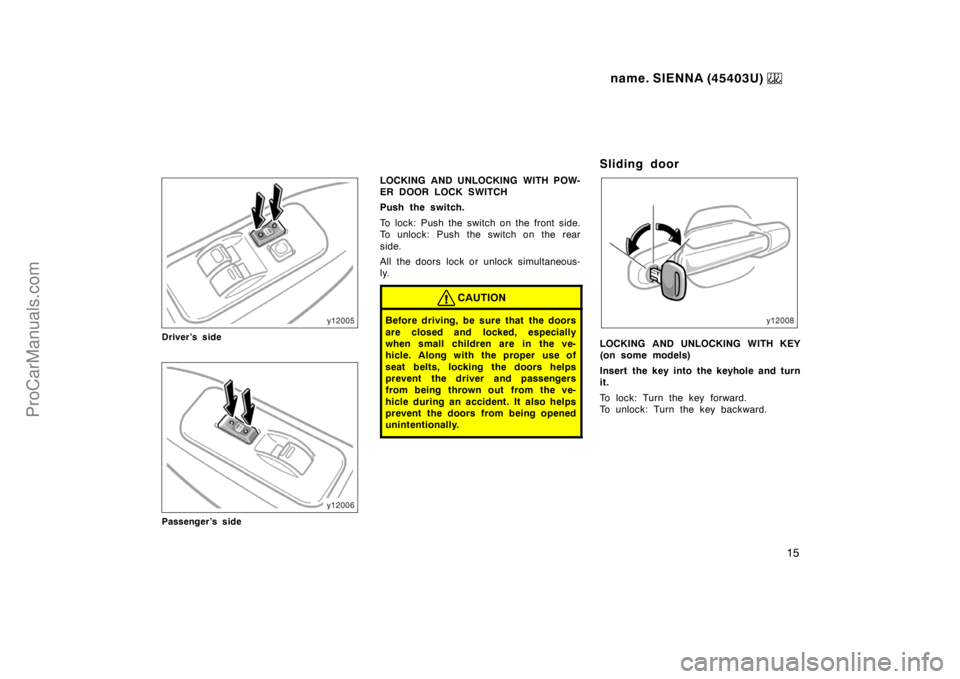

Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH POW-
ER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Sliding door
LOCKING AND UNLOCKING WITH KEY
(on some models)
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
ProCarManuals.com

name. SIENNA (45403U)
16

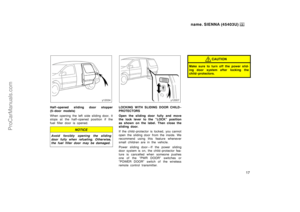

CLOSING FROM OUTSIDE
To close the fully−opened sliding door, pull
the outside handle toward you and then
close the door.

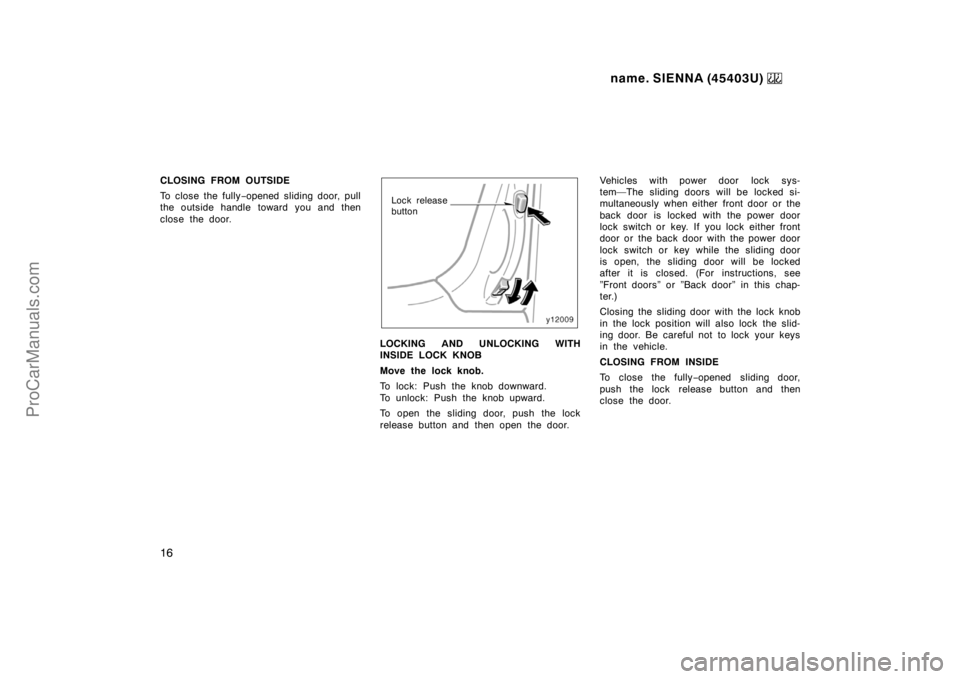

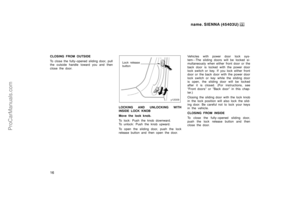

Lock release
button
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob downward.
To unlock: Push the knob upward.
To open the sliding door, push the lock
release button and then open the door.Vehicles with power door lock sys-
tem—The sliding doors will be locked si-
multaneously when either front door or the
back door is locked with the power door
lock switch or key. If you lock either front
door or the back door with the power door
lock switch or key while the sliding door
is open, the sliding door will be locked
after it is closed. (For instructions, see
”Front doors” or ”Back door” in this chap-
ter.)
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
CLOSING FROM INSIDE
To close the fully−opened sliding door,
push the lock release button and then
close the door.
