name. SIENNA (45403U)
32

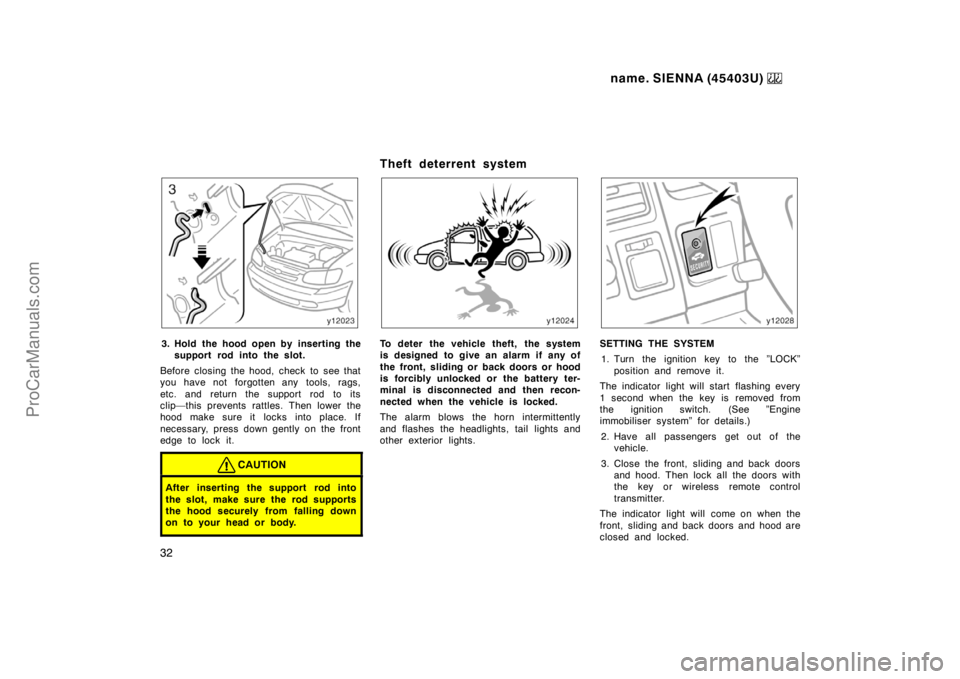

3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the front, sliding or back doors or hood
is forcibly unlocked or the battery ter-
minal is disconnected and then recon-
nected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights.SETTING THE SYSTEM
1. Turn the ignition key to the ”LOCK”
position and remove it.
The indicator light will start flashing every
1 second when the key is removed from
the ignition switch. (See ”Engine
immobiliser system” for details.)
2. Have all passengers get out of the
vehicle.
3. Close the front, sliding and back doors
and hood. Then lock all the doors with
the key or wireless remote control
transmitter.
The indicator light will come on when the
front, sliding and back doors and hood are
closed and locked.
ProCarManuals.com

name. SIENNA (45403U)
33
As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the front,
sliding or back doors and hood may be
opened.
Be careful not to unlock any door with the
key or wireless remote control transmitter
during setting. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the front, sliding or back doors
or hood is open at that time, the setting
is interrupted until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the front, sliding or back
doors is unlocked or if the hood is
forcibly opened without the key or wire-
less remote control transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
If any of the doors is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system cannot be cancelled
without the key or wireless remote control
transmitter. If the front, sliding and back
doors and hood are closed after the alarm
stops, the system automatically resets the
alarm.The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
To stop alarm midway, do the following:
Unlock either front door or back door
with the key or wireless remote control
transmitter.
Turn the key from the “LOCK” to “ON”
position.
These ways cancel the system at the
same time.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system as described above.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
ProCarManuals.com

name. SIENNA (45403U)
121
(j) Open Power Sliding Door Warning
Light and Buzzer
This light comes on if the power sliding
door is not completely closed with the
ignition key in the ”ON” position.
If you forcibly close the power sliding door
by hand when the ignition key is in the
”ON” position, the open power sliding door
warning light may stay on. In this case,
try opening and closing the power sliding
door again by hand slowly, or use one of
the ”PWR DOOR” switches or wireless
remote control transmitter.
If you shift out of ”P” when the power
sliding door is opened or in the process
of closing with the power sliding door sys-
tem on, a buzzer will sound and the open
power sliding door warning light will flash.
This is a warning that the sliding door is
not completely closed.(k) SRS Airbag Warning Light
This light will come on when the igni-
tion key is turned to the ”ACC” or
”ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, seat belt pretension-
er assembly, inflators, warning light, inter-
connecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ”ACC” or
”ON” position or remains on.
The light comes on or flashes while
driving.
(l) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see ”Adding washer fluid” in Chapter 7−3.)(m) Low Tire Pressure Warning Light
This light warns that the tire pressure of any
one of the tires is critically reduced. The light
comes on when the ignition key is turned to
the ”ON” position. It goes off after a few
seconds. This indicates that the low tire pres-
sure warning system is functioning properly.
If the light comes on while driving, adjust tire
pressure to the specified level. (See ”Tires”
in Part 8.) After the tire pressure is adjusted,
the light should go off after driving at about
more than 30 km/h (19 mph) for some time.
If the light still remains, have the low tire
pressure warning system checked at your
Toyota dealer.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the ”ACC” or ”LOCK”
position.
ProCarManuals.com

name. SIENNA (45403U)
131
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−7
Car audio system and
Air conditioning system
Car audio system
Reference
Using your audio system:
some basics
Using your audio system:
controls and features
Audio remote controls
Car audio system operating hints
Air conditioning system
Controls
Air flow selector settings
Operating tips
Side ventsRear air conditioning system
Controls
Air flow selector settings
Roof vents
Ty p e 1−1: AM·FM ETR radio/cassette player/
compact disc auto changer controller
Ty p e 1−2: AM·FM ETR radio/cassette player/
compact disc auto changer controller
Car audio system—
—Reference
ProCarManuals.com

name. SIENNA (45403U)
154

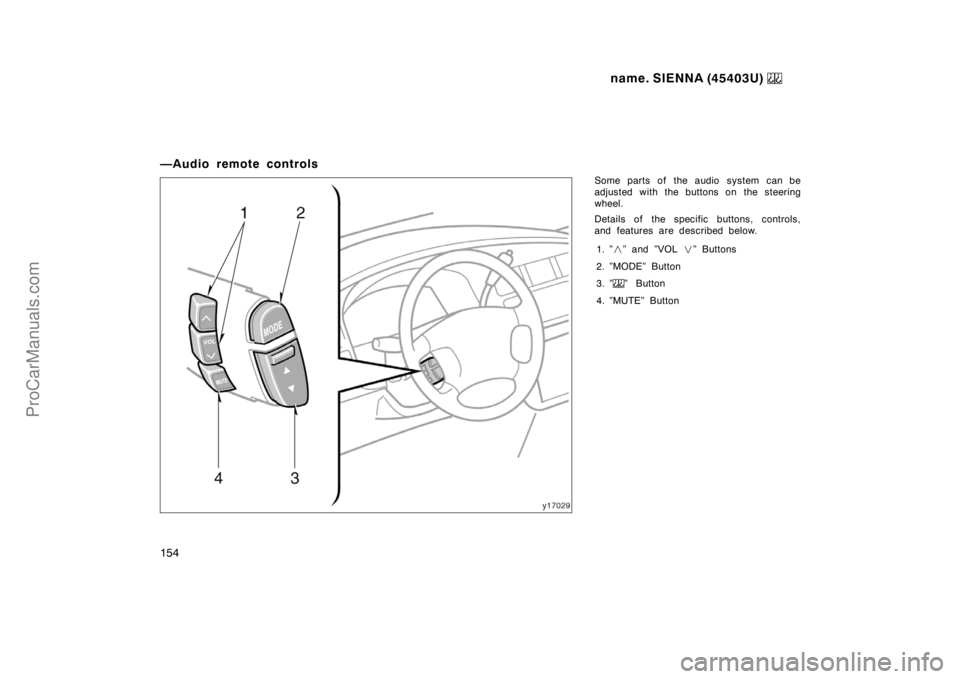

—Audio remote controls
Some parts of the audio system can be
adjusted with the buttons on the steering
wheel.
Details of the specific buttons, controls,
and features are described below.
1. ”” and ”VOL ” Buttons
2. ”MODE” Button
3. ”
” Button
4. ”MUTE” Button
ProCarManuals.com

name. SIENNA (45403U)
207
Part 4
IN CASE OF AN
EMERGENCY
If your vehicle will not start
If your engine stalls while
driving
If your vehicle overheats
If you have a flat tire
If your vehicle needs to be
towed
If you lose your keys
If you lose your wireless remote
control transmitter
Before making these checks, make sure
you have followed the correct starting pro-
cedure given in ”How to start the engine”
in Part 3 and that you have sufficient fuel.
If your vehicle is equipped with the engine
immobiliser system, also check whether
the other keys will start the engine. If
they work, your key may be broken. Have
the key checked at your Toyota dealer. If
none of your keys work, the system is
possibly broken. Call your Toyota dealer.
(See ”Keys (with engine immobiliser sys-
tem)” in Chapter 1−2.)
If the engine is not turning over or is
turning over too slowly—
1. Check that the battery terminals are
tight and clean.
2. If the battery terminals are O.K., switch
on the interior light.
3. If the light is out, dim or goes out
when the starter is cranked, the battery
is discharged. You may try jump start-
ing. See ”(c) Jump starting” for further
instructions.
If the light is O.K., but the engine still will
not start, it needs adjustment or repair.
Call a Toyota dealer or qualified repair
shop.NOTICE
Do not pull− or push−start the ve-
hicle. It may damage the vehicle or
cause a collision when the engine
starts. Also the three−way catalytic
converter may overheat and become a
fire hazard.
If the engine turns over at its normal
speed but will not start—
1. Check that all the push−on connectors
are tight. (For example, connectors at
the spark plugs, ignition coil and/or dis-
tributor)
2. If the connectors are O.K., the engine
may be flooded because of repeated
cranking. See ”(b) Starting a flooded
engine” for further instructions.
If your vehicle will not start—
(a) Simple checks
ProCarManuals.com

name. SIENNA (45403U)
223
If you lose your keys
Please contact your nearest Toyota
dealer and ask for duplicating key. You
must inform of the key number and, in
case of making the immobiliser key,
one of the master keys must be pre-
sented.
See the suggestion given in ”Keys” in
Chapter 1−2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
Vehicles with engine immobiliser system—
Even if you lose only one key, contact
your Toyota dealer to make a new key.
However, if you lose all your master keys,
the dealer cannot duplicate key but only
replace the whole system.If you lose your transmitter, you can
purchase a new one at your Toyota
dealer.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your wireless
remote control transmitter
ProCarManuals.com

name. SIENNA (45403U)
269
21. ECU−IG 15 A: Cruise control system,
anti−lock brake system, locking with
wireless remote control system, theft
deterrent system
22. IGN 5 A: Gauges and meters, charging
system, SRS airbag system, seat belt
pretensioners, multiport fuel injection
system/sequential multiport fuel injec-
tion system
23. STOP 15 A: Stop lights, cruise control
system, high−mounted stoplight, tail
lights
24. TAIL 10 A: Parking lights, front side
marker lights, license plate lights, tail
lights
25. PWR−VENT 15 A: Power rear quarter
windows
26. OBD 7.5 A: On−board diagnosis sys-
tem
27. PWR−OUTLET 15 A: Power outlet
28. STARTER 5 A: Gauges and meters,
SRS airbag system, seat belt preten-
sioners, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
29. DOOR 20 A: Power door lock system,
theft deterrent system30. PANEL 7.5 A: Gauge and meter, car
audio system, clock, air conditioning
system, instrument panel light control,
rear window defogger, electronically
controlled automatic transmission sys-
tem, emergency flashers, parking lights
31. TURN 7.5 A: Turn signal lights, emer-
gency flashers
32. RADIO NO.2 7.5 A: Car audio system
33. CIG 15 A: Cigarette lighter, clock, pow-
er rear view mirror controls, SRS air-
bag system, seat belt pretensioners,
back−up lights, theft deterrent system
34. A/C 5 A: Air conditioning system
35. A/F HTR 25 A: EFI system
Fuses (type B)
36. CDS FAN 40 A: Electric cooling fans
37. RDI FAN 40 A: Electric cooling fans
38. CDS FAN 30 A: Electric cooling fans
39. RDI FAN 30 A: Electric cooling fans
40. MAIN 40 A: ”DRL”, ”H−LP RH” and
”H−LP LH” fuses
41. R/R A/C 40 A: Rear air conditioning
system
42. HTR 50 A: Air conditioning system
43. DEF 30 A: Rear window defogger,
”MIRROR−HEATER” fuse44. AM1 40 A: ”INP” fuse
45. PWR 30 A: Power windows, electric
moon roof, power seat, power sliding
door, ”PWR−VENT” fuse
Fuses (type C)
46. ALT 140 A: Charging system, ”FL
ABS”, ”INP”, ”HTR” and ”R/R A/C”
fuses
47. INP 100 A: ”AM1” and ”DEF” fuses
48. FL ABS 60 A: Anti−lock brake system
ProCarManuals.com
