1999 TOYOTA LAND CRUISER engine

New L/C100(U)9
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 2
Keys and Doors
Keys
Engine immobiliser system
Side doors
Power windows
Manual quarter windows
Power quarter windows
Back door
Hood
Theft deterrent system
Fuel tank cap
Electric moon roof
Keys
Your vehicle is supplied with the two
kinds of key.
1. Master key (black)ÐThis key works in every lock. Your Toyota dealer will
need it to make you a new key with
built- in transponder chip.
2. Sub key (gray)ÐThis key does not work in the glove box. The master key and sub key each have
a transponder chip in their key head
which is very important for the system
function, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see ºSide doorsº in
this chapter.

New L/C100(U)
10
NOTICE
When using a key containing a trans- ponder chip, observe the followingprecautions:
When starting the engine, do not
use the key with a key ring restingon the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,or may stop soon after it starts.
When starting the engine, do not
use the key with other transponderkeys around (including keys of oth-er vehicles) and do not press other
key plates against the key grip.Otherwise the engine may not start,or may stop soon after it starts. If
this happens, remove the key onceand then insert it again after takingoff other transponder keys (includ-
ing keys of other vehicles) from thering or while gripping or covering them with your hand to start the
engine.Do not bend the key grip.

New L/C100(U)11

Do not cover the key grip with any
material that cuts off electromagnet-ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,such as on the dashboard and hood under the direct sunlight.
Do not put the key in water orwash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place. Engine immobiliser systemThe engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.

New L/C100(U)
12

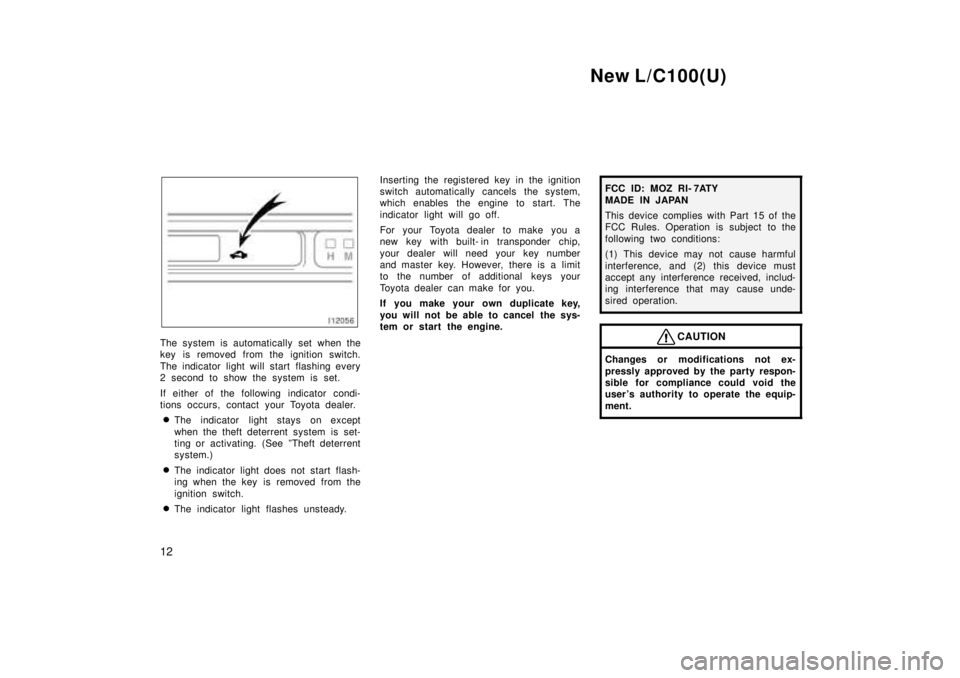

The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
2 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer. The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See ºTheft deterrent
system.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady. Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
FCC ID: MOZ RI- 7ATY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.

New L/C100(U)25
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it. Theft deterrent systemÐTo deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM
1. Turn the ignition key to the ºLOCKº position and remove it.
The indicator light will start flashing every
2 second when the key is removed from
the ignition switch. (See ºEngine
immobiliser systemº for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.

New L/C100(U)27
Fuel tank cap
1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear aclick.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.

New L/C100(U)
44
NOTICE
Do not put unevenly weighed ob- jects on the seat and do not sticksharp objects (needles, nails, etc.) into the seat.
When cleaning the seats, do notuse organic substances (paint thin- ner, benzine, alcohol, gasoline,
etc.). They may damage the heaterand seat surface.
To prevent the battery from beingdischarged, turn the switch on when the engine is running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See ºChild restraintº
for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat beltsÐ
ÐSeat belt precautions

New L/C100(U)
82
The tail lights automatically turn off when
the driver 's door is opened with the igni-
tion key in the ºACCº or ºLOCKº position.
To turn them on again, turn the key to the
ºONº position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
The headlights automatically turn off after
some time since the ignition switch is
turned off, then any side door is opened.
To turn them on again, turn the key to the
ºONº position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the ºOFFº position. They will not
go off until the ignition switch is turned
off. To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
High- Low beamsÐ
For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to ºOFFº.
