1999 TOYOTA 4RUNNER Owners Manual

4RUNNER ()57
Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
ÐTypes of child restraint
system

4RUNNER ()
58

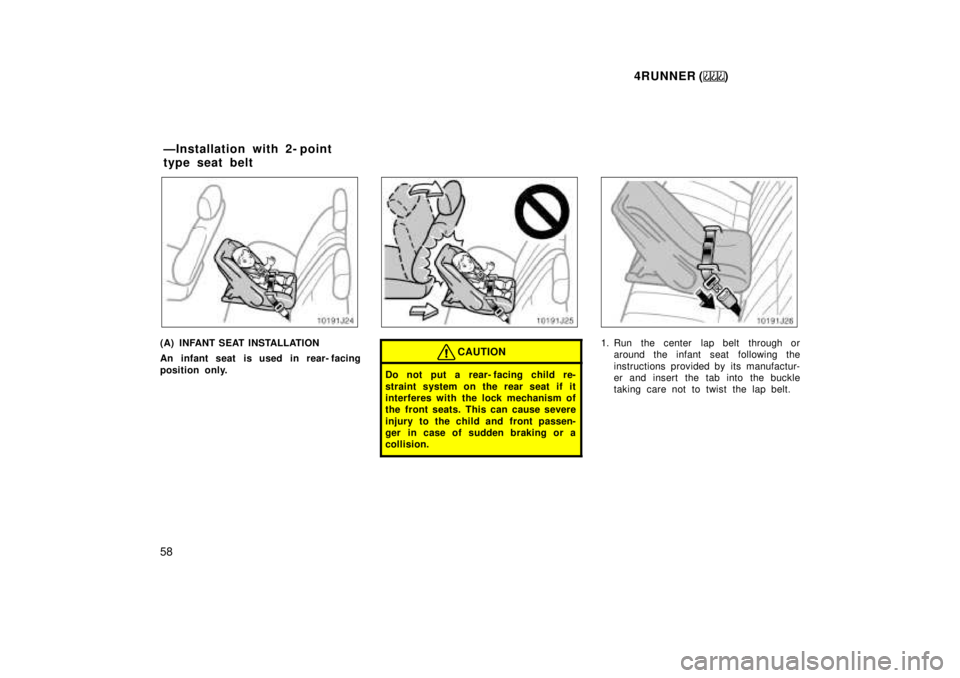

(A) INFANT SEAT INSTALLATION
An infant seat is used in rear- facing
position only.CAUTION
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.
1. Run the center lap belt through or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
ÐInstallation with 2- point
type seat belt

4RUNNER ()59
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

4RUNNER ()
60
3. To remove the infant seat, press the buckle- release button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward-
facing and rear- facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's
instructions about the applicable child's
age and size as well as direction for
installing of a child restraint system.CAUTION
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.

4RUNNER ()61
1. Run the center lap belt through oraround the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.

4RUNNER ()
62
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the convertible seat, press the buckle- release button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rear- facing
position only.ÐInstallation with 3- point
type seat belt

4RUNNER ()63
CAUTION
Never put a rear- facing child re-
straint system in the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
Do not put a rear- facing child re-
straint system in the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

4RUNNER ()
64
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
