1999 LAND ROVER DISCOVERY dimensions

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-13
Gaps and profiles
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

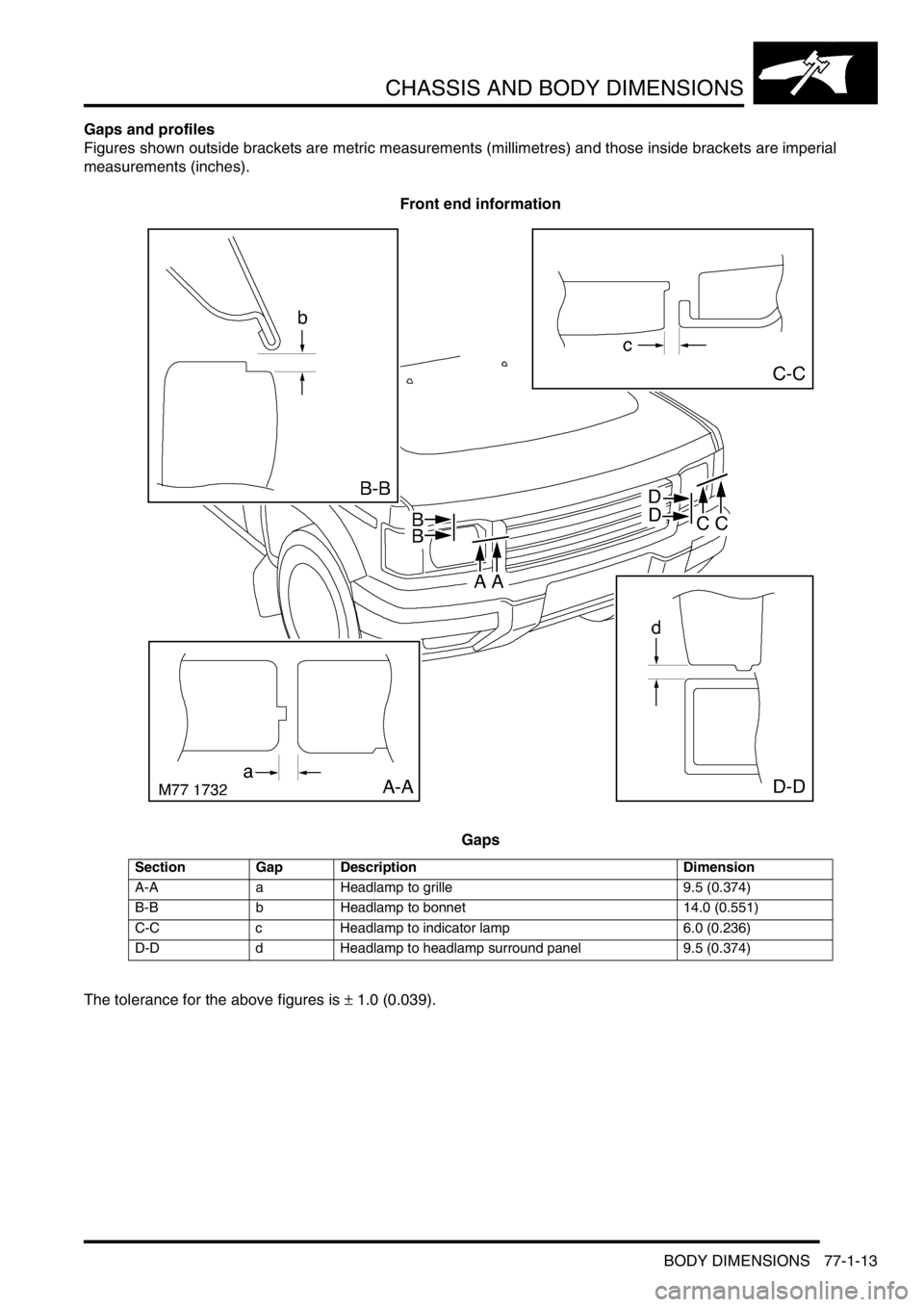

Front end information
Gaps
The tolerance for the above figures is ± 1.0 (0.039).
Section Gap Description Dimension
A-A a Headlamp to grille 9.5 (0.374)
B-B b Headlamp to bonnet 14.0 (0.551)
C-C c Headlamp to indicator lamp 6.0 (0.236)
D-D d Headlamp to headlamp surround panel 9.5 (0.374)

CHASSIS AND BODY DIMENSIONS
77-1-14 BODY DIMENSIONS

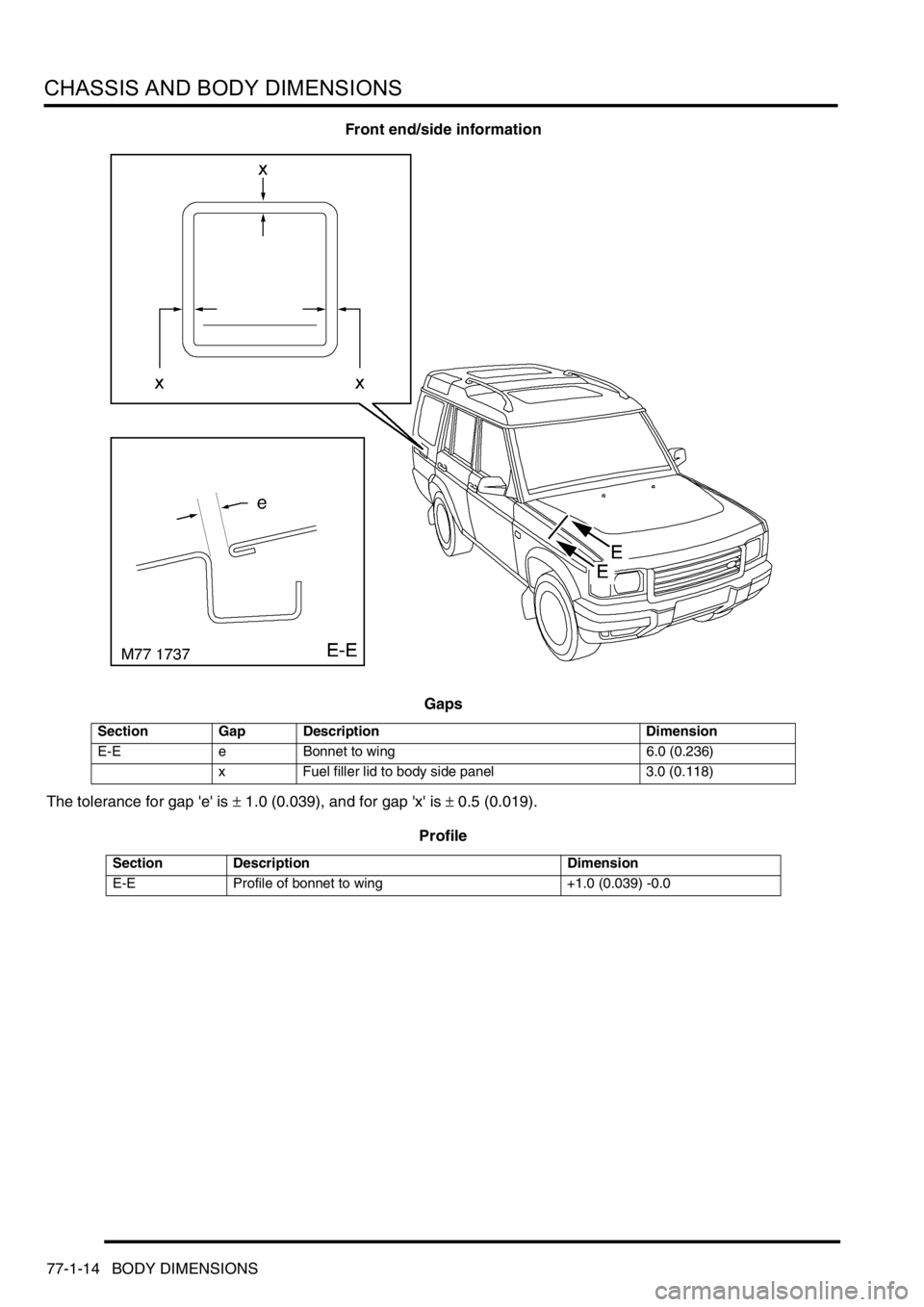

Front end/side information
Gaps
The tolerance for gap 'e' is ± 1.0 (0.039), and for gap 'x' is ± 0.5 (0.019).
Profile
Section Gap Description Dimension
E-E e Bonnet to wing 6.0 (0.236)
x Fuel filler lid to body side panel 3.0 (0.118)
Section Description Dimension
E-E Profile of bonnet to wing +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-15

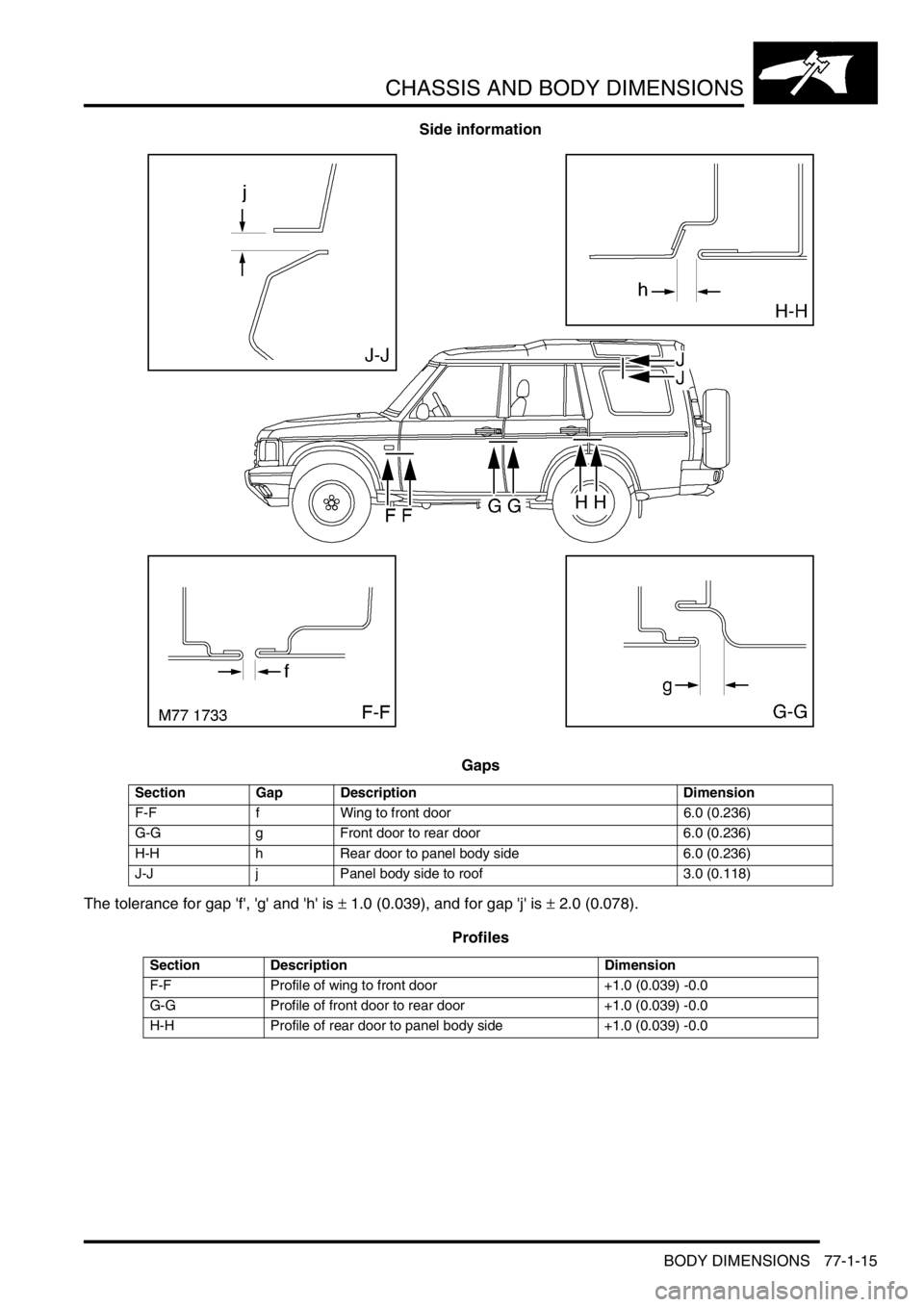

Side information
Gaps
The tolerance for gap 'f', 'g' and 'h' is ± 1.0 (0.039), and for gap 'j' is ± 2.0 (0.078).
Profiles
Section Gap Description Dimension
F-F f Wing to front door 6.0 (0.236)
G-G g Front door to rear door 6.0 (0.236)
H-H h Rear door to panel body side 6.0 (0.236)
J-J j Panel body side to roof 3.0 (0.118)
Section Description Dimension
F-F Profile of wing to front door +1.0 (0.039) -0.0
G-G Profile of front door to rear door +1.0 (0.039) -0.0
H-H Profile of rear door to panel body side +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
77-1-16 BODY DIMENSIONS
Rear end information
Gaps
The tolerance for gap 'k' and 'l' is ± 1.0 (0.039), and for gap 'm' is ± 2.0 (0.078).
Section Gap Description Dimension
K-K k Taildoor to body side panel 7.0 (0.275)
L-L l Taildoor to body side panel 7.0 (0.275)
M-M m Taildoor to roof 23.0 (0.905)
