CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-5
BODY DIMENSIONS
Body Dimensions
The following dimensional information is shown to assist the technician in the diagnosis and repair of body panels.
The information is shown in two different forms. In the first part of the information X,Y and Z dimensions are shown
and in the second part actual point to point dimensions are shown.

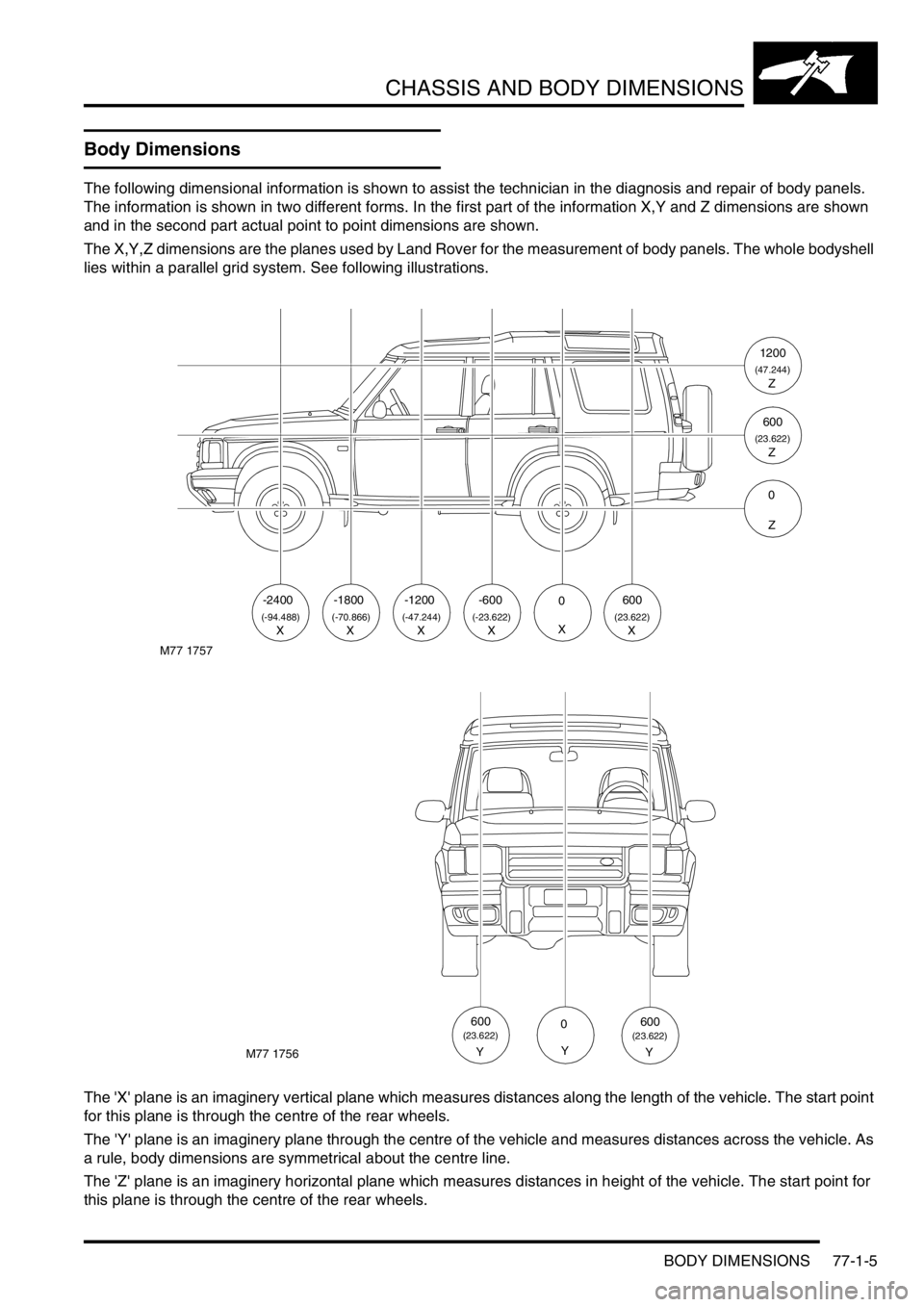

The X,Y,Z dimensions are the planes used by Land Rover for the measurement of body panels. The whole bodyshell
lies within a parallel grid system. See following illustrations.
The 'X' plane is an imaginery vertical plane which measures distances along the length of the vehicle. The start point
for this plane is through the centre of the rear wheels.
The 'Y' plane is an imaginery plane through the centre of the vehicle and measures distances across the vehicle. As
a rule, body dimensions are symmetrical about the centre line.
The 'Z' plane is an imaginery horizontal plane which measures distances in height of the vehicle. The start point for
this plane is through the centre of the rear wheels.
M77 1757
-2400
(-94.488)X
-1800
(-70.866)
-1200-6000600
(-47.244)(-23.622)(23.622)XXXXX
1200
(47.244)Z
600
(23.622)Z
0
Z
M77 1756
0
Y
600(23.622)
Y
600(23.622)
Y

CHASSIS AND BODY DIMENSIONS
77-1-6 BODY DIMENSIONS
The point to point dimensional information shown are actual distances between two points. These points used are
either intersection points or holes. Where holes are taken, the point of measurement is always from the hole centre.
X,Y,Z dimensional information
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
Body to chassis mounting holes
I.D Description X Y Z
A Front mounting hole -3071.6 419.1 271.5
(-120.929) (16.500) (10.688)
B Second mounting hole -2130.5 414.3 233.4
(-83.877) (16.311) (9.188)
C Third mounting hole -1763.7 660.4 78.0
(-69.437) (26.000) (3.070)
D Fourth mounting hole -1055.6 414.3 169.8
(-41.559) (16.311) (6.685)
E Fifth mounting hole -552.3 660.4 78.0
(-21.744) (26.000) (3.070)
F Sixth mounting hole -44.000 275.0 296.4
(-1.732) (10.826) (11.669)
G Rear mounting hole 925.6 495.3 184.6
(36.440) (19.500) (7.267)
M77 1759
A
B
C
DE
FG

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-7
Front end information
I.D Description X Y Z
A Grille mounting slot -3190.5 413.9 303
(-125.610) (16.295) (11.929)
B Headlamp mounting panel, -3124 686.6 335
slot (-122.992) (27.031) (13.188)
C Bonnet locking platform, jig -3065.8 611 584.7
location hole (-120.700) (24.055) (23.019)
D Valance upper, jig location -2789.4 770.5 507.1
hole (-109.818) (30.334) (19.964)
E First wing fixing hole -3064.8 768 650.4
(-120.661) (30.236) (25.606)
F Second wing fixing hole -2787.9 778.7 686.1
(-109.759) (30.657) (27.011)
G Third wing fixing hole -2523.9 785.4 704.5
(-99.366) (30.921) (27.736)
H Fourth wing fixing hole -2259 789.6 718.4
(-88.937) (31.086) (28.283)
J Fifth wing fixing hole -1993.9 793 728.9
(-78.5) (31.220) (28.696)
M77 1753
B
C
D
E
F
G
H
J
A

CHASSIS AND BODY DIMENSIONS
77-1-8 BODY DIMENSIONS
Front end/side information
I.D Description X Y Z
A Bonnet hinge fixing, top hole -1906.3 706 742.9
(-75.051) (27.795) (29.248)
B Windscreen finisher, top slot -1508.9 715 1229
(-59.405) (28.147) (48.385)
C 'A' post top, top hinge fixing -1859 809.6 584.7
hole (-120.700) (24.055) (23.019)
D 'A' post bottom, top hinge -1859 809.6 289.1
fixing hole (-120.700) (24.055) (11.381)
E 'B/C' post top, top hinge -860.5 809.8 680.5
fixing (-33.877) (31.881) (26.791)
F 'B/C' post top, jig location -841.5 809.8 644.5
hole (-33.129) (31.881) (25.374)
G 'B/C' post bottom, top hinge -860.5 809.8 290.3
fixing hole (-33.877) (31.881) (11.429)
H 'B/C' post bottom, jig location -841.5 809.8 254.2
hole (-33.129) (31.881) (10.007)
J 'D' post, door striker fixing, -75.4 782.3 619.1
top hole (-2.968) (30.799) (24.374)
M77 1755A
B
C
H
F
D
J
A
E
G

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-9
Point to point dimensional information
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
All dimensions are to hole/slot centres.
Front end information
I.D Description Length
A Distance between headlamp mounting panel slots 1373.2 (54.062)
B Distance between grille locating slots 827.8 (32.590)
C Distance between bonnet locking platform jig location
holes1222 (48.110)
D Distance between valance upper assembly jig location
holes1541 (60.669)
E Distance between wing, front fixing holes 1536 (60.472)
F Distance between bonnet locking platform jig location
hole and wing, front fixing hole170.2 (6.700)
G Distance between wing, front fixing hole and wing, rear
fixing hole1894.7 (74.594)
H Distance between wing, rear fixing holes 1586 (62.440)
M77 1752
A
B
C
D
E
F
G
H

CHASSIS AND BODY DIMENSIONS
77-1-10 BODY DIMENSIONS
Front end/side information
I.D Description Length
A Distance between bonnet hinge fixing top hole and
windscreen side finisher top fixing slot1553.5 (61.161)
B Distance between windscreen side finisher top fixing
slots1430 (56.299)
C Distance between front door top hinge fixing hole and
rear door top hinge fixing hole998.5 (39.311)
D Distance between front door top hinge fixing hole and
rear door bottom hinge fixing hole1067.7 (42.035)
E Distance between front door bottom hinge fixing hole
and rear door top hinge fixing hole1072.5 (42.224)
F Distance between front door bottom hinge fixing hole
and rear door bottom hinge fixing hole998.5 (39.311)
G Distance between 'B/C' post top jig location hole and 'D'
post top door striker fixing hole767 (30.196)
H Distance between 'B/C' post bottom jig location hole and
'D' post top door striker fixing hole849.1 (33.429)
M77 1754
A
B
C
D
G
E
F
H

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-11
Internal information
I.D Description Length
A Distance between seat belt anchorage top fixing and
seat belt reel lower fixing1814.5 (71.437)
B Distance between seat belt anchorage lower fixings on
wheel arch inner1430.2 (56.307)
M77 1760
A
B

CHASSIS AND BODY DIMENSIONS
77-1-12 BODY DIMENSIONS
Rear end information
I.D Description Length
A Distance between taildoor setting block, jig location hole
and taildoor bottom hinge, middle fixing hole1364.4 (53.716)
B Distance between taildoor setting block, jig location hole
and taildoor top hinge, middle fixing hole1319.8 (51.960)
C Distance between crossmember outer rear panel, jig
location hole and rear headrest fixing hole 1413 (55.629)
M77 1758A
A
B
C
