1999 GMC SUBURBAN Owner's Manual

2-60
To remove the front ashtray, press the retainer spring
and pull the ashtray toward you. To replace the ashtray,
place the ashtray on the slides at the side of its location
in the instrument panel. Then slide the ashtray back to
its original position.
To use the cigarette lighter, push it in all the way, and let
go. When it's ready, it will pop back out by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it's heating can make it overload, damaging
the lighter and the heating element. Just push the
lighter all the way in and let go. When it's done,
it will pop back by itself.
Accessory Power Outlets
Two accessory power outlets are located near the
cigarette lighter. Use these outlets to power mobile
telephones or other devices designed to operate with
vehicle electrical systems.
The cigarette lighter is designed to fit only in the
receptacle to the right of the accessory power outlets.
Power outlets are also located in the rear cargo area on
the passenger side and in the rear of the center floor
compartment (if equipped with rear seat audio). To use
the outlets, remove the cover by lifting the pull tab.
When not in use, always cover the rear outlet with the
protective cap.

2-61
Sun Visors
To block out glare, you can swing down the top and
bottom visors (if equipped). You can also swing the
bottom visor from side
-to-side. Your visors may
have an extension that can be pulled out for additional
glare protection.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps. There is a slide switch to adjust the
intensity of the lamps.
Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition or
RAP needs to be on. See ªRetained Accessory Powerº
in the Index.Press and release the rear side of the button located in
the front overhead console to express
-open the glass
panel and sunshade. To close the glass panel, press and
hold the front of the button. The glass will not be fully
seated unless the button is held until the glass stops
moving. With the sunroof closed, press the forward side
of the button to open the sunroof to the vent position.
The sunroof is also equipped with a sunshade which you
can pull forward to block sun rays.
If a hand, arm, or other object is blocking the sunroof
glass panel as it is closing, the glass panel will stop at
the obstruction. After the obstruction is removed, the
glass panel can be closed or opened.
Use care not to leave the sunroof open for long periods
of time as debris may collect in the tracts.
If the battery has been recharged, disconnected or is not
working, you may need to reprogram the sunroof. To do
this, start the vehicle and press the forward side of the
sunroof switch until the glass panel moves to a fully
closed position. Release, and press again to move to the
vent position which occurs when the sunroof is fully
tilted rearward. This will reset the memory and enable
the sunroof to function properly.

2-62

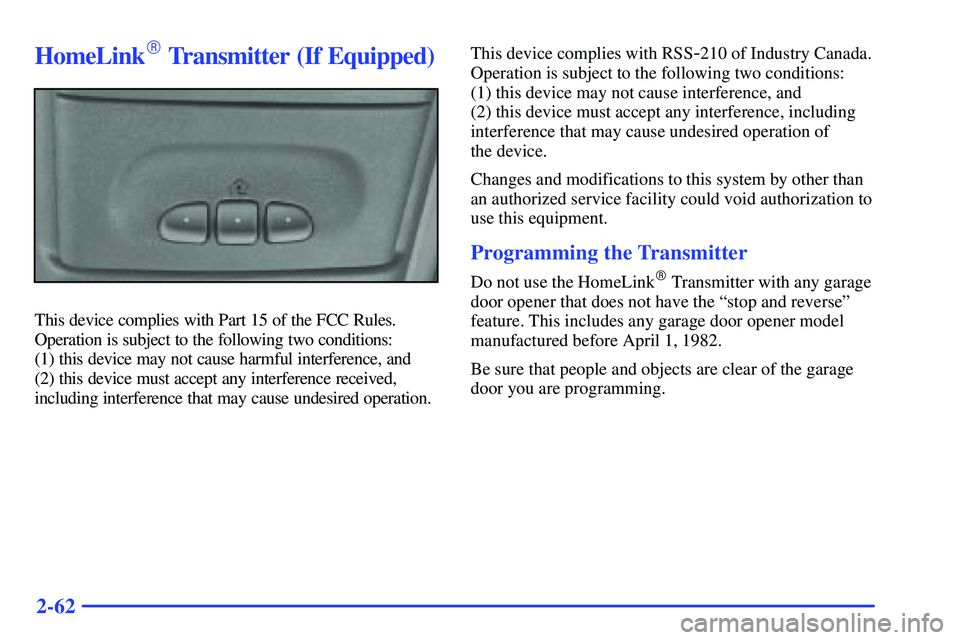

HomeLink
Transmitter (If Equipped)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the HomeLink
Transmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.

2-63
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the HomeLink
Transmitter until the indicator light begins to flash
rapidly (after 20 seconds). Then release the buttons.
This procedure initializes the memory and erases any
previous settings for all three channels.
2. Decide which one of the three channels you want to
program. Hold the end of the hand
-held transmitter
about 2 to 5 inches (5 to 13 cm) away from the
surface of the HomeLink Transmitter so that you
can still see the indicator light.
3. Using both hands, press the hand
-held transmitter
button and the desired button on the HomeLink
Transmitter. Continue to press both buttons through
Step 4.
4. Hold down both buttons until you see the light on
the HomeLink Transmitter flash rapidly. The rapid
flashing indicates that the HomeLink Transmitter has
been programmed. Release both buttons once the
light starts to flash rapidly.If you have trouble programming the HomeLink
Transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, rotate the hand
-held transmitter end over end
and try again. The HomeLink Transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, refer to
ªTraining a Garage Door Opener with Rolling Codesº
later in this section or contact the manufacturer of the
unit at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
HomeLink Transmitter.
Canadian Owners: During programming, the
hand
-held transmitter may automatically stop
transmitting after one or two seconds. In this case,
you should press and re
-press the button on the
hand
-held transmitter every two seconds without ever
releasing the button on the HomeLink Transmitter.
Release both buttons when the indicator light on the
HomeLink Transmitter begins to flash rapidly.

2-64 Operating the Transmitter
Press and hold the appropriate button on the HomeLink

Transmitter. The indicator light comes on while the signal
is being transmitted.
If the hand
-held transmitter appears to program the
HomeLink Transmitter but does not open your garage
door, and if the garage door opener was manufactured
after 1996, the garage door opener may have a ªrolling
codeº system. A rolling code system changes the code
of the garage door opener every time you open or close
the garage door.
To determine if you have this system, press the
button on the HomeLink Transmitter that you have
programmed already. If the indicator light flashes
rapidly for one to two seconds, then turns solid, the
garage door opener has a rolling code system. In a
rolling code system, the garage door motor head unit
must be trained to the HomeLink Transmitter.
Training a Garage Opener with a ªRolling
Codeº Feature (If Equipped)
If you have not previously programmed the hand-held
transmitter to the HomeLink
Transmitter, see
ªProgramming the Transmitterº listed previously.
If you have completed this programming already, you
now need to train the garage door opener motor head
unit to recognize the HomeLink Transmitter. Refer to
your garage door opener owner's manual for the proper
transmitter training procedure for your garage door
opener brand.
1. Find the training button on the garage door opener
motor head unit. The exact location and color will
vary by garage door opener brand. If you have
difficulty finding the training button, refer to your
garage door opener owner's manual.
2. Press the training button on the garage door opener
motor head unit. An indicator light will begin to flash
when the motor head unit enters the training mode.
Following this step, you have 30 seconds to start
Step 3.

2-65
3. Return to the HomeLink Transmitter in your vehicle
and firmly press and release the HomeLink
Transmitter button you have already programmed for
two to three seconds. Press and release the button
again (you may need to do this step up to three times)
to make sure that the HomeLink Transmitter has been
trained to the garage door opener motor head unit.
Check that the training was successful. The motor
head unit indicator light should no longer be flashing.
The garage door opener should now recognize the
HomeLink Transmitter. You may either use the
HomeLink Transmitter or the hand
-held transmitter
to open the garage door.
If after following these instructions, you still have
problems training the garage door opener, call the
manufacturer of the unit at 1
-800-355-3515.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the indicator light begins to
flash (after 20 seconds). Release both buttons.
Accessories
Accessories for the HomeLink
Transmitter are
available from the manufacturer of the unit. If you
would like additional information, please call
1
-800-355-3515.
OnStar
System (If Equipped)
OnStar is a vehicle communications service. The
following services are available through a subscription
with OnStar and are available 24 hours a day:
Emergency Services

Automatic Notification of Air Bag Deployment

Stolen
-Vehicle Tracking

Roadside Assistance with Location

Remote Diagnostics

OnStar MED
-NET

Accident Assist
Convenience Services

Remote Door Unlock

Route Support

Concierge Services

Ride Assist
A complete user's guide is provided with the OnStar
System. For more information, contact OnStar
1
-888-ONSTAR7.

2-66

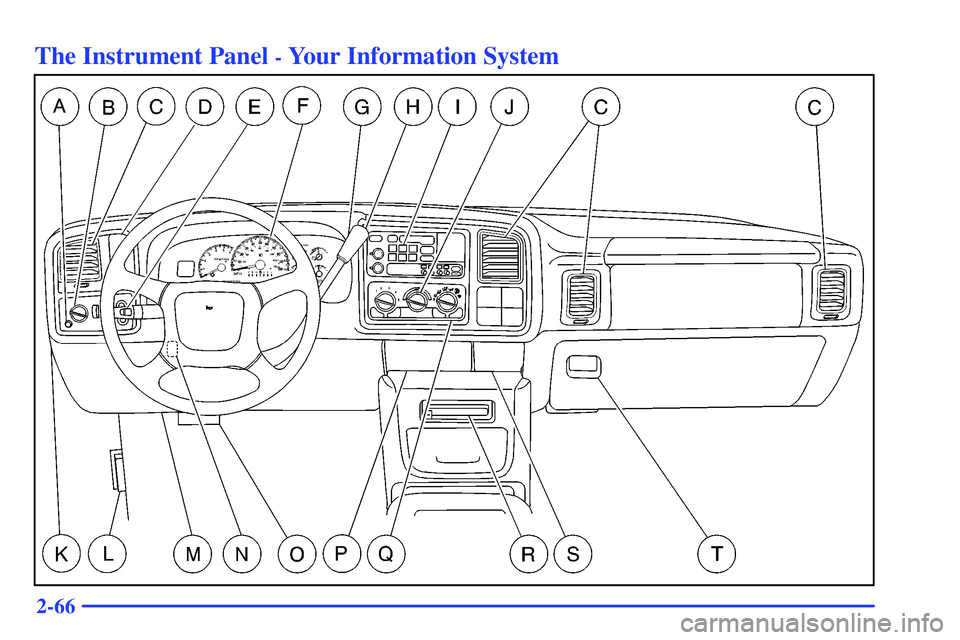

The Instrument Panel - Your Information System

2-67
A. Dome Lamp Switch
B. Lamp Controls
C. Air Outlets
D. Automatic Transfer Case/Traction Assist System
(If Equipped)
E. Multifunction Lever
F. Instrument Cluster
G. Gearshift Lever
H. Tow/Haul Selector Switch
I. Audio System
J. Comfort Control SystemK. Instrument Panel Fuse Block
L. Hood Release
M. Center Instrument Panel Utility Block
N. Tilt Lever (If Equipped)
O. Parking Brake Release
P. Lighter and Accessory Power Outlets
Q. Rear Window Defogger Switch (If Equipped)
R. Storage Area or Compact Disc Player (If Equipped)
S. Ashtray
T. Glove Box
