1999 GMC SUBURBAN Owner's Manual

2-52
Electrochromic Mirror Operation
The right side of the button, labeled TEMP and located
at the bottom of the mirror, turns the electrochromic
mirror on and off. An indicator light, located to the
right of the TEMP button, will come on when the
electrochromic mirror is turned on. To turn the mirror
on, press and hold the TEMP button for 15 seconds.
To turn the mirror off, press and hold the TEMP button
for 15 seconds. The indicator light will turn off.
Compass Operation
With the ignition on, the compass will show two character
boxes. The mirror will display the compass heading.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.Compass Calibration
The compass may need calibration if:

After five seconds, the display does not show a
compass heading (ªNº for North, for example),
there may be a strong magnetic field interfering with
the compass. Such interference may be caused by a
magnetic antenna mount, magnetic note pad holder
or a similar magnetic item.

The compass does not display the correct heading
and the compass zone variance is set correctly.
In order to calibrate, the letter ªCALº must be displayed in
the mirror compass windows. If ªCALº is not displayed,
push in the ªCOMPº button for approximately eight seconds
or until the letter ªCALº is displayed.
The compass can be calibrated in one of two ways:

Drive the vehicle in circles at five mph (8 km/h) or
less until the display reads a direction, or

Drive the vehicle on your everyday routine and after
several turns the compass will become calibrated and
will display a direction.

2-53
Compass Variance
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if you live outside zone eight.
Under certain circumstances, as during a long distance
cross
-country trip, it will be necessary to adjust for
compass variance. Compass variance is the difference
between earth's magnetic north and true geographic
north. If not adjusted to account for compass variance,
your compass could give false readings.
To adjust for compass variance:
1. Use the COMP button located at the bottom of
the mirror.
2. Press and hold the COMP button for three seconds
until a zone number appears in the display.
3. Find your current location and variance zone number
on the following zone map.
4. Press the COMP button on the bottom of the mirror
until the new zone number appears in the display.
After you stop pressing the button in, the display will
show a compass direction within a few seconds.

2-54 Outside Manual Adjust Mirrors
Adjust your outside mirrors so you can just see the side of
your vehicle and have a clear view of objects behind you.
The mirrors can be folded in to enter narrow doorways.
The use of hood
-mounted air deflectors and add-on
convex mirror attachments may adversely affect
mirror performance.
Camper-Type Outside Mirrors (If Equipped)
If your vehicle is equipped with camper-type mirrors,
they can be adjusted so you can have a clear view of
objects behind you.
Pull out the mirror head to extend it for better visibility
when towing a trailer.
Electric Outside Rearview Mirrors
(If Equipped)
The control is located on the
driver's door armrest.
Move the upper control to the left or right to choose the
mirror you want to adjust, then press the arrows on the
lower control pad to adjust the mirror.
Heated Outside Rearview Mirrors
(If Equipped)
The outside rearview mirrors with this option feature a
defrost mode.
To turn on the defrost feature, press the rear window
defogger button. See ªRear Window Defoggerº in the
Index for further information.

2-55 Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
Storage Compartments
Your vehicle has a variety of storage compartments
designed to store small items.
Glove Box
To open your glove box, move the switch toward the
passenger's side and pull the door open.
Cupholders
Your vehicle has cupholders in the middle of the
instrument panel, in the rear armrests and at the back
of the center console for rear passengers.
Center Console Storage Area (If Equipped)
Your vehicle may have a console compartment between
the bucket seats.
To open it, insert the console key into the lock and
unlock the console. Press the button and swing the
console lid open.

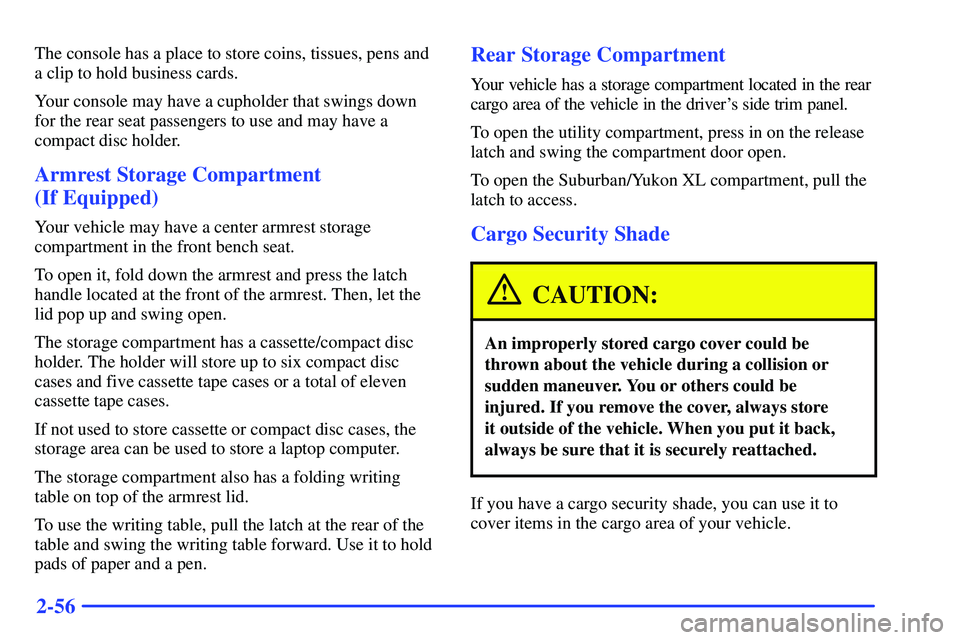

2-56
The console has a place to store coins, tissues, pens and
a clip to hold business cards.
Your console may have a cupholder that swings down
for the rear seat passengers to use and may have a
compact disc holder.
Armrest Storage Compartment
(If Equipped)
Your vehicle may have a center armrest storage
compartment in the front bench seat.
To open it, fold down the armrest and press the latch
handle located at the front of the armrest. Then, let the
lid pop up and swing open.
The storage compartment has a cassette/compact disc
holder. The holder will store up to six compact disc
cases and five cassette tape cases or a total of eleven
cassette tape cases.
If not used to store cassette or compact disc cases, the
storage area can be used to store a laptop computer.
The storage compartment also has a folding writing
table on top of the armrest lid.
To use the writing table, pull the latch at the rear of the
table and swing the writing table forward. Use it to hold
pads of paper and a pen.
Rear Storage Compartment
Your vehicle has a storage compartment located in the rear
cargo area of the vehicle in the driver's side trim panel.
To open the utility compartment, press in on the release
latch and swing the compartment door open.
To open the Suburban/Yukon XL compartment, pull the
latch to access.
Cargo Security Shade
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store
it outside of the vehicle. When you put it back,
always be sure that it is securely reattached.
If you have a cargo security shade, you can use it to
cover items in the cargo area of your vehicle.

2-57
To use the shade, pull the shade handle toward the rear
of the vehicle. Latch the shade posts into the retaining
sockets on the cargo area trim panels.
To return the shade to the retracted position, pull up on
the shade handle to release the shade posts from the
retaining sockets. Let the shade move forward to the full
retracted position.
To remove the shade from the vehicle, first let the
shade go all the way into the holder. Then, grasping the
passenger's side shade endcap, push the shade endcap
toward the driver's side of the vehicle. The endcap
should lock in the compressed position. Lift the shade
up on the passenger's side, swing the shade rearward
and take it out of the vehicle.
To put the shade in the vehicle, first make sure the shade
slot in the holder faces rearward with the round surface
facing down. Then, hold the shade at an angle and place
the shade holder tab into the slot in the driver's side trim
panel. Move the other end of the shade forward and hold
it next to the passenger's side trim panel slot.Push the button on top of the passenger's side endcap.
This will allow the shade to extend into the trim slot.
Lightly pull on the shade holder to make sure it is
secure. On Suburban/Yukon XL models there are
two slots. The slots furthest forward allow the shade
to be used if the third seat is removed or folded down.
Cargo Tie Downs
There are cargo tie downs in
the rear cargo area that
allow you to strap cargo in
and keep it from moving
inside the vehicle.
When not using the tie downs, flip them down out of
the way.

2-58 Convenience Net (If Equipped)
You may have a convenience net in the rear of your
vehicle to help keep small loads, like grocery bags, in
place during sharp turns or quick stops and starts.
The net is not designed for larger, heavier items.
To install the net, attach the hooks to the raised cargo
tie downs. Then, attach the cord loops to the button
retainers in the side trim.
You can unhook the net so that it will lie flat when
you're not using it.
Luggage Carrier (If Equipped)
If you have the luggage carrier, you can load things on
top of your vehicle.
The luggage carrier has slats and siderails attached to
the roof and crossrails which can be moved back and
forth to help secure cargo. Tie the load to the siderails or
siderail supports.
NOTICE:
Loading cargo that weighs more than 200 lbs.
(90.6 kg) on the luggage carrier may damage
your vehicle. When you carry large things, never
let them hang over the rear or the sides of your
vehicle. Load your cargo so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the siderails and fasten it
securely to the luggage carrier.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're leaving,
check now and then to make sure the luggage and cargo
are still securely fastened.

2-59
Be sure the cargo is properly loaded.

If small heavy objects are placed on the roof, place
the load in the area over the rear wheels (behind the
rear side door on Suburban/Yukon XL Models).
If you need to, cut a piece of 3/8 inch plywood to fit
inside the crossrails and siderails to spread the load.
If plywood is used, tie it to the siderail supports.

Tie the load to the crossrails or the siderail supports.
Use the crossrails only to keep the load from sliding.
To move the crossrails, pull out on the latch release
handle at each end. Slide the crossrail to the desired
position balancing the force side to side. Push the
release handle back into the latched position and
slide the crossrail back and forth slightly to be sure
the latch snaps securely into place.

If you need to carry long items, move the crossrails
as far apart as they will go. Tie the load to the
crossrails and the siderails or siderail supports. Also
tie the load to the bumpers. Do not tie the load so
tightly that the crossrails or siderails are damaged.

For the purpose of wind noise reduction, locate
the front crossrail approximately 18 to 24 inches
(46 cm to 58 cm) rearward of the front supports.

After moving a crossrail, be sure it is securely locked
into the siderail.Your vehicle has a Center High-Mounted Stoplamp
(CHMSL) located above the glass or above the rear
load doors.
If items are loaded on the roof of the vehicle, care should
be taken not to block or damage the CHMSL unit.
Ashtrays and Cigarette Lighter
Front Ashtray
The front ashtray is located near the center of the
instrument panel. Pull on the bottom of the ashtray
door to open it.
NOTICE:
If you store paper or other things that burn in
your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do not store papers and other things that burn
in your ashtrays.
