1999 FORD RANGER Owners Manual

Fluid Ford Part
NameApplication
Capacity
Transmission
fluidMotorcraft
MERCONtAT F5-speed manual 2.65L
(2.8 quarts)
Motorcraft
MERCONtV
AT F4x2 vehicles
with automatic
and 2.5L engine9.3L
(9.8 quarts)
4x2 vehicles
with automatic
and 3.0L or 4.0L
engine9.5L
(10.0 quarts)
4x4 vehicles
with automatic9.8L
(10.3 quarts)
Engine coolant
12.5L I4 engine
without A/C6.2L
(6.5 quarts)
2.5L I4 engine
with A/C6.8L
(7.2 quarts)
3.0L V6 engine
without A/C9.0L
(9.5 quarts)
3.0L V6 engine
with A/C9.6L
(10.2 quarts)
4.0L V6 engine
without A/C7.4L
(7.8 quarts)
4.0L V6 engine
with A/C8.1L
(8.6 quarts)
Fuel tank N/A Regular cab
(Short wheel
base)62.4L
(16.5 gallons)
Regular cab
(Long wheel
base)75.7L
(20.0 gallons)
SuperCab 73.8L
(19.5 gallons)
Transfer Case
FluidMotorcraft
MERCONtAT F4x4 Vehicles 1.2L
(1.25 quarts)
Capacities and specifications
201

Fluid Ford Part
NameApplication
Capacity
Front axle fluid Motorcraft SAE
80W90 Premium
Rear Axle
Lubricant4x4 Vehicles
1.7L (3.6 pints)
Rear axle
lubricant
2Motorcraft SAE
80W90 Premium
Rear Axle
LubricantAll
2.4-2.5L
(5.0-5.3 pints)
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateAll
Fill to line on
reservoir
1If your engine coolant is green in color, use Ford Premium Cooling
System Fluid. If your coolant is orange in color, use Ford Extended Life
Engine Coolant. Refer toAdding engine coolant, in the Maintenance
and Care chapter.
2Traction-Lok axles use 2.2±2.4L (4.75±5.0 pints) of rear axle lubricant.
Add 118 ml (4 oz.) of additive friction modifier C8AZ-19B546±A, Ford
specification EST-M2C118±A for complete refill of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Front axle75W90 Gear
LubeXY-75W90-QL WSP-M2C201-A
Rear axleMotorcraft SAE
80W90 Premium
Rear Axle
Lubricant
1
XY-80W90-QL WSP-M2C197-A
Capacities and specifications
202

ItemFord part
name or
equivalentFord part
numberFord
specification
Brake fluid and
clutch fluid (if
equipped)High
Performance
DOT 3 Motor
Vehicle Brake
FluidC6AZ-19542-AB ESA-M6C25-A
and DOT 3
Door weather
stripsSilicone
LubricantC0AZ-19553-AA ESR-M13P4-A
Engine coolant Ford Premium
Engine Coolant
(green in color)E2FZ-19549-AA ESE-M97B44-A
Ford Extended
Life Engine
Coolant (orange
in color)F6AZ-19544-AA WSS-M97B44-D
or DEX-COOLt
equivalent
Engine oilMotorcraft 5W30
Super Premium
Motor OilXO-5W30-QSP WSS-M2C153-G
and API
Certification
Mark
Hinges, door
checks, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseDOAZ-19584-AA
or
F5AZ-19G209-AAESB-M1C93-B or
ESB-M1C159-A
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft,
clutch pilot
bearing and.
input shaft
spline (manual
transmission).Premium
Long-Life GreaseXG-1-C ESA-M1C75-B
Capacities and specifications
203

ItemFord part
name or
equivalentFord part
numberFord
specification
Power steering
fluid, transfer
case fluid and
transmission
fluid (manual)Motorcraft
MERCONtAT FXT-2-QDX MERCONt
Automatic
transmission
(4R44E and
5R55E)Motorcraft
MERCONtV
AT FXT-5-QM
MERCONtV
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateC9AZ-19550-AB ESR-M17P5-A
1Add 118 ml (4 oz.) of additive friction modifier C8AZ-19B546±A, Ford
specification EST-M2C118±A for complete refill of Traction-Lok axles.
ENGINE DATA
Engine2.5L I4
engine3.0L V6
engine3.0L FFV
V6 engine4.0L V6
engine
Cubic inches 153 182 182 245
Horsepower 119 @ 5000
rpm150 @ 5000
rpm150 @ 5000
rpm (on
E85)160 @ 4200
rpm
Torque 146 lb.-ft.
@ 3000
rpm185 lb.-ft. @
3750 rpm190 lb.-ft. @
3750 rpm
(on E85)225 lb.-ft. @
2750 rpm
Recommended
fuel87 octane 87 octane 87 octane or
Ethanol (E
85)87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6 1-4-2-5-3-6
Capacities and specifications
204

Engine2.5L I4
engine3.0L V6
engine3.0L FFV
V6 engine4.0L V6
engine
Spark plug
gap1.07-1.17
mm
(0.042-.046
inch)1.07-1.17
mm
(0.042-.046
inch)1.07-1.17
mm
(0.042-.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition
systemEDIS EDIS EDIS EDIS
Compression
ratio9.4:1 9.14:1 9.14:1 9.0:1

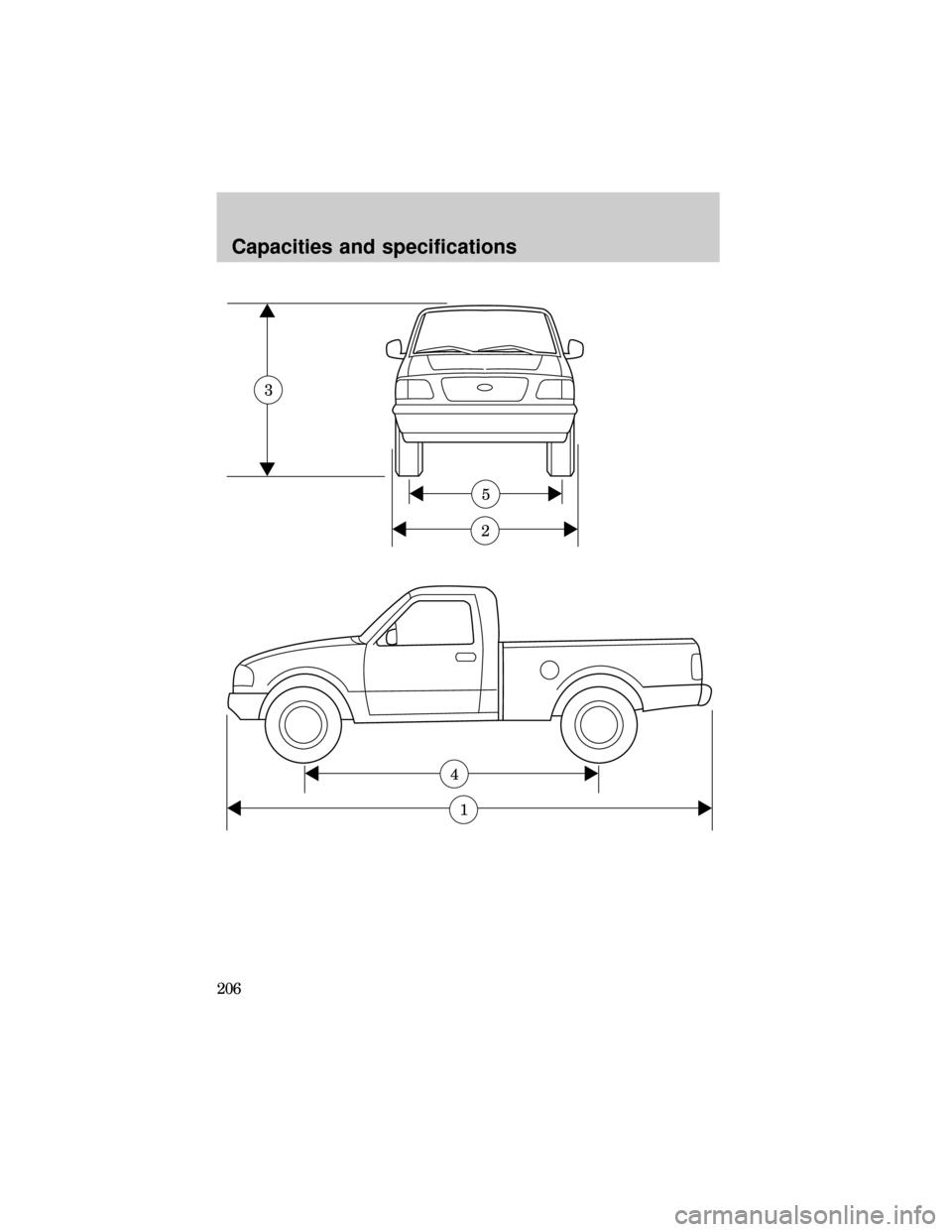

VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) mm
(in)Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length4 763 (187.5) 5 093 (200.5) 5 153 (202.9)
(2) Overall
width1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
(3) Overall
height 4x2/4x41 575 (62.0) /
1 655 (65.2)1 586 (62.4) /
1 655 (65.2)1 585 (62.4) /
1 684 (66.3)
(4) Wheelbase 2 831 (111.4) 2 983 (117.4) 3 192 (125.7)
(5) Track -
Front1 486 (58.5) 1 486 (58.5) 1 485 (58.5)
(5) Track -
Rear1 455 (57.3) 1 455 (57.3) 1 455 (57.3)
Capacities and specifications
205

2
5
3
1
4
Capacities and specifications
206

IDENTIFYING YOUR VEHICLE
Safety compliance label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the front door latch pillar
on the driver's side.
1
4
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX F0000
BAR INT TR TP/PS R AXLE TR SPR T0000
X XX XXX X XX X XXXX
UTC
ÑFOHT-15294A10-GA
MAXIMUM LOAD=OCCUPANTS + LUGGAGE=XXXKG/XXXXLB
OCCUPANTS: X TOTAL X FR X 2ND X RR OCCUPANTS LUGGAGE
XX XXXKG/XXXXLB
TIRE: XXXX/XXXXX XXX X XXXKG/XXXXLB
PRESSURE (FR) XXX kPa/33 PSI COLD
PRESSURE (RR) XXX kPa/33 PSI COLD
TRAILER TOWING - SEE OWNER GUIDE
DATE: XXXXX GVWR:XXXXX LB/ XXXXX KG
VIN: XXXXXXXXXXXXXXXXX TYPE: XXXXXXXXXXXXXXX FGAWR: XXXXXX/XXXXXXX RGAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY STANDARDS IN EFFECT ON THE
DATE OF MANUFACTURE SHOWN ABOVE.
Capacities and specifications
207

Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. For your
protection, you will also find the
vehicle identification number in the
following areas:
²the left and right front fenders
²the left and right front doors
²the front and rear bumpers
²the hood
²the left and right rear quarter panels
²the decklid
²the liftgate
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
AIR BAG
Capacities and specifications
