Engine coolant temperature gauge
Indicates the temperature of the
engine coolant. At normal operating
temperature, the needle remains
within the normal area (the area
between the “H” and “C”). If it
enters the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch off
the engine immediately and let the
engine cool. Refer toEngine
coolantin theMaintenance and
carechapter.
Never remove the coolant reservoir cap while the engine is
running or hot.
This gauge indicates the temperature of the engine coolant, not the
coolant level. If the coolant is not at its proper level the gauge indication
will not be accurate.
Odometer
Registers the total kilometers
(miles) of the vehicle.
H
C
Instrumentation
15
ProCarManuals.com

Trip odometer
Registers the kilometers (miles) of
individual journeys. To reset,
depress the control.
Tachometer
Indicates the engine speed in
revolutions per minute.
Driving with your tachometer
pointer in the red zone may damage
the engine.
Battery voltage gauge
This gauge shows the battery
voltage when the ignition is in the
ON position. If the pointer moves
and stays outside the normal
operating range (as indicated), have
the vehicle’s electrical system
checked as soon as possible.
0
000000000
MPH
20km/h
406080
100
120
140
160
0
10 20304050
60
70
80
90
100
818
Instrumentation
16
ProCarManuals.com

driving (engine break-in period). You will get a more accurate
measurement after 3 000 km–5 000 km (2 000 miles-3 000 miles).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theRefill Capacities
chart in this “Owner Guide.” The advertised capacity is the amount of
the Indicated Capacity and the Empty Reserve combined. Indicated
Capacity is the difference in the amount of fuel in a full tank and a tank
when the fuel gauge indicates empty. Empty Reserve is the small amount
of usable fuel remaining in the fuel tank after the fuel gauge indicates
empty.
The amount of Empty Reserve varies and should not be relied
upon to increase driving range. When refueling your vehicle after
the fuel gauge indicates empty, you might not be able to refuel
the full amount of the advertised capacity of the fuel tank due to
the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow three automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Use the same side of the same pump and have the vehicle facing the
same direction each time you fill up.
•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in kilometers or miles).
2. Each time you fill the tank, record the amount of fuel added (in liters
or gallons).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
Maintenance and care
199
ProCarManuals.com

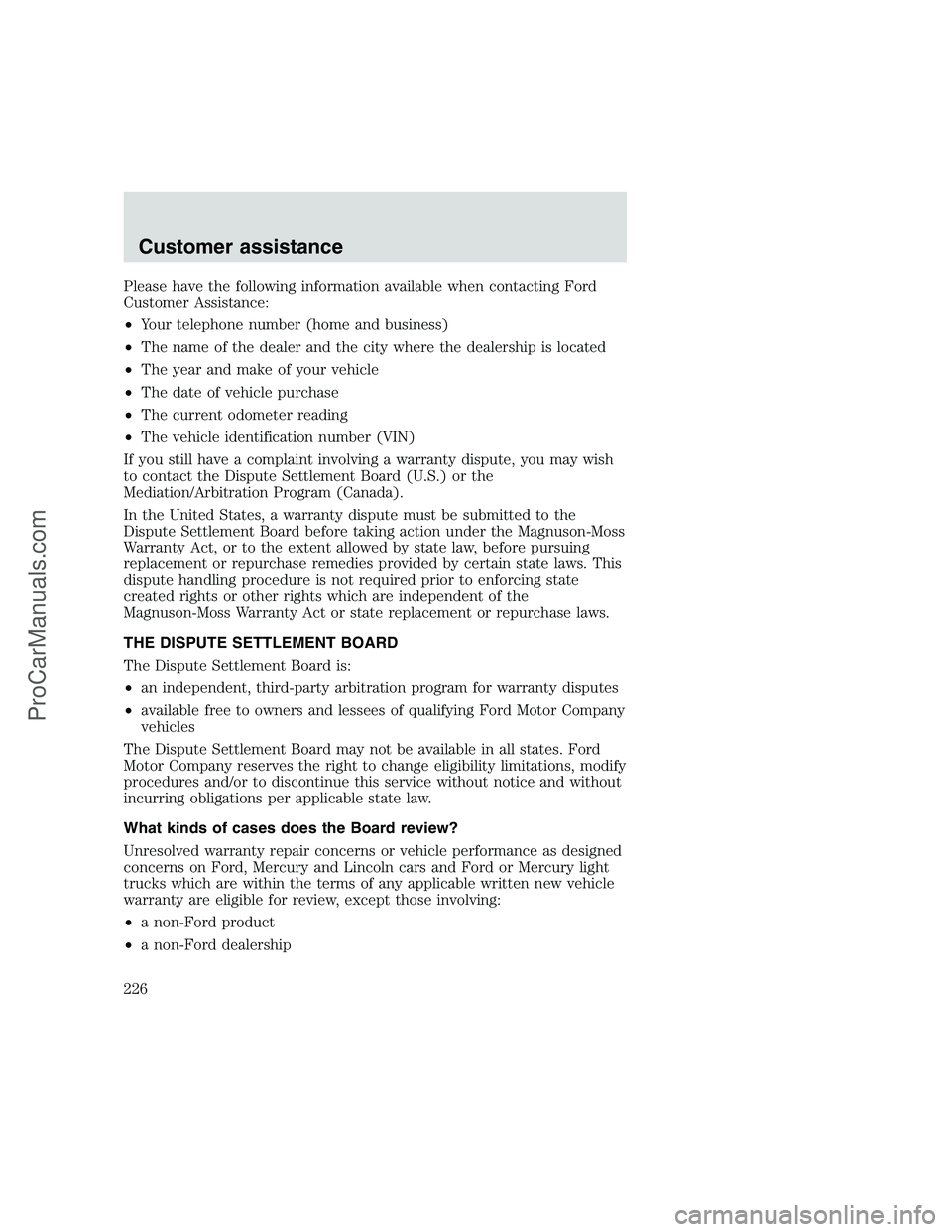

Please have the following information available when contacting Ford
Customer Assistance:
•Your telephone number (home and business)
•The name of the dealer and the city where the dealership is located
•The year and make of your vehicle
•The date of vehicle purchase
•The current odometer reading
•The vehicle identification number (VIN)
If you still have a complaint involving a warranty dispute, you may wish
to contact the Dispute Settlement Board (U.S.) or the
Mediation/Arbitration Program (Canada).
In the United States, a warranty dispute must be submitted to the
Dispute Settlement Board before taking action under the Magnuson-Moss
Warranty Act, or to the extent allowed by state law, before pursuing
replacement or repurchase remedies provided by certain state laws. This
dispute handling procedure is not required prior to enforcing state
created rights or other rights which are independent of the
Magnuson-Moss Warranty Act or state replacement or repurchase laws.
THE DISPUTE SETTLEMENT BOARD
The Dispute Settlement Board is:
•an independent, third-party arbitration program for warranty disputes
•available free to owners and lessees of qualifying Ford Motor Company
vehicles
The Dispute Settlement Board may not be available in all states. Ford
Motor Company reserves the right to change eligibility limitations, modify
procedures and/or to discontinue this service without notice and without
incurring obligations per applicable state law.
What kinds of cases does the Board review?
Unresolved warranty repair concerns or vehicle performance as designed
concerns on Ford, Mercury and Lincoln cars and Ford or Mercury light
trucks which are within the terms of any applicable written new vehicle
warranty are eligible for review, except those involving:
•a non-Ford product
•a non-Ford dealership
Customer assistance
226
ProCarManuals.com

Ford Extended Service Plan...224
Getting assistance outside the
U.S. and Canada .....................229
Getting roadside assistance ...223
Getting the service you need...225
Ordering additional owner’s
literature .................................234
The Dispute Settlement Board...226
Dipstick
engine oil .................................172
Doors
door ajar warning .....................13
Driveline universal joint and
slip yoke ....................................186
Driving under special
conditions ...........................130,131
sand .........................................131
snow and ice ...........................132
through water ..................131,134
Emergencies, roadside
jump-starting ..........................163
Emission control system ..........202
Engine ........................................217
check engine/service engine
soon light .................................8,9
coolant .....................................178
diesel ...........................................3
idle speed control ...................187
lubrication specifications...215,217
refill capacities ........................212
service points ..........................172
starting after a collision .........144
Engine block heater .................110
Engine oil ..................................172
checking and adding .......172,174
dipstick ....................................172
filter, specifications .........174,212
recommendations ...................174
refill capacities .................172,212
specifications .....172,174,215,217
Exhaust fumes ..........................110
Fail safe cooling ........................180Fluid capacities .........................212
Four-Wheel Drive vehicles ..12,125
control trac ...............................23
description ..............................128
driving off road .......................130
electronic shift ............23,125,128
indicator light ....................12,126
lever operated shift ................126
manual locking hubs ..............126
Fuel ............................................194
calculating fuel economy .......198
cap ...........................................197
capacity ...................................212
choosing the right fuel ...........196
comparisons with EPA fuel
economy estimates .................201
detergent in fuel .....................197
filling your vehicle
with fuel ....................194,197,199
filter, specifications .........198,212
fuel pump shut-off switch .....144
improving fuel economy ........198
low fuel warning light ................8
octane rating ....................196,217
quality ......................................197
running out of fuel .................197
safety information relating to
automotive fuels .....................194
Fuses ...................................145,146
Gas cap (see Fuel cap) ............197
Gas mileage (see Fuel
economy) ...................................198
Gauges .........................................14
battery voltage gauge ...............16
engine coolant temperature
gauge .........................................15
engine oil pressure gauge ........17
odometer ...................................15
speedometer .............................14
tachometer ................................16
trip odometer ............................16
Index
237
ProCarManuals.com

GAWR
(Gross Axle Weight Rating) .....132
calculating ...............................134
definition .................................132
driving with a heavy load ......132
location ....................................132
GVWR (Gross Vehicle
Weight Rating) ..........................132
calculating ........................132,134
definition .................................132
driving with a heavy load ......132
location ....................................132
Hazard flashers .........................144
Headlamps ...................................22
aiming ......................................208
daytime running lights .............22
flash to pass .........................23,73
high beam .......................12,22,72
turning on and off ....................22
warning chime ..........................13
Heating ........................................24
heater only system ...................24
heating and air
conditioning system .................26
Hood ..........................................171
Ignition .......................................217
positions of the ignition ...........66
removing the key ....................124
Infant seats (see Safety seats)...102
Inspection/maintenance
(I/M) testing ..............................203
Instrument panel
cleaning ...................................210
lighting up panel and interior....23
location of components ..............8
Jump-starting your vehicle ......163
Keys
key in ignition chime ...............13
positions of the ignition ...........66
Lamps
autolamp system .....................203
cargo lamps ...............................23daytime running light ...............22
headlamps .................................22
headlamps, flash to pass .....23,73
instrument panel, dimming .....23
replacing
bulbs ............203,204,205,206,207
Lane change indicator
(see Turn signal) ........................66
Lights, warning and indicator ......8
air bag ........................................10
anti-lock brakes (ABS) .....11,113
brake ..........................................11
charging system ........................12
check coolant ............................13
door ajar ....................................13
engine oil pressure ...................13
high beam .................................12
low fuel ........................................8
safety belt .................................11
service engine soon .................8,9
turn signal indicator .................12
Load limits .................................132
GAWR ......................................132
GVWR ......................................132
trailer towing ..........................132
Lubricant specifications ....215,217
Lumbar support, seats ...............84
Manual transmission .................119
fluid capacities ........................212
lubricant specifications ..........217
Message center ...........................17
english/metric button ...............17
menu button .............................18
Mirrors
fold away ...................................76
side view mirrors (power) .......75
Motorcraft parts .................198,212
Octane rating ............................196
Odometer .....................................15
Overdrive .....................................73
Panic alarm feature,
remote entry system ..................78
Index
238
ProCarManuals.com

Parking brake ............................114
Parts (see Motorcraft parts) ....212
Power distribution box (see
Fuses) ........................................149
Power door locks ........................75
Power steering ..........................115
fluid, checking and adding ....182
fluid, refill capacity ................212
fluid, specifications ..........215,217
Radio ............................................29
Relays ........................................145
Remote entry system ............77,78
illuminated entry ......................79
locking/unlocking doors ...........77
panic alarm ...............................78
replacement/additional
transmitters ...............................80
replacing the batteries .............78
Safety belts (see Safety
restraints) ................13,86,87,88,89
Safety Compliance
Certification Label ....................222
Safety defects, reporting ..........235
Safety restraints ...........86,87,88,89
cleaning the safety belts ...91,211
extension assembly ..................90
for adults .........................87,88,89
for children ......................100,101
lap belt ......................................89
warning light
and chime ...................11,13,90,91
Safety seats for children ..........102
Seat belts
(see Safety restraints) ...............86
Seats ............................................82
child safety seats ....................102
cleaning ...................................211
Servicing your vehicle ..............169
Snowplowing ...................3,141,142
Spark plugs,
specifications ......................212,217
Special notice .............................3,4ambulance conversions ..............3
diesel-powered vehicles .............3
four-wheel drive vehicles .......143
utility-type vehicles ....................3
Specification chart,
lubricants ............................215,217
Speed control ..............................67
Speedometer ...............................14
Starting your vehicle .........107,109
jump starting ..........................163
Steering wheel
tilting .........................................71
Tachometer .................................16
Tailgate ........................................81
Tilt steering wheel ......................71
Tires .............................152,190,191
changing ...........................152,155
checking the pressure ............191
replacing ..................................193
rotating ....................................191
snow tires and chains ............193
tire grades ...............................191
treadwear ................................190
Towing
recreational towing .................140
wrecker ....................................168
Traction-lok rear axle ...............115
Transfer case
fluid checking .........................186
Transmission .............................116
automatic operation ...............116
fluid, checking and adding
(automatic) .............................182
fluid, checking and adding
(manual) .................................185
fluid, refill capacities ..............212
lubricant specifications ..........217
manual operation ....................119
Transmission control indictor
light ..............................................11
Trip odometer .............................16
Turn signal .............................12,66
Index
239
ProCarManuals.com
