1999 DODGE RAM check engine

necessary. See appropriate AUTOMATIC TRANSMISSION OVERHAUL article. If
transmission is okay, go to next step.
6) Replace governor pressure solenoid. Replace transmission
oil pan and refill fluid. Start engine. Read gauge pressure. If
pressure is less than 3 psi (.2 kg/cm
), testing is complete. If
pressure is 3 psi (.2 kg/cm) or greater, replace valve body.
7) Turn ignition off. Disconnect transmission solenoid
harness connector. Inspect connector and terminals for damage. Repair
as necessary. If connector and terminals are okay, turn ignition on.
Measure voltage between ground and 5-volt supply circuit at
transmission solenoid harness connector. If voltage is 4.5 volts or
less, repair open 5-volt supply circuit. If voltage is greater than 4.
5 volts, replace governor pressure sensor.
8) Using scan tool, read and record FREEZE FRAME data. Ensure
CAUSED BY DTC hex code matches DTC message on screen. Using wiring
diagram as a guide, inspect wiring and connectors. Repair wiring
harness as necessary. If wiring and connectors are okay, go to next
step.
9) Using scan tool, clear DTCs. Drive vehicle at 0-20 MPH and
come to complete for 20 seconds. Repeat road test 5 times. Using scan
tool, monitor governor actual pressure and target pressure. If
pressures greater than 3 psi (.2 kg/cm
) at zero MPH appears, repair
wiring harness as necessary. If pressures greater than 3 psi (.2
kg/cm
) at zero MPH do not appear, testing is complete.
DTC P1762: GOV PRESS SEN OFFSET VOLTS TOO LOW OR HIGH
Circuit Description
Circuit is monitored continuously while key is on and engine
running. Code sets if governor pressure is out of range for 1.3
seconds. Test must fail 3 times to set code.
Possible Causes
* Solenoid pack connector 5 volt supply circuit open.
* Governor pressure sensor ground circuit open.
* Governor pressure sensor wiring harness and/or connectors
defective.
* Transmission fluid burnt or oil pan has excessive debris.
Diagnostic Procedures
1) Using scan tool, read DTCs. On AN and DN bodies, go to
next step. On all except AN and DN bodies, if DTC SPECIFIC GOOD TRIPS
counter is not displayed or displayed count is not "0", go to step 9).
If DTC SPECIFIC GOOD TRIPS counter is displayed and displayed count is
"0", go to next step.
2) Start engine and allow it to reach normal temperature.
Check transmission fluid level and condition. Correct transmission
fluid level or condition as necessary. If transmission fluid level and
condition are okay, go to next step.
3) Turn ignition off and back on. Do not start. Using scan
tool, check Park/Neutral Position (PNP) switch operation. Repair PNP
switch as necessary. If PNP switch operation is okay, go to next step.
4) Start engine. Place gear selector in Neutral. Using scan
tool, read GOV PRESSURE voltage. If voltage is not .30-.76 volt, go to
step 6). If voltage is as specified, go to next step.
5) While monitoring GOV PRESSURE sensor voltage, wiggle
connectors and wiring harness between governor pressure sensor and
PCM. If voltage changes while wiggling connectors and harness, repair
connector or harness as necessary. If voltage does not change,
conditions required to set DTC P1762 are not present at this time. DTC
P1762 sets if governor pressure sensor input is less than or greater
than a predetermined PNP switch calibration for 1.3 seconds under

6) Disconnect PNP switch harness connector. Measure
resistance of PNP switch sense circuit between Black PCM harness
connector C1 and PNP switch harness connector. If resistance is less
than 5 ohms, replace PNP switch. If resistance is not as specified,
repair open in PNP switch sense circuit.
7) Conditions required to set DTC P1899 are not present at
this time. Using scan tool, check and record FREEZE FRAME data. Ensure
"CAUSED BY DTC" "P" code matches code on DTC screen. Using wiring
diagram as a guide, inspect wiring and connectors. Repair wiring
harness as necessary. If wiring and connectors are okay, does not
reset, see INACTIVE DTC CONDITION under SELF-DIAGNOSTIC SYSTEM.
Testing is complete.
TEST VER-2A (EXCEPT DIESEL)
NOTE: If Powertrain Control Module (PCM) is replaced, correct
vehicle mileage and Vehicle Identification Number (VIN) must
be programmed into PCM to prevent Diagnostic Trouble Codes
(DTCs) from being set in Anti-Lock Brake System (ABS) modul\
e
and Supplemental Restraint System (SRS) module. To program
PCM and clear DTCs from ABS and SRS modules, proceed to
appropriate procedure listed below. On models equipped with a
Smart Key Immobilizer Module (SKIM), if replacing Powertrain
Control Module (PCM), secret key data must also be updated to\
enable engine starting. To update secret key data, proceed to
appropriate procedure listed below.
Procedure For Programming PCM & Clearing DTCs From ABS & SRS
Modules
Connect scan tool to Data Link Connector (DLC). Using scan
tool, enter correct VIN and mileage into PCM. Using scan tool
manufacturer's instructions, clear DTCs from ABS and SRS modules. Go
to step 1)).
Procedure For Updating Secret Key Data
Connect scan tool to Data Link Connector (DLC). Go to ENGINE
and then MISC menus on scan tool. Place SKIM in SECURED ACCESS MODE by
using appropriate Personal Identification Number (PIN) for this
vehicle. PIN may be obtained from owner, vehicle's invoice, or from
manufacturer. Select UPDATE THE SECRET KEY DATA. Data will be
transferred from Smart Key Immobilizer Module (SKIM) to PCM. Go to
step 1)).
1) Inspect vehicle to ensure all engine components are
connected. Reassemble and reconnect components as necessary. If test
is being performed after performing a NO TROUBLE CODE (NTC) test, go
to next step. If test is being performed after performing an OBD-II
TROUBLE CODE test, perform TEST VER-5A. If test is being performed
after any other TROUBLE CODE test, go to step 3).
2) Check if initial symptom still exists. If initial or
another symptom exists, repair is not complete. Check for Technical
Service Bulletins (TSBs) that apply to symptom and see appropriate
TEST NTC-1A: NO TROUBLE CODE TEST MENU in ENGINE PERFORMANCE, or
appropriate TROUBLE SHOOTING - NO CODES article in ENGINE PERFORMANCE
for diagnosis by symptom. If initial symptom no longer exists, test is
complete. Go to step 8).
3) If any DTCs have not been diagnosed, perform appropriate
test(s) see appropriate SELF-DIAGNOSTIC TESTS in ENGINE PERFORMANCE.
If all DTCs have been diagnosed and repaired, go to next step.
4) If Powertrain Control Module (PCM) has not been replaced,\
use scan tool to clear DTCs from PCM. Using scan tool, reset all
values in adaptive memory. To ensure no other DTCs remain, go to next
step.

5) If PCM has not been replaced, and TEST VER-2A is being
performed after an A/C relay control circuit DTC test, ensure A/C is
on and go to next step.
6) Road test vehicle for at least 5 minutes. Road test
vehicle at a speed of at least 40 MPH at some point during road test.
Stop vehicle. Turn engine off for at least 10 seconds. Start engine
and continue road test. Ensure transmission shifts through all gears.
After road test, turn engine off and go to next step.
7) Using scan tool, read DTCs. If any DTC returns, perform
appropriate test(s). If no DTCs return, test is complete. Go to next
step.
8) Turn ignition on, with engine off. Using scan tool, erase
DTCs. Turn ignition off. Disconnect scan tool. Test is complete.
TEST VER-2A (DIESEL)
NOTE: If Accelerator Pedal Position Sensor (APPS), battery, Engine
Control Module (ECM) or Powertrain Control Module (PCM) has\
been disconnected or replaced, APPS must be reprogrammed and
correct vehicle mileage and Vehicle Identification Number
(VIN) must be programmed into PCM to prevent Diagnostic
Trouble Codes (DTCs) from being set in Anti-Lock Brake System\
(ABS) module and Supplemental Restraint System (SRS) module\
.
To program PCM and clear DTCs from ABS and SRS modules,
proceed to appropriate procedure listed below. On models
equipped with a Smart Key Immobilizer Module (SKIM), if
replacing Powertrain Control Module (PCM), secret key data
must also be updated to enable engine starting. To update
secret key data, proceed to appropriate procedure listed
below.
CAUTION: DO NOT attempt to adjust screws or disassemble APPS. Settings
are preset at factory and are not intended to by changed.
Procedure For Programming APPS
Reassemble all components. Turn ignition switch to ON or RUN
position without starting engine. Slowly press accelerator pedal to
floor once and slowly release. This procedure programs APPS
calibration in ECM. Go to step 1)).
Procedure For Programming PCM & Clearing DTCs From ABS & SRS
Modules
Connect scan tool to Data Link Connector (DLC). Using scan
tool, enter correct VIN and mileage into PCM. Using scan tool
manufacturer's instructions, clear DTCs from ABS and SRS modules. Go
to step 1)).
Procedure For Updating Secret Key Data
Connect scan tool to Data Link Connector (DLC). Go to ENGINE
and then MISC menus on scan tool. Place SKIM in SECURED ACCESS MODE by
using appropriate Personal Identification Number (PIN) for this
vehicle. PIN may be obtained from owner, vehicle's invoice, or from
manufacturer. Select UPDATE THE SECRET KEY DATA. Data will be
transferred from Smart Key Immobilizer Module (SKIM) to PCM. Go to
step 1)).
1) If PCM has not been replaced, and TEST VER-2A (DIESEL) is\
being performed after a No Trouble Code (NTC) test, inspect vehicle to\
ensure all engine components are connected. Reassemble and reconnect
components as necessary. Check if initial symptom still exists. If
initial symptom exists, check for Technical Service Bulletins (TSBs)
that apply to vehicle and see TEST NTC-1A: NO TROUBLE CODE TEST MENU
in ENGINE PERFORMANCE, or appropriate TROUBLE SHOOTING - NO CODES

4) Using scan tool, monitor pretest enabling conditions until
all conditions have been met. Once all enabling conditions are met,
observe appropriate monitor for DTC on scan tool. If repaired DTC has
reset or is seen on monitor while on road test, repair is not
complete. Check for related Technical Service Bulletins (TSBs) and
return to appropriate test. If no DTCs return, test is complete. Go to
step 6).
5) If another DTC exists, return to appropriate test(s). If
no DTCs return, test is complete. Go to next step.
6) Turn ignition on, with engine off. Using scan tool, erase
DTCs. Turn ignition off. Disconnect scan tool. Test is complete.
TEST VER-5A (DIESEL)
NOTE: If Accelerator Pedal Position Sensor (APPS), battery, Engine
Control Module (ECM) or Powertrain Control Module (PCM) has\
been disconnected or replaced, APPS must be reprogrammed and
correct vehicle mileage and Vehicle Identification Number
(VIN) must be programmed into PCM to prevent Diagnostic
Trouble Codes (DTCs) from being set in Anti-Lock Brake System\
(ABS) module and Supplemental Restraint System (SRS) module\
.
To program PCM and clear DTCs from ABS and SRS modules,
proceed to appropriate procedure listed below. On models
equipped with a Smart Key Immobilizer Module (SKIM), if
replacing Powertrain Control Module (PCM), secret key data
must also be updated to enable engine starting. To update
secret key data, proceed to appropriate procedure listed
below.
CAUTION: DO NOT attempt to adjust screws or disassemble APPS. Settings
are preset at factory and are not intended to by changed.
Procedure For Programming APPS
Reassemble all components. Turn ignition switch to ON or RUN
position without starting engine. Slowly press accelerator pedal to
floor once and slowly release. This procedure programs APPS
calibration in ECM. Go to step 1)).
Procedure For Programming PCM & Clearing DTCs From ABS & SRS
Modules
Connect scan tool to Data Link Connector (DLC). Using scan
tool, enter correct VIN and mileage into PCM. Using scan tool
manufacturer's instructions, clear DTCs from ABS and SRS modules. Go
to step 1)).
Procedure For Updating Secret Key Data
Connect scan tool to Data Link Connector (DLC). Go to ENGINE
and then MISC menus on scan tool. Place SKIM in SECURED ACCESS MODE by
using appropriate Personal Identification Number (PIN) for this
vehicle. PIN may be obtained from owner, vehicle's invoice, or from
manufacturer. Select UPDATE THE SECRET KEY DATA. Data will be
transferred from Smart Key Immobilizer Module (SKIM) to PCM. Go to
step 1)).
1) If PCM has not been replaced, inspect vehicle to ensure
all engine components are connected. Reassemble and reconnect
components as necessary. If any DTCs have not been diagnosed, return
to appropriate test(s). If all DTCs have been diagnosed and repaired,
go to next step.
2) Ensure fuel tank is at least 1/4 full. Ensure A/C is off.
Proper way to ensure DTC is repaired is to connect scan tool to Data
Link Connector (DLC) and allow Powertrain Control Module (PCM) to ru\
n
a DTC SPECIFIC GOOD TRIP COUNTER for 2 minutes. If DTC SPECIFIC GOOD

VISUAL INSPECTION
1) Check Water-In-Fuel (WIF) sensor electrical connector for\
corrosion, damaged terminals or wiring and tight fit on engine wiring
harness. WIF sensor is located in bottom of fuel filter/water
separator. See Fig. 1.
2) Check for water in fuel filter/water separator by placing
drain pan below drain tube at fuel filter/water separator. See Fig. 1.
3) With engine not running, rotate handle on drain valve
forward, toward front of vehicle to OPEN position. Drain valve is
located near top of fuel filter/water separator. See Fig. 1. Drain
water from fuel filter/water separator.
4) If no water exists and a clean flow of diesel fuel exists,
rotate handle on drain valve back to CLOSE position. Go to next step.
If water exists, allow water to drain until clean flow of diesel fuel
exists. Rotate handle on drain valve back to CLOSE position. Go to
next step.
5) Verify fuel filter/water separator has been serviced
according to proper service schedule. See SERVICE & ADJUSTMENT
SPECIFICATIONS - TRUCKS article.
6) Check color of Filter Minder. Filter Minder is located on
top cover on air filter housing, just above air filter. DO NOT remove
air filter from air filter housing for inspection. If Yellow disc in
Filter Minder has reached Red zone, remove and inspect air filter. See
Fig. 2 . If air filter is dirty, replace air filter and reset Filter
Minder by pressing rubber button on top of Filter Minder.
NOTE: The Yellow disc in Filter Minder may reach Red zone if air
intake is restricted or air filter has become wet during
heavy rain or snow. If air filter has become wet, allow air
filter to dry during normal engine operation and reset Filter
Minder by pressing rubber button on top of Filter Minder.
7) Ensure intercooler inlet and outlet duct clamps are tight
and front of intercooler is not restricted with dirt. See Fig. 3.
Fig. 2: Identifying Filter Minder Components
Courtesy of Chrysler Corp.

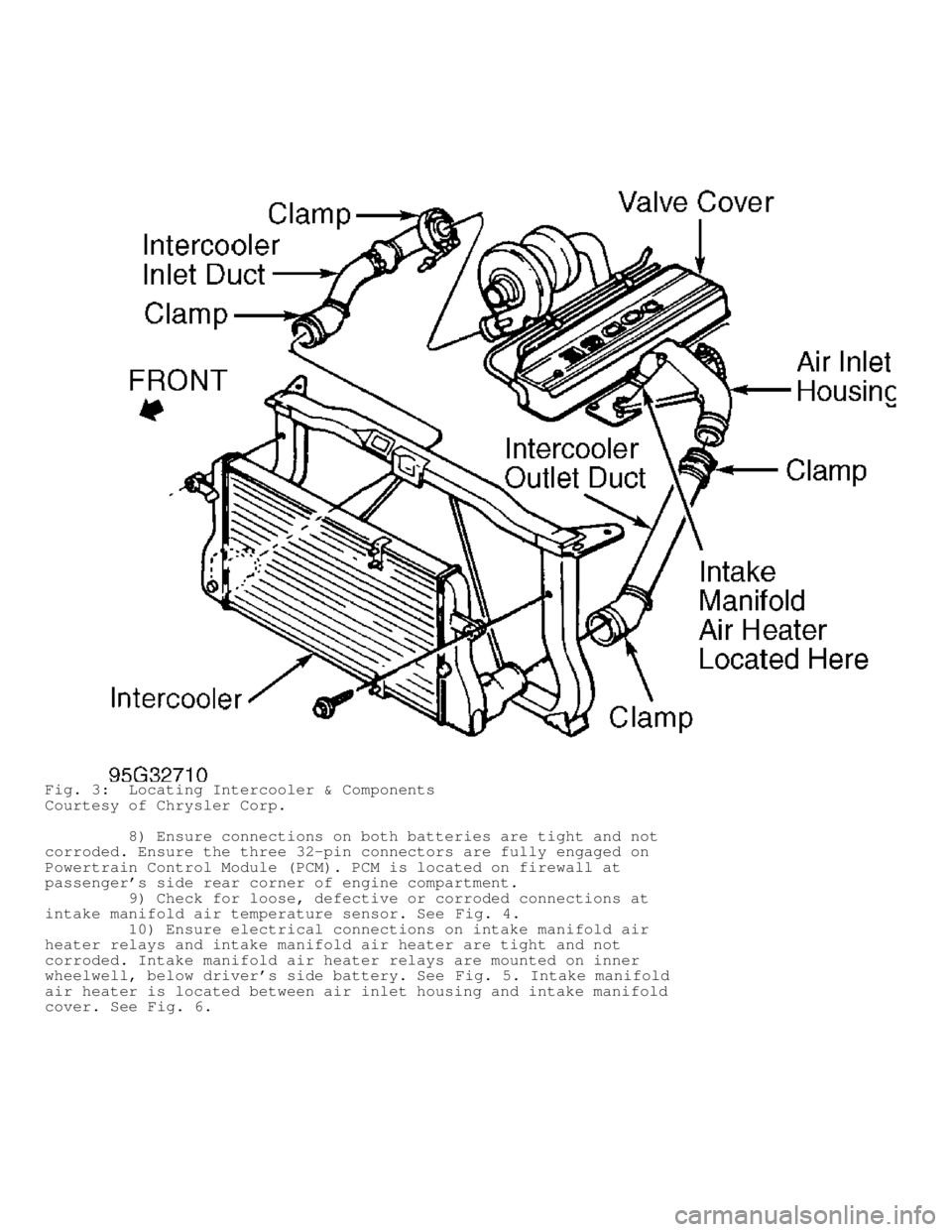

Fig. 3: Locating Intercooler & Components
Courtesy of Chrysler Corp.
8) Ensure connections on both batteries are tight and not
corroded. Ensure the three 32-pin connectors are fully engaged on
Powertrain Control Module (PCM). PCM is located on firewall at
passenger's side rear corner of engine compartment.
9) Check for loose, defective or corroded connections at
intake manifold air temperature sensor. See Fig. 4.
10) Ensure electrical connections on intake manifold air
heater relays and intake manifold air heater are tight and not
corroded. Intake manifold air heater relays are mounted on inner
wheelwell, below driver's side battery. See Fig. 5. Intake manifold
air heater is located between air inlet housing and intake manifold
cover. See Fig. 6.

Fig. 6: Locating Intake Manifold Air Heater
Courtesy of Chrysler Corp.
NOTE: Restricted low-pressure fuel lines from fuel tank to fuel
transfer pump, fuel heater and fuel filter/water separator
may cause starting problems and prevent engine from
accelerating. Restricted high-pressure fuel lines from fuel
injection pump to fuel injector may cause starting problems,
poor engine performance and excessive Black smoke.
11) Check all fuel supply and returns lines for damage,
kinking or leakage. Check throttle linkage for binding. Check for a
stretched or disconnected throttle return spring.
12) Ensure all ground connections are tight and free of
corrosion. Ensure accessory drive belt is not damaged or slipping.
Check for loose or defective electrical connection on Crankshaft
Position (CKP) sensor. See Fig. 1.

13) On A/T models, ensure all electrical connectors are clean
and properly connected to electrical plugs on transmission case. On
all models, check for loose or defective electrical connections on
starter and starter solenoid.
MECHANICAL INSPECTION
Compression
Manufacturer does not provide information for checking
compression.
FUEL SYSTEM
AIR IN FUEL SYSTEM
NOTE: Air in the fuel system may cause hard starting, rough
running, excessive smoke, poor engine performance, engine
misfire, poor fuel economy and fuel knock. Air may enter fuel
system whenever fuel supply lines, fuel filter/water
separator, fuel injection pump, fuel injectors or high
-pressure fuel lines are removed or disconnected.
1) Inspect all low-pressure fuel lines from fuel tank to fuel
transfer pump, fuel heater and fuel filter/water separator for signs
of leakage. Inspect all high-pressure fuel lines for signs of leakage.
See FUEL INJECTOR & HIGH-PRESSURE FUEL LINES under FUEL SYSTEM.
2) After repairing fuel leak, bleed air from fuel system. See
FUEL LINE BLEEDING under FUEL SYSTEM in REMOVAL, OVERHAUL &
INSTALLATION - TRUCKS - DIESEL article.
FUEL HEATER
1) Fuel heater is located in fuel filter/water separator. See
Fig. 1 . Fuel heater uses a fuel heater temperature sensor for
controlling operation of the fuel heater.
2) A defective fuel heater may cause excessive wax build-up
in the fuel filter/water separator during cold ambient temperatures.
Wax build-up may cause hard starting, prevent engine from
accelerating, low power, Blue smoke or White smoke. For testing of
fuel heater and fuel heater temperature sensor, see SYSTEM & COMPONENT
TESTING - TRUCKS - DIESEL article.
FUEL HEATER RELAY
Ensure fuel heater relay, located in power distribution
center is installed correctly and that terminals are not corroded. For
fuel heater relay testing, see SYSTEM & COMPONENT TESTING - TRUCKS -
DIESEL article.
FUEL FILTER/WATER SEPARATOR
NOTE: A blocked or restricted fuel filter/water separator may cause
starting problems, prevent engine from accelerating, low
power or White smoke. If an excessive amount of water
collects in filter/separator in a short period of time, it
may be necessary to drain and clean fuel tank.
1) When ignition switch is first turned to ON position,
WATER-IN-FUEL (WIF) warning light should come on for 2 seconds to
perform bulb and wiring circuit test and then go off. WATER-IN-FUEL
(WIF) warning light is located on instrument panel, just below the
