1999 DODGE RAM brake fluid

hardware.
Attaching hardware threads
damaged ................ A ... Require repair or replacement
of hardware.
Attaching hardware threads
stripped (threads
missing) ............... A ... Require repair or replacement
of hardware.
Code set (if
applicable) ............ A .......... (1) Further inspection
required.
Connector broken ........ A .. Require repair or replacement.
Connector melted ........ A ........... ( 2) Require repair or
replacement.
Connector missing ....... A ................. Require repair.
Contaminated ............ A .. Require repair or replacement.
Inoperative ............. B .. Require repair or replacement.
( 3) Further inspection required.
Leaking ................. A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
Terminal broken ......... A .. Require repair or replacement.
Terminal burned, affecting
performance ............ A ........... ( 2) Require repair or
replacement.
Terminal burned, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal corroded,
affecting performance .. A .. Require repair or replacement.
Terminal corroded, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal loose, affecting
performance ............ B .. Require repair or replacement.
Terminal loose, not
affecting performance .. 1 .. Suggest repair or replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped (threads
missing) ............... A ............ Require replacement.
Wire lead conductors
exposed ................ B .. Require repair or replacement.
Wire lead corroded ...... A .. Require repair or replacement.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
( 1) - Refer to manufacturer's diagnostic trouble code procedure
and require repair or replacement of affected component(s).
( 2) - Determine cause and correct prior to repair or replacement
of part.
( 3) - Inoperative includes intermittent operation or out of OEM
specification. Some components may be serviceable. Check
for accepted cleaning procedure.









\









\









\









\









\









\









\


FLUID
See BRAKE FLUID.
FLUID LEVEL SENSOR SWITCHES
See SWITCHES.
FOUR WHEEL DRIVE SWITCHES
See SWITCHES.

LATERAL ACCELERATION SWITCHES
See ACCELEROMETERS .
LEDS
See BULBS AND LEDS .
LENSES
LENSE INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Application incorrect ... A ............ Require replacement.
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Broken, affecting
performance ............ A ............ Require replacement.
Broken, not affecting
performance ............ .. ........ No service suggested or
required.
Cracked ................. A ............ Require replacement.
Discolored .............. A ............ Require replacement.
Leaking ................. A .. Require repair or replacement.
Melted, affecting
performance ............ A ............ Require replacement.
Melted, not affecting
performance ............ 2 ............ Suggest replacement.
Missing ................. C ............ Require replacement.









\









\









\









\









\









\









\


MASTER CYLINDERS
MASTER CYLINDER INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Brake fluid leaking from
rear of master cylinder
bore ................... B .. Require repair or replacement.
Brake pedal drops
intermittently ......... A ........... ( 1) Require repair or
replacement.
Fluid level low ......... .. ......... ( 2) Further inspection
required.
Internal valve failure .. A .. Require repair or replacement.
Master cylinder leaking
brake fluid internally . A .. Require repair or replacement.
Piston does not return .. A .. Require repair or replacement.
Ports plugged ........... A .. Require repair or replacement.
Rubber master cylinder
cover gasket distorted
and gummy .............. A .. ( 3) Require replacement of the
gasket.

(1) - This condition may be normal on some vehicles equipped with
anti-lock brakes.
( 2) - Refer to OEM procedures for adjusting low fluid level.
Inspect for brake hydraulic system leaks and friction
material wear.
( 3) - This condition may indicate contaminated brake fluid.
See BRAKE FLUID .









\









\









\









\









\









\









\


MODULATORS
See HYDRAULIC MODULATORS .
MOTORS
See ELECTRICAL PUMPS AND MOTORS .
PARKING BRAKE SWITCHES
See SWITCHES.
PARKING BRAKE SYSTEMS
NOTE: The parking brake is an integral part of the brake
system. It is important that the parking brake function
properly when brake service is performed.
PARKING BRAKE SYSTEM INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Cable improperly
adjusted ............... B ....... Require cable adjustment.
Cable or individual
wires in the cable
are broken ............. A .... Require replacement of cable
assembly.
Cable sticking .......... A ...... Require cable lubrication.
Cable stuck inside conduit
and cannot be lubricated
so that parking brake
functions properly ..... A .... Require replacement of cable
assembly.
Inoperative ( 1) ......... A .......... Require replacement of
inoperative parts.
Parking brake
parts bent ............. B ... Require repair or replacement
of bent parts.
Parking brake
parts broken ........... A ... Require replacement of broken
parts.
Parking brake parts

specifications.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
(1) - If a sensor is not adjustable, further inspection is
required to identify and correct cause.
( 2) - Determine cause and correct prior to repair or
replacement of part.
( 3) - Determine source of contamination, such as metal
particles or water. Require repair or replacement.
( 4) - Inoperative includes intermittent operation or out of OEM
specification. Some components may be serviceable; check
for accepted cleaning procedure.









\









\









\









\









\









\









\


STEEL BRAKE LINES
STEEL BRAKE LINE INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Corroded, affecting
structural integrity ... A ............ Require replacement.
Fitting incorrect (for
example, compression
fitting) ............... B ............ Require replacement.
Flare type incorrect .... B .. Require repair or replacement.
Leaking ................. A .. Require repair or replacement.
Line material incorrect
(copper, etc.) ......... B ............ Require replacement.
Restricted .............. A ............ Require replacement.
Routed incorrectly ...... B ..... Require routing correction.
Rust-pitted ............. 1 ............ Suggest replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped
(threads missing) ...... A ............ Require replacement.









\









\









\









\









\









\









\


STOPLIGHT SWITCHES
See BRAKE STOPLIGHT SWITCHES .
SWITCHES
NOTE: Copied from Electrical UIGs & added "float saturated" from
old fluid level sensor switches.
STEEL BRAKE LINE INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.

BRAK E S YSTE M
1999 D odge P ic ku p R 1500
1998-99 BRAKES
CHRY - Disc & Drum - Trucks & Vans - Except FWD
Dakota, Ram Pickup, Ram Van
DESCRIPTION & OPERATION
All models are equipped with single-piston, sliding-caliper
front disc brakes with ventilated rotors. All models utilize self-
adjusting rear drum brakes. Rear Wheel Anti-Lock (RWAL) brake system
is standard on all models. Optional 4-wheel Anti-Lock (4WAL) brake
system is available on all models.
System also includes power brake booster, dual-reservoir
master cylinder and combination valve. Combination valve consists of
metering valve and pressure differential switch.
Models with diesel engine include a gear-driven vacuum pump.
Depending on speed of engine, pump produces 8-25 in. Hg. Models
without full-floating rear axle use 9", 10" or 11" single-anchor rear
brakes. Models with full-floating rear axle use 12" or 13" single-
anchor rear brakes.
NOTE: For information on Anti-Lock Brake Systems (ABS), see
appropriate ANTI-LOCK article.
BLEEDING BRAKE SYSTEM
BLEEDING PROCEDURES
Complete Brake System
Before bleeding system, exhaust all vacuum from power unit by
depressing brake pedal several times. Bleed master cylinder using
bleeder screws (if equipped). Bleed wheel cylinders and calipers in
sequence. See BLEEDING SEQUENCE table.
BLEEDING SEQUENCE









\









\









\









\









\









\









\







Application Sequence
1999 Dakota & Ram Van .......... Master Cylinder, Combination Valve,
RR, LR, RF & LF
All Other Models ............... Master Cylinder, Combination Valve,
Rear Anti-Lock Valve, RR, LR, RF & LF









\









\









\









\









\









\









\







Master Cylinder (Bench Bleeding)
1) Bench bleed master cylinder before installation. Place
master cylinder in soft-jaw vise. Install bleeder tubes in both
outlets of master cylinder. See Fig. 1.
2) Fill master cylinder with clean brake fluid. Ensure ends
of bleeder tubes are submerged in brake fluid.
3) Using a wood dowel, apply and release master cylinder
until no air bubbles exist in brake fluid flow. Leave bleeder tubes
installed on master cylinder during installation. Install master
cylinder. Remove bleeder tubes, and connect brakelines. Bleed brake
system if necessary.

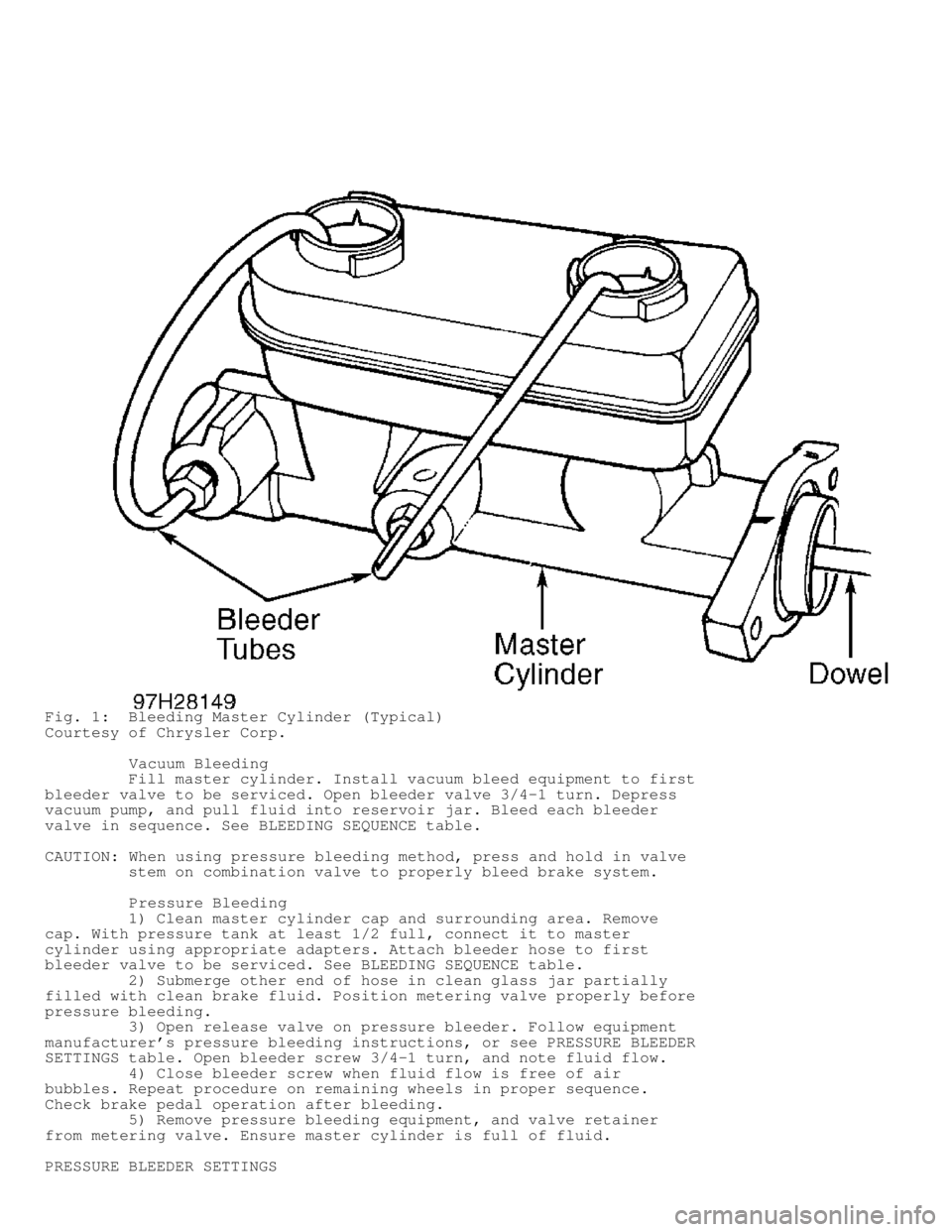

Fig. 1: Bleeding Master Cylinder (Typical)
Courtesy of Chrysler Corp.
Vacuum Bleeding
Fill master cylinder. Install vacuum bleed equipment to first
bleeder valve to be serviced. Open bleeder valve 3/4-1 turn. Depress
vacuum pump, and pull fluid into reservoir jar. Bleed each bleeder
valve in sequence. See BLEEDING SEQUENCE table.
CAUTION: When using pressure bleeding method, press and hold in valve
stem on combination valve to properly bleed brake system.
Pressure Bleeding
1) Clean master cylinder cap and surrounding area. Remove
cap. With pressure tank at least 1/2 full, connect it to master
cylinder using appropriate adapters. Attach bleeder hose to first
bleeder valve to be serviced. See BLEEDING SEQUENCE table.
2) Submerge other end of hose in clean glass jar partially
filled with clean brake fluid. Position metering valve properly before
pressure bleeding.
3) Open release valve on pressure bleeder. Follow equipment
manufacturer's pressure bleeding instructions, or see PRESSURE BLEEDER
SETTINGS table. Open bleeder screw 3/4-1 turn, and note fluid flow.
4) Close bleeder screw when fluid flow is free of air
bubbles. Repeat procedure on remaining wheels in proper sequence.
Check brake pedal operation after bleeding.
5) Remove pressure bleeding equipment, and valve retainer
from metering valve. Ensure master cylinder is full of fluid.
PRESSURE BLEEDER SETTINGS

\









\









\









\









\









\









\







Application psi (kg/cm)
All Models ....................................... 10-15 (1.06-1.41)\









\









\









\









\









\









\









\







NOTE: When bleeding disc brakes, air may tend to cling to caliper
walls. Lightly tap caliper while bleeding to aid in removal
of air.
Manual Bleeding
1) Fill master cylinder. Install bleeder hose on first
bleeder valve to be serviced. See BLEEDING SEQUENCE table. Submerge
other end of hose in clean glass jar partially filled with clean brake
fluid.
NOTE: When bleeding brake system manually, ensure bleeder valve is
closed when brake pedal is released.
2) Open bleeder valve 3/4-1 turn. Depress brake pedal slowly
through full travel. Close bleeder valve. Release pedal. Repeat
procedure until fluid flow is free of air bubbles.
ADJUSTMENTS
PARKING BRAKE
1) Release parking brake, and loosen cable adjusting nut to
allow slack in cable. Adjust rear brakes. Tighten cable adjusting nut
until a slight drag is felt while rotating rear wheels.
2) Loosen cable adjusting nut until both rear wheels can be
rotated freely. Back off adjusting nut an additional 2 turns. Apply
and release parking brake several times, checking for free rotation at
rear wheels.
REAR BRAKE SHOES
1) Raise and support vehicle. Ensure parking brake lever is
fully released. Back off parking brake cable adjustment to ensure
cable has slack. Remove adjusting hole cover.
2) Using a brake adjuster, expand brake shoes until slight
drag is felt when wheel assembly is rotated. Using thin screwdriver,
hold automatic adjusting lever away from adjustment star wheel.
3) Back off adjustment star wheel until wheel assembly
rotates freely and brake shoe drag is eliminated. Repeat adjustment
for remaining wheels. Adjustment must be equal at all wheels. Replace
adjusting hole covers. Adjust parking brake. See PARKING BRAKE.
STOPLIGHT SWITCH
Stoplight switch is attached to brake pedal support. Push
stoplight switch through clip in mounting bracket until switch seats
in bracket. Pull brake pedal backward as far as pedal will travel.
Brake pedal will ratchet stoplight switch to correct position. Verify
full brake pedal return, and that stoplights glow when brake pedal is
applied.
TESTING
POWER BRAKE BOOSTER FUNCTIONAL TEST

1) Start engine, and check booster vacuum hose connections. A
hissing noise indicates a vacuum leak. Repair any vacuum leaks before
proceeding. Stop engine, and shift transmission into Neutral. Pump
brake pedal until all vacuum reserve in booster is depleted.
2) Hold brake pedal under light pressure. If pedal does not
hold firm and falls away, master cylinder may be faulty. Bleed system
using appropriate method, and repeat step 1). See BLEEDING PROCEDURES
under BLEEDING BRAKE SYSTEM.
3) If pedal still does not hold firm, master cylinder is
faulty. If pedal holds firm, start engine and observe pedal height. If
pedal height change is not apparent, power booster or vacuum check
valve is faulty. Install good check valve, and repeat steps 1) and 2).\
If pedal falls away slightly under light pressure and then holds firm,
go to next step .
4) Start engine. Release brake pedal. Increase engine speed
to 1500 RPM. Close throttle and immediately turn off ignition. Wait at
least 90 seconds, and try brake action again. Booster should provide 2
or more vacuum assisted pedal applications. If vacuum assist is not
provided, perform booster and check valve vacuum tests.
POWER BRAKE BOOSTER VACUUM TEST
Connect vacuum gauge to booster check valve using "T"
fitting. Start engine, and run at idle speed for one minute. Clamp
hose shut between vacuum source and check valve. Stop engine, and
observe vacuum gauge. If vacuum drops more than one in. Hg within 15
seconds, booster diaphragm or check valve is faulty.
POWER BRAKE BOOSTER CHECK VALVE TEST
Disconnect vacuum hose from check valve. Remove check valve
and valve seal from booster. Use a hand-operated vacuum pump for
testing. Apply 15-20 in. Hg at large end of check valve. Vacuum should
hold steady. If gauge on pump indicates vacuum loss, check valve is
faulty and should be replaced.
COMBINATION VALVE METERING VALVE TEST
Metering valve operation can be checked visually with aid of
an assistant. While an assistant applies and releases brake pedal,
observe metering valve stem. If valve is operating correctly, stem
will extend slightly when brakes are applied, and contract when brakes
are released. If valve is faulty, replace combination valve assembly.
COMBINATION VALVE PRESSURE DIFFERENTIAL SWITCH TEST
1) Using an assistant, apply brake pedal. Observe brake
warning light. Raise and support vehicle, and connect a bleed hose to
one rear wheel cylinder. Submerge other end of hose into container
partially filled with brake fluid. Have assistant press and hold brake
pedal down while observing brake warning light. Open bleeder screw. If
warning light glows, switch is operating properly.
2) If warning light fails to glow, check circuit fuse, bulb
and wiring. Repair as necessary. Repeat step 1). If warning light
fails to glow, check brakelight, parking brake switches and related
wiring. Repair as necessary. Repeat step 1). If warning light fails to
glow, pressure differential switch is faulty. Replace combination
valve assembly, and bleed brake system. Verify proper valve operation.
REMOVAL & INSTALLATION
