1999 CHEVROLET VENTURE Owners Manual

yellowblue
5-21
The following steps will tell you how to use the jack and
change a tire.
Removing the Spare Tire and Tools
The equipment you'll need
is in the storage
compartment at the rear of
the vehicle, on the
passenger's side.
Remove the side convenience net. Open the jack storage
compartment by lifting up the tab and pulling the
cover off.

yellowblue
5-22
A. Jack
B. Strap
C. BracketD. Wing Nut
E. Jacking Instructions
F. Bag and Tools
Remove the jack and jacking tools by loosening the
wing nut and bracket.
Separate the plastic pouch from the jack and remove the
jacking tools (folding wrench and extension) from
the pouch.A. Hoist Shaft
B. Hoist Assembly
C. RetainerD. Spare Tire
E. Extension (Chisel End)
F. Wrench
The compact spare tire is located under the vehicle,
ahead of the rear bumper. (See ªCompact Spare Tireº
later in this section for more information about the
compact spare.) Attach the wrench to the extension and
insert the chisel end on an angle through the hole in the
rear bumper and into the hoist shaft.
Then, turn the folding wrench counterclockwise to lower the
spare tire to the ground. Continue to turn the wrench so the
spare tire can be pulled out from under the vehicle.

yellowblue
5-23
Tilt the retainer at the end of the cable so it can be pulled
up through the wheel opening.

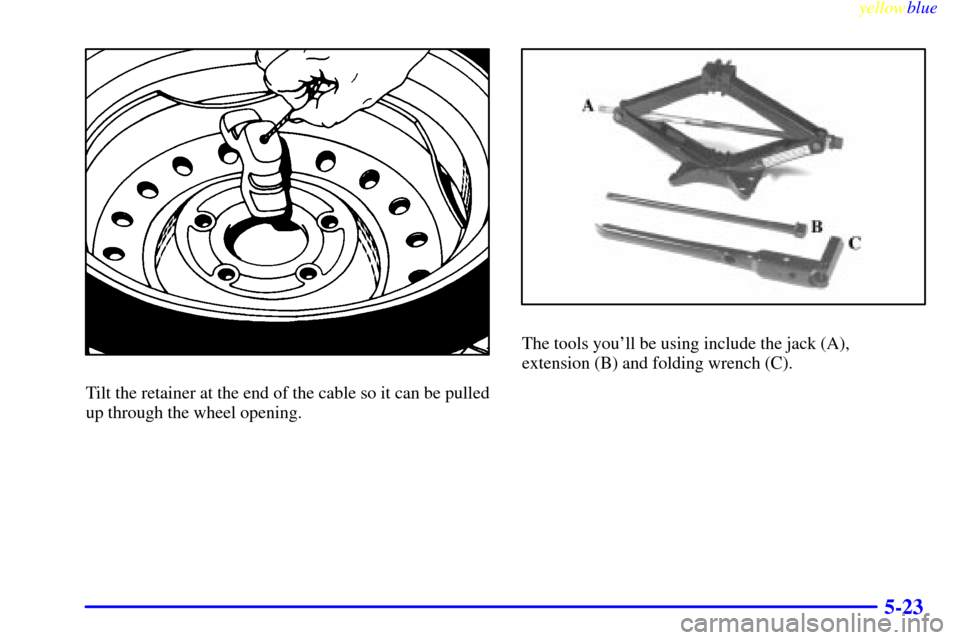

The tools you'll be using include the jack (A),
extension (B) and folding wrench (C).

yellowblue

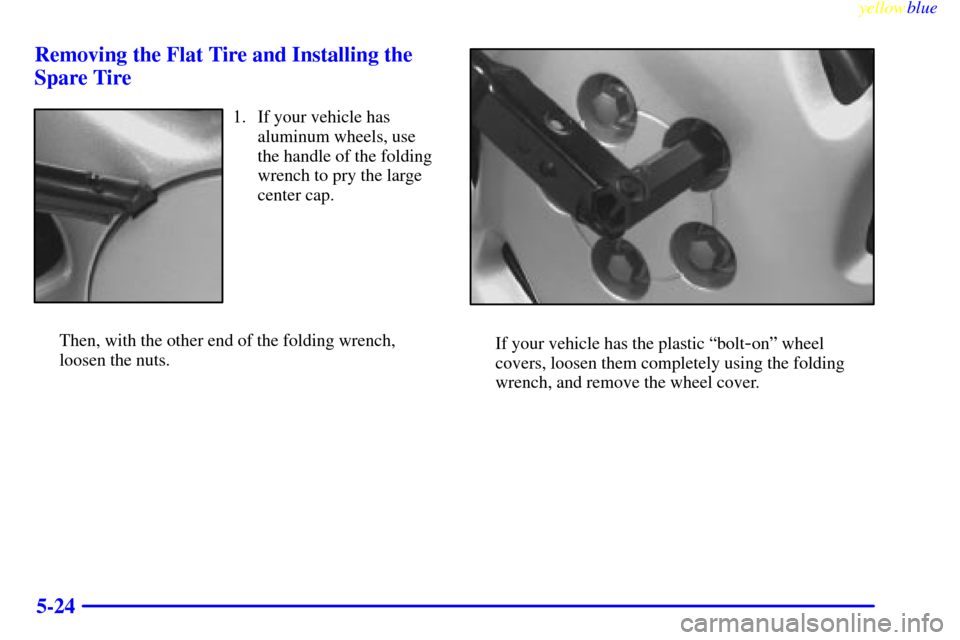

5-24 Removing the Flat Tire and Installing the
Spare Tire
1. If your vehicle has
aluminum wheels, use
the handle of the folding
wrench to pry the large
center cap.
Then, with the other end of the folding wrench,
loosen the nuts.
If your vehicle has the plastic ªbolt-onº wheel
covers, loosen them completely using the folding
wrench, and remove the wheel cover.

yellowblue
5-25
2. Loosen the wheel
nuts
-- but do not
remove them
-- using
the folding wrench.
(Turn the handle about
180 degrees, then flip
the handle back to the
starting position. This
avoids taking the wrench
off the lug nut for
each turn.)
For wheels with a wheel lock key, use the wheel lock
key between the lock nut and wrench. The key is
supplied in the front passenger's door pocket.NOTICE:
To help avoid damage to the lock nut or the wheel
lock key, do not use an impact wrench with
this key.

yellowblue
5-26
3. Near each wheel, there
is a notch in the
vehicle's body. Position
the jack and raise the
jack head until it fits
firmly into the notch in
the vehicle's frame
nearest the flat tire.
NOTICE:
Do not place the jack under the rear axle control
arms. Only use the areas shown for proper
jack location.
Do not raise the vehicle yet. Put the compact spare
tire near you.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.

yellowblue
5-27
4. Attach the folding
wrench to the jack, and
turn the wrench
clockwise to raise the
jack head a few inches.
5. Raise the vehicle by turning the folding wrench
clockwise in the jack. Raise the vehicle far enough
off the ground so there is enough room for the spare
tire to fit.
6. Remove all the wheel nuts and take off the flat tire.7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.

yellowblue
5-28
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
8. Install the spare tire and replace the wheel nuts with
the rounded end of the nuts toward the wheel.
Tighten each nut by hand until the wheel is held
against the hub.
9. Lower the vehicle by attaching the folding wheel
wrench to the jack and turning the wrench
counterclockwise. Lower the jack completely.
