1999 CHEVROLET VENTURE Owners Manual

1-
yellowblue
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-6 Rear Seats
1
-22 Safety Belts: They're for Everyone
1
-27 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-28 How to Wear Safety Belts Properly
1
-28 Driver Position
1
-36 Safety Belt Use During Pregnancy
1
-37 Right Front Passenger Position
1
-37 Air Bag Systems
1
-46 Safety Belt Pretensioners
1
-46 Rear Seat Passengers1
-50 Rear Safety Belt Comfort Guides for Children
and Small Adults
1
-52 Center Passenger Position (Bench Seat)
1
-54 Center Passenger Position (Bucket Seat)
1
-56 Children
1
-59 Built-in Child Restraint (Option)
1
-70 Child Restraints
1
-87 Larger Children
1
-90 Safety Belt Extender
1
-90 Checking Your Restraint Systems
1
-91 Replacing Restraint System Parts After
a Crash

yellowblue
1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, take them out, put them back in and fold and
unfold them.
Driver's 4-Way Manual Seat
Use the lever on the front left side of the seat to adjust
the seat forward or rearward. Pull up the lever on the
front of the seat to unlock it. Slide the seat to where you
want it.
To make sure the seat is locked into place, release the
lever and try to move the seat with your body.
To raise the seat, pull up on the lever on the front right
side of the seat. To lower the seat, push the lever down.
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.

yellowblue
1-3 Manual Front Passenger Seats
To move the seat, pull up
the lever on the front of the
seat to unlock it.
Slide the seat to where you want it. To make sure the
seat is locked into place, release the lever and try to
move the seat with your body.
6-Way Power Seat (Option)
To adjust the six-way power seat:
Front Control (A): Raise the front of the seat by
holding the switch up. Hold the switch down to lower
the front of the seat.
Center Control (B): Move the seat forward or rearward
by holding the control to the front or rear. Raise or lower
the seat by holding the control up or down.
Rear Control (C): Raise the rear of the seat by holding
the switch up. Hold the switch down to lower the rear of
the seat.

yellowblue
1-4
Manual Lumbar Control
The knob for the lumbar
control is located on the
side of the seat.
Turn this knob to adjust the support for the lower back.
Reclining Front Seatbacks
All front seats recline.
To adjust the seatback, turn
this knob. It is easier to
recline the seat if you lean
forward, taking your weight
off the seatback.

yellowblue
1-5
But don't have a seatback reclined if your vehicle
is moving.

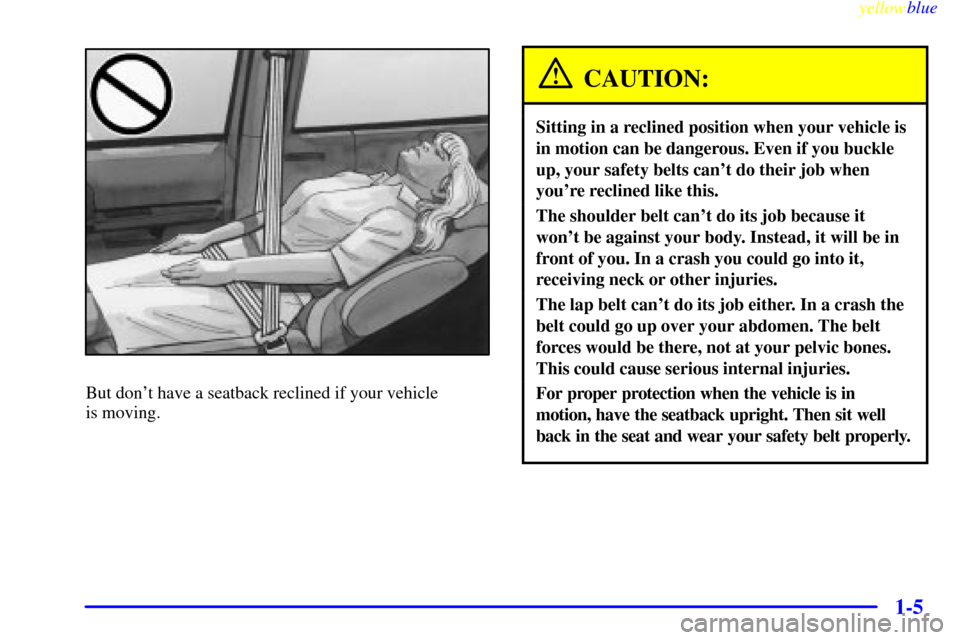

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.

yellowblue
1-6 Head Restraints
Head restraints are fixed on some models and adjustable
on others. Slide an adjustable head restraint up or down
so that the top of the restraint is closest to the top of
your ears. This position reduces the chance of a neck
injury in a crash.
Folding Seatbacks
The seatbacks on the second
row seats fold forward to
put items behind the left and
right seats. Lift the lever
and fold the seatback
forward. The seatback will
lock into place when you
push it back to the
upright position.
Rear Seats
Seat Controls
The rear seats in your vehicle have levers and straps
used to adjust, remove and replace the seats. By using
the levers and straps, in the correct order, you can easily
remove the seats from your vehicle.
Floor Seat Pin Diagram
When you replace the seats in the vehicle, be sure to
follow the label on the back of the seat for proper
location. Follow the diagram above when the text in this
manual tells you what sets of floor cups to use for
each seat.

yellowblue
1-7 Second Row Safety Belt Stowage
If your vehicle has seats in the third row, there is a
sleeve on the second row outside safety belt to store the
safety belt while entering and exiting the third row of
the vehicle.
If your vehicle has a split bench seat in the second row,
follow this procedure:

Pull the belt out and slide the sleeve along the belt
until it reaches the patch of Velcro
 on the roof.

Simply press the sleeve against the Velcro patch to
secure it in place.
Do not have the second row outside safety belt stored if
someone is sitting in the second row outside position.
To release the second row outside safety belt, just pull
the sleeve away from the Velcro patch and use the safety
belt as usual. The sleeve should slide freely when not
in use.
There is also a clip on the safety belt used to secure the
belt after it is disconnected from the mini
-buckle. When
removing the split second row bench seat, secure the
loose end of the safety belt in this clip. This will keep
the safety belt from dangling and possibly
striking something.
Flip and Fold Feature
The rear seats in your vehicle, except the captain's
chairs, can be folded forward. Use this feature for
exiting and entering third row seats.
1. Push the adjustable head restraints fully down.
2. Fold the seatback flat on the seat. If the seat adjusts,
slide it all the way back.
3. Release the rear set of hooks from the floor pins;
hang on to the straps as the seat folds forward.

yellowblue
1-8 Split Bench Seats
If you have the split bench seat (50/50 or 40/60), the
seatbacks can be folded down individually and the
sections can be removed individually. The sections can
also be adjusted forward or rearward individually.
The second row (40/60) split bench may be equipped
with built
-in child restraint(s). See ªBuilt-In Child
Restraintº in the Index.
Folding or Reclining the Seatbacks
The seatbacks on each section of the split bench seat can
be either folded down or reclined. The following
explains how to use either the nylon strap or the lever to
fold or recline the seatbacks.
To fold down the seatback,
pull this nylon strap on the
rear of the seat.To raise a seatback, pull the nylon strap while raising the
seatback until it locks upright.
To fold down the seatback,
lift up on this lever located
on the front of the seatback.
Use the lever to raise or lower the seatback to the
desired position.
When raising or reclining a seatback to an upright
position, push and pull on the seatback to check that it is
locked upright.
