Name Usage
STUD #1 Accessory Power/Trailer Wiring
Feed
ABS Anti
-Lock Brakes
IGN A Ignition Switch
AIR A.I.R. System
RAP #1 Retained Accessory Power, Power
Mirrors, Power Door Locks,
Power Seat(s)
IGN B Ignition Switch
RAP #2 Not Used
STUD #2 Accessory Power/Trailer Wiring
Brake Feed
TRL R TRN Right Turn Signal Trailer Wiring
TRL L TRN Left Turn Signal Trailer Wiring
IGN 1 Ignition, Fuel Controls
INJ B Ignition, Fuel Controls (Relay)
STARTER Starter (Relay)
PARK LP Parking Lamps
FRT HVAC Climate Control System
STOP LP Exterior Lamps, Stoplamps
ECM 1 VCM/PCM
CHMSL Center High Mounted Stoplamp
VEH STOP Stoplamps, Cruise ControlName Usage
TRL B/U Backup Lamps Trailer Wiring
INJ A Fuel Controls, Ignition
RR HVAC Not Used
VEH B/U Vehicle Backup Lamps
ENG 1 Engine Controls, Canister Purge,
Fuel System
ETC Electronic Throttle Control
IGN E A/C Compressor Relay, Rear
Window Defogger, Daytime
Running Lamps, A.I.R. System
B/U LP Backup Lamps, BTSI
ATC Automatic Transfer Case
RR DEFOG Rear Window Defogger, Heated
Mirrors (Relay)
RR PRK Right Rear Parking Lamps
ECM B VCM/PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Left Rear Parking Lamps
RR DEFOG Rear Window Defogger, Heated
Mirrors
HDLP Headlamps (Relay)

yellowblue
6-72
Name Usage
TRL PRK Parking Lamps Trailer Wiring
RT HDLP Right Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated Mirrors
LT HDLP Left Headlamps
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary
Power Outlets
SEO 2 Special Equipment Option Power,
Power Seats, Aux Roof Mnt Lamp
SEO 1 Special Equipment Option Power,
Aux Roof Mnt Lamp, Cell Phone
DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Cluster,
Climate Control System
CIGAR Cigarette Lighter,
Auxiliary Power OutletsName Usage
RT TURN Right Turn Signals
BTSI Brake
-Transmission
Shift Interlock
LT TURN Left Turn Signals
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Not Used
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Not Used
TBC Body Control Module, Remote
Keyless Entry, Headlamps

yellowblue
6-73
Replacement Bulbs*
Quantity Number
Low
-Beam Headlamps2 9006
High
-Beam Headlamps2 9005
Daytime Running
Lamps (DRL)2 3157KX
Front Marker Lamp 2 194
Front Parking and
Turn Lamp2 3157NA
Rear Marker Lamp,
Taillamp and Stop Lamp2 3157
Taillamp and
Stop Lamp**2 1157Quantity Number
Rear Turn Lamp 2 3157
Rear Turn Lamp ** 2 1156
Back
-up Lamp2 3157
Back
-up Lamp **2 1156
Center High
-Mounted
Stoplamp2 912
Cargo Lamp 2 912
* For replacement bulbs not listed here, please consult
your dealer.
** Chassis Cab Models

yellowblue
6-74
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the Index for more information.
Engine Type VIN Code Spark Plug Gap
VORTEC 4300 V6 W 0.060 inches (1.52 mm)
VORTEC 4800 V8 V 0.060 inches (1.52 mm)
VORTEC 5300 V8 T 0.060 inches (1.52 mm)
VORTEC 6000 V8 U 0.060 inches (1.52 mm)
Wheels and Tires
Model Description Torque
C/K 1500 6 bolts (14mm)
140 lb
-ft (190 N´m)
C/K 2500 8 bolts (14mm)
140 lb
-ft (190 N´m)
Tire Pressure See the Certification/Tire label on the rear edge of the driver's door
or the incomplete vehicle document in the cab.

yellowblue
6-75 Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See ªCooling
Systemº in the Index.
Engine Transmission Quantity
VORTEC
4300 V6Automatic 12.6 quarts (11.9 L)
VORTEC
4300 V6Manual 12.9 quarts (12.2 L)
VORTEC
4800 V8Automatic 13.4 quarts (12.7 L)
VORTEC
4800 V8Manual 13.7 quarts (13 L)
VORTEC
5300 V8Automatic 13.4 quarts (12.7 L)Engine Transmission Quantity
VORTEC
5300 V8**Automatic 14.9 quarts (14.1 L)
VORTEC
6000 V8Automatic 14.8 quarts (14 L)
VORTEC
6000 V8*Automatic 14.4 quarts (13.6 L)
VORTEC
6000 V8Manual 15.2 quarts (14.4 L)
VORTEC
6000 V8*Manual 14.8 quarts (14 L)
* Vehicles equipped with the optional engine oil cooler.
** Vehicles equipped with the optional air conditioner.

yellowblue
6-76 Crankcase Capacity (Approximate)
After refill, the level must be rechecked. Add enough
engine oil so that the fluid is within the proper operating
range. See ªEngine Oilº in the Index.
Engine VIN
Quantity with Filter

VORTEC
4300 V6W 4.5 quarts (4.3 L)
VORTEC
4800 V8V 6.0 quarts (5.7 L)
VORTEC
5300 V8T 6.0 quarts (5.7 L)
VORTEC
6000 V8U 6.0 quarts (5.7 L)

Oil filter should be changed at every oil change.
Fuel Tank Capacity (Approximate)
Type Quantity
Short Bed 26 gallons (98 L)
Long Bed 34 gallons (128 L)
Chassis Cab 34 gallons (128 L)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your dealer.
See refrigerant charge label under the hood for charge
capacity information and requirements.

yellowblue
6-77
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when it was
built, or if you have any questions, please contact your GM dealer.
These specifications are for information only. If you have any questions, see the service manual for the chassis or
refer to the body manufacturer's publications.
VIN Code W V T U
Oil Filter* PF52 PF59 PF59 PF59
Engine Air
Cleaner/Filter*A1519C
A1519C
A1519C
A1518C
Passenger Compartment
Air Filter Kit**52485513 52485513 52485513 52485513
PCV Valve* CV769C CV948C CV948C CV948C
Spark Plugs*
41
-932 41-952 41-952 41-952
Fuel Filter* GF626 GF626 GF626 GF626
Wiper Blades** 15706394 15706394 15706394 15706394
Wiper Blade Type ITTA ITTA ITTA ITTA
Wiper Blade Length 22 inches (56.0 cm) 22 inches (56.0 cm) 22 inches (56.0 cm) 22 inches (56.0 cm)
*AC part number
**GM part number

A1518C high
-capacity air cleaner filter may be substituted.

yellowblue
6-78

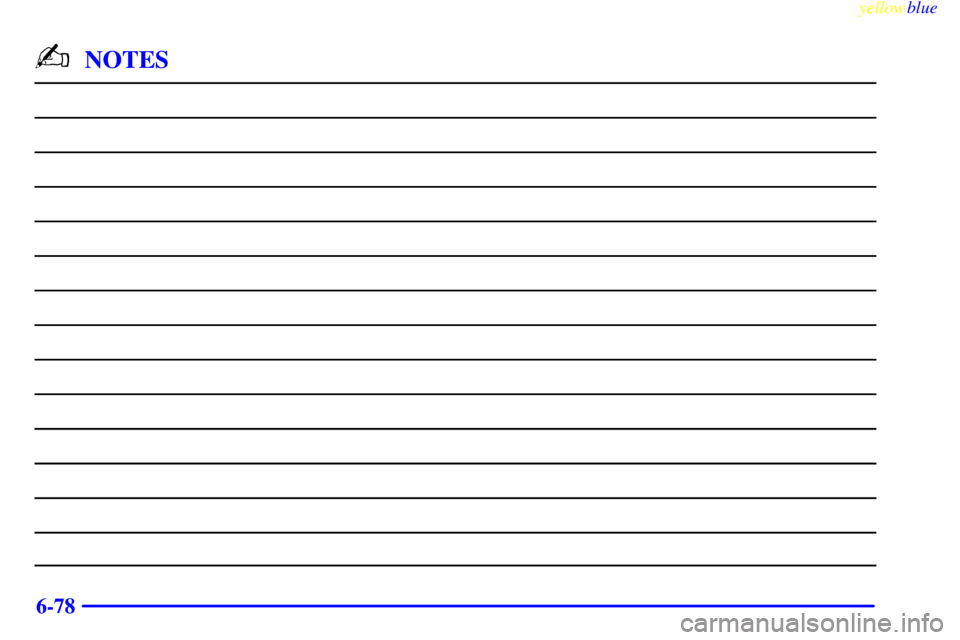

-NOTES
