1999 CHEVROLET SILVERADO Owners Manual

yellowblue
2-81 Tow/Haul Light (Automatic
Transmissions Only)
This message is displayed
when the tow/haul mode has
been activated.
For more information see, ªTow/Haul Modeº in
the Index.
Fuel Gage
The fuel gage, when the
ignition is on, tells you
about how much fuel you
have left in your tank.The gage will first indicate E (Empty) before you are
out of fuel, and you should get more fuel as soon
as possible.
Here are four situations you may experience with your
fuel gage. None of these indicate a problem with the
fuel gage.

At the gas station, the fuel pump shuts off before the
gage reads F (Full).

It takes a little more or less fuel to fill up than the
fuel gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to fill
the tank.

The gage goes back to E (Empty) when you turn off
the ignition.
If you have a diesel engine, see ªFuel Gageº in the
Diesel Engine Supplement.

yellowblue
2-82
Message Center
The message center is located above the transmission
temperature gage (if equipped) on the instrument panel
cluster. It gives you important safety and maintenance
facts. When you turn the ignition on, the entire center
lights up for just a few seconds. As needed, the message
center will display one of the following messages. The
message center is capable of alternating among different
messages if needed.
BATTERY
If this message is displayed
when the engine is running,
you may have a problem
with your charging system.
The battery display will also stay on while the key is in
RUN until the engine is started.
If the message stays on after starting the engine it could
indicate a problem with the generator drive belt, or some
other charging system problem. Have it checked right
away. Driving with this message displayed could drain
your battery.If you must drive a short distance with this message
displayed, it helps to turn off all your accessories, such
as the radio and the air conditioner.
TRANS FLUID HOT
If you have an automatic transmission, you have a
transmission temperature warning display contained in
the message center.
If the transmission fluid
temperature becomes high,
the message center will
display this message.
When the transmission enters the protection mode you
may notice a change in the transmission shifting
patterns. When the transmission fluid temperature
returns to normal, the display will turn off and the
transmission shifting patterns will return to normal.

yellowblue
2-83
NOTICE:
If you keep driving your vehicle with the
transmission TRANS FLUID HOT message
displayed, you can damage the transmission.
This could lead to costly repairs that may not be
covered under your warranty.
The following situations can cause the transmission to
operate at higher temperatures:

Towing a trailer

Hot outside air temperatures

Hauling a large or heavy load

Low transmission fluid level

High transmission fluid level

Restricted air flow to the radiator and the auxiliary
transmission oil cooler (if equipped).
A temporary solution to hotter transmission operating
temperatures may be to let the transmission cool down.
If the transmission is operated at higher temperatures on
a frequent basis, see ªScheduled Maintenanceº in the
Index for the proper transmission maintenance intervals.
TRANS HOT...IDLE ENGINE
If you have an automatic transmission, you have a
transmission over
-temperature display contained in the
message center.
If this warning message is
displayed, pull the vehicle
off the roadway when it is
safe to do so.
Set the parking brake and place the transmission in
PARK (P). Idle the engine until the message center no
longer displays a message. If idling the engine does not
turn the warning message off after 10 to 15 minutes,
contact your nearest dealer or the GM Roadside
Assistance Center. See ªRoadside Assistanceº in
the Index.

yellowblue
2-84
NOTICE:
If you keep driving your vehicle with the
transmission TRANS HOT...IDLE ENGINE
message displayed, you can damage the
transmission. This could lead to costly repairs
that may not be covered under your warranty.
The following situations can cause the transmission to
operate at higher temperatures:

Towing a trailer

Hot outside air temperatures

Hauling a heavy load

Low transmission fluid level

High transmission fluid level

Restricted air flow to the radiator and the auxiliary
transmission oil cooler (if equipped).
A temporary solution to hotter transmission operating
temperatures may be to let the transmission cool down.
If the transmission is operated at higher temperatures on
a frequent basis, see ªScheduled Maintenanceº in the
Index for the proper transmission maintenance intervals.
LOW COOLANT
This message is displayed
when the cooling system is
low on coolant.
The engine may overheat. See ªEngine Coolantº in the
Index and have your vehicle serviced as soon as
you can.
CHECK COOLANT TEMP
This message is displayed
when the cooling system
temperature gets hot.
Check the coolant temperature gage and the coolant
level. See ªEngine Coolantº and ªEngine Coolant
Temperature Gageº in the Index. SeeªEngine
Overheatingº in the Index for further information.

yellowblue
2-85 ENGINE OVERHEATED
This message is displayed
when the cooling system
temperature gets too hot.
This message will be displayed after the air conditioning
system has automatically turned off for the engine
coolant protection mode. SeeªEngine Overheatingº in
the Index for further information.
REDUCED ENGINE POWER
(V8 Gasoline Engines Only)
This message is displayed
when the cooling system
temperature gets too hot and
the engine further enters
the engine coolant
protection mode.
SeeªEngine Overheatingº in the Index for
further information.
CHECK ENG OIL PRESSURE
This message is displayed
when the engine oil pressure
is low.
See ªOil Pressure Gageº in the Index for
more information.
CHECK ENG OIL LEVEL
(Gasoline Engine)
This message is displayed
when the engine oil level
is low.
See ªEngine Oilº in the Index on how to check the oil
level and for what type of oil to add.

yellowblue
2-86 CHANGE ENGINE OIL
This message is displayed
when the engine oil needs
to be changed. The message
is only displayed for
15 seconds at the start
of each ignition cycle.
When you change the engine oil, be sure to reset the
Engine Oil Life Monitor. See ªEngine Oil, When to
Changeº in the Index.
SECURITY
This message is
displayed when the
content theft
-deterrent
system has been activated
and also monitors the
Passlock

System.
If the security message is displayed continuously while
driving and stays on, there may be a problem with the
Passlock System. Your vehicle will not be protected by
Passlock, and you should see your GM dealer.
SERVICE 4WD (If Equipped)
If the SERVICE 4WD
message comes on, there
may be a problem with the
Automatic Transfer Case
and service is required.
Malfunctions can be indicated by the system before any
problem is apparent, which may prevent serious damage
to the vehicle. This system is also designed to assist
your service technician in correctly diagnosing
a malfunction.

yellowblue
2-87 LOW WASHER FLUID
This message is displayed
when the vehicle is low on
windshield washer fluid.
The message is only
displayed for 15 seconds
at the start of each
ignition cycle.
For more information see, ªWindshield Washer Fluidº in
the Index.
CARGO LAMP ON
This message is displayed
when the cargo lamp is
turned on and the ignition
key is turned to RUN.
LOW FUEL
This message is displayed
when your vehicle is low
on fuel.
Refer to the fuel gage for a better indication of the
amount of fuel remaining in the fuel tank.

yellowblue

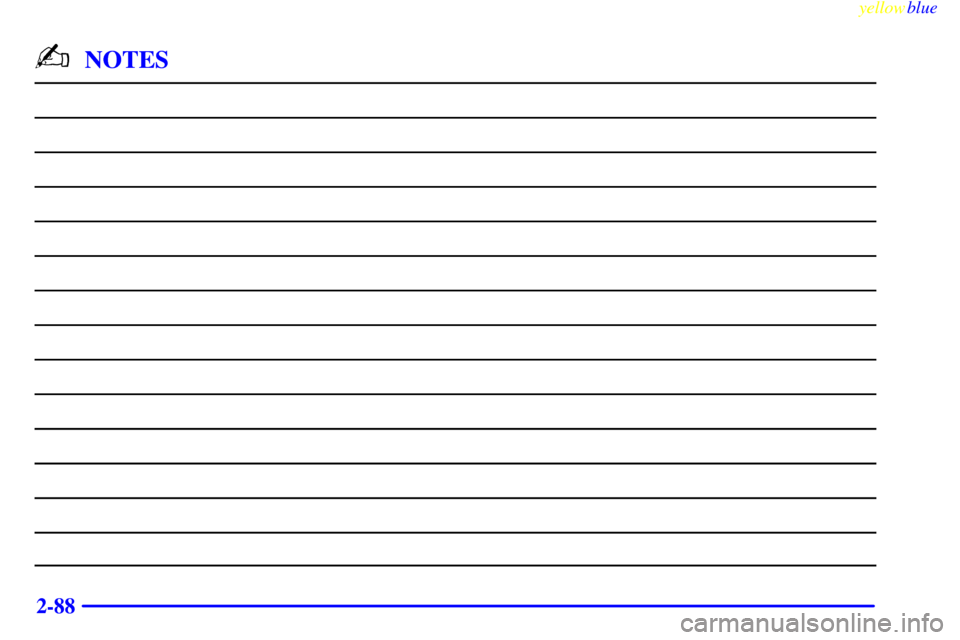

2-88
-NOTES
