1999 CHEVROLET LUMINA headlamp

yellowblue
2-18 To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord. The
cord is located behind the vehicle's passenger side
headlamp fixture.
3. Plug it into a normal, grounded 110
-volt AC outlet.
CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the wrong
kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the
cord into a properly grounded three
-prong
11 0
-volt AC outlet. If the cord won't reach, use a
heavy
-duty three-prong extension cord rated for
at least 15 amps.
4. Before starting the engine, be sure to unplug and store
the cord as it was before to keep it away from moving
engine parts. If you don't, it could be damaged.How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.
Automatic Transaxle Operation
Your automatic transaxle may have a shift lever on the
steering column or on the console between the seats.
Maximum engine speed is limited on automatic
transaxle vehicles, when you're in PARK (P) or
NEUTRAL (N), to protect driveline components from
improper operation.

yellowblue
2-31

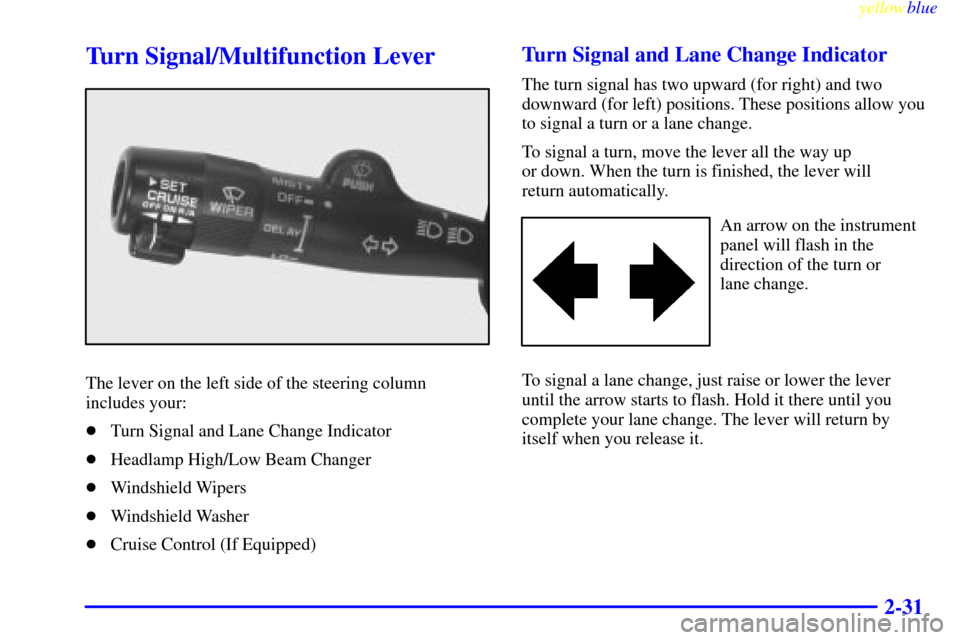

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes your:

Turn Signal and Lane Change Indicator

Headlamp High/Low Beam Changer

Windshield Wipers

Windshield Washer

Cruise Control (If Equipped)
Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever will
return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.

yellowblue
2-32
As you signal a turn or a lane change, if the arrow
flashes faster than normal, a signal bulb may be burned
out and other drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and check the
fuse (see ªFuses and Circuit Breakersº in the Index).
Headlamp High/Low Beam Changer
To change your headlamps
from low beam to high
beam, or high to low, pull
the multifunction lever all
the way toward you. Then
release it.
When the high beams are on, this light on the instrument
panel cluster also will be on.
Windshield Wipers
You can control the
windshield wipers
by turning the band
marked WIPER.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle. If you want more cycles, hold the
band on MIST longer.
For steady wiping at low speed, turn the band to LO. For
high
-speed wiping, turn the band further, to HI. To stop
the wipers, turn the band to OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band to choose the delay time. The
closer to LO, the shorter the delay.

yellowblue
2-36
Exterior Lamps
The lamp controls are on the instrument panel. They
control these systems:

Headlamps

Taillamps

Parking Lamps

License Lamps

Sidemarker Lamps

Instrument Panel Lights

Courtesy Lamps
Turn the knob to this symbol (B) to turn
on the parking and other operating lamps without
the headlamps.
Turn the knob to this symbol (C) to turn on the
headlamps and other operating lamps.
Turn the knob to OFF to turn off the lamps.
A warning chime will sound when you turn the ignition
switch to OFF, LOCK or ACC with the lamps on.
Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn't covered.
The DRL system will make your high
-beam headlamps
come on at a reduced brightness when:

the ignition is on,

the headlamp switch is off and

the parking brake is released.

yellowblue
2-37
When the DRL are on, only your reduced intensity
high
-beam headlamps will be on. The taillamps,
sidemarker and other lamps won't be on. Your
instrument panel won't be lit up either.
When it's dark enough outside, your DRL will turn off
and your low
-beam headlamps will illuminate. The
other lamps that come on with your headlamps will also
come on.
When it's bright enough outside, the low
-beam
headlamps will go out, and DRL illuminates your
high
-beam headlamps at reduced intensity.
To idle your vehicle with the DRL off, set the parking
brake while the ignition is in OFF or LOCK. Then start
your vehicle. The DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Interior Lamps
Instrument Panel Brightness Control
You can brighten or dim the instrument panel lamps by
moving the dial (A), located next to the exterior lamps
controls. If you turn the dial all the way up, your
courtesy or interior lamps will come on.
Courtesy Lamps
When any door is opened, several lamps will come on.
These lamps are courtesy lamps. They make it easy for
you to enter and leave your vehicle. You can also turn
these lamps on by moving the dial near the headlamp
knob all the way up.
Some of the lamps have switches so you can turn them
on even when the doors are closed. These lamps are
reading lamps. To avoid draining your battery, be sure to
turn off all the reading lamps when leaving your vehicle.
Sustained Interior Illumination
Your courtesy lamps will come on and stay on for a set
time whenever you:

Open a door.

Press UNLOCK on the remote keyless entry
transmitter (if equipped).

Press LOCK on the remote keyless entry transmitter
(if equipped).

Press the trunk symbol on the remote keyless entry
transmitter (if equipped).

yellowblue
2-39 Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
courtesy lamps on. If you leave the dial turned all the
way up, or if you leave a door open, the lamps will
automatically turn off after 10 minutes if the ignition
is off.
This feature will not turn off the reading lamps, only
the lamps controlled by the dial. Be sure to turn off
any reading lamps using the switch before you leave
the vehicle.
Mirrors
Adjust all the mirrors so you can see clearly when you
are sitting in a comfortable driving position.
Inside Day/Night Rearview Mirror
To reduce glare from headlamps behind you, push the
lever forward (to the night position). To return the
mirror to the day position, pull the lever toward you.
Manual Outside Mirrors
Adjust the passenger's side
mirror by hand. To adjust
the driver's side mirror,
move the knob in the
direction you want to move
the mirror.
Power Outside Mirrors (If Equipped)
The power mirror control is
located on the driver's side
door. Turn the control
counterclockwise to adjust
the driver's side mirror or
clockwise to adjust the
passenger's side mirror.
Then move the control in
the direction you want to
move the mirror.

yellowblue
4-16
Driving at Night
Night driving is more dangerous than day driving. One
reason is that some drivers are likely to be impaired
-- by
alcohol or drugs, with night vision problems, or by fatigue.Here are some tips on night driving.

Drive defensively.

Don't drink and drive.

Adjust your inside rearview mirror to reduce the
glare from headlamps behind you.

Since you can't see as well, you may need to
slow down and keep more space between you and
other vehicles.

Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.

In remote areas, watch for animals.

If you're tired, pull off the road in a safe place
and rest.

yellowblue
4-17 Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase. A 50
-year-old
driver may require at least twice as much light to see the
same thing at night as a 20
-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But if you're
driving, don't wear sunglasses at night. They may cut
down on glare from headlamps, but they also make a lot
of things invisible.
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to readjust to the dark. When you
are faced with severe glare (as from a driver who
doesn't lower the high beams, or a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.Keep your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it's easier to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim, so should your eyes
be examined regularly. Some drivers suffer from night
blindness
-- the inability to see in dim light -- and
aren't even aware of it.
