2-45

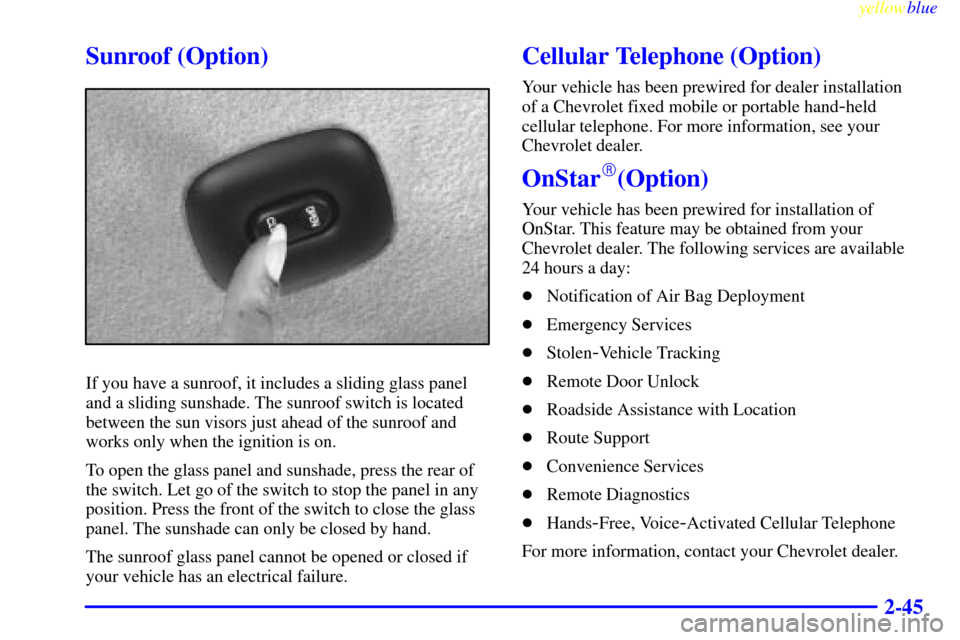

Sunroof (Option)
If you have a sunroof, it includes a sliding glass panel
and a sliding sunshade. The sunroof switch is located
between the sun visors just ahead of the sunroof and
works only when the ignition is on.
To open the glass panel and sunshade, press the rear of
the switch. Let go of the switch to stop the panel in any
position. Press the front of the switch to close the glass
panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
Cellular Telephone (Option)
Your vehicle has been prewired for dealer installation
of a Chevrolet fixed mobile or portable hand
-held
cellular telephone. For more information, see your
Chevrolet dealer.
OnStar
(Option)
Your vehicle has been prewired for installation of
OnStar. This feature may be obtained from your
Chevrolet dealer. The following services are available
24 hours a day:

Notification of Air Bag Deployment

Emergency Services

Stolen
-Vehicle Tracking

Remote Door Unlock

Roadside Assistance with Location

Route Support

Convenience Services

Remote Diagnostics

Hands
-Free, Voice-Activated Cellular Telephone
For more information, contact your Chevrolet dealer.

yellowblue
2-46
The Instrument Panel -- Your Information System

yellowblue
2-47
A. Vents
B. Instrument Panel Cluster
C. Climate Controls/Rear Window Defogger
D. Glove BoxE. Audio System
F. Ashtray and Cigarette Lighter
G. Remote Trunk Release
H. Lamp Controls

yellowblue
2-48
Instrument Panel Cluster
Standard Cluster: United States Version Shown, Canadian Similar
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You'll know
how fast you're going, about how much fuel is in your tank and many other things you need to drive safely
and economically.

yellowblue
2-49
Optional Cluster: United States Version Shown, Canadian Similar

yellowblue
2-50 Speedometer/Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven in
either miles (used in the United States) or in kilometers
(used in Canada).
Your vehicle has a tamper
-resistant odometer. If you see
silver lines between the numbers, you'll know someone
has probably tampered with it and the numbers may not
be correct.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then that is what will
be done. If it can't, then it will be set at zero and a label
must be put on the driver's door to show the old mileage
reading when the new odometer was installed.
Trip Odometer
Your trip odometer tells how far you have driven since
you last reset it. To set it to zero, press the reset button.
Tachometer
The tachometer displays
the engine speed in
thousands of revolutions
per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.

yellowblue
2-51
Warning Lights, Gages
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle's functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they're working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle's functions. Often gages and
warning lights work together to let you know when
there's a problem with your vehicle.When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual's advice.
Waiting to do repairs can be costly
-- and even
dangerous. So please get to know your warning lights
and gages. They're a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver's safety belt is
already buckled.
The safety belt light will
also come on and stay
on until the driver's belt
is buckled.

yellowblue
2-52 Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows AIR BAG or the air bag symbol.
The system checks the air bag's electrical system for
malfunctions. The light tells you if there is an electrical
problem. The system check includes the air bag sensors,
the air bag modules, the wiring and the crash sensing
and diagnostic module. For more information on the air
bag system, see ªAir Bagº in the Index.
This light will come on
when you start your engine,
and it will flash for a few
seconds. Then the light
should go out. This means
the system is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
The air bag readiness light should flash for a few
seconds when you turn the ignition key to RUN. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.
Charging System Light
The charging system light
will come on briefly when
you turn on the ignition, as
a check to show you it's
working. Then it should
go out.
If it stays on, or comes on while you are driving, you
may have a problem with the charging system. It could
indicate that you have a loose accessory belt or another
electrical problem. Have it checked right away. Driving
while this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain to turn off all your accessories, such as the radio
and air conditioner.
Brake System Warning Light
Your vehicle's hydraulic brake system is divided into
two parts. If one part isn't working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
