1999 CHEVROLET CAVALIER Owners Manual

yellowblue
6-59

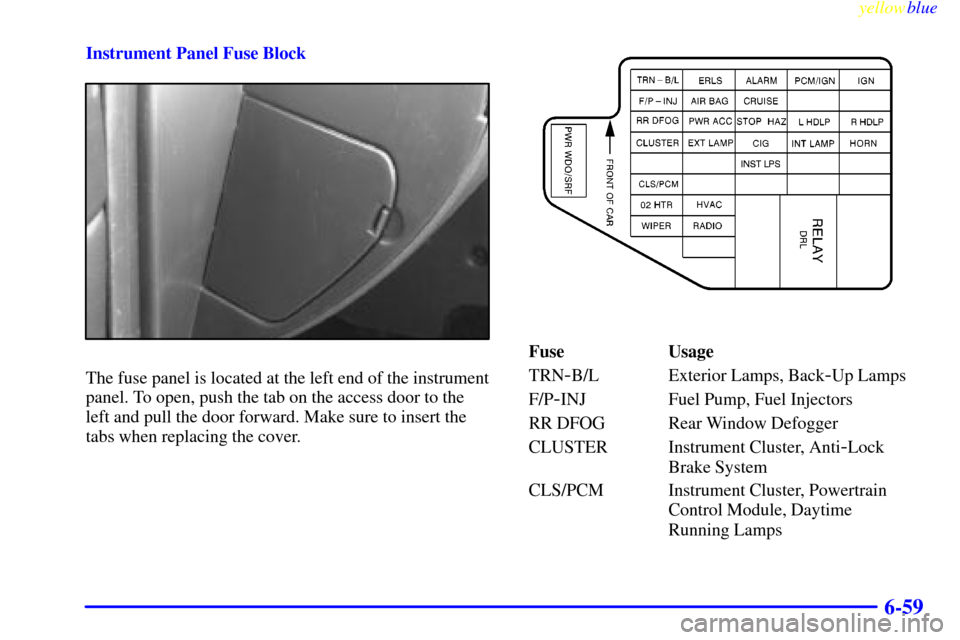

Instrument Panel Fuse Block
The fuse panel is located at the left end of the instrument
panel. To open, push the tab on the access door to the
left and pull the door forward. Make sure to insert the
tabs when replacing the cover.
Fuse Usage
TRN
-B/L Exterior Lamps, Back-Up Lamps
F/P
-INJ Fuel Pump, Fuel Injectors
RR DFOG Rear Window Defogger
CLUSTER Instrument Cluster, Anti
-Lock
Brake System
CLS/PCM Instrument Cluster, Powertrain
Control Module, Daytime
Running Lamps

yellowblue
6-60
Fuse Usage
O
2 HTR Rear O2 Sensor Heater
WIPER Windshield Wipers,
Windshield Washers
ERLS Automatic Transaxle, Brake
Transaxle Shift Interlock (BTSI),
A/C Compressor, Cruise Control,
Multiport Fuel Injection
AIR BAG Supplemental Inflatable Restraint
(SIR) System
PWR ACC Power Door Locks, Convertible
Top (Convertible Model Only)
EXT LAMP Exterior Lamps, Instrument
Panel Lights
HVAC Heater and A/C Control, Engine
Cooling Fan
RADIO Radio, Remote Keyless Entry
ALARM Alarm Module, Interior Lamps,
Warning Chimes
CRUISE Cruise Control
STOP HAZ Exterior Lamps, Anti
-Lock Brake
System, Cruise Control,
Turn SignalsFuse Usage
CIG Cigarette Lighter
INST LPS Instrument Panel Lights,
Warning Chimes
PCM/IGN Powertrain Control Module
L HDLP Left Headlamp, Fog Lamp
(Z
-24 Model Only)
INT LAMP Alarm Module: Illuminated Entry,
Warning Chimes, Overhead
Lamps, Map/Reading Lamps,
Glove Box Lamp, Trunk Lamp,
Radio, Power Mirrors, Remote
Keyless Entry
IGN Engine Ignition
R HDLP Right Headlamp, Fog Lamp
(Z
-24 Model Only)
HORN Horn, Diagnostic Connector
PWR WDO/SRF Power Windows, Power Sunroof,
Convertible Top Controls
(Convertible Model Only)
(Circuit Breaker)
DRL Daytime Running Lamps (Relay)

yellowblue
6-61
Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver's side of the engine compartment. Lift off the
cover to check the fuses.
Fuse Usage
IGN Ignition Switch Circuits
BATT 1 Power ACC/Stoplamp Circuits
BATT 2 Lighting Circuits
ABS Anti
-Lock Brake System
COOLING FAN Engine Cooling Fan
BLO Heater and A/C Blower
PCM Powertrain Control Module
A/C A/C Compressor
ABS/EVO Anti
-Lock Brake System

yellowblue
6-62
Replacement Bulbs
Lamps Bulb Number. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up Lamps 3057. . . . . . . . . . . . . . . . . . . . . . . . .
Front Parking/Turn Signal Lamps
Base Model 3357. . . . . . . . . . . . . . . . . . . . . . . . . . .
Z
-24 Model 3357NA. . . . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mount Stoplamp
With Spoiler 912. . . . . . . . . . . . . . . . . . . . . . . . . . .
Without Spoiler 1141. . . . . . . . . . . . . . . . . . . . . . . .
Halogen Headlamps, High/Low Beam 9005/6. . . . . .
Tail/Turn Signal Lamps 3057. . . . . . . . . . . . . . . . . . .
Dome/Reading Lamps (If Equipped)
Base Model 912. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Up
-Level Model 168 & 906. . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.Engine Crankcase4.0 quarts (3.8 L) . . . . . . . . . . . .
Automatic Transaxle (3
-Speed)
Pan Removal and Replacement 4.0 quarts (3.8 L). . .
After Complete Overhaul 6.9 quarts (6.5 L). . . . . . . .
When draining or replacing torque converter, more fluid
may be needed.
Automatic Transaxle
(4
-Speed)Not Owner Serviceable . . . . . . . . . . . . . .
Manual Transaxle
Complete Drain and Refill 2.0 quarts (1.9 L). . . . . . .
Cooling System
2.2L 10.3 quarts (9.7 L). . . . . . . . . . . . . . . . . . . . . . .
2.4L 10.7 quarts (10.1 L). . . . . . . . . . . . . . . . . . . . . .
Refrigerant (R
-134a),
Air ConditioningSee refrigerant . . . . . . . . . . . . . . .
charge label under hood.
Fuel Tank15.0 gallons (56.8 L) . . . . . . . . . . . . . . . . .
Tire Pressures, SizesSee Tire
-Loading . . . . . . . . . . .
Information label on driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual.

yellowblue
6-63 2.2L Engine Specifications
VIN Engine Code 4. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type L4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 115 @ 5,000 rpm. . . . . . . . . . . . . . . . . .
Firing Order 1
-3-4-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 180
F (82
C) . . . . . . . . . . .
2.4L Engine Specifications
VIN Engine Code T. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type L4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 150 @ 5,600 rpm. . . . . . . . . . . . . . . . . .
Firing Order 1
-3-4-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 180
F (82
C) . . . . . . . . . . .
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your dealer.
See the refrigerant charge label under the hood for
information regarding refrigerant capacity.
Normal Maintenance
Replacement Parts
Air Cleaner Filter
2.2L AC Type A
-1172C . . . . . . . . . . . . . . . . . . . . . . .
2.4L AC Type A
-1172C . . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Filter
2.2L AC Type PF
-47 . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4L AC Type PF
-44 . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs
2.2L AC Type 41
-928 . . . . . . . . . . . . . . . . . . . . . . . . .
Gap: 0.050 inch (1.27 mm) . . . . . . . . . . . . . . . . . . . .
2.4L AC Type 41
-942 . . . . . . . . . . . . . . . . . . . . . . . . .
Gap: 0.050 inch (1.27 mm) . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade (Shepherd's Hook Type)
Left Side 22 inches (56 cm). . . . . . . . . . . . . . . . . . . . .
Right Side 17 inches (43 cm). . . . . . . . . . . . . . . . . . . .

yellowblue
6-64 Vehicle Dimensions
Length
All Models 180.3 inches (458.0 cm). . . . . . . . . . . . . .
Width
All Models 75.4 inches (191.5 cm). . . . . . . . . . . . . . .
Height
Coupe 53.2 inches (135.1 cm). . . . . . . . . . . . . . . . . . .
Sedan 54.9 inches (139.4 cm). . . . . . . . . . . . . . . . . . .
Convertible 53.9 inches (136.9 cm). . . . . . . . . . . . . . . Wheelbase
All Models 104.1 inches (264.4 cm). . . . . . . . . . . . . .
Front Tread
All Models 57.6 inches (146.3 cm). . . . . . . . . . . . . . .
Rear Tread
All Models 56.8 inches (144.3 cm). . . . . . . . . . . . . . .

7-
yellowblue
7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-7 Short Trip/City Scheduled Maintenance
7
-21 Long Trip/Highway Scheduled Maintenance7
-30 Part B: Owner Checks and Services
7
-35 Part C: Periodic Maintenance Inspections
7
-37 Part D: Recommended Fluids and Lubricants
7
-39 Part E: Maintenance Record

yellowblue
7-2
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
