2-52 Power Remote Control Mirror (Heated)
This feature is located on
the driver's door armrest.
Move the L/R select switch
located under the power
mirror control to choose the
left or right mirror.
To adjust the mirror, move the arrow control in the
direction you want the mirror to go. Leave the L/R
select switch in the center position to disable mirror
movement by the four
-arrow control switch. This is
helpful in preventing unwanted mirror movement in
case the control is accidentally bumped while driving.
Adjust each outside mirror so the vehicle is barely
visible in the mirror to maximize your side view.The mirrors can also be programmed for personalization
and parallel parking feature if you have the optional
memory package. For more information, see ªMemory
Seat and Mirrorsº and ªMemory and Personalization
Featuresº in the Index. For information on the heated
outside mirrors, see ªRear Window Defoggerº in
the Index.
Driver's Outside Auto-Dimming
Rearview Mirror
Only the driver's side outside mirror will adjust for the
glare of headlamps behind you. This feature is
controlled by pressing the MIRROR side of the button
on and off. This button is located at the bottom of the
electrochromic mirror. See ªElectrochromic Day/Night
Rearview Mirror with Compassº in the Index for
more information.
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from
the driver's seat. This mirror does not have a
dimming feature.

yellowblue
2-82
ENGINE MISFIRE -- EASE OFF GAS PEDAL -
114: An engine misfire has occurred. You'll need to ease
off the gas pedal.
ENGINE OVERHEATED, STOP ENGINE
- 42: This
message will appear when the engine has overheated.
Stop and turn the engine off immediately to avoid severe
engine damage. See ªEngine Overheatingº in the Index.
A multiple chime will also sound when this message
is displayed.
ENGINE POWER REDUCED
- 41: This message
informs you that the vehicle is reducing engine power
because the transaxle is being placed in gear under
conditions that may cause damage to the vehicle's
engine, transaxle or ability to accelerate.
FUEL LEVEL LOW
- 11 : This message serves as a
warning that the fuel level in the tank is critically low.
Stop for fuel soon. A single chime will also sound when
this message is displayed.HEADLAMPS SUGGESTED
- 23: If it's dark enough
outside and the headlamps and Twilight Sentinel

controls are off, a HEADLAMPS SUGGESTED
message will display on the DIC. This message informs
the driver that turning on the exterior lamps is
recommended even though the Daytime Running Lamps
(DRL) are still illuminated. It has become dark enough
outside to require the headlamps and/or other exterior
lamps. This message will also appear if the optional
Rainsense wiping feature is on and the Twilight
Sentinel is off.
ICE POSSIBLE
- 13: This message appears when
the outside air temperature is cold enough to create icy
road conditions.
LEFT REAR DOOR AJAR
- 142: The left rear door
is open or ajar when this message appears. The ignition
must be in ON for this message to display. A chime will
also sound when the vehicle's speed is greater than
3 mph (4.8 km/h).
OIL PRESSURE LOW STOP ENGINE
- 35: If this
message appears while the engine is running, stop the
engine and do not operate it until the cause of low oil
pressure is corrected. Severe damage to the engine can
result. A multiple chime will also sound when this
message is displayed.

yellowblue
2-87 Key in Recall (If Equipped)
Press the down arrow on the INFO button one or more
times until the KEY IN RECALL prompt appears on the
DIC display. To turn the feature on, press the ON/OFF
button until ON appears. The seat and mirror memory
settings that have been previously programmed will be
recalled when the key is inserted in the ignition. The
steering column will move when the key is turned to
ON. To turn the feature off, press the ON/OFF button
until OFF appears.
Auto Exit Seat (If Equipped)
Press the down arrow on the INFO button one or more
times until the AUTO EXIT SEAT prompt shows on the
DIC display. This feature will move the seat to the
driver's exit position when the key is turned out of ON
(away from START) and the driver's door is opened. To
turn this feature on, press the ON/OFF button until ON
appears on the DIC. To turn this feature off, press the
ON/OFF button until OFF shows.
Auto Exit Steering Wheel (If Equipped)
Press the down arrow on the INFO button one or more
times until the AUTO EXIT STRG WHEEL prompt
appears on the DIC display. This feature will move the
column to the driver's exit position when the key is
turned out of ON (away from START) and the driver's
door is opened.
Remote Confirmation
This personalization feature allows the driver to
program the parking lamps to flash or to remain off
when the lock or unlock buttons on the RKE transmitter
are pressed and the horn to sound when the lock button
on the RKE transmitter is pressed. Press the INFO
button one or more times until the FEATURE
PROGRAMMING prompt appears on the DIC display.
Press the ON/OFF button to enter FEATURE
PROGRAMMING. To exit, press the
INFO RESET button.
Note: This feature will not work if any door is open.
Lights Flash at Unlock
Press the down arrow on the INFO button one or more
times until the LIGHTS FLASH AT UNLOCK prompt
appears. To turn this feature on, press the ON/OFF
button until ON is displayed on the DIC. If all the doors
are closed, the parking lamps will flash twice when the
unlock button on the RKE transmitter is pressed. The
lamps will not flash if the manual parking lamps or
headlamps are active. To turn the feature off, press the
ON/OFF button until the OFF prompt appears.

yellowblue
2-88 Lights Flash at Lock
Press the down arrow on the INFO button one or more
times until the LIGHTS FLASH AT LOCK prompt
appears on the DIC display. To turn the feature on, press
the ON/OFF button until ON appears. If all the doors are
closed, the parking lamps will flash once when the lock
button on the RKE transmitter is pressed. The lamps
will not flash if the manual parking lamps are active. To
turn the feature off, press the ON/OFF button until
OFF appears.
Horn Sounds at Lock
Press the down arrow on the INFO button one or more
times until the HORN SOUNDS AT LOCK prompt
appears on the DIC display. To turn the feature on, press
the ON/OFF button until ON appears. If all the doors are
closed, the horn will sound once when the lock button
on the RKE transmitter is pressed. To turn the feature
off, press the ON/OFF button until OFF appears.
Exterior Lighting
This personalization feature enables the driver to
program the exterior lamps to turn on or to remain off
when using the RKE transmitter to unlock the vehicle.During dark or night conditions, if exterior lighting is
selected, the parking lamps, taillamps, reverse lamps,
high
-beam headlamps, etc. will turn on for about
20 seconds or until a door is opened, the key is turned
out of OFF or the RKE transmitter is used to lock
the vehicle.
Press the INFO button one or more times until the
FEATURE PROGRAMMING prompt appears on the
DIC display. Press the ON/OFF button to enter
FEATURE PROGRAMMING. To exit, press the INFO
RESET button. Press the down arrow on the INFO
button one or more times until the EXT LIGHTS AT
UNLOCK prompt appears.
To turn the feature on, press the ON/OFF button until
ON is displayed. To turn the feature off, press the
ON/OFF button until OFF is displayed.
Programmable Automatic Door Locks
Press the INFO button one or more times until the
FEATURE PROGRAMMING prompt appears on the
DIC display. Press the ON/OFF button to enter
FEATURE PROGRAMMING. To exit, press the INFO
RESET button.

yellowblue
4-16
Here are some tips on night driving.

Drive defensively.

Don't drink and drive.

Since you can't see as well, you may need to
slow down and keep more space between you and
other vehicles.

Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.

In remote areas, watch for animals.

If you're tired, pull off the road in a safe place
and rest.
Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase. A 50
-year-old
driver may require at least twice as much light to see the
same thing at night as a 20
-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But if you're
driving, don't wear sunglasses at night. They may cut
down on glare from headlamps, but they also make a lot
of things invisible.You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to readjust to the dark. When
you are faced with severe glare (as from a driver who
doesn't lower the high beams, or a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.
Keep your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it's easier to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim, so should your eyes
be examined regularly. Some drivers suffer from night
blindness
-- the inability to see in dim light -- and
aren't even aware of it.

yellowblue
4-29
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
Your vehicle was not designed to be towed with all four
wheels on the ground. If your vehicle must be towed,
see ªTowing Your Vehicleº in the Index.
NOTICE:
Towing your vehicle with all four wheels on the
ground will damage drivetrain components.
To tow your vehicle, follow these steps:
1. Put the front wheels on a dolly.
2. Put the vehicle in PARK (P).
3. Set the parking brake and then remove the key.
4. Clamp the steering wheel in a straight
-ahead position
with a clamping device designed for towing.
5. Release the parking brake.

yellowblue

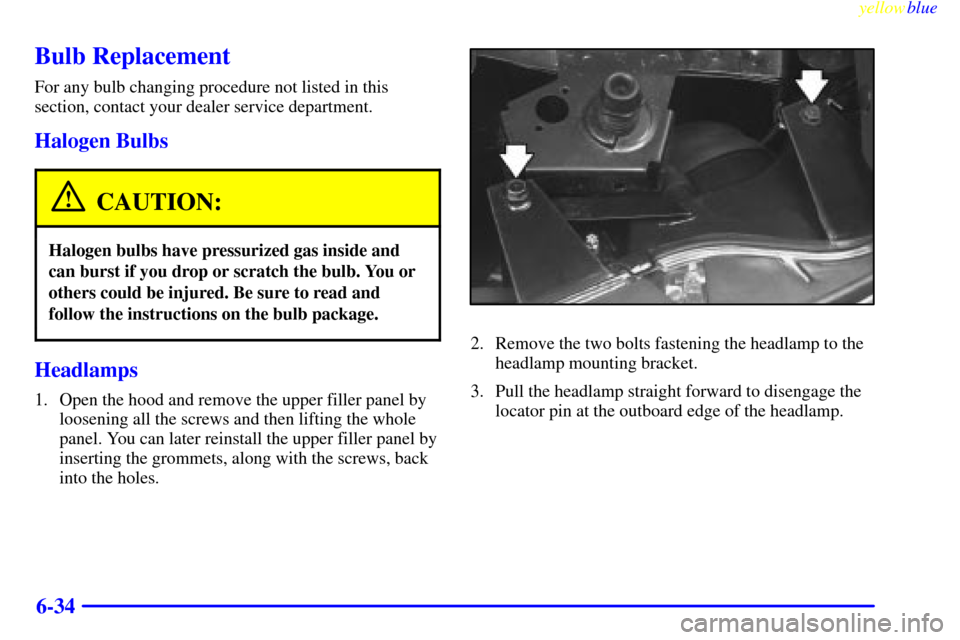

6-34
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
1. Open the hood and remove the upper filler panel by
loosening all the screws and then lifting the whole
panel. You can later reinstall the upper filler panel by
inserting the grommets, along with the screws, back
into the holes.
2. Remove the two bolts fastening the headlamp to the
headlamp mounting bracket.
3. Pull the headlamp straight forward to disengage the
locator pin at the outboard edge of the headlamp.

yellowblue
6-36
6. Remove the headlamp bulb socket.7. After removing the wiring harness connector from
the headlamp bulb socket, replace the bulb assembly.
Reconnect it to the wiring harness and reinstall the
headlamp bulb assembly back into the
headlamp housing.
8. After reinstalling the bulb and socket, reinstall
the rubber cover. Make sure it fully covers the
headlamp socket.
9. To replace the high
-beam bulb, turn the bulb socket
counterclockwise to unlock the socket from the lamp
housing. Follow the instructions in Step 6 through 8
to install the new bulb.
