2-65 Speedometer and Odometer
The speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). The
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used in Canada).
You may wonder what happens if a vehicle has to have a
new odometer installed. The new one may read the
correct mileage. This is because your vehicle's computer
has stored the mileage in memory.
Trip Odometer
There are two trip odometers, which are indicated by
Trip A and Trip B. In order to change from one to the
other, press the A/B portion of the TRIP button.
By pressing this button, you
can tell how many miles
you have traveled on either
your Trip A or Trip B
odometer since you last set
the odometer back to zero.
Press the RESET part of the button until zeros appear to
reset the odometers.
If your vehicle is first sold in the United States, the trip
odometer will return to zero after 999.9 miles (1 609
km). If your vehicle is first sold in Canada, the trip
odometer will return to zero after 1 999.9 km (1,242
miles). The RESET TRIP A/B button only resets the trip
odometer (A or B) that is being displayed. Each trip
odometer has to be reset individually.
Page 118 of 362
yellowblue
2-66
Display Mode
This button is located
between the RESET TRIP
A/B button and the
ENG/MET button.
Press DSPL MODE to turn the backlighting and the
digital speed image on and off.English/Metric DisplayYou can go back and forth
from English (miles) to
metric (kilometers) by
pressing this button.
Other readings such as temperature, fuel and trip
odometer also go back and forth between English
and metric.
Vehicle Speed Limiter
This feature prevents your vehicle from exceeding
speeds that the tires are not rated for. When this
happens, the engine's fuel supply is shut off. When the
vehicle speed slows, the fuel supply will come on again.
Page 130 of 362
yellowblue
2-78
Driver Information Center (DIC)
This display gives you the status of many of your
vehicle's systems. The DIC is also used to display driver
personalization features and warning/status messages.
DIC Controls and Displays
INFO: Pressing this button up or down will display the
OUTSIDE TEMP, MILES RANGE, MPG AVG, MPG
INST, GAL FUEL USED, AVG MPH, TIMER,
BATTERY VOLTS OK, ENGINE OIL LIFE and
TRANS FLUID LIFE.INFO RESET: Pressing this button will reset the MPG
AVG, GAL FUEL USED, MPH AVG, TIMER,
ENGINE OIL LIFE, TRANS FLUID LIFE, PHONE (If
Equipped) and FEATURE PROGRAMMING. For more
information about the trip odometer, see ªOdometerº in
the Index.
ON/OFF: Pressing this button turns the Memory and
Personalization Features on and off.
MILES RANGE: This message shows about how many
miles you can drive without refilling your fuel tank.
Once the range drops below 40 miles (64 km)
remaining, the display will show LOW.
MPG AVG (Reset): Press the INFO button to display
the MPG AVG (Average Fuel Economy), then press and
hold the INFO RESET button until 0.0 MPG AVG
is displayed.
GAL FUEL USED (Reset): Press the INFO button to
display the GAL FUEL USED on the DIC, then press
and hold the INFO RESET button until 0.0 GAL FUEL
USED is displayed.
AVG MPH (Reset): Press the INFO button to display
the AVG MPH (Average Speed), then press and hold the
INFO RESET button until 0.0 AVG MPH is displayed.
Page 314 of 362
yellowblue
6-50

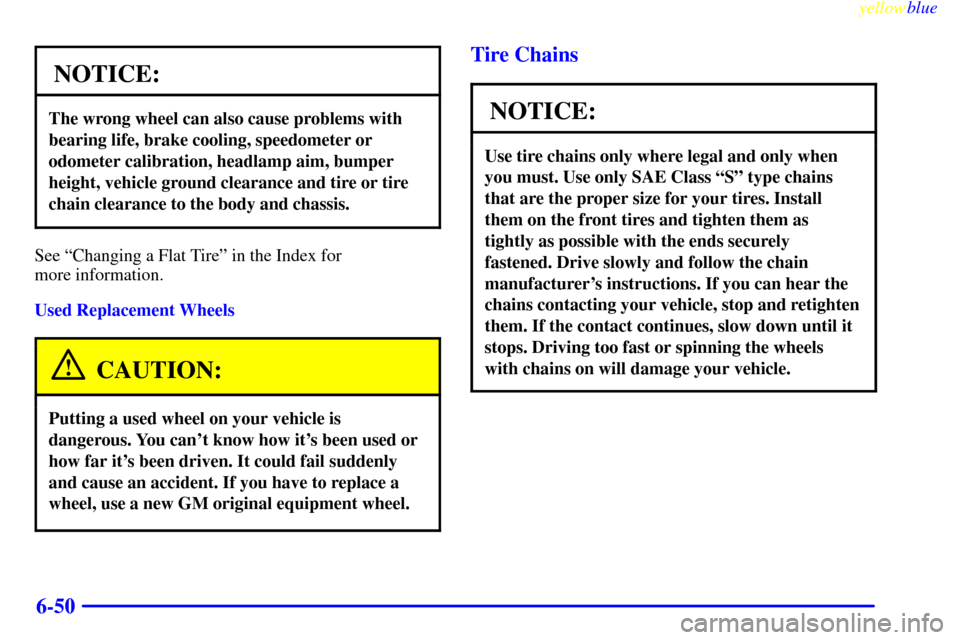

NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
Tire Chains
NOTICE:
Use tire chains only where legal and only when
you must. Use only SAE Class ªSº type chains
that are the proper size for your tires. Install
them on the front tires and tighten them as
tightly as possible with the ends securely
fastened. Drive slowly and follow the chain
manufacturer's instructions. If you can hear the
chains contacting your vehicle, stop and retighten
them. If the contact continues, slow down until it
stops. Driving too fast or spinning the wheels
with chains on will damage your vehicle.
Page 356 of 362
yellowblue
8-8
Limiter, Engine Speed 2-67 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limiter, Vehicle Speed 2-66 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Your Vehicle 4-30 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locks 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lockout Feature 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Door 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programmable Automatic Door 2-5, 2-88 . . . . . . . . . . . . . .
Rear Door Security 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Torque 2-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk Release 2-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valet 2-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loss of Control 4-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lumbar Control 1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lumbar, Massaging 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Magnasteer4-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance, Normal Replacement Parts 6-69 . . . . . . . . . . . .
Maintenance, Underbody 6-56 . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance When Trailer Towing 4-39 . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp 2-72 . . . . . . . . . . . . . . . . . . . . . .
Map Pocket 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Massaging Lumbar 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Matching Transmitters To Your Vehicle 2-8 . . . . . . . . . . . . . .
Mats, Floor 2-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory and Personalization Features 2-86 . . . . . . . . . . . . . . .
Memory, Remote Recall 2-86 . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Seat, Mirrors and Steering Wheel 1-3 . . . . . . . . . . . .
Methanol 6-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mirrors
Convex Outside 2
-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Curb View Assist 2-53, 2-90 . . . . . . . . . . . . . . . . . . . . . . . .
Driver's Outside Auto-Dimming Rearview 2-52 . . . . . . . . .
Lighted Visor Vanity 2-56 . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Function 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Remote Control 2-52 . . . . . . . . . . . . . . . . . . . . . . . . .
Rearview 2-49, 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MMT 6-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model Reference ii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mountain Road Driving 4
-23 . . . . . . . . . . . . . . . . . . . . . . . . . .
Multifunction Lever 2-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Net, Convenience 2-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Neutral, Automatic Transaxle 2-25 . . . . . . . . . . . . . . . . . . . . .
New Vehicle ªBreak-Inº 2-19 . . . . . . . . . . . . . . . . . . . . . . . . .
Night Vision 4-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Normal Maintenance Replacement Parts 6-69 . . . . . . . . . . . . .
Odometer 2-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer, Trip 2-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off-Road Recovery 4-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil
Engine 6
-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Life Indicator 2-92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Life Indicator, How to Reset 6-15 . . . . . . . . . . . . . . . . . . . .
Pressure Light 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Low Stop Engine Message 2-82 . . . . . . . . . . . . . .
OnStar System 2-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overdrive, Automatic Transaxle 2-25 . . . . . . . . . . . . . . . . . . .
Page 361 of 362
yellowblue
8-13
Trailer
Brakes 4-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving on Grades 4-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving with 4-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Cooling When Towing 4-39 . . . . . . . . . . . . . . . . . . .
Hitches 4-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance When Towing 4-39 . . . . . . . . . . . . . . . . . . . . .
Parking on Hills 4-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Chains 4-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tongue Weight 4-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total Weight on Tires 4-35 . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing 4-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn Signals 4-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight 4-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trans Hot Idle Engine Message 2-85 . . . . . . . . . . . . . . . . . . . .
Transaxle Fluid, Automatic 6-19 . . . . . . . . . . . . . . . . . . . . . . .
Transmitter, Universal 2-58 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmitters, Remote Keyless Entry 2-7 . . . . . . . . . . . . . . . . .
Transportation, Courtesy 7-8 . . . . . . . . . . . . . . . . . . . . . . . . . .
Trip Odometer 2-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk 2-11
Lid Tie Down 2-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lock Release 2-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Open Message 2-86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage System 2-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TTY Users 7-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn and Lane Change Signals 2-36 . . . . . . . . . . . . . . . . . . . .
Turn Signal On Chime 2-36 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn Signal On Message 2-86 . . . . . . . . . . . . . . . . . . . . . . . . .
Turn Signal/Multifunction Lever 2-36 . . . . . . . . . . . . . . . . . . .
Turn Signals When Towing a Trailer 4-37 . . . . . . . . . . . . . . . .
Twilight Sentinel2-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Umbrella Holder 2-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Underbody Maintenance 6-56 . . . . . . . . . . . . . . . . . . . . . . . . .
Underhood Junction Block 6-60 . . . . . . . . . . . . . . . . . . . . . . .
Underhood Lamp 6-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding Radio Reception 3-32 . . . . . . . . . . . . . . . . . . .
Universal Transmitter 2-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valet Lock 2-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle
Care/Appearance Materials 6
-57 . . . . . . . . . . . . . . . . . . . . .
Control 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control, Loss of 4-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Damage Warnings iv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 6
-69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification Number 6-58 . . . . . . . . . . . . . . . . . . . . . . . . .
Loading 4-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overspeed Message 2-86 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed Limiter 2-66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage 6-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing, Recreational 4
-29 . . . . . . . . . . . . . . . . . . . . . . . . . .
Ventilation System 3-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN 6-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visors, Sun 2-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Devices 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Lights, Gages and Indicators 2-67 . . . . . . . . . . . . . . .
Warranty Information 7-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Your Vehicle 6-54 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wastebasket 2-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weatherstrips 6-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
