1999 CADILLAC CATERA trunk

yellowblue
1-3
If a failure in the power supply system occurs, the power
seats can be manually adjusted by inserting the crank
handle into the slot located below the seat cushion, as
shown in the above illustration. Turn the crank handle
clockwise until you've reached your desired
seating position.
Note: Manually moving the seat requires turning the
crank handle many times.
The crank handle is provided in the tool kit located in
the trunk. To access, pull the red handle on the
passenger's side of the trunk.
Memory Seat and Mirrors
These buttons are located on the side of the driver's seat
closest to the door. They are used to program and recall
your desired memory settings.
To begin, adjust the driver's seat to a comfortable
position. Also adjust the interior and exterior mirrors.
Press memory button ªMº and memory button ª1º at the
same time and hold for five seconds.
Seat and mirror positions may be programmed for
two additional drivers by repeating the above steps and
pressing memory button ª2º or ª3º instead of
memory button ª1.º

yellowblue

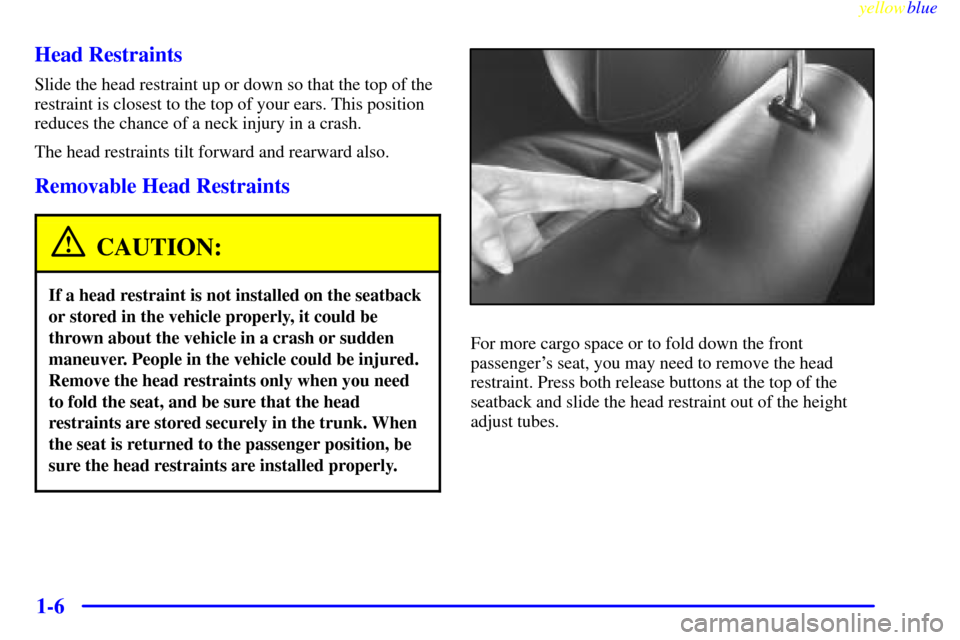

1-6 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
Removable Head Restraints
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the trunk. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
For more cargo space or to fold down the front
passenger's seat, you may need to remove the head
restraint. Press both release buttons at the top of the
seatback and slide the head restraint out of the height
adjust tubes.

yellowblue
1-7
The head restraint should be stored securely on the
driver's side of the trunk as shown.
Replace the head restraint when you have finished
carrying cargo or when the passenger's seat is returned
to its normal upright position.

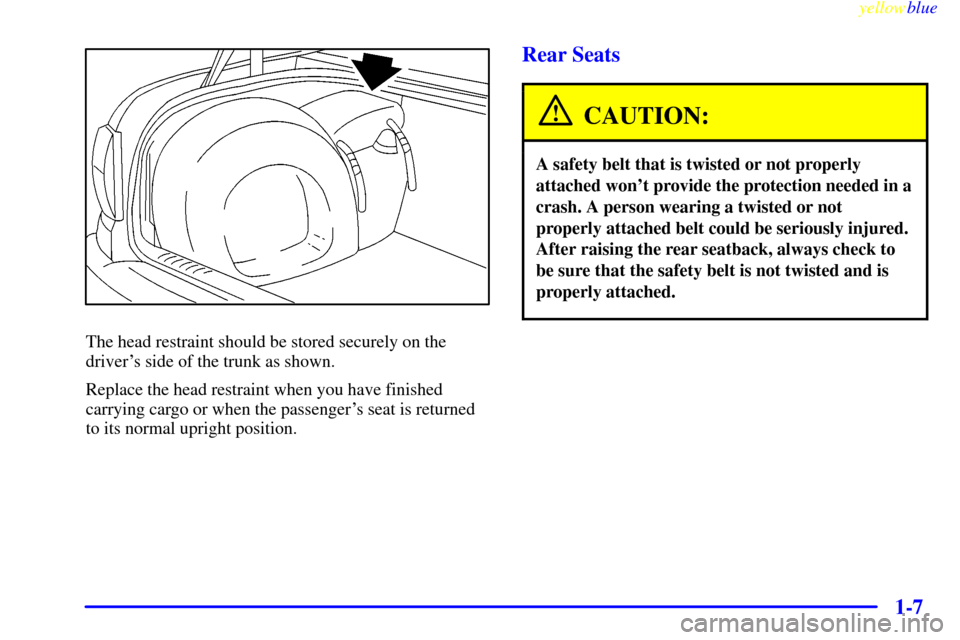

Rear Seats
CAUTION:
A safety belt that is twisted or not properly
attached won't provide the protection needed in a
crash. A person wearing a twisted or not
properly attached belt could be seriously injured.
After raising the rear seatback, always check to
be sure that the safety belt is not twisted and is
properly attached.

yellowblue
1-9

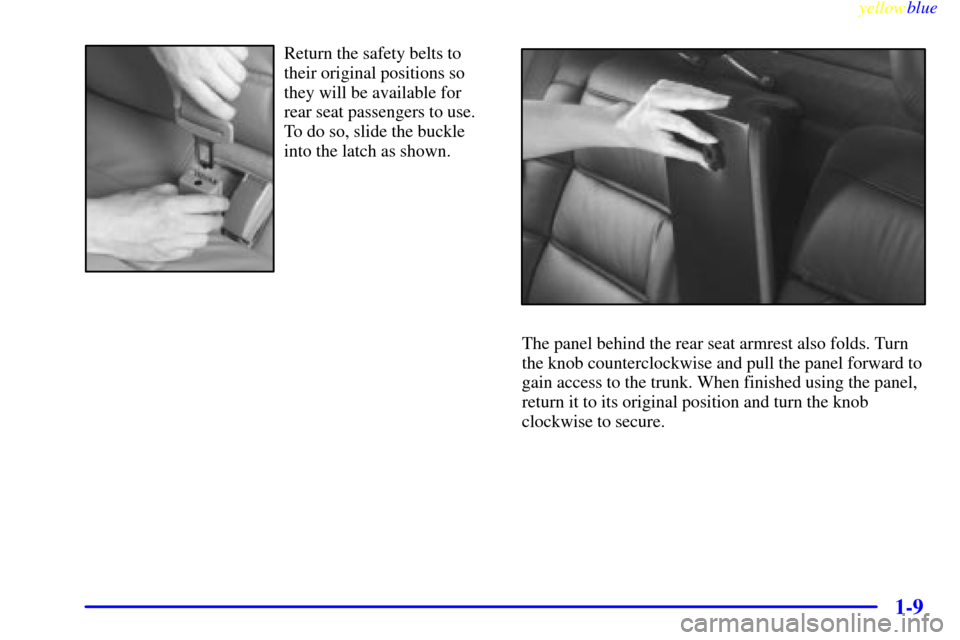

Return the safety belts to
their original positions so
they will be available for
rear seat passengers to use.
To do so, slide the buckle
into the latch as shown.
The panel behind the rear seat armrest also folds. Turn
the knob counterclockwise and pull the panel forward to
gain access to the trunk. When finished using the panel,
return it to its original position and turn the knob
clockwise to secure.

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-7 Remote Keyless Entry System (RKE)
2
-11 Trunk
2
-12 Theft
2
-13 Theft-Deterrent System
2
-15 Immobilizer
2
-16 New VehicleªBreak-Inº
2
-16 Ignition Positions
2
-18 Starting Your Engine
2
-19 Engine Coolant Heater (If Equipped)
2
-21 Automatic Transmission Operation
2
-25 Parking Brake
2
-26 Shifting Into PARK (P)
2
-28 Shifting Out of PARK (P)2
-30 Parking Over Things that Burn
2
-30 Engine Exhaust
2
-31 Running Your Engine While You're Parked
2
-32 Windows
2
-33 Horn
2
-34 Tilt Wheel
2
-34 Turn Signal/Multifunction Lever
2
-40 Exterior Lamps
2
-46 Interior Lamps
2
-47 Mirrors
2
-49 Storage Compartments
2
-52 Sunroof (Option)
2
-56 Universal Transmitter (If Equipped)
2
-60 Instrument Panel
2
-63 Warning Lights, Gages and Indicators

yellowblue
2-3

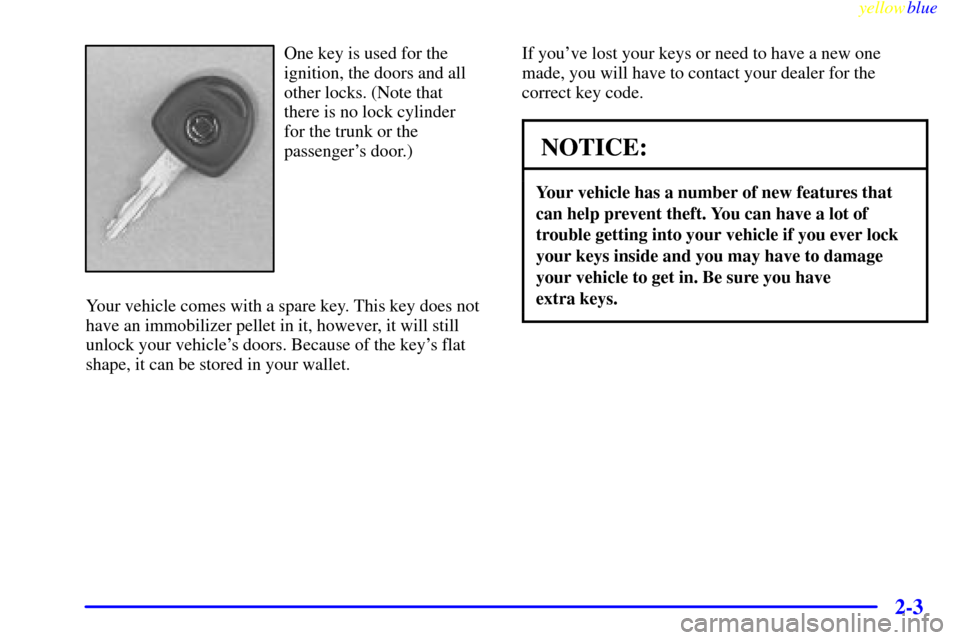

One key is used for the
ignition, the doors and all
other locks. (Note that
there is no lock cylinder
for the trunk or the
passenger's door.)
Your vehicle comes with a spare key. This key does not
have an immobilizer pellet in it, however, it will still
unlock your vehicle's doors. Because of the key's flat
shape, it can be stored in your wallet.If you've lost your keys or need to have a new one
made, you will have to contact your dealer for the
correct key code.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside and you may have to damage
your vehicle to get in. Be sure you have
extra keys.

yellowblue
2-7
When you want to open a rear door when the security
lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
To cancel the rear door lock:
1. Unlock the door from the inside and open the door
from the outside.
2. Move the lever all the way up.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with any door
open will prevent locking of the doors with either the
power door lock switches or the remote keyless entry
transmitter. It is always recommended that you remove
the ignition key when locking your vehicle.
Note: The anti
-lockout feature can be overridden by
holding the power door lock switch for three seconds
or longer.
Leaving Your Vehicle
If you are leaving your vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System (RKE)
If your vehicle has this
option, you can lock and
unlock your doors, or
unlock your trunk from
about 3 feet (1 m) up to
30 feet (9 m) away using
the remote keyless entry
transmitter supplied with
your vehicle.
Your remote keyless entry transmitter operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.

yellowblue
2-8
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
The range of this system is about 10 feet (3 m). At times
you may notice a decrease in range. This is normal for
any remote keyless entry transmitter. If the transmitter
does not work or if you have to stand closer to your
vehicle for the transmitter to work, try this:

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
When you press this symbol to unlock the driver's
door, the parking lamps on your vehicle will blink twice.
The parking lamps and headlamps will remain on for
about 20 seconds. Pressing this button again within five
seconds will unlock the other doors. Pressing this button
will also disarm the optional theft
-deterrent system and
turn on the interior lamps (for approximately 20 seconds).
When you press this symbol to lock the doors
(including the fuel door), the parking lamps will blink
once. This also arms the optional theft
-deterrent system.
Press this symbol to open the trunk.
Press this button to unlock the fuel door.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Your vehicle may be equipped with
either a two or four fob capability and is only able to
have the same number of transmitters matched to it.
Since all vehicles come with only two fobs, you need to
check with your dealer to see which system you have.
