5-
yellowblue
5-1
Section 5 Problems on the Road
Here you'll find what to do about some problems that can occur on the road.
5
-2 Hazard Warning Flashers
5
-2 Other Warning Devices
5
-2 Jump Starting
5
-8 Towing Your Vehicle
5
-9 Engine Overheating5
-11 Cooling System
5
-17 If a Tire Goes Flat
5
-18 Changing a Flat Tire
5
-28 If You're Stuck: In Sand, Mud, Ice or Snow
Page 210 of 328
yellowblue
5-2
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
Pressing this button on the
center console makes the
front and rear turn signal
lamps flash on and off. The
indicator light on the button
also flashes. Pressing the
button again turns the
flashers off. The flashers
work regardless of the
key position.
When the hazard warning flashers are on, the turn
signals won't work since they are already flashing.
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If the battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Please perform the following steps to do
it safely.
Page 211 of 328
yellowblue
5-3

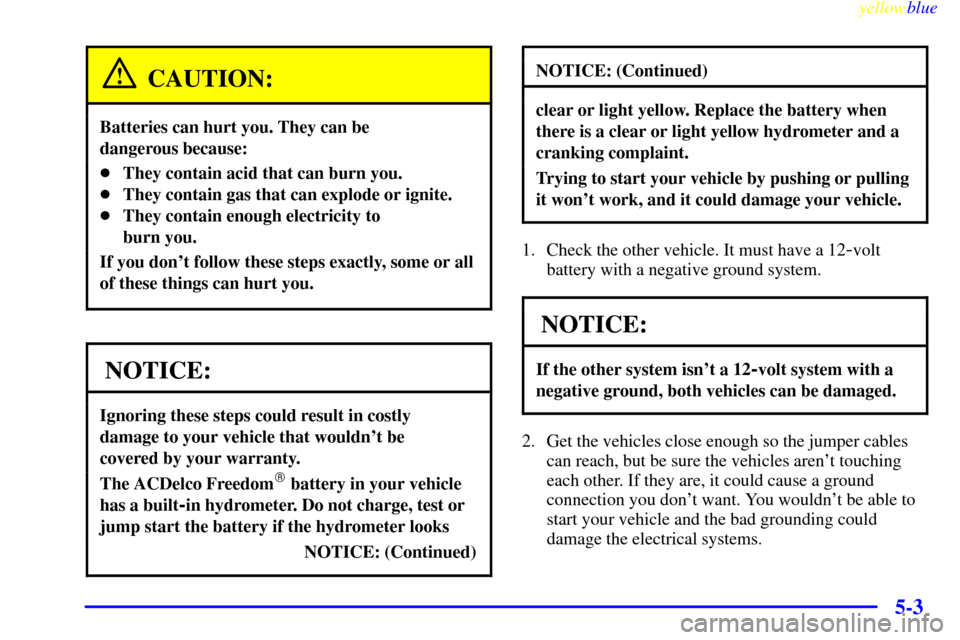

CAUTION:
Batteries can hurt you. They can be
dangerous because:
They contain acid that can burn you.
They contain gas that can explode or ignite.
They contain enough electricity to
burn you.
If you don't follow these steps exactly, some or all
of these things can hurt you.
NOTICE:
Ignoring these steps could result in costly
damage to your vehicle that wouldn't be
covered by your warranty.
The ACDelco Freedom battery in your vehicle
has a built
-in hydrometer. Do not charge, test or
jump start the battery if the hydrometer looks
NOTICE: (Continued)
NOTICE: (Continued)
clear or light yellow. Replace the battery when
there is a clear or light yellow hydrometer and a
cranking complaint.
Trying to start your vehicle by pushing or pulling
it won't work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn't a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren't touching
each other. If they are, it could cause a ground
connection you don't want. You wouldn't be able to
start your vehicle and the bad grounding could
damage the electrical systems.
Page 267 of 328
yellowblue
6-29 Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top
-quality GM brake
parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don't, your brakes may no longer work properly. For
example, if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you've come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.
Battery
Your new vehicle comes with an ACDelco Freedom
battery. When it's time for a new battery, we recommend
an ACDelco Freedom battery. Get one that has the
replacement number shown on the original
battery's label.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
After a power loss, such as disconnecting the battery or
removing the MaxiFuses in the power distribution fuse
block, the following steps must be performed to
calibrate the Electronic Throttle Control. If this is not
done, the engine will not run properly.
1. Turn the ignition key to RUN . Do not start
the engine.
2. Leave the ignition in RUN for at least three minutes
so that the electronic throttle control will cycle and
re
-learn its home position.
3. Turn the ignition to OFF.
4. Start and run the engine for at least 30 seconds.
Also, for your audio system, see ªTheft
-Deterrent
Featureº in the Index.
Page 308 of 328
yellowblue
7-6
Each technician travels with a specially equipped
service vehicle complete with the necessary Catera parts
and tools required to handle most roadside repairs.
Cadillac Roadside Service can be reached by dialing
1
-800-882-1112, 24 hours a day, 365 days a year.
This service is provided at no charge for any
warranty
-covered situation and for a nominal
charge if the Catera is no longer under warranty.
Roadside Service is available only in the United
States and Canada.
Cadillac Owner Privileges
Roadside Service provides several Cadillac Owner
Privileges at ªno charge,º throughout your 1999
Cadillac Warranty Period
-- 48 months/50,000 miles
(80 000 km).Emergency Road Service is performed on site for the
following situations:
Towing Service
Battery Jump Starting
Lock Out Assistance
Fuel Delivery
Flat Tire Change (Covers change only)
Trip Interruption
-- If your trip is interrupted due to a
warranty failure, incidental expenses may be reimbursed
during the 48 months/50,000 miles (80 000 km) warranty
period. Items covered are hotel, meals and rental car.
Page 317 of 328
8-yellowblue
8-1
Section 8 Index
A
dding Equipment to the Outside of Your Vehicle 6-3 . . . . .
Add-On Electrical Equipment 6-55 . . . . . . . . . . . . . . . . . . . . .
Aiming, Headlamps 6-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Bag 1-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Does it Restrain 1-30 . . . . . . . . . . . . . . . . . . . . . . . . . .
How the Systems Work 1-27 . . . . . . . . . . . . . . . . . . . . . . . .
Location 1-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Readiness Light 1-27, 2-64 . . . . . . . . . . . . . . . . . . . . . . . . .
Servicing 1-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What Makes it Inflate 1-30 . . . . . . . . . . . . . . . . . . . . . . . . . .
What Will You See After it Inflates 1-30 . . . . . . . . . . . . . . .
When Should it Inflate 1-29 . . . . . . . . . . . . . . . . . . . . . . . . .
Air Cleaner/Filter, Engine 6-15 . . . . . . . . . . . . . . . . . . . . . . . .
Air Conditioning 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Conditioning Refrigerants 6-63 . . . . . . . . . . . . . . . . . . . . .
Alarm, Theft-Deterrent 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . .
Alignment and Balance, Tire 6-44 . . . . . . . . . . . . . . . . . . . . . .
Aluminum Wheels, Cleaning 6-51 . . . . . . . . . . . . . . . . . . . . . .
Antenna, Heated Backlite 3-31 . . . . . . . . . . . . . . . . . . . . . . . .
Antifreeze 6-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock
Brake System Warning Light 2-67, 4-7 . . . . . . . . . . . . . . . .
Brakes (ABS) 4-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lockout Feature 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Pinch Feature 2-33, 2-54 . . . . . . . . . . . . . . . . . . . . . . . . . Appearance Care 6
-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appearance Care Chart 6-53 . . . . . . . . . . . . . . . . . . . . . . . . . .
Arbitration Program (Step Three) 7-3 . . . . . . . . . . . . . . . . . . .
Ashtrays and Cigarette Lighter 2-50 . . . . . . . . . . . . . . . . . . . .
Assist Handles 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Sound Equipment, Adding 3-29 . . . . . . . . . . . . . . . . . .
Audio Steering Wheel Controls 3-27 . . . . . . . . . . . . . . . . . . . .
Audio Systems 3-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Door Locks 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Operation (Climate Controls) 3-3 . . . . . . . . . . . . . .
Automatic Transmission
Fluid 6
-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 2-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting 2-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting Your Engine 2-18 . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Light 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Axle, Rear 6-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement, Remote Keyless Entry 2-9 . . . . . . . . . . . . . . .
Warnings 5-3, 5-4, 5-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Better Business Bureau (BBB) Mediation (Step Three) 7-3 . . . .
Blade Replacement, Windshield Wipers 6-36 . . . . . . . . . . . . .
Blizzard 4-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 322 of 328
yellowblue
8-6
Inflation, Tire Pressure 6-38 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 2-60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Control 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Top 6-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cluster 2-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Plastic Components, Cleaning 6-48 . . . . . . . . . . . . . .
Jack, Tire 5-20, 5-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyless Entry System, Remote 2-7 . . . . . . . . . . . . . . . . . . . .
Keys 2-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labels
Certification 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts Identification 6-54 . . . . . . . . . . . . . . . . . . . . .
Tire-Loading Information 4-29 . . . . . . . . . . . . . . . . . . . . . .
Vehicle Identification Number (VIN) 6-54 . . . . . . . . . . . . .
Lamps
Exterior 2
-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map 2-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Reading 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lap-Shoulder Belt 1-16, 1-33 . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle with the Engine Running 2-27 . . . . . . . Leveling Indicator Light 2
-76 . . . . . . . . . . . . . . . . . . . . . . . . .
Light Sensor, Twilight Sentinel2-44 . . . . . . . . . . . . . . . . . . .
Lighter 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lighting, Perimeter 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights
Air Bag Readiness 1
-27, 2-64 . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock Brake System Warning 2-67, 4-7 . . . . . . . . . . . .
Automatic Transmission Warning 2-76 . . . . . . . . . . . . . . . .
Brake Pad Wear Indicator 2-76 . . . . . . . . . . . . . . . . . . . . . .
Brake System Warning 2-66 . . . . . . . . . . . . . . . . . . . . . . . . .
Brake To Shift 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charging System Indicator 2-65 . . . . . . . . . . . . . . . . . . . . . .
Check Engine 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Oil 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Warning 2-68 . . . . . . . . . . . . .
Fuel Cap Indicator 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leveling Indicator 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Coolant Warning 2-69 . . . . . . . . . . . . . . . . . . . . . . . . .
Low Fuel 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Washer Fluid Warning 2-74 . . . . . . . . . . . . . . . . . . . . .
Oil Pressure 2-72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Belt Reminder 1-11, 2-64 . . . . . . . . . . . . . . . . . . . . .
Traction Control System Warning 2-68, 4-9 . . . . . . . . . . . .
Trunk Ajar 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Your Vehicle 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locks
Anti
-Lockout Feature 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Door 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Door 6-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
