Page 17 of 65
20-142
- Press 0 and 1 buttons to select Address word
01: "Engine electronics".
- Press Q button to enter input.
-
Press button.Rapid data transfer
HELP
Select Function XX
Display will appear as shown
- Press 0 and 8 buttons to select Function 08: "Read measuring value
block"
- Press Q button to enter input.
Read measurin
g value block
Enter displa
y group number XXX
Display will appear as shown
- Press 0, 7 and 1 buttons to select "display group 71".
- Press Q button to enter input.
Read measuring value block Reed closed
break
Test OFF
Display will appear as shown
Note:
Condition for continuing test is "Reed closed" on the display.The display does not always show "Abort".If the display: "reed open" appears: Briefly open the filler cap to
reduce pressure - this will close the reed contact. Continue checking
as follows:
Pa
ge 17 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 18 of 65
20-143
- Press 0 and 4 buttons to select Function 04:
"Basic Setting". System in basic adjustment 71 Reed closed
Test ON
Display will appear as shown
The EVAP canister valve is opened to allow pressure relief in the
system. Then the LDP -V144 will be triggered. The total procedure lasts approx. 60 seconds.
-
Press button .
System in Basic Adjustment 71 Reed open
Syst.Test
Test ON
Display will appear as shown
The system makes a test, the LDP -V144 starts running and shuts off
when the pump running time reaches a pre-determined time-out. The total procedure lasts approx. 60 seconds.
System in Basic Adjustment 71 Reed open
Measurement
Test >ON
Display will appear as shown
Measurement phase begins. The LDP -V144 is switched off and the
ECM checks whether the reed contact has closed within 10 seconds.
Pa
ge 18 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 19 of 65
20-144
If NO System in Basic Adjustment 71 Reed open
Messg. END
Syst.OK
Display will appear as shown
If contact does not close within 10 seconds
The system is sealed and the measurement is ended.
-
Press button.
- Press 0 and 6 buttons to select Function 06: "End output"
- Press Q button to enter input.
The LDP -V144 performs 4 pump strokes. The ECM compares the
time it takes to carry out the pump strokes and the time until the reed
contact closes again.
System in Basic Adjustment 71 Reed clos fine leak Messg. ENDSyst.n OK
Display will appear as shown
The system has recognized a fine leak ( greater than 1 mm).
Pa
ge 19 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 20 of 65
20-145
System in Basic Adjustment 71 Reed clos lr
g leak Mess
g. ENDS
yst.not oK
Display will appear as shown
If system has recognized a fine or large leak
The Leak detection system has recognized a large leak.
-
Press button.
- Check tank system and tank ventilation system for leaks Page 20
-
136
.
- Perform tank leak diagnosis again.
Pa
ge 20 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 21 of 65
20-146
Checking LDP via output DTM (vehicles with
electronic throttle control)
Note:
In the following description the performance of the On Board Diagnostic
(OBD) procedure the VAG1551 Scan Tool (ST) is used. When using
Vehicle Diagnostics Test and Information System VAS5051, use the
operating instructions. - Connect VAS5051 with diagnostic cable VAS5051/1 or VAG1551 Scan
Tool (ST) with adapter cable VAG1551/3B.
On Board Dia
gnostic
HELP
1 - Rapid data transfer 1
)
2 - Blink code 1)
Indicated on display: 1) Appears alternately
- Switch ignition on.
- Press button 1 to select "Rapid data transfer".
Pa
ge 21 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 22 of 65
20-147
Rapid data transfer
HELP
Enter address word XX
Indicated on display:
- Enter "01" for address word "Engine electronics" and confirm input by
pressing Q button.
-
Press button.
Rapid data transfer
HELP
Select function XX
Indicated on display:
- Enter "03" for function "Output Diagnostic Test Mode (DTM)."
Rapid data transfer
Q
03-Output Diagnostic Test Mode
Indicated on display:
- Confirm input by pressing Q-button.
Output Diagnostic Test Mode EVAP Purge Regulator Valve
-N80
Indicated on display (EVAP canister purge regulator valve -N80)
-
Press button until following display is shown:
Output Diagnostic Test Mode Leak Detection Pump
Indicated on display:
Note:
You can hear the leak detection pump run at the left rear wheel housing
when it is working. This will be difficult to hear. Make sure to be as close
to LDP as possible and to eliminate as much surrounding noise as
possible. The leak detection pump is activated for about 1 minute.
Pa
ge 22 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

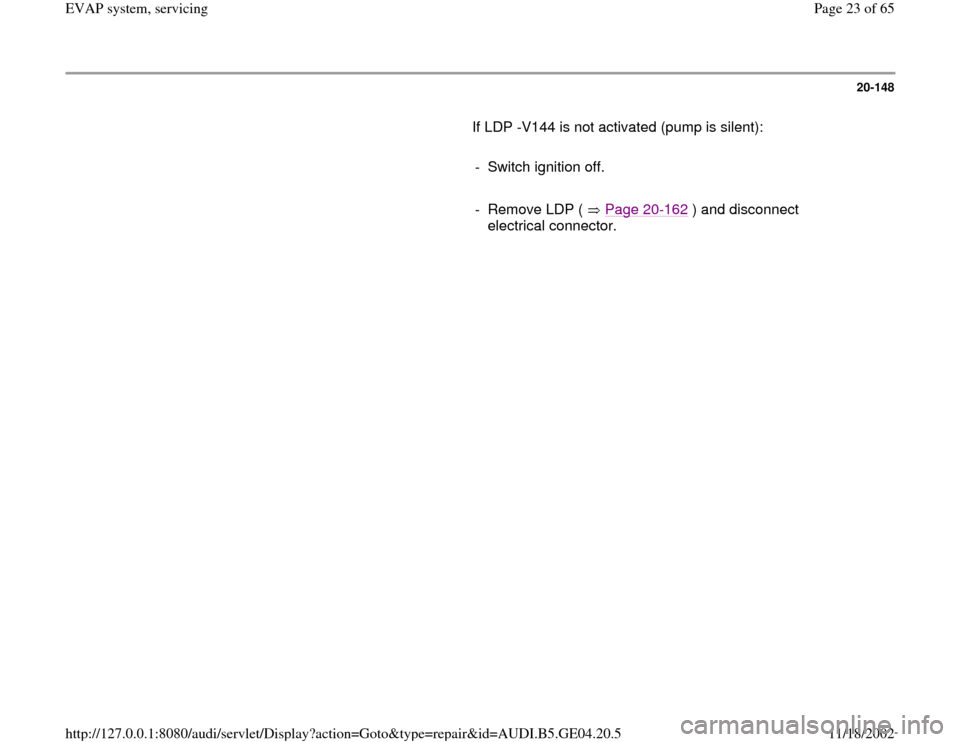

Page 23 of 65
20-148
If LDP -V144 is not activated (pump is silent):
- Switch ignition off.
- Remove LDP ( Page 20
-162
) and disconnect
electrical connector.
Pa
ge 23 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5
Page 24 of 65
20-149
Checking resistance (all vehicles)
Vehicles manufactured approx. 05.97
Vehicles manufactured approx. 05.97 - Switch multimeter Fluke 83 to resistance and connect as follows:Leak detection pump terminal
Specified value
1 + 3
640 to 720
2 + 3
17.5 to 27.5
Leak detection pump terminal
Specified value
1 + 3
640 to 720
2 + 3
15 to 17
