1999 AUDI A4 Airbag Service OBD Workshop Manual

01-43

Vehicles 1999 : from VIN 8D XA 200 001 8D0959655K
Airbag Front+Side
D004
Codin
g 01106
WSC 06812

Explanation of display
Note:
For vehicles with Airbag 8, display will indicate airbag front + side or
airbag front + side curtain in place of Airbag V, Airbag 7. - Indicated on display after approx. 5 seconds:
8D0959655K: Part No. of airbag control module (front and side
airbags) 8D0959655G: Part No. of airbag control module (front and side curtain
airbags) Airbag front + side: component identification for airbag systemD004: software version of control module for airbag in Audi vehiclesCoding 01106: coding of airbag control module. Coding table page 01
-54

WSC 06812: dealership number
-
Press button to return to "Select function XX" prompt.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 57 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-44

Output Diagnostic Test Mode (scan tool
function 03) (vehicles 1997 1998)

The Output Diagnostic Test Mode is used to
check operation of the crash response system.
When airbags are triggered, the central locking
system unlocks the doors and simultaneously
blocks internal switches. Emergency flashers and
interior lights are switched on.

Notes:
Before initiating the Output Diagnostic Test
Mode, switch central locking system to "closed"
by operating internal switch.

Carrying out "Output Diagnostic Test Mode"
function 03 Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -3- to select "Output Diagnostic Test Mode"
function 03.
Rapid data transfer
Q
03 - Output Dia
gnostic Test Mode

Indicated on display
- Press -Q- button to confirm input.
Output Diagnostic Test Mode Signal: Open central locking system

Indicated on display
The central locking system must switch to "open."
Pa
ge 58 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

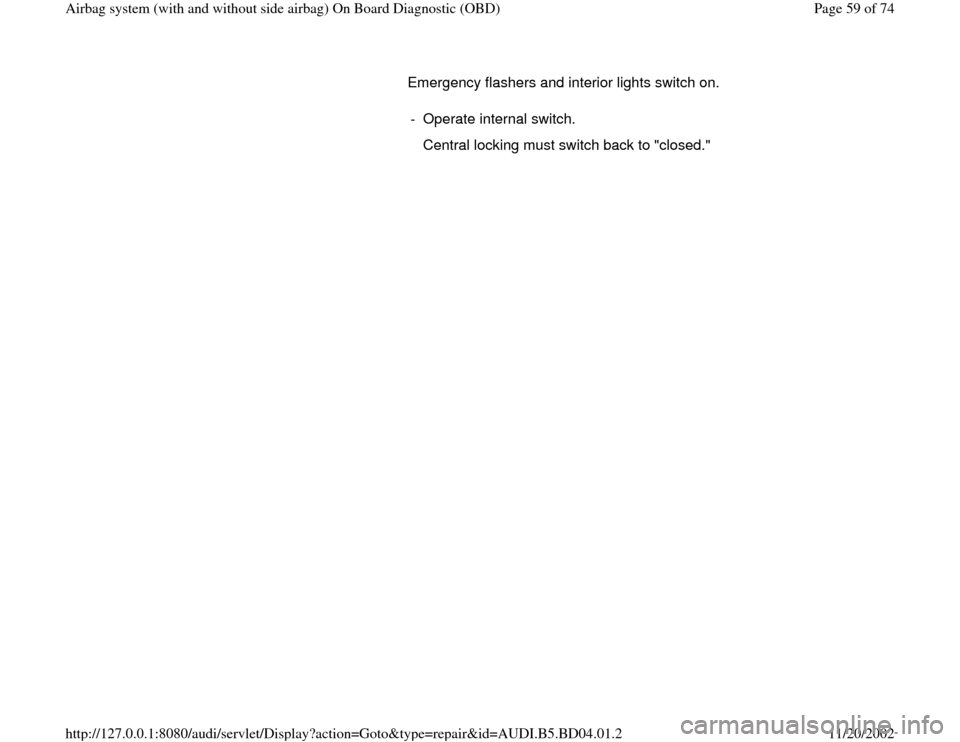

Emergency flashers and interior lights switch on.
- Operate internal switch.
Central locking must switch back to "closed."
Pa
ge 59 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-45

Output Diagnostic Test Mode END

Indicated on display
-
Press button.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 60 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-46

Output Diagnostic Test Mode (scan tool
function 03) (vehicles 1999 )


Vehicles up to calendar week (KW) 18.99
Output Diagnostic Test Mode (DTM) is used to
check the operation of the crash response
system. When airbags are triggered, the central
locking system switches immediately to "open"
and the inside door lock switches are blocked.
Emergency flashers and interior lights are
switched on.

Notes:

Before initiating output Diagnostic Test Mode
(DTM), set the central locking system to
"closed" by operating the interior switch.
Set interior switch to "door contact" position.
After output DTM is initiated, central locking
cannot be operated until the DTC memory of
the central locking control module is erased.

Carrying out "Output Diagnostic Test
Mode" (function 03)
Rapid data transfer
HELP
Select function XX

Indicated on display
-
Press buttons -0- and -3- to select "Output Diagnostic Test Mode"
Pa
ge 61 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

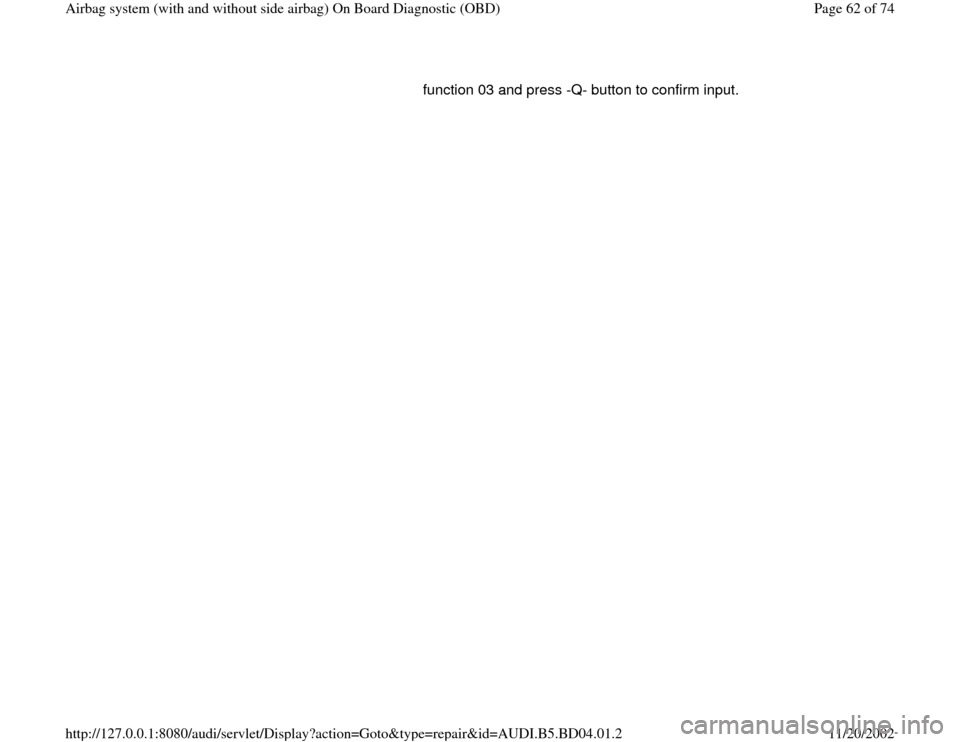

function 03 and press -Q- button to confirm input.
Pa
ge 62 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-47

Output Diagnostic Test Mode Signal: Open central lockin
g system

Indicated on display
Central locking must switch to "open."
Emergency flashers and interior lights switch on.
Notes: - Operate interior switch. Central locking must not switch to "closed" as
long as DTC is still stored in central locking control module.
After this procedure step, DTC 01366 is stored in the DTC memory of
the central locking control module. After completion of output Diagnostic Test Mode (DTM), the DTC
memory of the central locking control module must be checked and
this DTC must be erased page 01
-74
.
Output Diagnostic Test Mode END

Indicated on display
-
Press button.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 63 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-48

Vehicles from calendar week (KW) 18.99 on
Output Diagnostic Test Mode (DTM) is used to
check the operation of the crash response
system. When airbags are triggered, the central
locking system switches immediately to "open"
and the inside door lock switches are blocked.
Emergency flashers and interior lights are
switched on and the fuel supply is interrupted.

Notes:

Before initiating output Diagnostic Test Mode
(DTM), set the central locking system to
"closed" by operating the interior switch and
start the engine.
Set interior light switch to "door contact"
position.
After output DTM is initiated, central locking
cannot be operated until the DTC memory of
the central locking control module is erased.

Carrying out "Output Diagnostic Test
Mode" (function 03)
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -3- to select "Output Diagnostic Test Mode"
function 03.
Pa
ge 64 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2
