1998 NISSAN PICK-UP headlamp

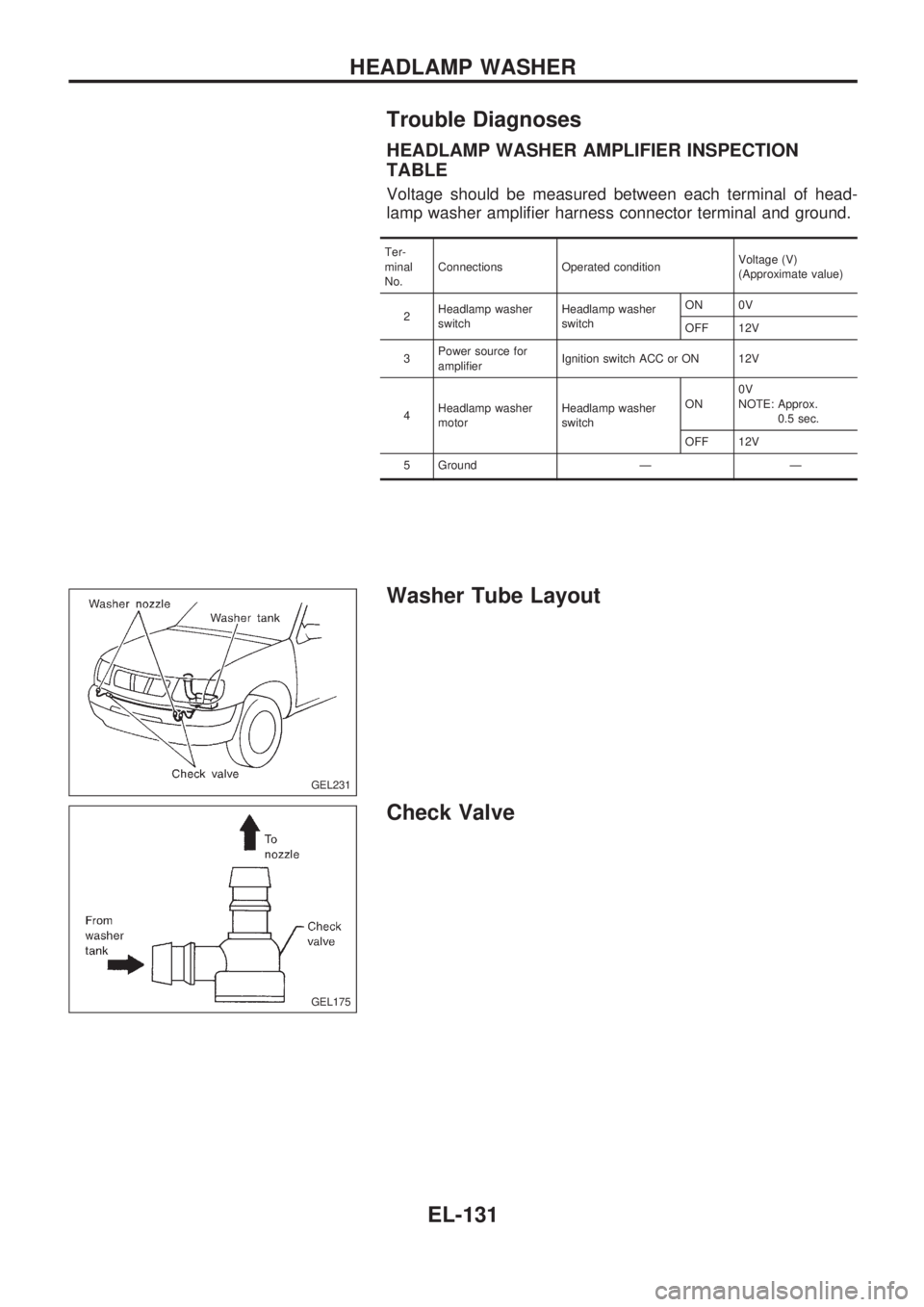

Trouble Diagnoses
HEADLAMP WASHER AMPLIFIER INSPECTION
TABLE
Voltage should be measured between each terminal of head-
lamp washer amplifier harness connector terminal and ground.
Ter-
minal
No.Connections Operated conditionVoltage (V)
(Approximate value)
2Headlamp washer
switchHeadlamp washer
switchON 0V
OFF 12V
3Power source for
amplifierIgnition switch ACC or ON 12V
4Headlamp washer
motorHeadlamp washer
switchON0V
NOTE: Approx.
0.5 sec.
OFF 12V
5 Ground Ð Ð
Washer Tube Layout
Check Valve
GEL231
GEL175
HEADLAMP WASHER
EL-131

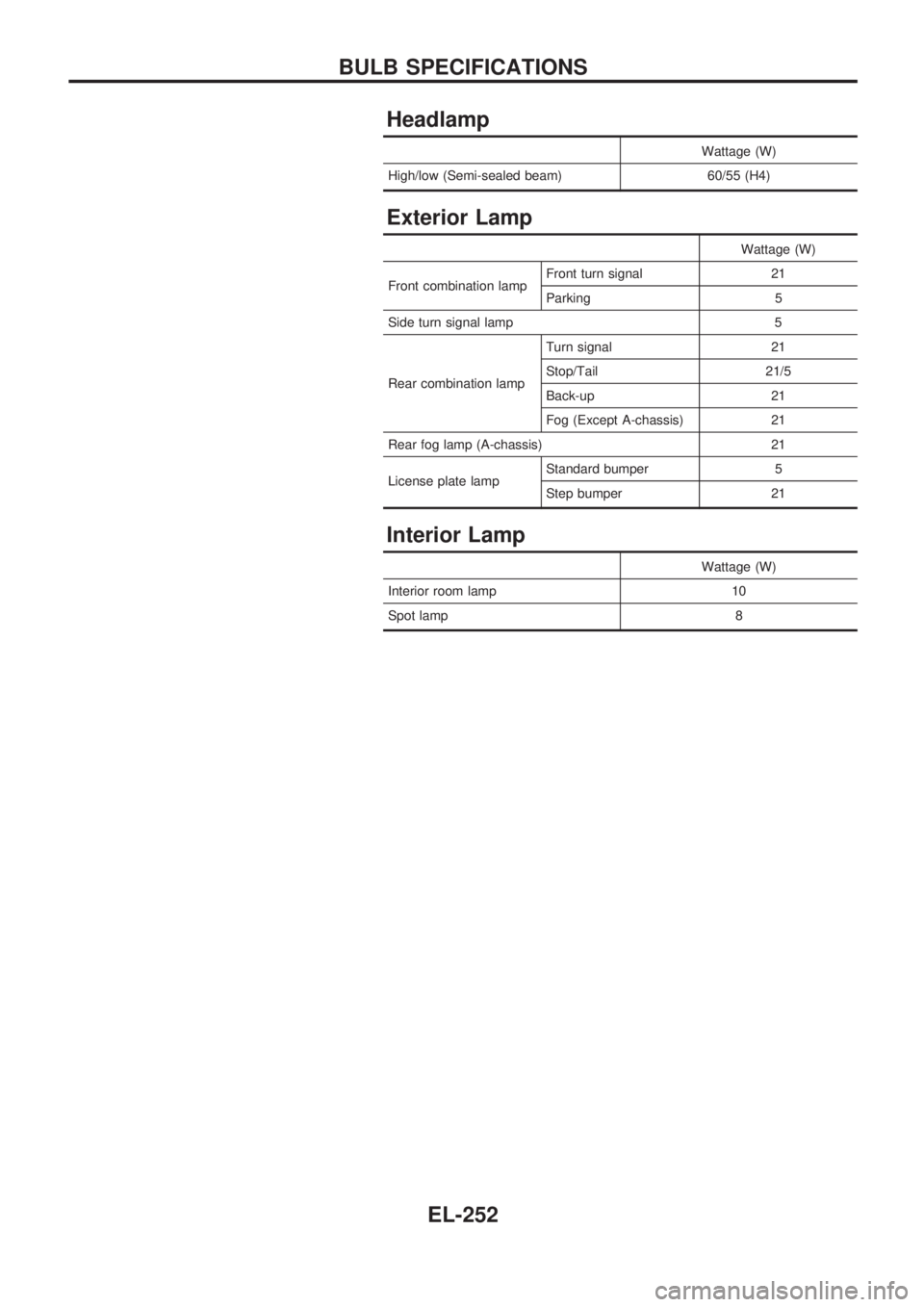

Headlamp
Wattage (W)
High/low (Semi-sealed beam) 60/55 (H4)
Exterior Lamp
Wattage (W)
Front combination lampFront turn signal 21
Parking 5
Side turn signal lamp 5
Rear combination lampTurn signal 21
Stop/Tail 21/5
Back-up 21
Fog (Except A-chassis) 21
Rear fog lamp (A-chassis) 21
License plate lampStandard bumper 5
Step bumper 21
Interior Lamp
Wattage (W)
Interior room lamp 10
Spot lamp 8
BULB SPECIFICATIONS
EL-252

Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
ABS BR Anti-lock Brake System
A/C, M HA Manual Air Conditioner
AUDIO EL Audio
BACK/L EL Back-up Lamp
BUZZER EL Warning Buzzer
CHARGE EL Charging System
CHOKE EC Automatic Choke
CIGAR EL Cigarette Lighter
CLOCK EL Clock
CMPS EC Camshaft Position Sensor
COOL/F LC Cooling Fan Control
DEF EL Rear Window Defogger
DIMDIP ELHeadlamp Ð With Dim-dip Lamp
System
D/LOCK EL Power Door Lock
DTRL ELHeadlamp Ð With Daytime Light
System
ECTS ECEngine Coolant Temperature
Sensor
EGRC/V EC EGRC Ð Solenoid Valve
FCUT EC Fuel Cut Solenoid Valve
F/HEAT EC Fuel Heater System
FICD EC IACV-FICD Solenoid Valve
FIPOT EC ISC-FI Pot
FPCM EC Fuel Pump Control Module
F/PUMP EC Fuel Pump
F/RTN EC Fuel Return Control Solenoid Valve
GLOW EC Quick-glow System
H/AIM EL Headlamp Aiming Control
HEATER HA Heater
H/LAMP EL Headlamp
HLC EL Headlamp Washer
HO2S EC Heated Oxygen Sensor
HORN EL Horn
H/SEAT EL Heated Seat
IATS EC Intake Air Temperature Sensor
IDLE EC IACV-Idle Up ControlCode Section Wiring Diagram Name
IGN EC Ignition System
IGN/SG EC Ignition Signal
ILL EL Illumination
INJECT EC Injector
INT/L EL Interior and Spot Lamps
MAFS EC Mass Air Flow Sensor
MAIN ECMain Power Supply and Ground Cir-
cuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MIL/DL ECMIL and Data Link Connector For
CONSULT
MIRROR EL Power Door Mirror
MULTI EL Multi-remote Control System
NATS EL Nissan Anti-theft System
P/ANT EL Power Antenna
PGC/V ECCanister Purge
Control Solenoid Valve
PLA EC Partial Load Advance Control
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW EC Power Steering Oil Pressure Switch
R/FOG EL Rear Fog Lamp
SRS RS Supplemental Restraint System
S/SIG EC Start Signal
START EL Starting System
STOP/L EL Stop Lamp
SWL/V ECSwirl Control Valve Control Solenoid
Valve
TAIL/L EL Parking, License and Tail Lamps
TPS EC Throttle Position Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VSS EC Vehicle Speed Sensor
WARN EL Warning Lamps
WINDOW EL Power Window
WIPER EL Front Wiper and Washer
WIRING DIAGRAM CODES (CELL CODES)
EL-253

HLC - Wiring diagram ................................ EL-130
HORN - Wiring diagram ............................. EL-132
H/SEAT - Wiring diagram........................... EL-152
Harness connector ......................................... EL-2
Harness connector inspection ...................... GI-18
Harness layout ........................................... EL-220
Hazard warning lamp ................................... EL-74
Headlamp ..................................................... EL-44
Headlamp aiming control ............................. EL-63
Headlamp leveler - See Headlamp
aiming control ........................................... EL-63
Headlamp washer ...................................... EL-130
Heated oxygen sensor (HO2S) ................. EC-123
Heated oxygen sensor heater ................... EC-127
Heated oxygen sensor inspection ............... MA-22
Heated seat .................................................. BT-32
Heated seat ................................................ EL-152
Height (Dimensions) ..................................... GI-44
Hood ............................................................... BT-5
Horn ............................................................ EL-132
How to erase DTC for ECCS OBD
system ...................................................... EC-36
I
IACV-AAC valve .................................EC-131, 135
IACV-FICD solenoid valve
(KA24 engine) ........................................ EC-168
IACV-FICD solenoid valve
(TD25 engine) ........................................ EC-231
IATS - Wiring diagram ............................... EC-110
IGN/SG - Wiring diagram .......................... EC-101
ILL - Wiring diagram..................................... EL-81
INJECT - Wiring diagram .......................... EC-144
INT/L - Wiring diagram ................................. EL-85
Identification plate ......................................... GI-42
Idle mixture ratio .......................................... EC-25
Idle speed .................................................... EC-25
Idle speed inspection .................................. MA-30
Ignition coil ................................................. EC-105
Ignition timing............................................... EC-25
Ignition wire inspection ................................ MA-21
Illumination ................................................... EL-81
Injection nozzle inspection .......................... MA-29
Injection nozzle .......................................... EC-186
Injector ............................................... EC-144, 148
Injector removal and installation .................. EC-23
Instrument panel .......................................... BT-12
Intake air temperature sensor ................... EC-109
Intake door control linkage
adjustment................................................ HA-47
Intake manifold .............................................. EM-9
Interior lamp ................................................. EL-85
Interior .......................................................... BT-15
J
Jacking points ................................................GI-47Journal bearing assembly
(propeller shaft) ........................................ PD-11
Journal bearing disassembly
(propeller shaft) ........................................ PD-10
Jump seat..................................................... BT-34
K
Keyless entry system - See Multi-remote
control system .............................................EL-173
Knuckle spindle ............................................ FA-18
L
LSV (Load sensing valve)...............................BR-7
Leaf spring (rear) ......................................... RA-13
Length (Dimensions) ..................................... GI-44
License lamp ................................................ EL-66
Lifting points .................................................. GI-47
Limited slip diff. adjustment (C200) ............. PD-41
Limited slip diff. adjustment (H233B) .......... PD-63
Limited slip diff. assembly (C200) ............... PD-43
Limited slip diff. assembly (H233B) ............. PD-64
Limited slip diff. disassembly (C200)........... PD-39
Limited slip diff. disassembly (H233B) ........ PD-61
Limited slip diff. inspection (C200) .............. PD-40
Limited slip diff. inspection (H233B) ............ PD-62
Liquid gasket application ............................... EM-1
Location of electrical units.......................... EL-217
Lock, door .................................................... BT-10
Lubricant (R134a) A/C ................................. HA-50
Lubricants .................................................... MA-12
Lubrication circuit (engine)
(KA24 engine) ............................................ LC-3
Lubrication circuit (engine)
(TD25 engine) .......................................... LC-12
Lubrication-locks, hinges and hood
latches ..................................................... MA-39
M
M/T major overhaul (FS5R30A) ...................MT-35
M/T major overhaul (FS5W71C) ................. MT-14
M/T removal and installation ....................... MT-11
MAFS - Wiring diagram ............................... EC-91
MAIN - Wiring diagram ................................ EC-76
METER - Wiring diagram ............................. EL-90
MIL & Data link connectors ....................... EC-173
MIRROR - Wiring diagram ......................... EL-150
MULTI - Wiring diagram ............................. EL-175
Main drive gear (M/T) (FS5R30A)............... MT-36
Main drive gear (M/T) (FS5W71C).............. MT-15
Main gear (Transfer) ...................................... TF-9
Mainshaft (M/T) (FS5R30A) ........................ MT-36
Mainshaft (M/T) (FS5W71C) ....................... MT-15
Mainshaft (Transfer) ....................................... TF-9
Maintenance (engine) (KA24 engine) ......... MA-15
ALPHABETICAL INDEX
IDX-5

Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD Ð engine off
hRadiator coolant level and coolant hose con-
nections for leaks
hBattery fluid level, specific gravity and condi-
tions of battery terminals
hDrive belts tension
hFuel filter for water or dusts, and fuel lines and
connections for leaks
hEngine oil level and oil leaks
hClutch and brake reservoir fluid level and fluid
lines for leaks
hWindshield and rear window washer and head-
lamp cleaner reservoir fluid level
hPower steering reservoir fluid level and hose
connections for leaks
ON INSIDE AND OUTSIDE
hRemove front spring/strut spacer (If applicable)
hOperation of all instruments, gauges, lights and
accessories
hOperation of horn(s), wiper and washer
hSteering lock for operation
hCheck air conditioner for gas leaks
hFront and rear seats, and seat belts for opera-
tion
hAll moldings, trims and fittings for fit and align-
ment
hAll windows for operation and alignment
hHood, trunk lid, door panels for fit and align-
ment
hLatches, keys and locks for operation
hWeatherstrips for adhesion and fit
hHeadlamp aiming
hTighten wheel nuts (Inc. inner nuts if appli-
cable)
hTire pressure (Inc. spare tire)
hCheck front wheels for toe-in
hInstall clock/voltmeter/room lamp fuse (If appli-
cable)
UNDER BODY
hManual transmission/transaxle gear oil, trans-
fer fluid and differential gear oil level
hBrake and fuel lines and oil/fluid reservoirs for
leaks
hTighten bolts and nuts of steering linkage and
gear box, suspension, propeller shafts and
drive shafts
ROAD TEST
hClutch operation
hParking brake operation
hService brake operation
hSteering control and returnability
hEngine performance
hSqueaks and rattles
ENGINE OPERATING AND HOT
hAdjust idle mixture and speed (and ignition tim-
ing*1)
hEngine idling and stop knob operation (Diesel
only)
FINAL INSPECTION
hInstall necessary parts (outside mirror, wheel
covers, seat belts, mat, carpet or mud flaps)
hInspect for interior and exterior metal and paint
damage
hCheck for spare tire, jack, tools (wheel chock),
and literature
hWash, clean interior and exterior
*1: Not required on models with a direct ignition system
h
X: Not applicable to this model.
PRE-DELIVERY INSPECTION ITEMS
MA-3

Chassis and body maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile) interval or month interval, whichever comes
first.km x 1,000 15 30 45 60 75 90
(Miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Headlamp aimingIIIIIINOTE (3)
Wheel alignment (If necessary, rotate & balance wheels)IIIIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIIIMA-36
Brake linings, drums & other brake components*IIIIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I I MA-36
Brake & clutch systemsIIIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIIIMA-32, 35
Brake fluid*R R R MA-35
Power steering fluid & lines (For level & leaks)IIIIIIMA-37
Manual steering gear oil (For level & leaks)IIIIIIMA-38
Air bag system See NOTE (1) NOTE (6)
Manual transmission oil (Inspect for leaks or replace)IIIII[R]MA-32
Transfer fluid and standard differential gear oil (For leaks)* I I I R I I MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I I I R I I MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIIIMA-37, 33
Greasing point of steering linkage, propeller shaft & suspension* See NOTE (2)LLLLLLMA-33
Exhaust system*IIIIIIMA-32
Drive shaft*IIIIIINOTE (7)
Front wheel bearing grease (2WD models)I I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIIIINOTE (9)
Body mountingsTTTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
Basic Schedule for Gasoline Engine Models
(Cont'd)
MA-6

Engine maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 15 30 45 60 75 90 105 120
(Miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Engine oil (Use API SG or SH oil)*RRRRRRRRMA-19
Engine oil filter*RRRRRRRRMA-20
Drive beltsIIIIIIIIMA-15
Engine anti-freeze coolant (Ethylene glycol base) See NOTE (1) R MA-16
Cooling systemIIIIMA-17
Air cleaner filter (Viscous paper type)*R R MA-19
Fuel linesI I MA-18
Fuel filter*R MA-18
Vapor linesI I MA-22
Spark plugs (Conventional type)RRRRMA-20
Ignition wiresI MA-21
Heated oxygen sensor (Exhaust gas sensor)I I MA-22
PCV filter*R R MA-21
NOTE: (1) Replace at the first 90,000 km (54,000 miles), then every 60,000 km (36,000 miles).
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
Chassis and body maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 15 30 45 60 75 90 105 120
(Miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Headlamp aimingIIIINOTE (3)
Wheel alignment (If necessary, rotate & balance wheels)IIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIMA-36
Brake linings, drums & other brake components*IIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I MA-36
Brake & clutch systemsIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIMA-32, 35
Brake fluid*R R MA-35
Power steering fluid & lines (For level & leaks)IIIIMA-37
Manual steering gear oil (For level & leaks)IIIIMA-38
Air bag system See NOTE (1)NOTE (6)
Manual transmission oil (Inspect for leaks or replace) I I R I MA-32
Transfer fluid and standard differential gear oil (For leaks)* I R I R MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I R I R MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIMA-37, 33
Greasing point of steering linkage, propeller shaft & sus-
pension*See NOTE (2)LLLLMA-33
Exhaust system*IIIIMA-32
Drive shaft*IIIINOTE (7)
Front wheel bearing grease (2WD models)I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIINOTE (9)
Body mountingsTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
Basic Schedule for Gasoline Engine Models
(Cont'd)
MA-7

Basic Schedule for Diesel Engine Models
Engine maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile)
interval or month interval,
whichever comes first.km x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Miles x 1,000) (4.5) (9) (13.5) (18) (22.5) (27) (31.5) (36) (40.5) (45) (49.5) (54)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Engine oil (Use recommended
oil)*RRRRRRRRRRRRMA-24
Engine oil filter*RRRRRRRRRRRRMA-24
Drive beltsIIIIIIMA-23
Engine anti-freeze coolant
(Ethylene glycol base)See NOTE (1)R MA-25
Cooling systemIIIIIIMA-26
Air cleaner filter (Viscous paper type)* R R MA-29
Intake & exhaust valve clearance I I I MA-23
Fuel linesI I I MA-28
Fuel filter*R R R MA-27
Injection nozzles See NOTE (2)MA-29
NOTE: (1) Replace at the first 75,000 km (45,000 miles) or 60 months, then every 45,000 km (27,000 miles) or 36 months,
whichever comes first.
(2) If engine power decreases, black exhaust is emitted or engine noise increases, inspect and if necessary, adjust
the fuel injection nozzles starting pressure and the spray pattern.
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
Chassis and body maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile) interval or
month interval, whichever comes first.km x 1,000 15 30 45 60 75 90
(Miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Headlamp aimingIIIIIINOTE (3)
Wheel alignment (if necessary, rotate & balance wheels)IIIIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIIIMA-36
Brake linings, drums & other brake components*IIIIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I I MA-36
Brake & clutch systemsIIIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIIIMA-32, 35
Brake fluid*R R R MA-35
Power steering fluid & lines (For level & leaks)IIIIIIMA-37
Manual steering gear oil (For level & leaks)IIIIIIMA-38
Air bag system See NOTE (1)NOTE (6)
Manual transmission oil (Inspect for leaks or replace)IIIII[R]MA-32
Transfer fluid and standard differential gear oil (for leaks)* I I I R I I MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I I I R I I MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIIIMA-37, 33
Greasing point of steering linkage, propeller
shaft & suspension*See NOTE (2)LLLLLLMA-33
Exhaust system*IIIIIIMA-32
Drive shaft*IIIIIINOTE (7)
Front wheel bearing grease (2WD models) I I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIIIINOTE (9)
Body mountingsTTTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Conditions''.
PERIODIC MAINTENANCE
MA-8
