Page 9 of 326
Schematic
TEL478A
POWER SUPPLY ROUTING
EL-5
Page 10 of 326
Wiring Diagram Ð POWER Ð
BATTERY POWER SUPPLY Ð IGNITION SW. IN ANY POSITION
TEL479A
POWER SUPPLY ROUTING
EL-6
Page 11 of 326
TEL480A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-7
Page 12 of 326
TEL481A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-8
Page 13 of 326
TEL482A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-9
Page 14 of 326

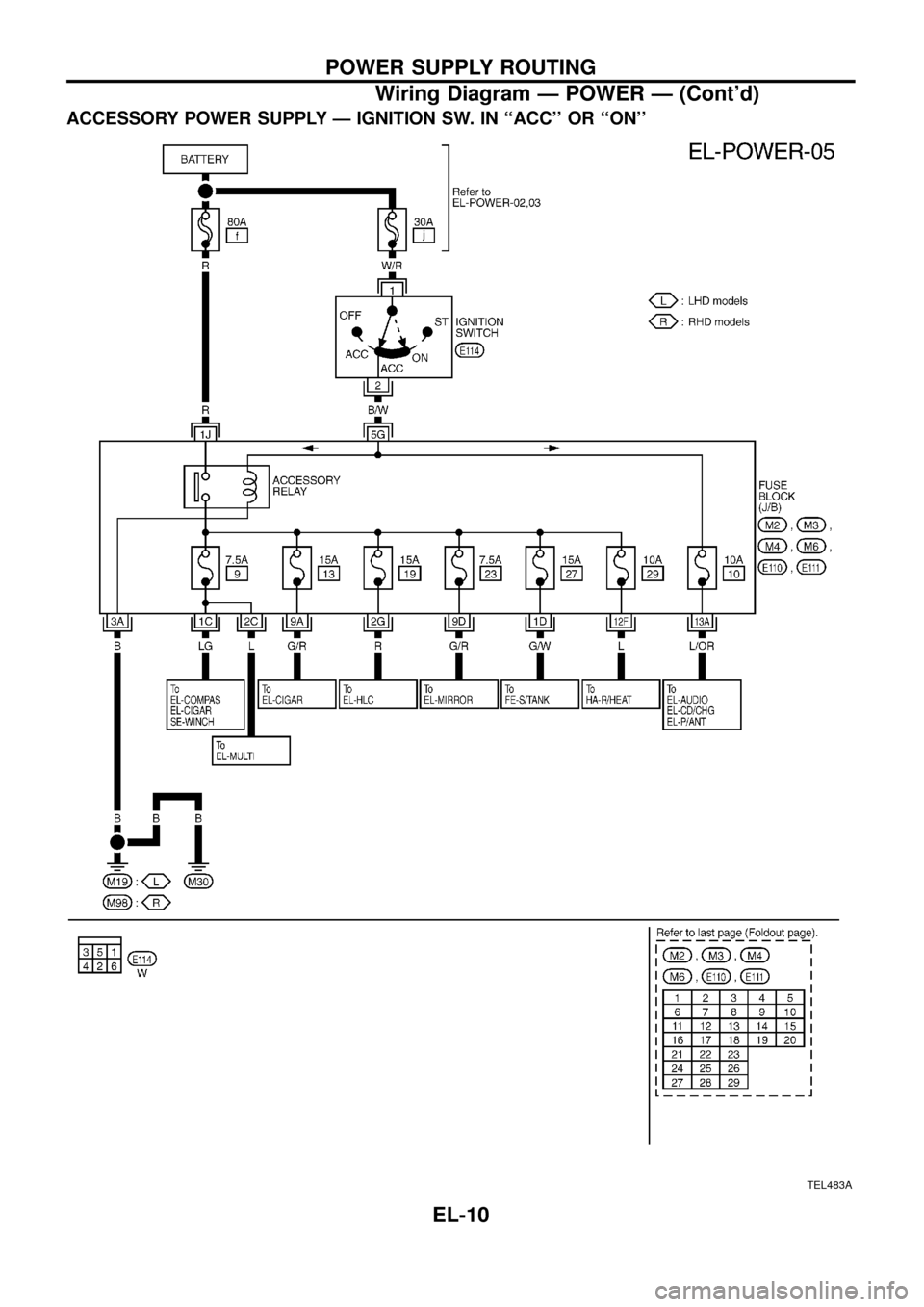

ACCESSORY POWER SUPPLY Ð IGNITION SW. IN ``ACC'' OR ``ON''
TEL483A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-10
Page 15 of 326

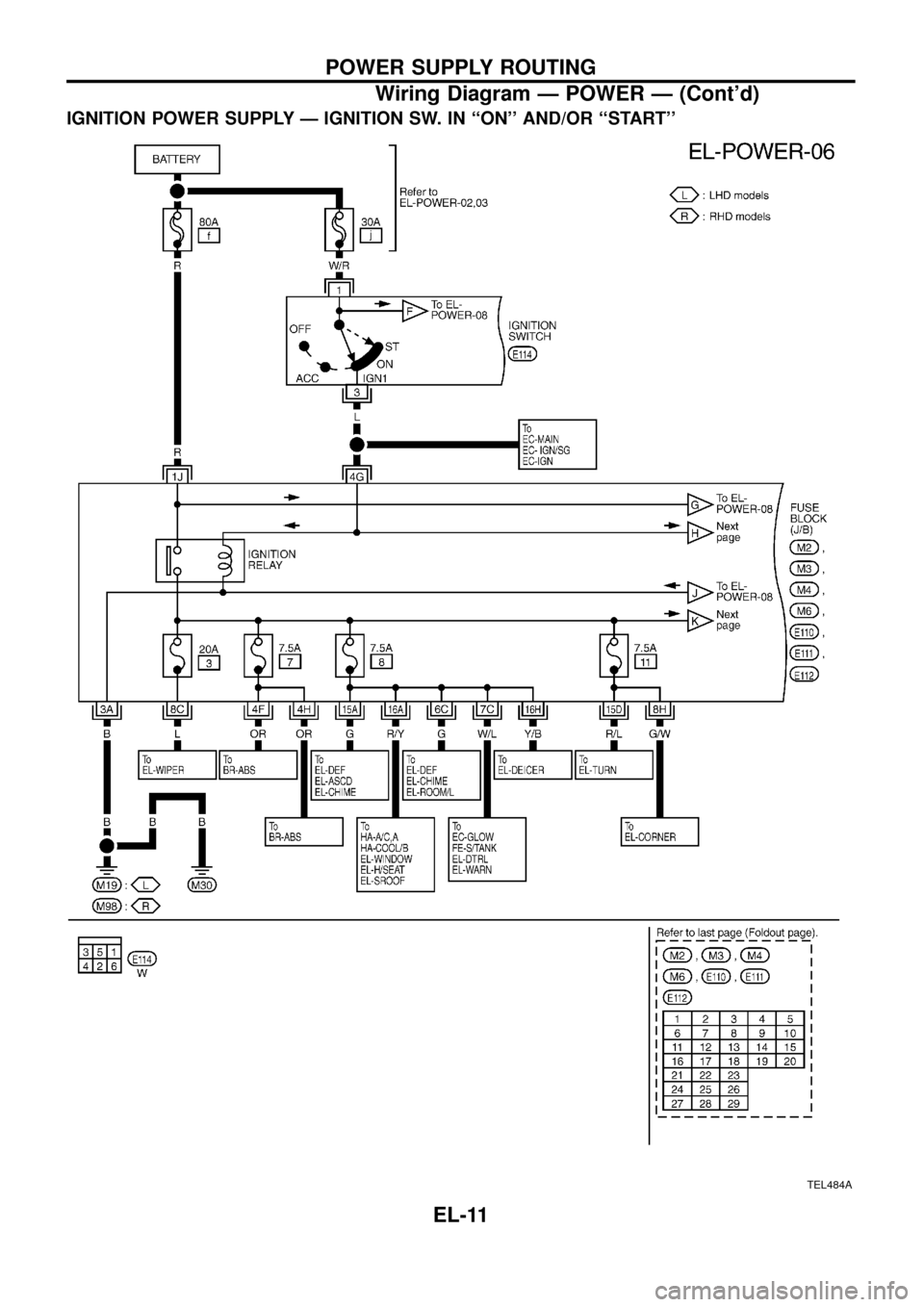

IGNITION POWER SUPPLY Ð IGNITION SW. IN ``ON'' AND/OR ``START''
TEL484A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-11
Page 16 of 326

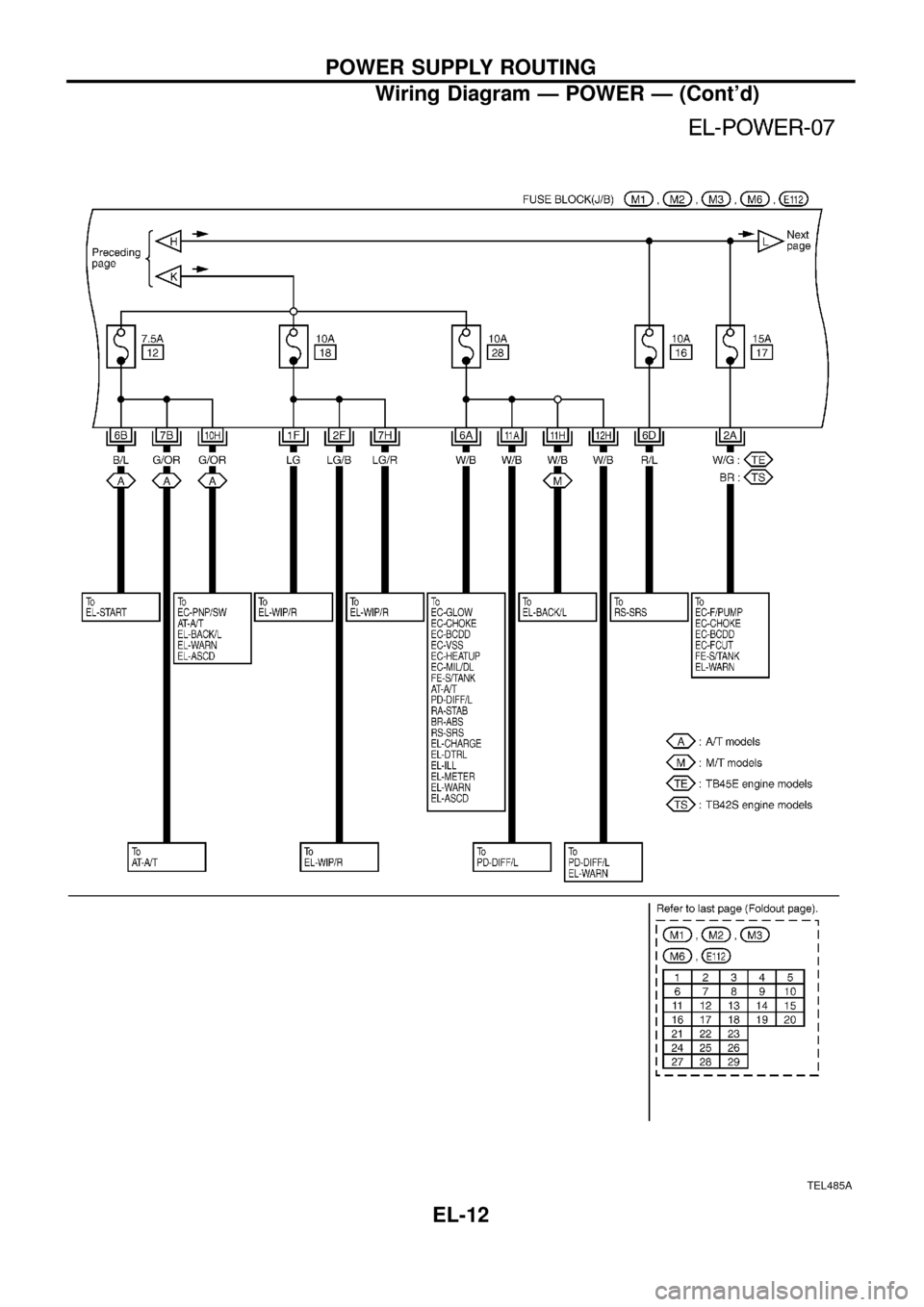

TEL485A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-12
