6E±227 ENGINE DRIVEABILITY AND EMISSIONS

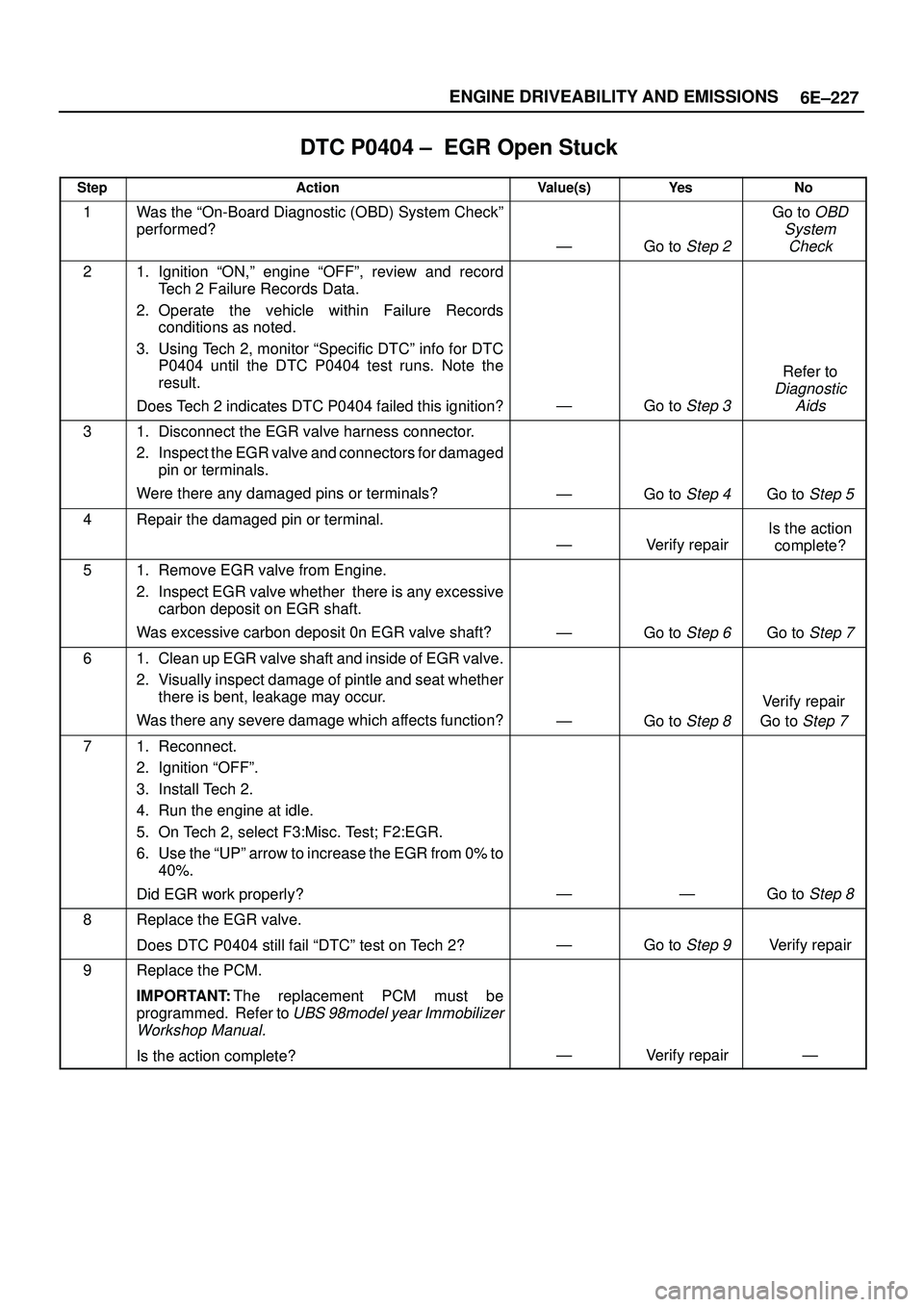

DTC P0404 ± EGR Open Stuck

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using Tech 2, monitor ªSpecific DTCº info for DTC
P0404 until the DTC P0404 test runs. Note the
result.
Does Tech 2 indicates DTC P0404 failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
ÐVerify repair
Is the action
complete?
51. Remove EGR valve from Engine.
2. Inspect EGR valve whether there is any excessive
carbon deposit on EGR shaft.
Was excessive carbon deposit 0n EGR valve shaft?
ÐGo to Step 6Go to Step 7
61. Clean up EGR valve shaft and inside of EGR valve.
2. Visually inspect damage of pintle and seat whether
there is bent, leakage may occur.
Was there any severe damage which affects function?
ÐGo to Step 8
Verify repair
Go to
Step 7
71. Reconnect.
2. Ignition ªOFFº.
3. Install Tech 2.
4. Run the engine at idle.
5. On Tech 2, select F3:Misc. Test; F2:EGR.
6. Use the ªUPº arrow to increase the EGR from 0% to
40%.
Did EGR work properly?
ÐÐGo to Step 8
8Replace the EGR valve.
Does DTC P0404 still fail ªDTCº test on Tech 2?
ÐGo to Step 9Verify repair
9Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±238
ENGINE DRIVEABILITY AND EMISSIONS

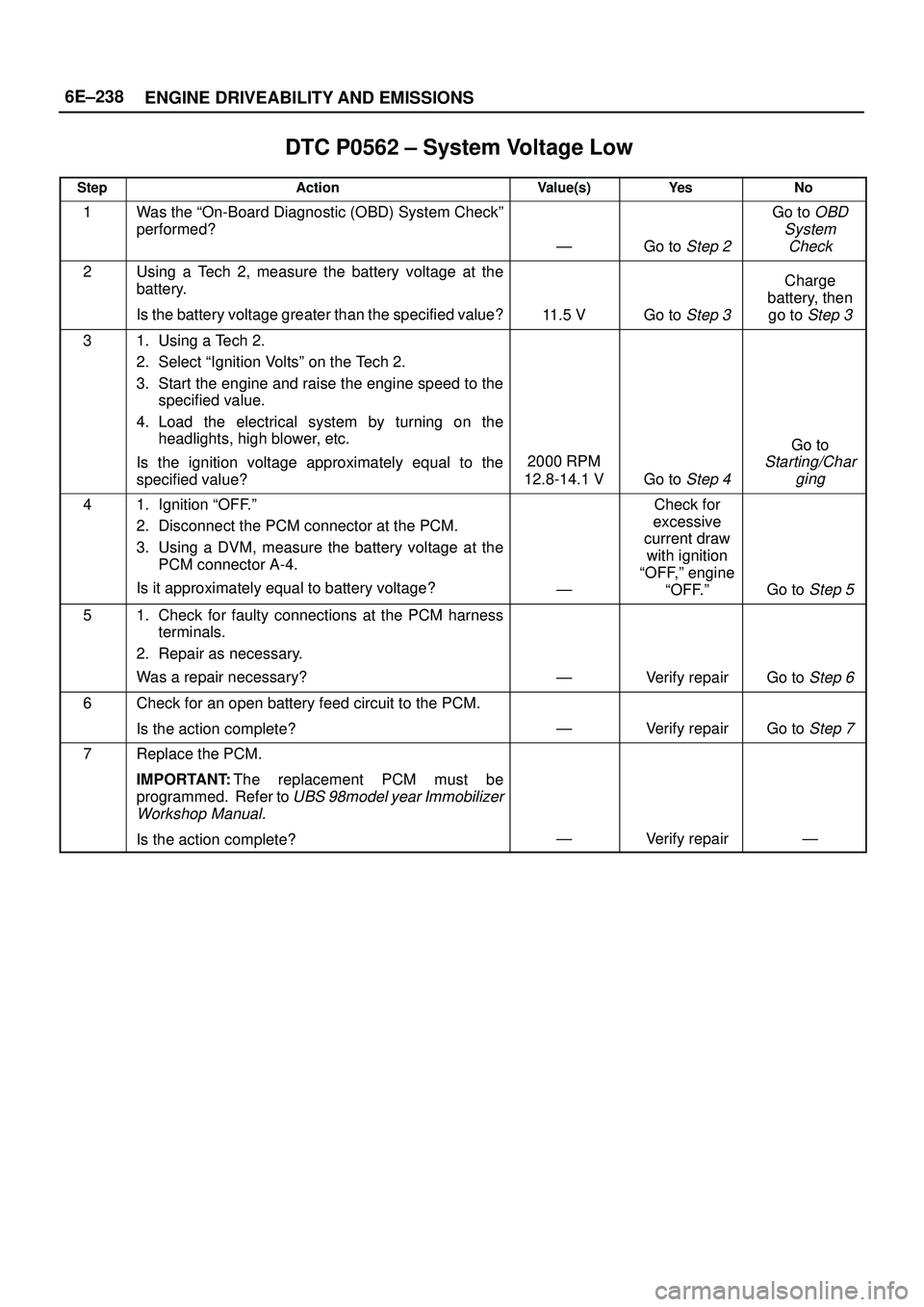

DTC P0562 ± System Voltage Low

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Using a Tech 2, measure the battery voltage at the
battery.
Is the battery voltage greater than the specified value?
11.5 VGo to Step 3
Charge
battery, then
go to
Step 3
31. Using a Tech 2.
2. Select ªIgnition Voltsº on the Tech 2.
3. Start the engine and raise the engine speed to the
specified value.
4. Load the electrical system by turning on the
headlights, high blower, etc.
Is the ignition voltage approximately equal to the
specified value?
2000 RPM
12.8-14.1 V
Go to Step 4
Go to
Starting/Char
ging
41. Ignition ªOFF.º
2. Disconnect the PCM connector at the PCM.
3. Using a DVM, measure the battery voltage at the
PCM connector A-4.
Is it approximately equal to battery voltage?
Ð
Check for
excessive
current draw
with ignition
ªOFF,º engine
ªOFF.º
Go to Step 5
51. Check for faulty connections at the PCM harness
terminals.
2. Repair as necessary.
Was a repair necessary?
ÐVerify repairGo to Step 6
6Check for an open battery feed circuit to the PCM.
Is the action complete?
ÐVerify repairGo to Step 7
7Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±239 ENGINE DRIVEABILITY AND EMISSIONS

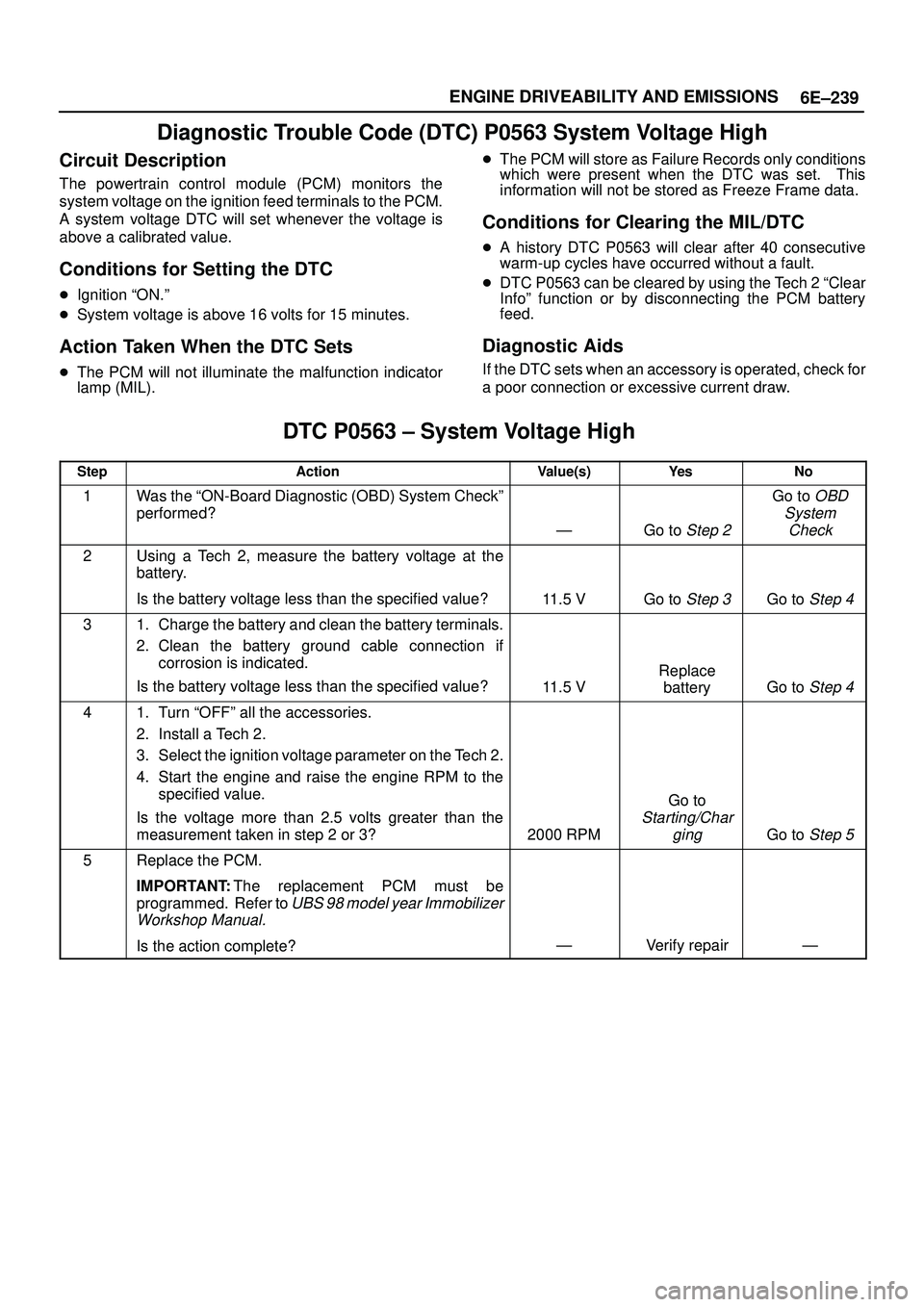

Diagnostic Trouble Code (DTC) P0563 System Voltage High
Circuit Description
The powertrain control module (PCM) monitors the
system voltage on the ignition feed terminals to the PCM.
A system voltage DTC will set whenever the voltage is
above a calibrated value.
Conditions for Setting the DTC

Ignition ªON.º

System voltage is above 16 volts for 15 minutes.
Action Taken When the DTC Sets

The PCM will not illuminate the malfunction indicator
lamp (MIL).
The PCM will store as Failure Records only conditions
which were present when the DTC was set. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

A history DTC P0563 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0563 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
If the DTC sets when an accessory is operated, check for
a poor connection or excessive current draw.
DTC P0563 ± System Voltage High

StepActionValue(s)Ye sNo
1Was the ªON-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Using a Tech 2, measure the battery voltage at the
battery.
Is the battery voltage less than the specified value?
11.5 VGo to Step 3Go to Step 4
31. Charge the battery and clean the battery terminals.
2. Clean the battery ground cable connection if
corrosion is indicated.
Is the battery voltage less than the specified value?
11.5 V
Replace
battery
Go to Step 4
41. Turn ªOFFº all the accessories.
2. Install a Tech 2.
3. Select the ignition voltage parameter on the Tech 2.
4. Start the engine and raise the engine RPM to the
specified value.
Is the voltage more than 2.5 volts greater than the
measurement taken in step 2 or 3?
2000 RPM
Go to
Starting/Char
ging
Go to Step 5
5Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98 model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±240
ENGINE DRIVEABILITY AND EMISSIONS

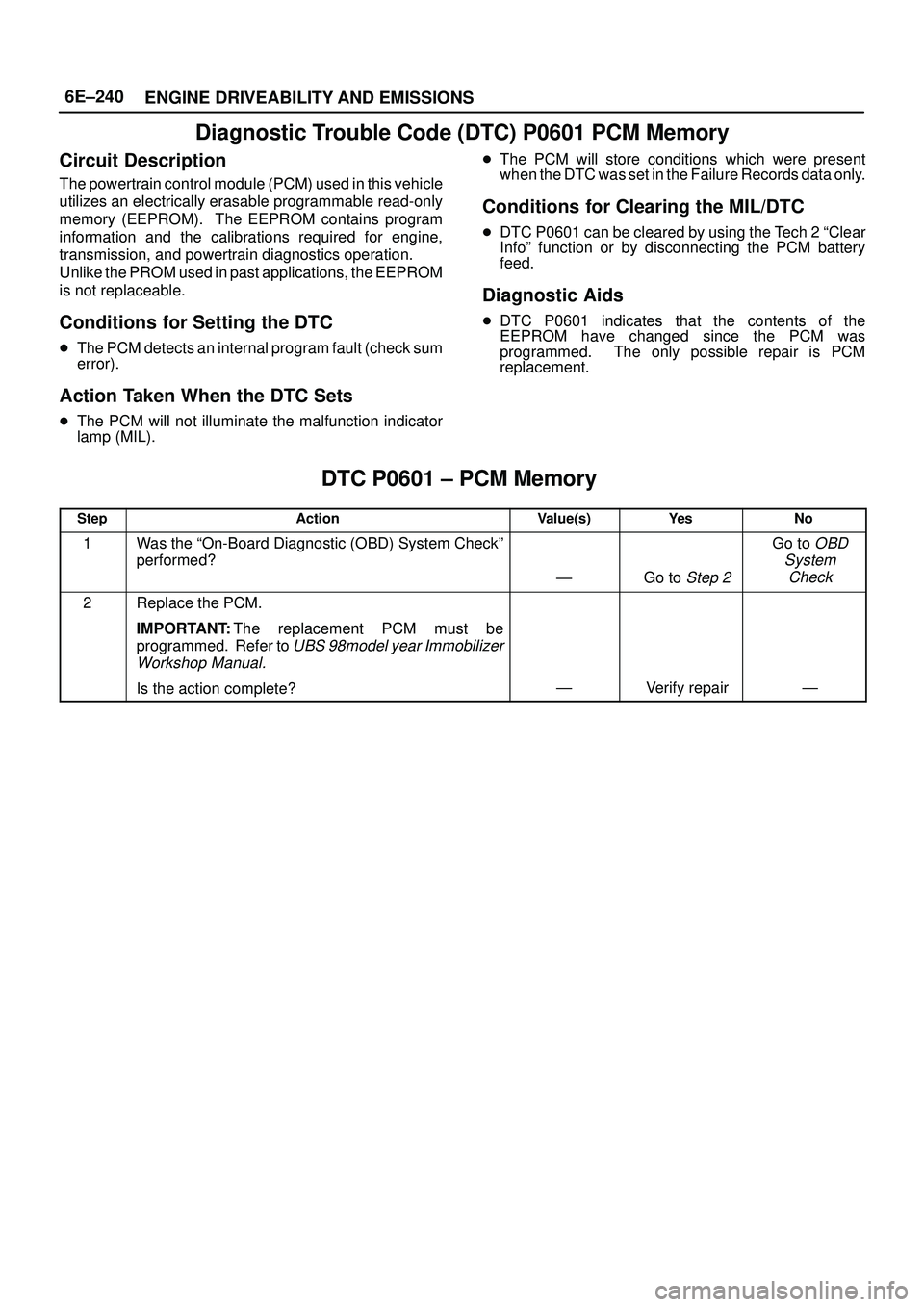

Diagnostic Trouble Code (DTC) P0601 PCM Memory
Circuit Description
The powertrain control module (PCM) used in this vehicle
utilizes an electrically erasable programmable read-only
memory (EEPROM). The EEPROM contains program
information and the calibrations required for engine,
transmission, and powertrain diagnostics operation.
Unlike the PROM used in past applications, the EEPROM
is not replaceable.
Conditions for Setting the DTC

The PCM detects an internal program fault (check sum
error).
Action Taken When the DTC Sets

The PCM will not illuminate the malfunction indicator
lamp (MIL).
The PCM will store conditions which were present
when the DTC was set in the Failure Records data only.
Conditions for Clearing the MIL/DTC

DTC P0601 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids

DTC P0601 indicates that the contents of the
EEPROM have changed since the PCM was
programmed. The only possible repair is PCM
replacement.
DTC P0601 ± PCM Memory

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±242
ENGINE DRIVEABILITY AND EMISSIONS
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
Test Description
Number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. A condition that affects other heated oxygen sensors
indicates probable contamination. To avoid
damaging replacement sensors, correct the
condition which caused the contamination before
replacing the affected sensors.5. This step checks for conditions which may cause the
heated oxygen sensor to appear faulty. Correct any
of the described conditions if present.
8. To avoid damaging replacement sensors, correct the
condition which caused the contamination before
replacing the affected sensors.

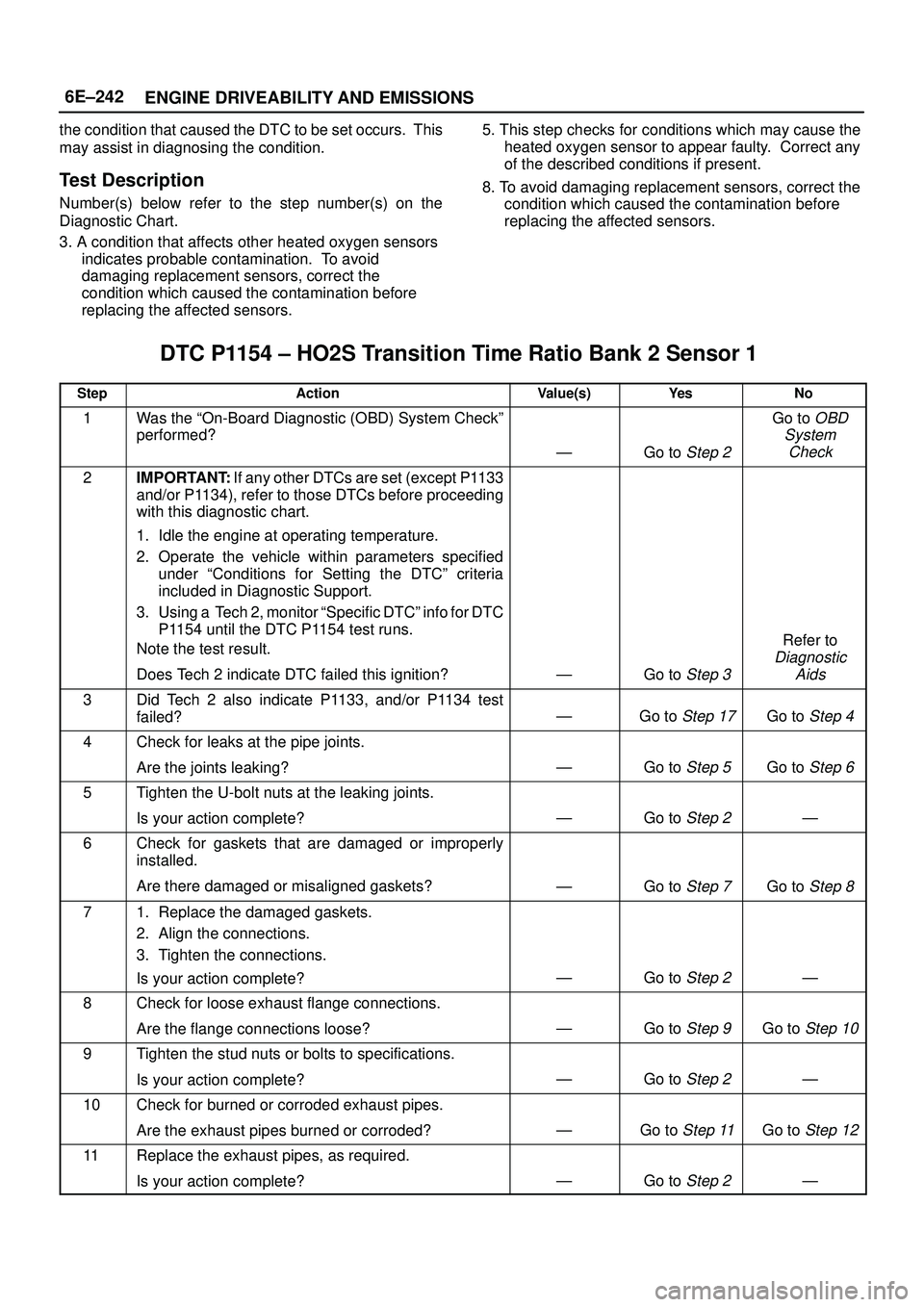

DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2IMPORTANT:If any other DTCs are set (except P1133
and/or P1134), refer to those DTCs before proceeding
with this diagnostic chart.
1. Idle the engine at operating temperature.
2. Operate the vehicle within parameters specified
under ªConditions for Setting the DTCº criteria
included in Diagnostic Support.
3. Using a Tech 2, monitor ªSpecific DTCº info for DTC
P1154 until the DTC P1154 test runs.
Note the test result.
Does Tech 2 indicate DTC failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
3Did Tech 2 also indicate P1133, and/or P1134 test
failed?
ÐGo to Step 17Go to Step 4
4Check for leaks at the pipe joints.
Are the joints leaking?
ÐGo to Step 5Go to Step 6
5Tighten the U-bolt nuts at the leaking joints.
Is your action complete?
ÐGo to Step 2Ð
6Check for gaskets that are damaged or improperly
installed.
Are there damaged or misaligned gaskets?
ÐGo to Step 7Go to Step 8
71. Replace the damaged gaskets.
2. Align the connections.
3. Tighten the connections.
Is your action complete?
ÐGo to Step 2Ð
8Check for loose exhaust flange connections.
Are the flange connections loose?
ÐGo to Step 9Go to Step 10
9Tighten the stud nuts or bolts to specifications.
Is your action complete?
ÐGo to Step 2Ð
10Check for burned or corroded exhaust pipes.
Are the exhaust pipes burned or corroded?
ÐGo to Step 11Go to Step 12
11Replace the exhaust pipes, as required.
Is your action complete?
ÐGo to Step 2Ð

6E±248
ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1380 ABS Rough Road ABS System Fault
Circuit Description
The powertrain control module (PCM) monitors ABS fault
signal. When PCM receives fault signal, PCM will set
DTC P1380.
Conditions for Setting the DTC

Vehicle speed is more than 5 mph.

Load is less than 99%.

Engine revolution is less than 6250 rpm.

PCM receives ABS fault signals from ABS unit.

Ignition on.

Misfire DTCs exist.

100 test failures within 120 test samples.
Action Taken When the DTC Sets

The PCM will store DTC 1380 only, no MIL turn on.
Conditions for Clearing the MIL/DTC

A history DTC P1380 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC 1380 can be cleared by using Tech-2 or
disconnecting the PCM battery feed.
Diagnostic Aids
Check for the following conditions:

PCM and ABS communication line short circuit to other
line may cause faulty signal. Inspect communication
line.

Follow ABS ECU diagnosis procedure, refer to ABS
procedure page.
DTC P1380 ± ABS Rough Road ABS System Fault

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor ªSpecific DTCº info for DTC
P1380 and Misfire DTCs until the DTC P1380 and
Misfire DTCs test runs. Note the result.
Does the Tech 2 indicates DTC P1380 and Misfire
DTCs failed this ignition?
Ð
Refer to ABS
diagnosis
After inspect
ABS, unit re-
peat
Step 2
Still problem
exists, go to
Step 3
Clear DTC by
Tech 2
3Check short circuit among communication line of
PCM/ABS and others.
Was short circuit?
Ð
Repair wiring
Verify repair
Go to Step 4
4Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±250
ENGINE DRIVEABILITY AND EMISSIONS
DTC P1404 ± EGR Closed Stuck

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor ªDTC inf. for DTC P1404
until the DTC P1404 test runs. Note the result.
Does the Tech 2 indicates DTC P1404 failed this
ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
Is the action complete?
ÐVerify repairÐ
51. Remove EGR valve from Engine.
2. Inspect EGR valve whether there is any excessive
carbon deposit on EGR shaft.
3. Inspect any foreign material inside of EGR valve.
Was excessive carbon deposit on EGR valve shaft
or/and foreign material in EGR valve ?
ÐGo to Step 6Go to Step 7
61. Clean up EGR valve shaft and inside of EGR valve.
2. Remove foreign material from EGR valve.
3. Visually inspect damage of pintle and seat whether
there is bent, leakage may occur.
Was there any severe damage which affects function?
3±6 ohmsGo to Step 8
Verify repair
Go to
Step 7
71. Reconnect.
2. Ignition ªOFFº.
3. Install the Tech 2.
4. Run the engine at idle.
5. On the Tech 2, select F3:Misc. Test F5:EGR.
6. Use the ªUPº arrow to increase the EGR from 0% to
40%.
Did EGR work properly?
ÐÐGo to Step 8
81. Reset the learned zero EGR valve position.
2. Repeat step 7.
Did EGR work properly?
ÐVerify repairGo to Step 9
9Replace the EGR valve.
Replace the EGR valve. Does DTC P1404 still fail
ªspecific DTCº test on the Tech 2?
ÐGo to Step 10Verify repair
10Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±257 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1618 Serial Peripheral Interface (SPI) PCM
Interprocessor Communication Error
Circuit Description
The serial peripheral interface (SPI) communication is
used internally by the PCM to send messages between
the engine processor and the automatic transmission
processor. Included in each message sent between the
two-processors is a checksum of the message. Both the
engine processor and automatic transmission processor
will compare this check sum value with the calculated
value. If the checksums don't match, the processor will
view the new data as being corrupted and ignore the
values. The processor will then use the previous
message. The receiving processor will then send a
message to the sending processor informing it that it's
last message was corrupted.
Conditions for Setting the DTC

Battery voltage is above 9.0 V for 2 seconds.

The PCM detects an internal program fault (check sum
of data communications error).
Check sum fault present for 3 out 6 seconds.

No TCM resets for 2 seconds.
Action Taken When the DTC Sets

The PCM will flash the ªCheck Transº lamp the first
time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

The automatic transmission will operate in the ªsafety
modeº to protect the mechanical parts of the
transmission. Shift quality and/or gear changes may
not be normal.
Conditions for Clearing the MIL/DTC

DTC P1618 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
DTC P1618 ± Serial Peripheral Interface (SPI) PCM Interprocessor
Communication Error

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Is the EEPROM calibration the latest version
available?
ÐGo to Step 4Go to Step 3
3Reprogram the PCM with the latest available
calibrations.
Does DTC 1618 re-appear when the
OBD System
Check
is repeated?ÐGo to Step 4
Repair
completed
4Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ
